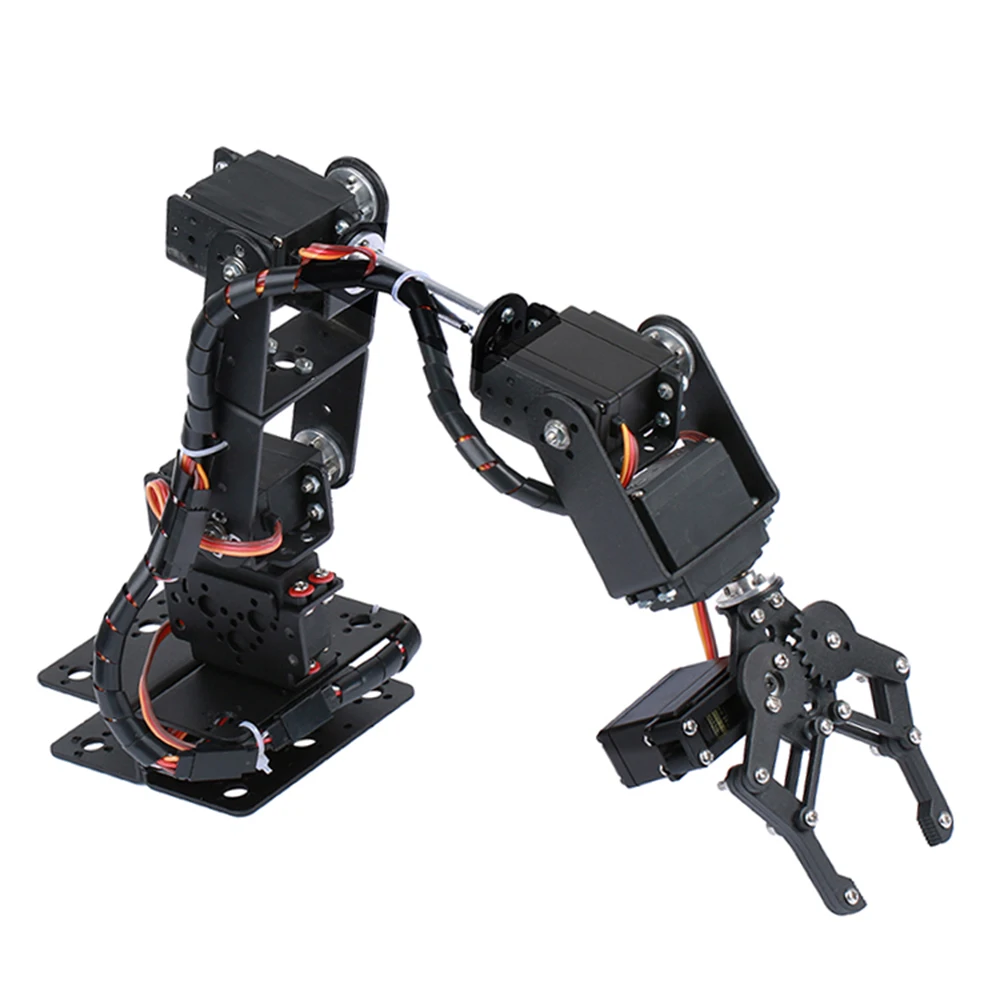

6-DOF Robotic Arm Kit Multi Degree-of-Freedom Robot Grasping Maker with Servo Option for Education and Person DIY

Description

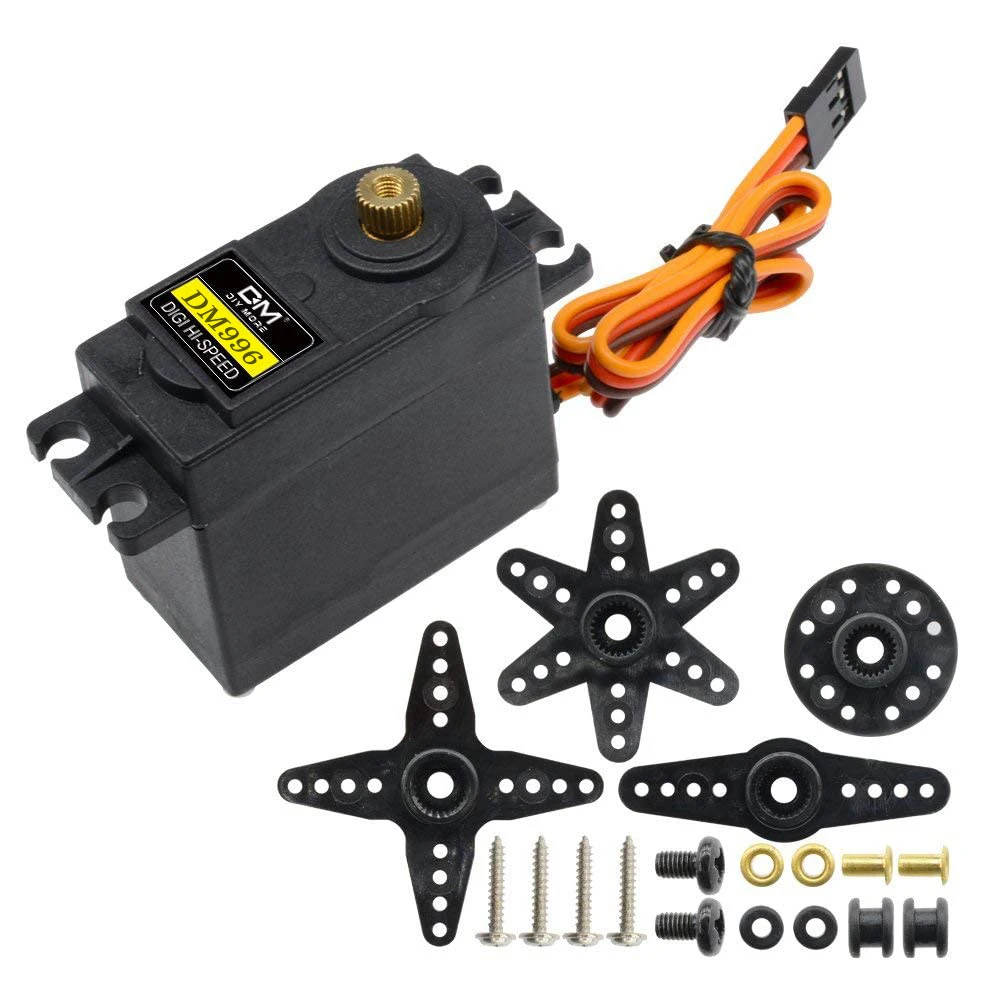

Product Selling Points: 1. The six - degree - of - freedom robotic arm is widely used in the fields of university teaching, personal DIY production, and maker education. 2. Its power system consists of 6 servo motors, enabling the robotic arm to demonstrate forward - backward, up - down, and left - right grasping and handling. 3. All the bracket accessories are made of 2MM - thick aluminum plates, effectively improving the stability of the robotic arm itself. 4. It has stable performance, and the turning of the robotic arm is flexible and smooth. 5. It offers high cost - effectiveness, with few failure points and extremely low maintenance costs. Robotic Arm Parameters: Servo Model: MG996R analog servo (not included in the delivery) Operating Voltage: 4.8 - 7.2V No - load Current: 100mA Servo Parameters: Color: Black Stopping Torque: 13kg/cm (4.8 V), 15kg/cm (6.0 V) Running Speed: 0.17 s/60° (4.8 V), 0.14 s/60° (6.0 V) Operating Voltage: 4.8 - 7.2 V Dimensions: 40mm x 19mm x 43mm Notes: 1. Please note that when placing an order, carefully check the product and distinguish between the robotic arm set and the single robotic arm parts set. 2. The arm parts set, servos, and assembly screws can be purchased compatibly or separately. Please choose the accurate product according to your needs. Package List: List 1: Robotic arm set including servos and accessories (unassembled parts) List 2: 1*robotic arm parts set (unassembled parts) List 3: 1*servo List 4: 6*servos List 5: 6*assembly screws

Specs

Brand Name

Aideepen

Origin

Mainland China

High-concerned chemical

None

DIY Supplies

Electrical

Electronic

No

Type

Robot Manipulator

Certification

CE

Model Number

Mechanical Arm

Choice

yes
