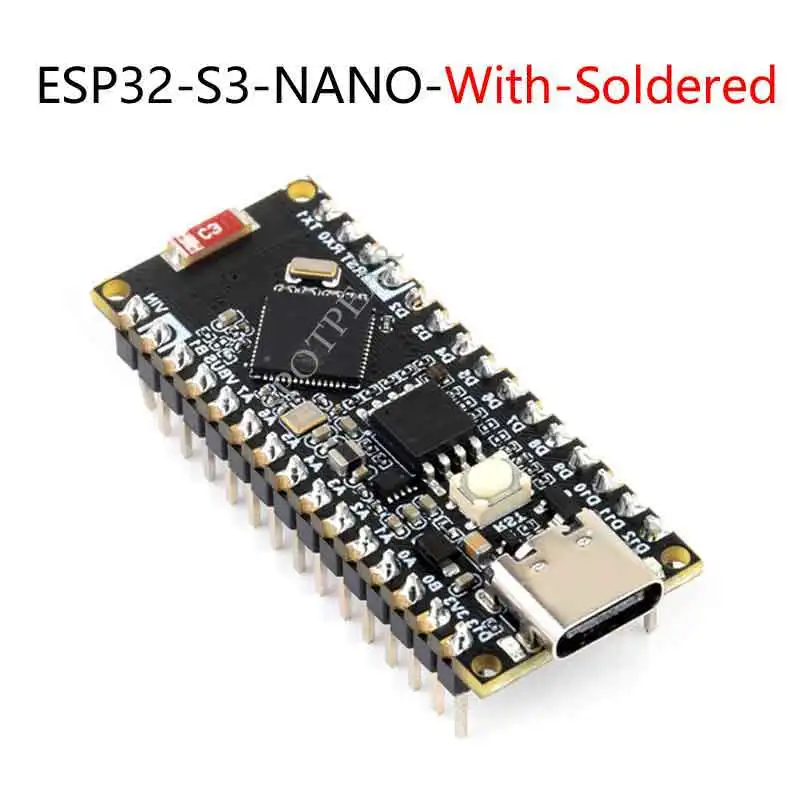

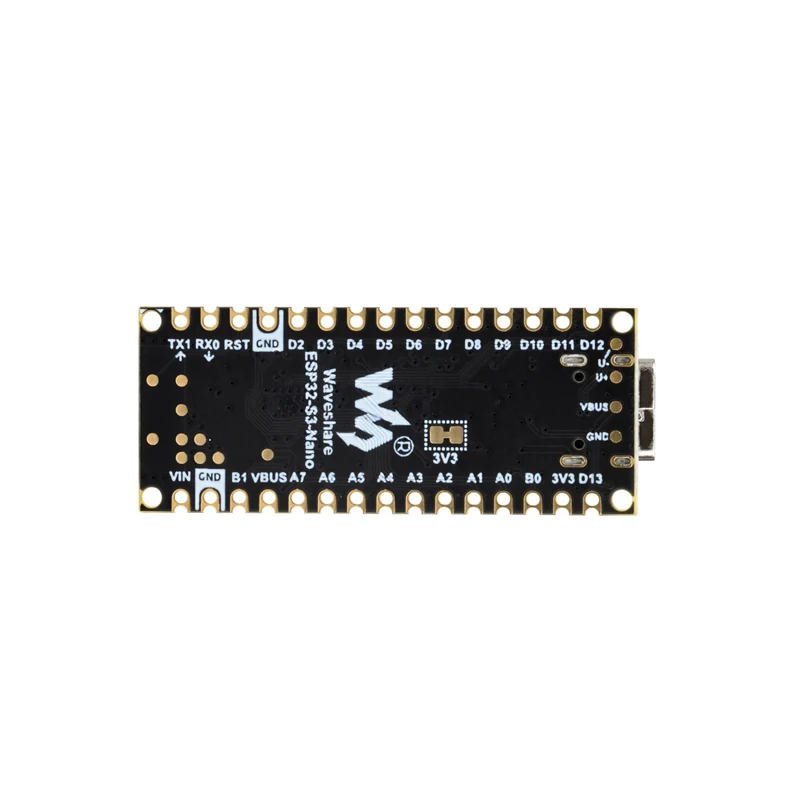

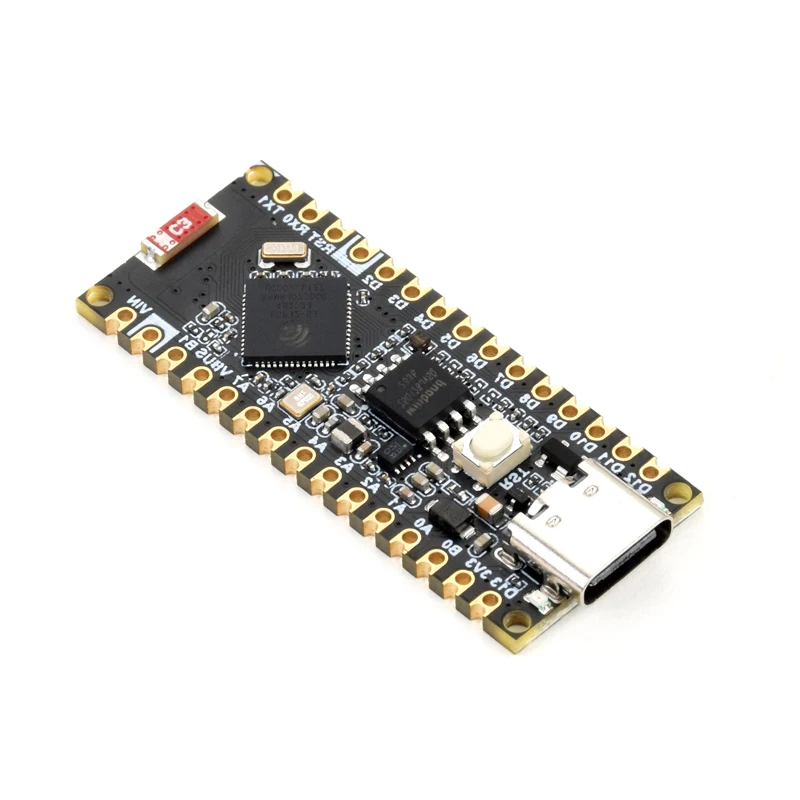

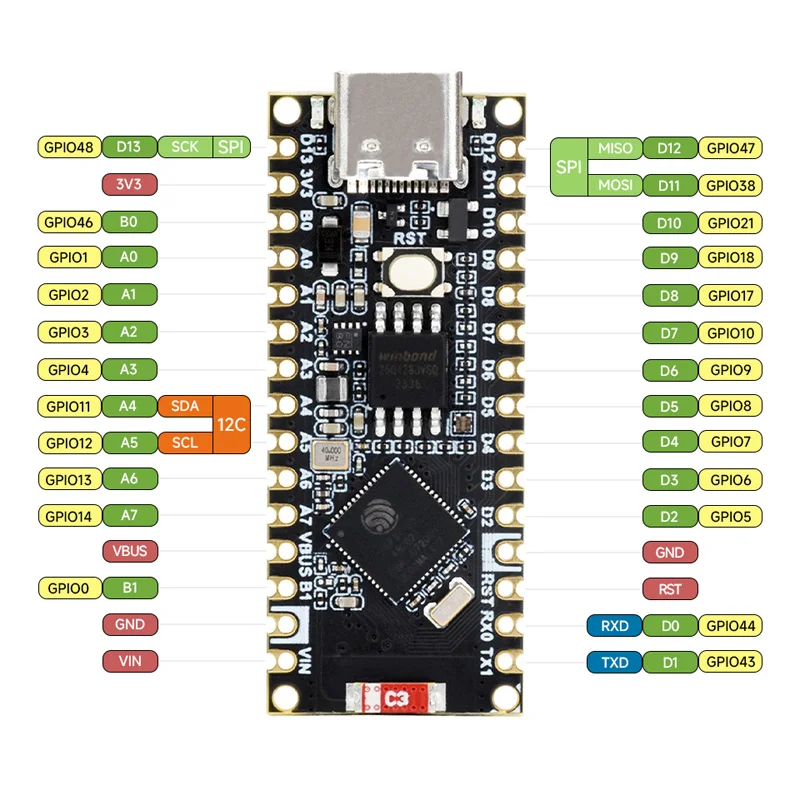

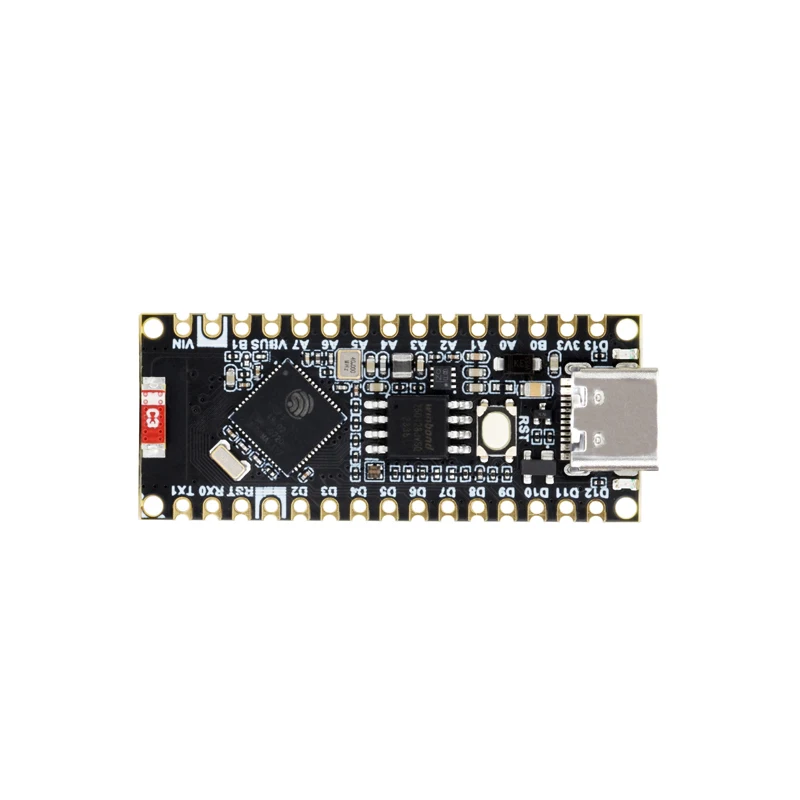

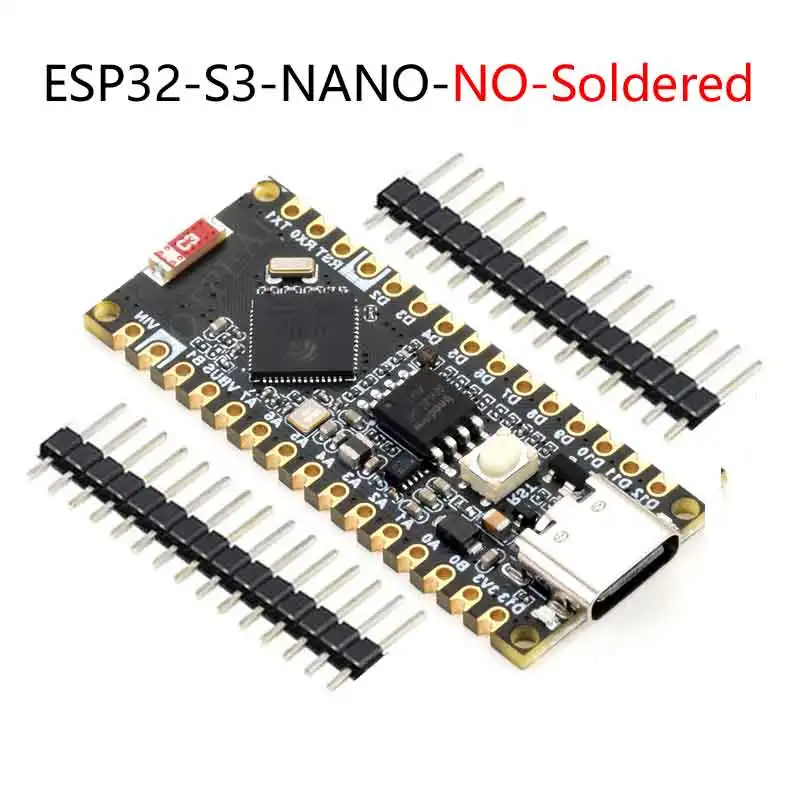

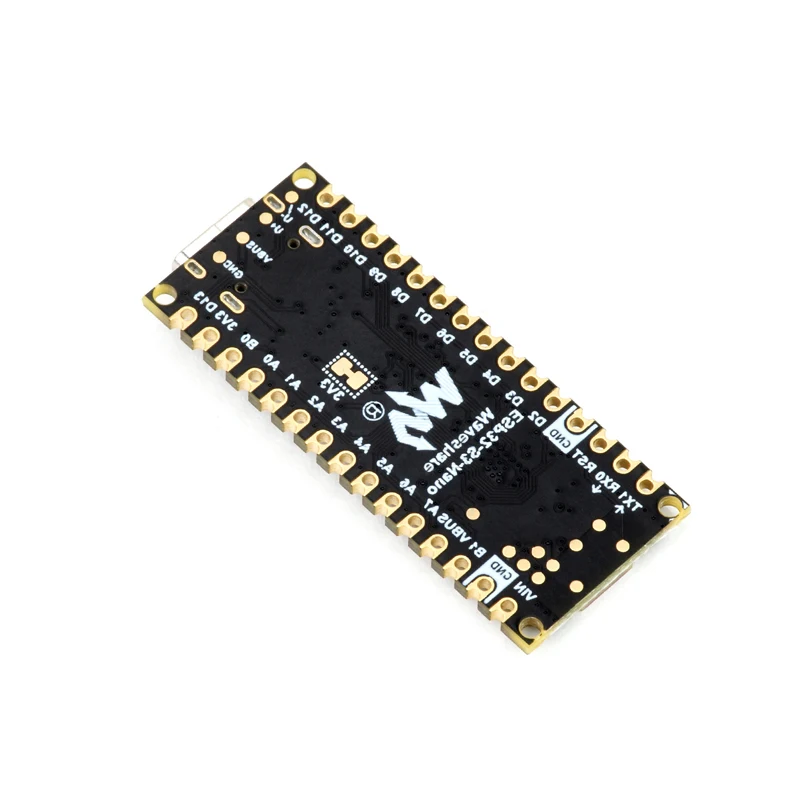

【Overview】 [] ESP32-S3-Nano adopts ESP32-S3R8 as the main controller, compatible with Arduino Nano ESP32, and is suitable for applications such as IoT or MicroPython. Compact in size while with powerful performance, it is applicable for the standalone project. 【Board Specifications】 [] The ESP32-S3-Nano adopts ESP32-S3R8 chip and is compatible with Arduino Nano ESP32. It is compact in size and powerful, suitable for applications such as IoT and MicroPython, and easy to integrate into your projects. [] Adopts ESP32-S3R8 chip with Xtensa ® 32-bit LX7 dual-core processor, capable of running at 240 MHz [] Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, 16MB Flash memory [] Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance [] Supports seamlessly switching between Arduino and MicroPython programming, more flexible usage [] Compatible with Arduino IoT Cloud, allows monitoring and controlling your project from anywhere by using the Arduino IoT Cloud app [] Supports HID, emulating Human Interface Devices such as keyboards or mice via USB port for easier interaction with PC 【Version Options】 【Product Parameters Comparison】 【What's On Board】 1. ESP32-S3R8 dual-core processor : up to 240 MHz running frequency 2. W25Q128JVSIQ : 16MB Flash, for program and data storage 3. MP2322GQH : 3.3V voltage regulator 4. 2.4G ceramic antenna 5. USB Type-C connector : for downloading program and serial port debugging 6. RST button : for resetting ESP32-S3R8 7. Arduino Nano interface : compatible with Arduino interface, adapting 2.54 pitch solder pad, can be directly connected to experimental board 8. RGB indicator : blinks and then turns off during power on or reset, supports programmable control after the board has booted up normally 9. Power indicator 10. User LED 【Pinout Definition】 【Outline Dimensions】 Package Contains [] ESP32-S3-Nano x1 [] ESP32-S3-Nano-Soldered x1
