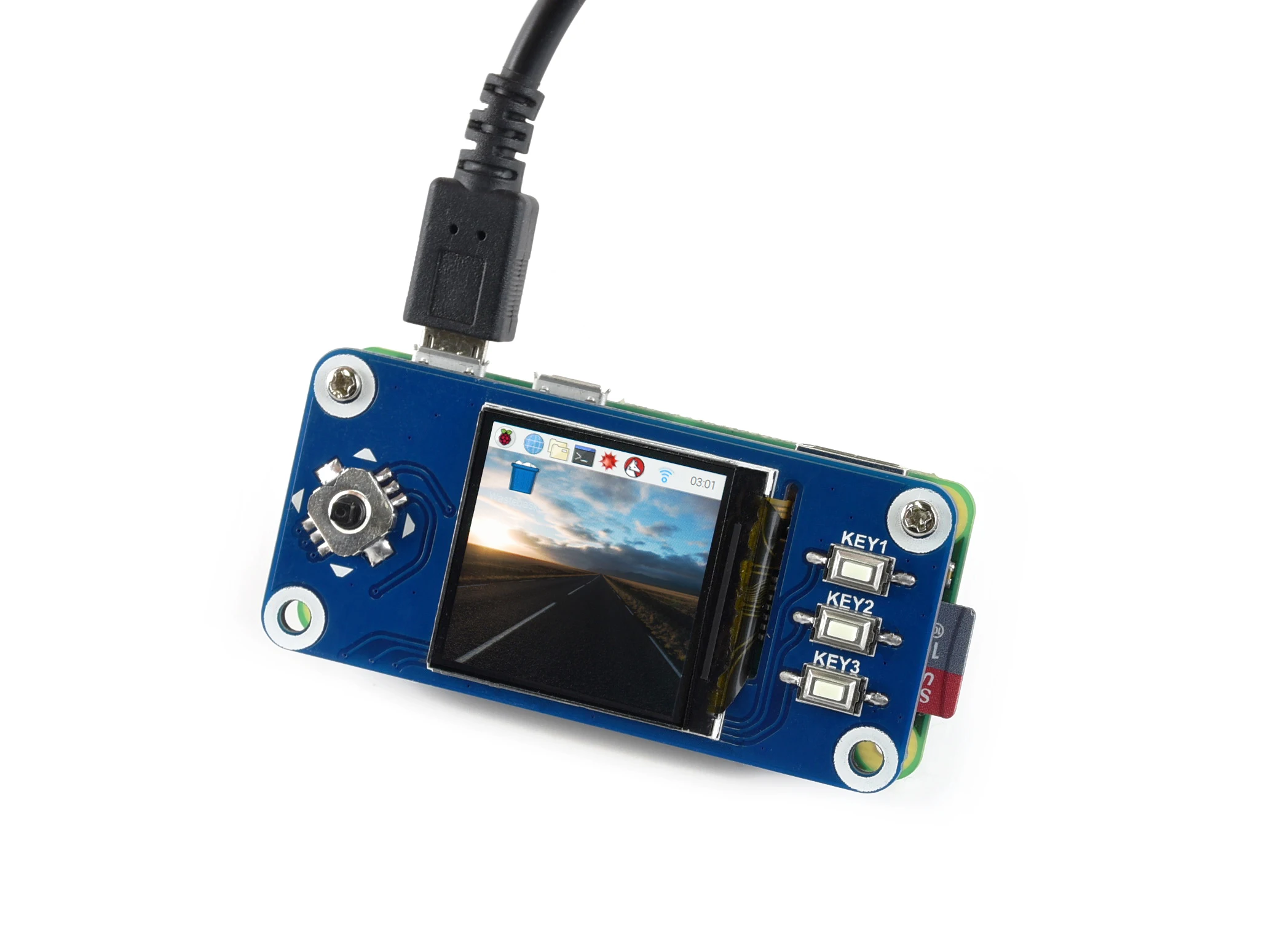

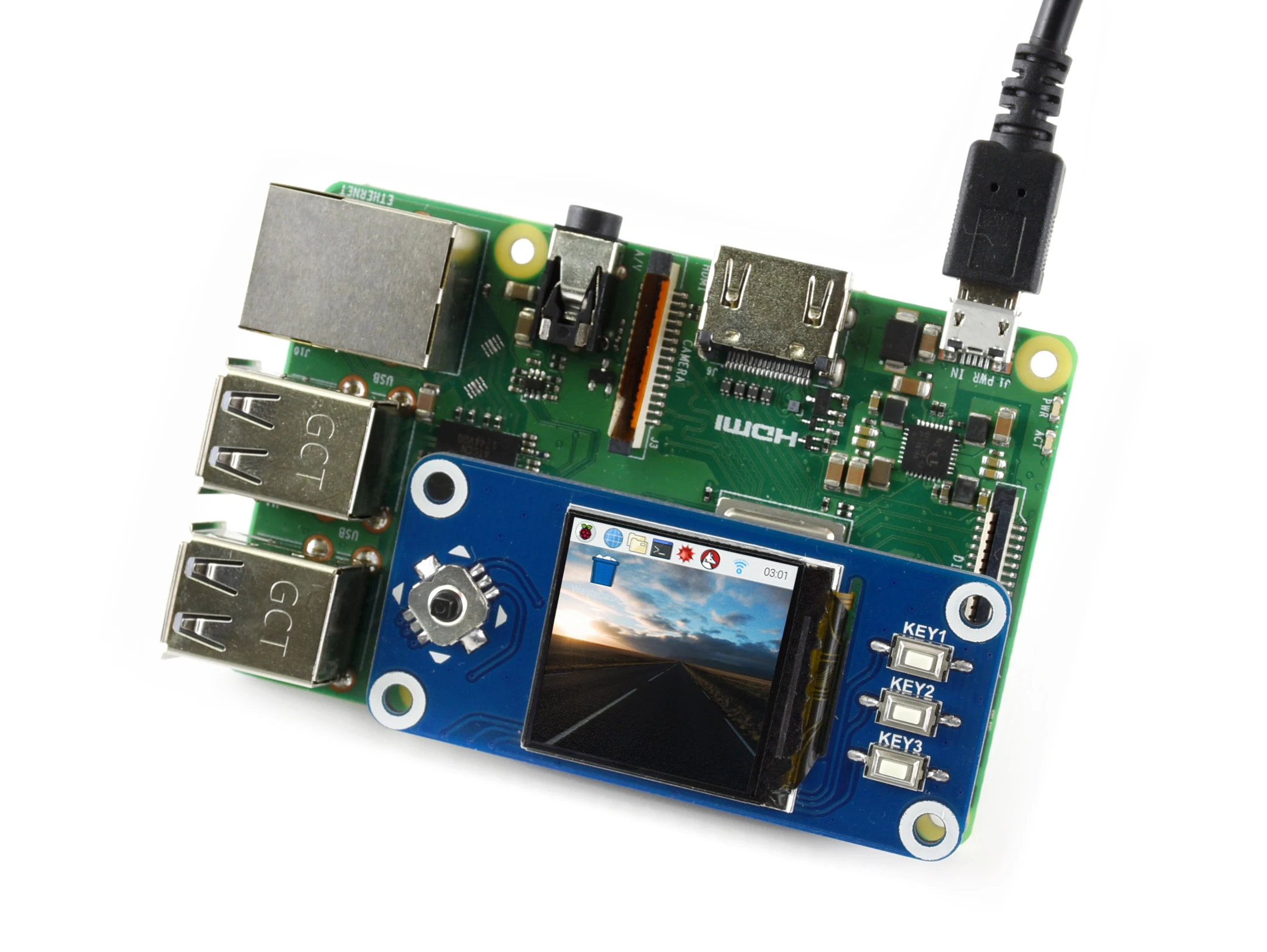

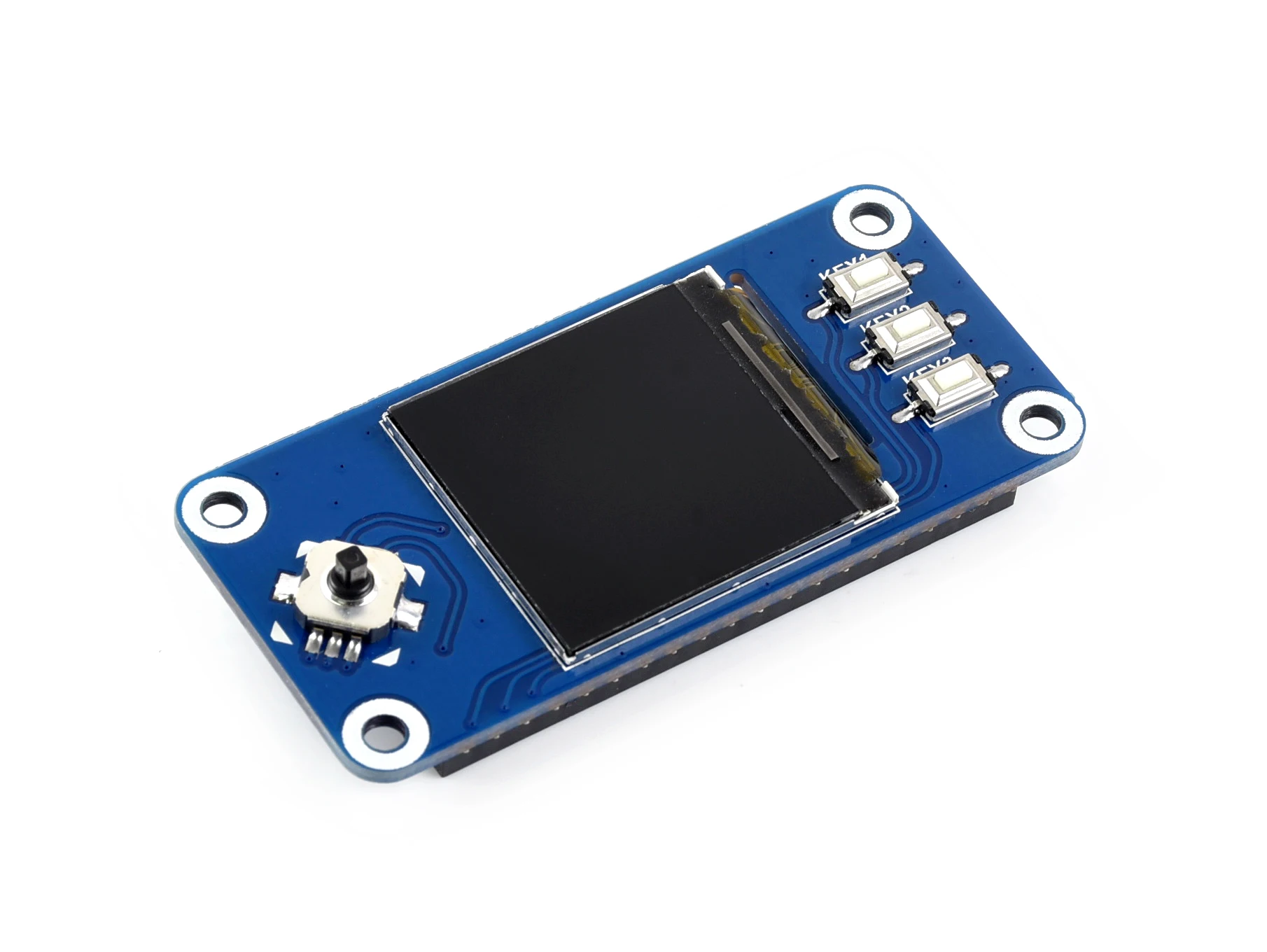

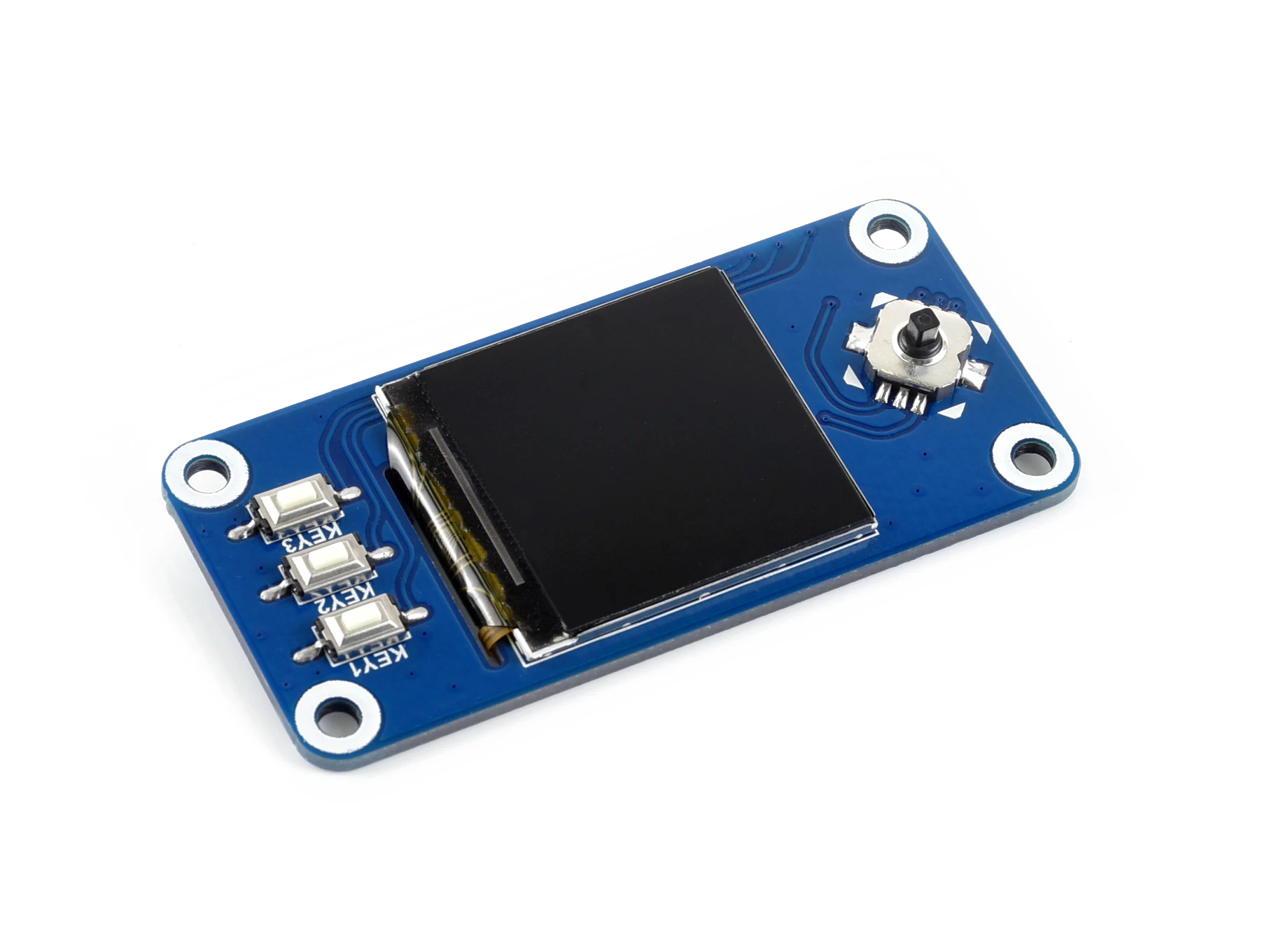

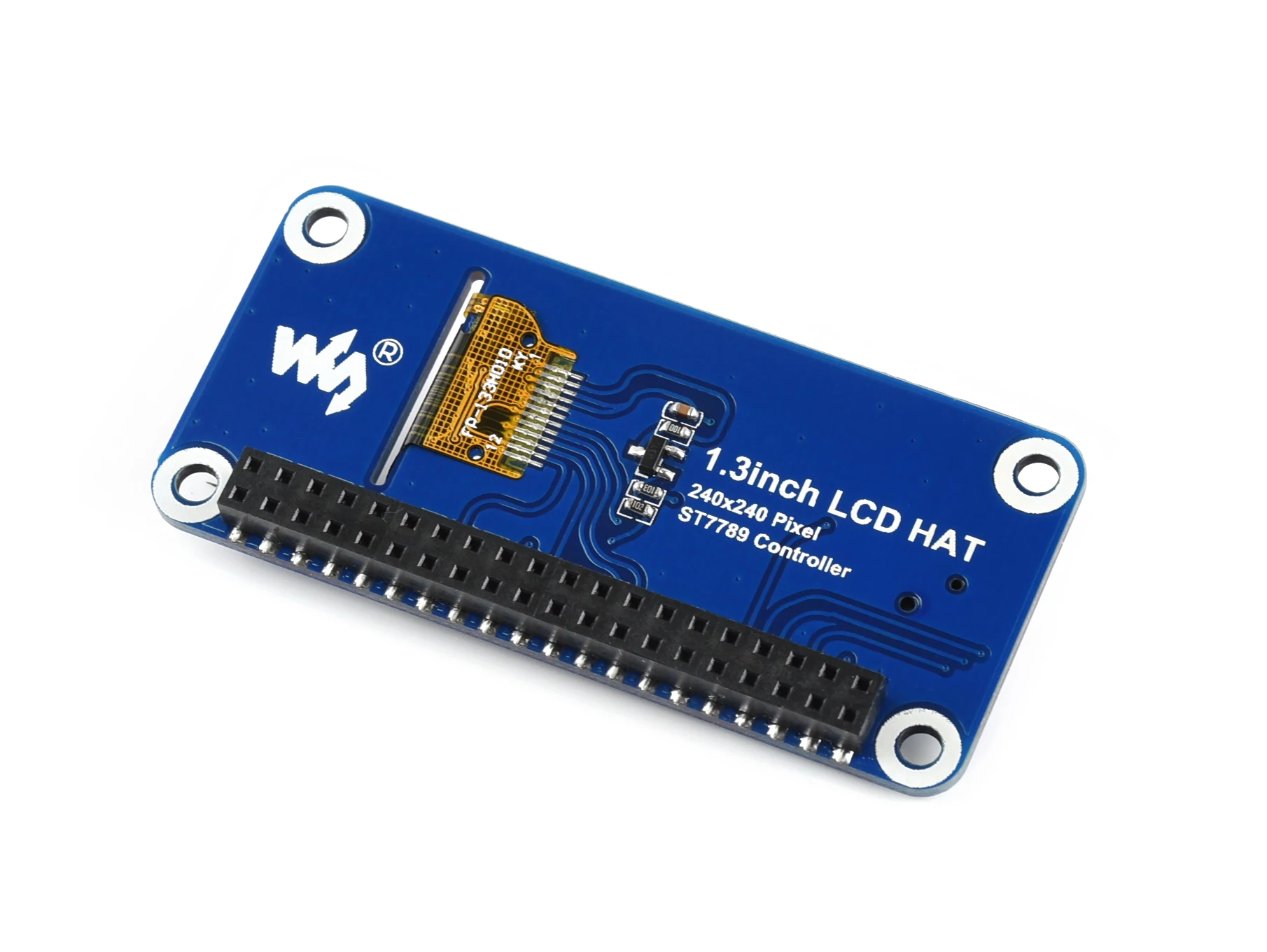

1.3inch IPS LCD display HAT for Raspberry Pi, 240x240 pixels, SPI interface Overview This is an IPS LCD display HAT for Raspberry Pi, 1.3inch diagonal, 240x240 pixels, with embedded controller, communicating via SPI interface. Trying to add a control interface for your Pi? This compact display would be the ideal choice. Features Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards IPS screen, wide viewing angle, better display High definition in small size 1x joystick, 3x pushbuttons, handy and useful Comes with development resources and manual (examples for Raspberry Pi) Specifications Driver: ST7789 Interface: SPI Display color: RGB, 65K color Resolution: 240x240 Backlight: LED Operating voltage: 3.3V Interface SYMBOL Raspberry Pi PIN (BCM) DESCRIPTION KEY1 P21 Button 1/GPIO KEY2 P20 Button 2/GPIO KEY3 P16 Button 3/GPIO Joystick Up P6 Joystick Up Joystick Down P19 Joystick Down Joystick Left P5 Joystick Left Joystick Right P26 Joystick Right Joystick Press P13 Joystick Press SCLK P11/SCLK SPI clock input MOSI P10/MOSI SPI data input DC P25 Data/Command selection (high for data, low for command) CS P8/CE0 Chip selection, low active RST P27 Reset, low active BL P24 Backlight Dimensions Photos Development Resources Wiki : www.waveshare.com/wiki/1.3inch_LCD_HAT PACKAGE CONTENT Weight: 0.014 kg 1.3inch LCD HAT x1 RPi screws pack (2pcs) x1
