Natalink RJ45 CAT6 CAT5e Pass Through Connector Modular Plug 8P8C Crystal End Gold-Plated Solid or Stranded UTP Network Cable

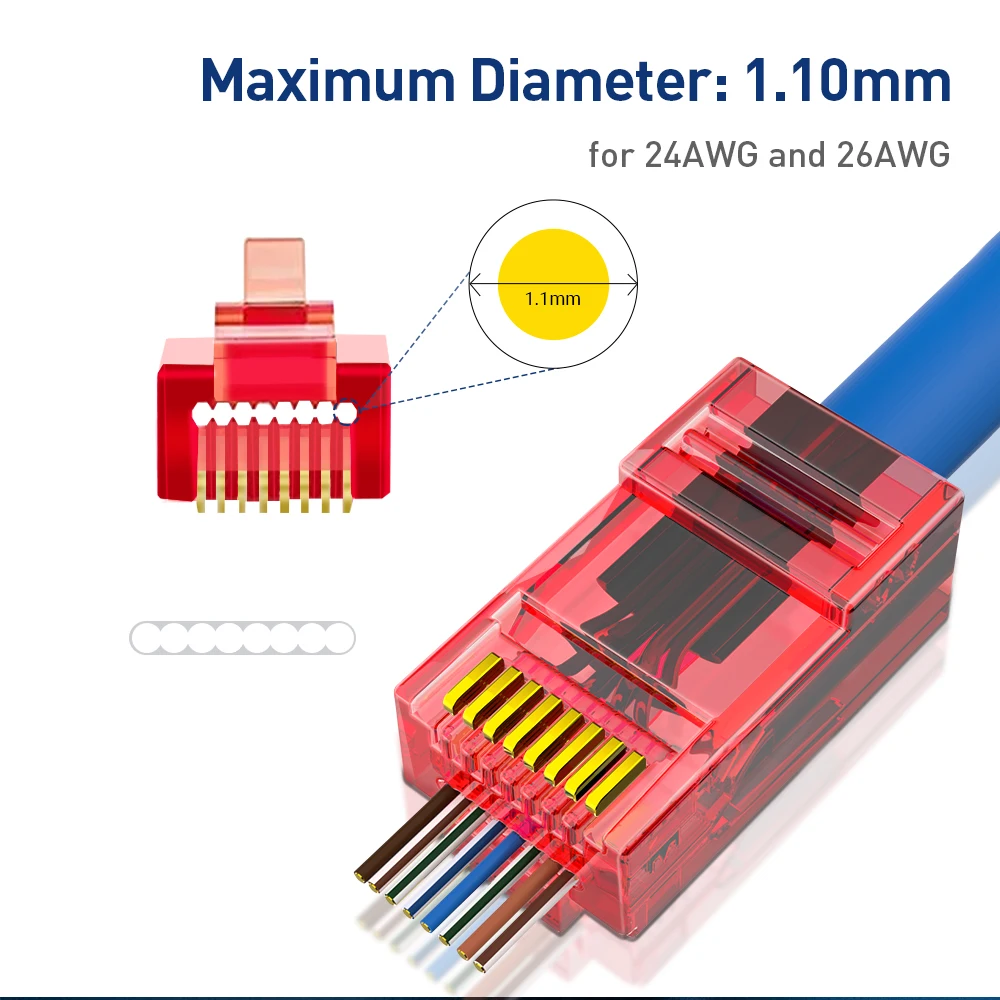

180° Bending Test New environmentally friendly transparent PC material presses the spring to bend >45 times. Maximum Diameter: 1.10mm for 24AWG and

Brand: NATALINK

Availability confirmed during order processing

Ships to Canada

Estimated delivery: 7-12 days

$3.50

$3.60

Selected variant: Blue / 10Pcs

Availability is confirmed during order processing before fulfillment.

You can add products as a guest. Checkout asks you to sign in to your Polar Parts account before payment.

Variant pricing ranges from $3.50 to $11.51.

Questions before you order? Review the shipping policy, refund policy, or contact support.

Description

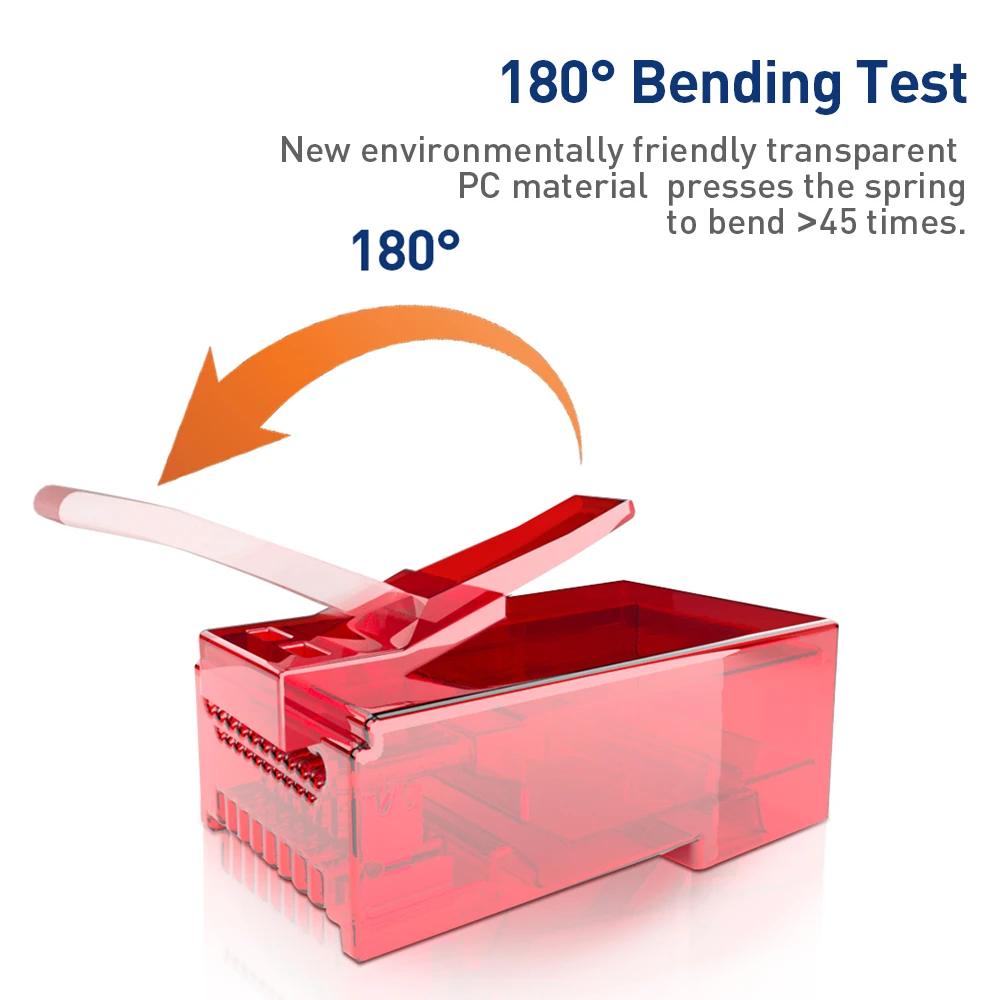

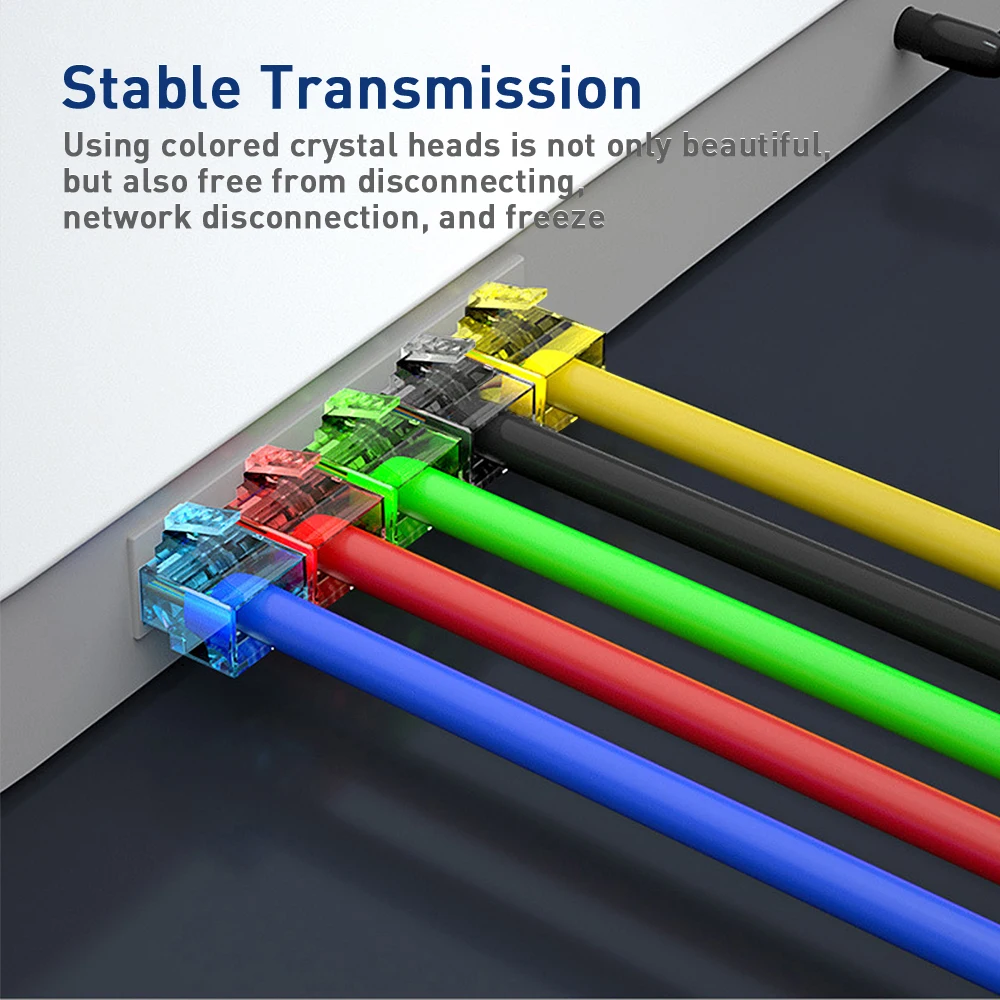

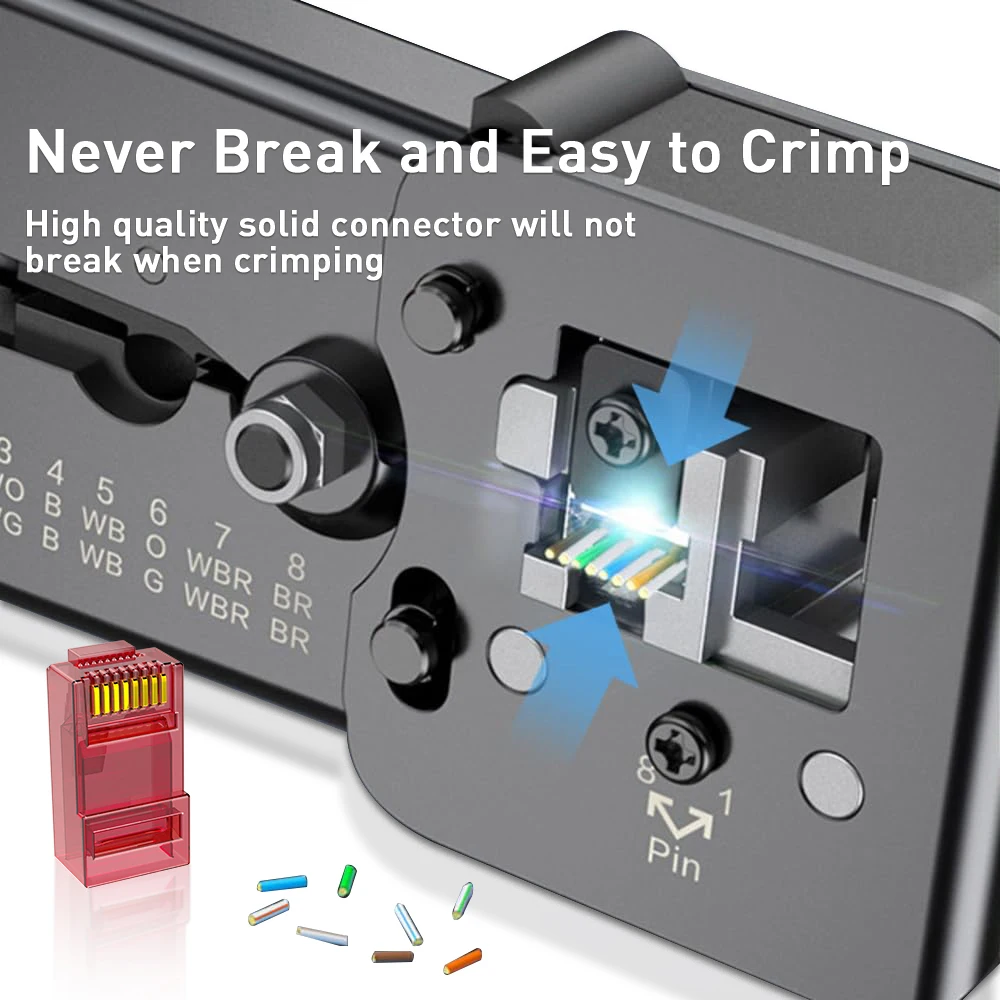

180° Bending Test New environmentally friendly transparent PC material presses the spring to bend >45 times. Maximum Diameter: 1.10mm for 24AWG and 26AWG Stable Transmission Using colored crystal heads is not only beautiful,but also free from disconnectingnetwork disconnection, and freeze. Never Break and Easy to Crimp High quality solid connector will not break when crimping. How To Make a RJ45 Cable Arrange the cables in order Insert the cable to the connector Put the connector to the suitable slot untilauto release The crimping is finished Product Details

Specs

Brand Name
NATALINK
Item Type
RJ45
Gender
Female
Power Source
Other
Origin
Mainland China
High-concerned chemical
None
Model Number
ARC6-U55
Color
yellow, red, black, green, blue
Packing
50/100Bag
Cable type
8P8C, Cat6/Cat5e specification
Brightness type
UTP
Gold plating process
30μ
Outside Diameter
1.1±0.02mm
Conductor OD
≤ 0.512mm
Wire OD
24-26AWG
Bandwidth
250MHz
Transmission rate
1000Mbps
Plugging and unplugging life
≥ 1000 times
Plugging force
20N-50N
Line sequence standard
T568A/T568B
Operating temperature
-40°C~ 70°C
Choice
yes
semi_Choice
yes
