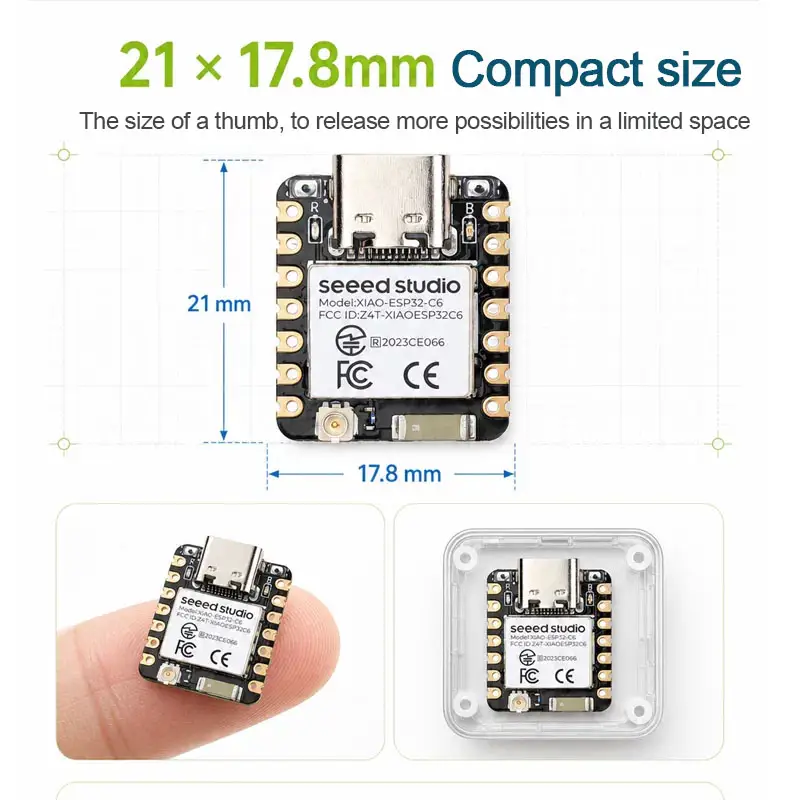

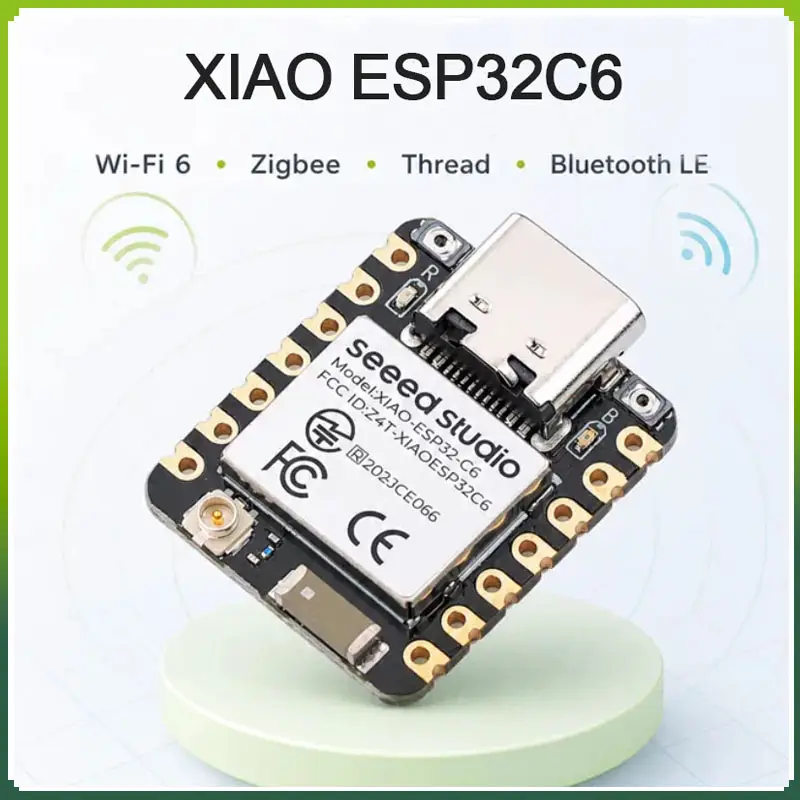

1/5/10PCS XIAO ESP32-C6 Seeed Studio 2.4GHz WiFi6 Bluetooth 5 Mini ESP32C6 Development Board Bulit in 4MB Support Zigbee/Matter Product Introduction XIAO ESP32-C6 is a cost-effective MCU based on Espressif’s ESP32-C6. This compact MCU excels in Matter-compliant smart home applications with its support for various wireless connectivity (2.4GHz Wi-Fi 6, BLE 5.0, Zigbee, and Thread). Designed with the thumb-size footprint and a single-sided mount of the XIAO Series, it's perfect for space-limited projects. Encrypted on the chip, the XIAO ESP32-C6 ensures a desired level of security streamlined development experience, and swift market entry by integrating easily with major IoT Cloud platforms. Feature Enhanced Connectivity: Combines 2.4GHz Wi-Fi 6 (802.11ax), Bluetooth 5(LE), and IEEE 802.15.4 radio connectivity, allowing you to apply the Thread and Zigbee protocols. Matter Native: Supports building Matter-compliant smart home projects thanks to its enhanced connectivity, achieving interoperability Security Encrypted on Chip: Powered by ESP32-C6, it brings enhanced encrypted-on-chip security to your smart home projects via secure boot, encryption, and Trusted Execution Environment (TEE) Outstanding RF performance: Has an on-board antenna with up to 80m BLE/Wi-Fi range, while reserving an interface for external UFthium battery charge management. Dual RISC-V Processors: Incorporates two 32-bit RISC-V processors, with the high-performance processor running up to 160 MHz, and the low-power processor clocking up to 20 MHz Classic XIAO Designs: Remains the classic XIAO designs of the thumb-size form factor of 21 x 17.8mm, and single-sided mount, making it perfect for space-limited projects such as wearables Seamless integration with mainstream Cloud Platforms: ESP Rain Maker, AWS IoT, Microsoft Azure, and Google Cloud Specification Comparison Product XIAO ESP32C6 XIAO ESP32C3 XIAO ESP32S3 Processor Espressif ESP32-C6 SoC Espressif ESP32-C3 SoC Espressif ESP32-S3R8 two 32-bit RISC-Vprocessors, with the high-performance one running up to 160 MHz, and the low-power one clocking up to 20 MHz RISC-V single-core 32-bit chip processor with a four-stage pipeline that operates at up to 160 MHz Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz Wireless Complete 2.4GHz Wi-Fi 6 subsystem Complete 2.4GHz Wi-Fi subsystem Complete 2.4GHz Wi-Fi subsystem BLE: Bluetooth 5.0, Bluetooth mesh BLE: Bluetooth 5.0, Bluetooth mesh BLE: Bluetooth 5.0, Bluetooth mesh Zigbee,Thread,IEEE 802.15.4 / / On-chip Memory 512KB SRAM & 4MB Flash 400KB SRAM & 4MB Flash 8M PSRAM & 8MB Flash Interface 1x UART,1x LP_UART, 1x IIC, 1x LP_IIC, 1x SPI,11x GPIO(PWM), 7x ADC, 1xSDIO 1x UART, 1x IIC, 1x SPI,11x GPIO(PWM), 4x ADC 1x UART, 1x IIC, 1x IIS, 1x SPI,11x GPIO(PWM), 9x ADC, 1x User LED, 1x Charge LED 1x Reset button, 1x Boot button 1x Reset button, 1x Boot button 1x Reset button, 1x Boot button Dimensions 21 x 17.5mm 21 x 17.5mm 21 x 17.5mm Power Input voltage (Type-C): 5V Input voltage (BAT): 4.2V Input voltage (Type-C): 5V Input voltage (BAT): 4.2V Input voltage (Type-C): 5V Input voltage (BAT): 4.2V Circuit operating Voltage (ready to operate): - USB:5V@ 9mA - BAT:3.8V@ 9mA Circuit operating Voltage (ready to operate): - USB:5V@ 9mA - BAT:3.8V@ 9mA Circuit operating Voltage (ready to operate): - Type-C: 5V@ 19mA - BAT: 3.8V@ 22mA Charging battery current: 100mA Charging battery current: 350mA Charging battery current: 100mA Power Consumption Model (Supply Power: 3.8V) Modem-sleep Model: ~ 30 mA Light-sleep Model: ~ 2.5 mA Deep Sleep Model: ~15 μA Modem-sleep Model: ~ 24 mA Light-sleep Model: ~ 3 mA Deep Sleep Model: ~44 μA Modem-sleep Model: ~ 25 mA Light-sleep Model: ~ 2mA Deep Sleep Model: ~ 14 μA Working Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 65°C Part List Seeed Studio XIAO ESP32C6 x1 7 Pin Header x2
