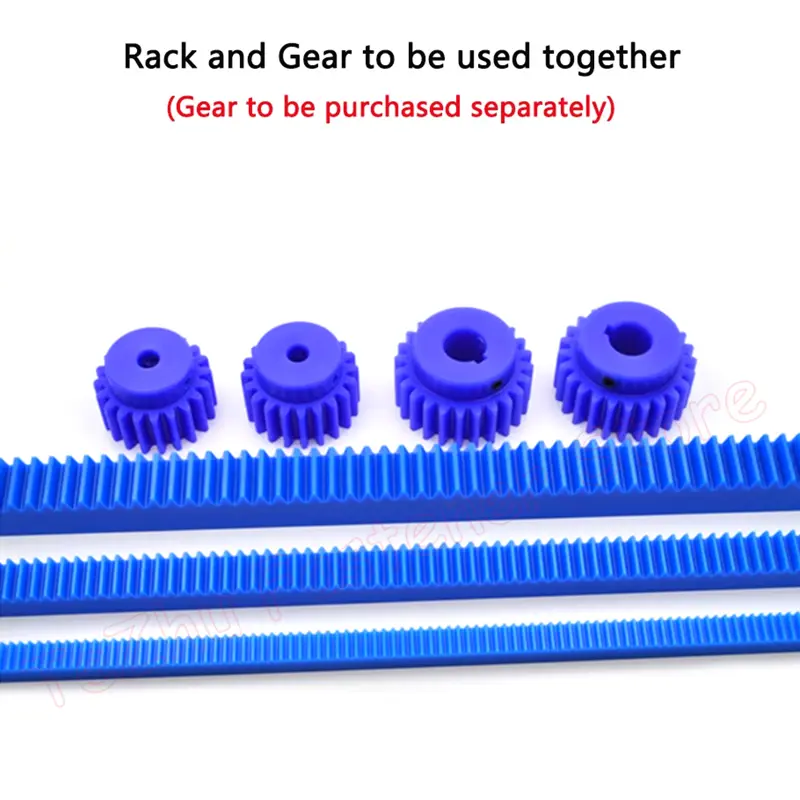

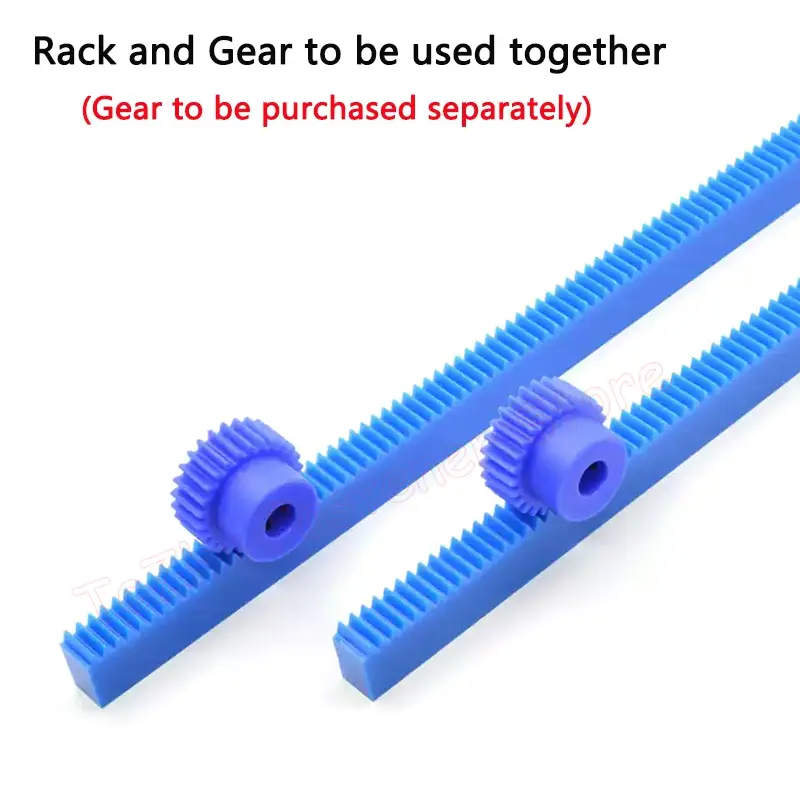

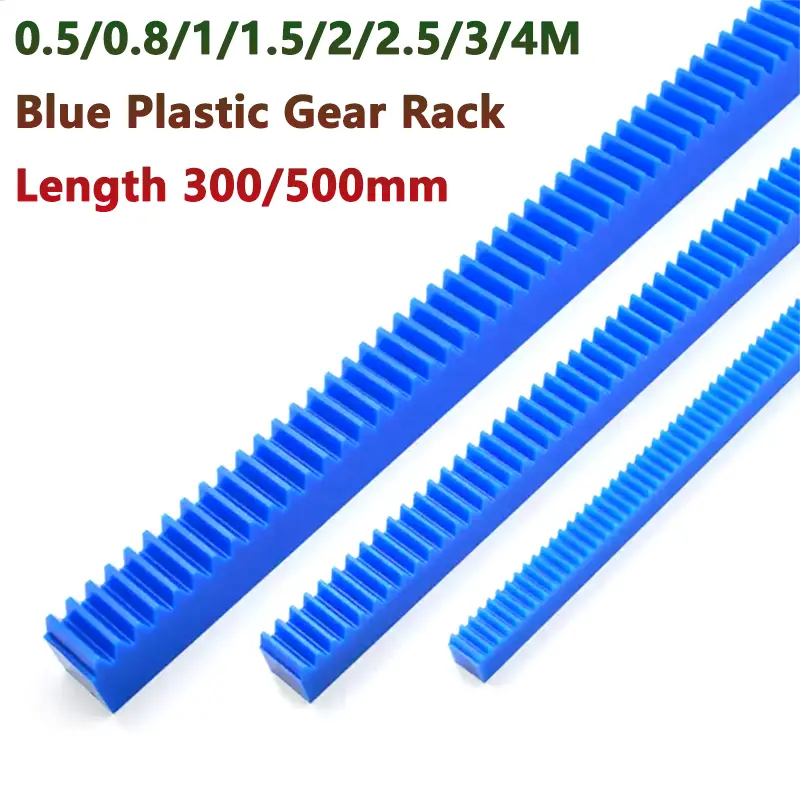

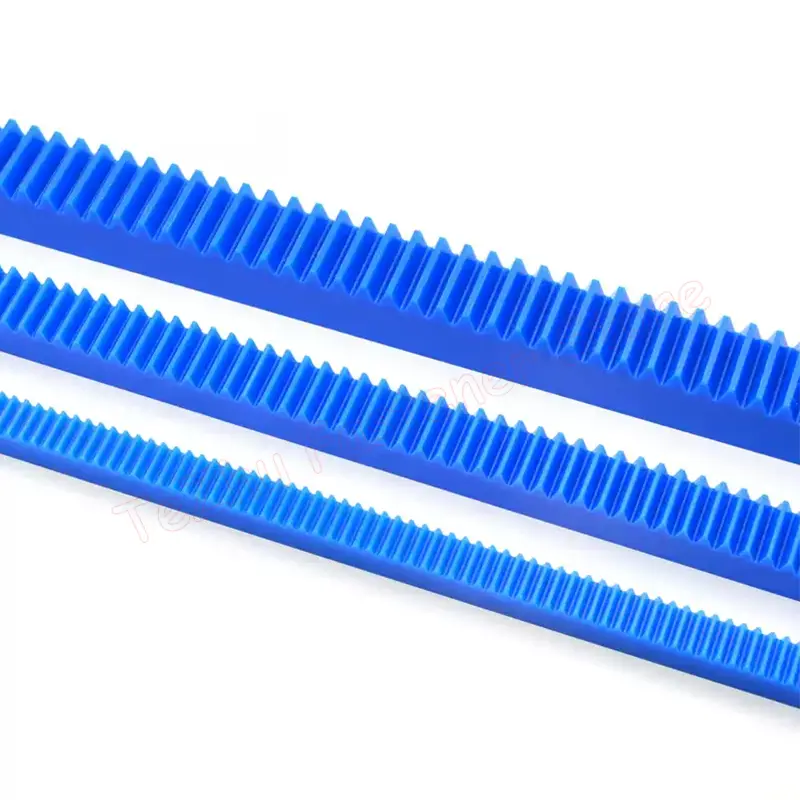

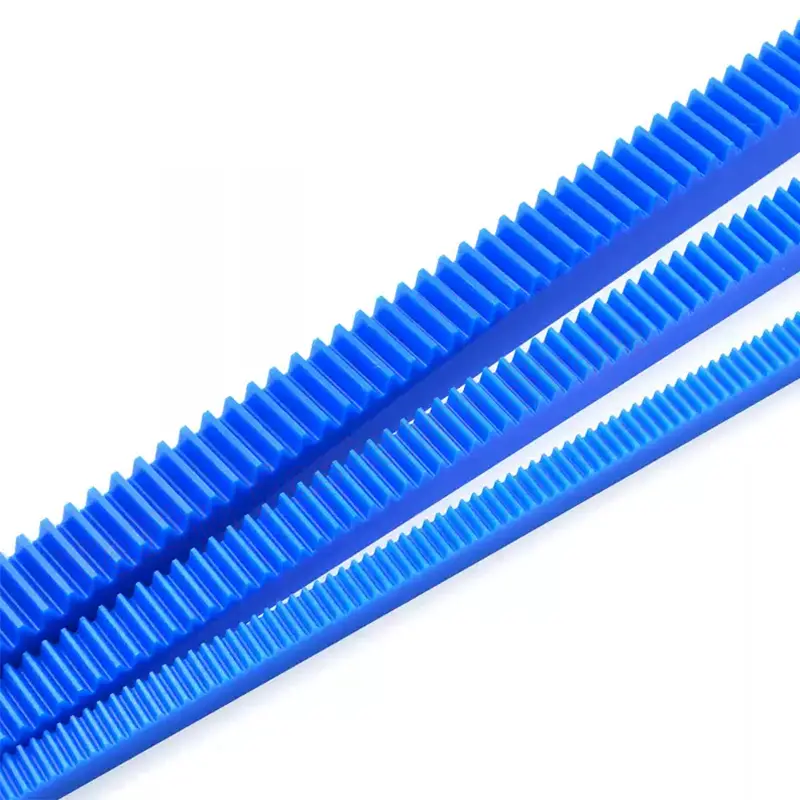

Blue HDPE Spur Gear Rack, 0.5-3 Module, 20° Pressure Angle, 300mm or 500mm Long

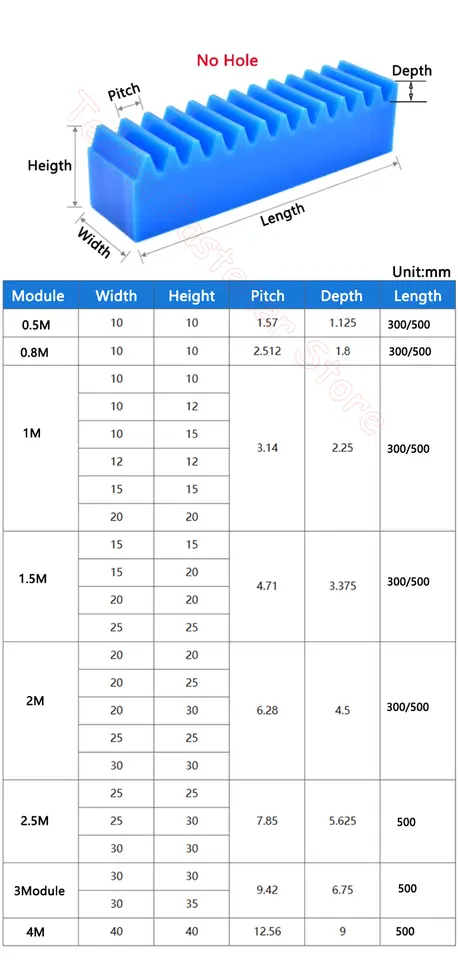

Specification: Name: Straight Teeth Drive Rack Material: Plastic HDPE500 Color: Blue Modulus: 0.5/0.8/1/1.5/2/2.5/3/4 Module Pressure Angle: 20 Size: Modulus Width x Height x Length E.g.: 0.5M 10x10x300mm (Modulus=0.5M; Width=10mm; Height=10mm; Length=300mm) Tooth Surface Hardness: Soft Tooth Surface Height tolerance: 0.3-0.5mm Application: For Use with 0.5/0.8/1/1.5/2/2.5/3/4 Module Spur Gear Note: 1.The link rack are not including the price of gears, gears are required to purchase separately. 2.Modulus is the model, the larger the modulus, the larger the teeth, rack and pinion with the same modulus in order to support. 3. No hole type rack is not splicing use, if you need to use splicing need another processing charges. 4.Due to material reasons, the rack itself will be somewhat curved, and it can be used normally after being fixed in the later period. Package : Packing : Plastic bag / Carton box. Quantity : According to your Choose!
