AC 220V 22mm 250Rpm 6 Wire 6 Conductors Capsule Compact Slip Ring For CCTV Monitor Electrical Test Equipment image 1

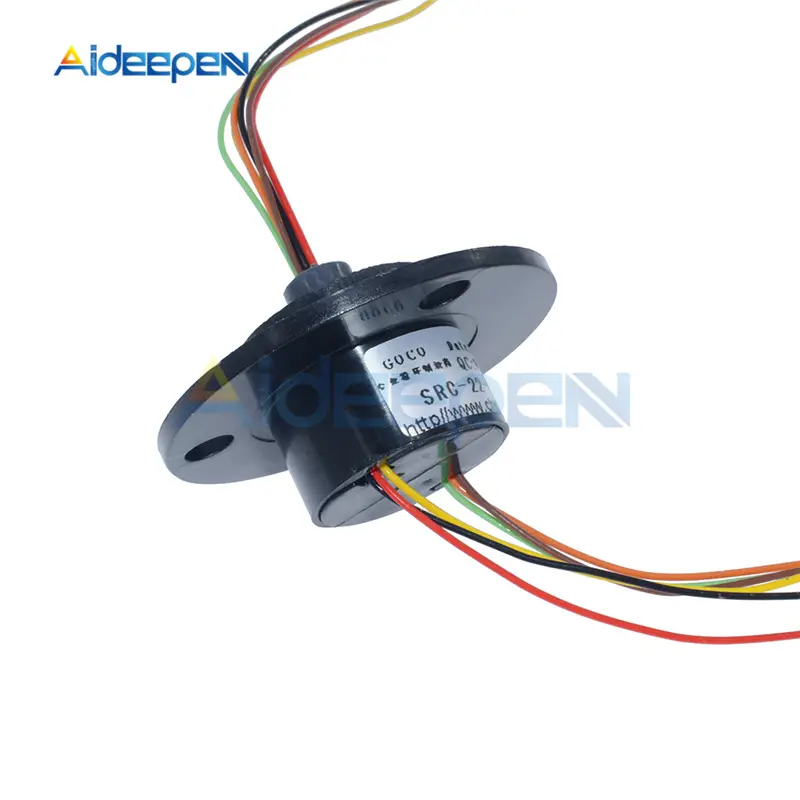

AC 220V 22mm 250Rpm 6 Wire 6 Conductors Capsule Compact Slip Ring For CCTV Monitor Electrical Test Equipment image 2

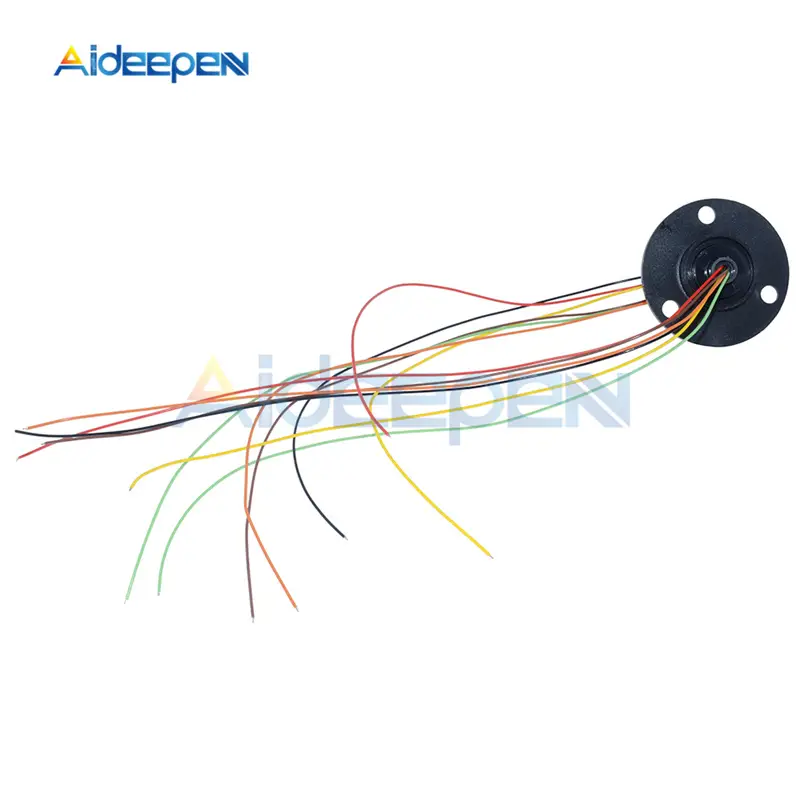

AC 220V 22mm 250Rpm 6 Wire 6 Conductors Capsule Compact Slip Ring For CCTV Monitor Electrical Test Equipment image 3

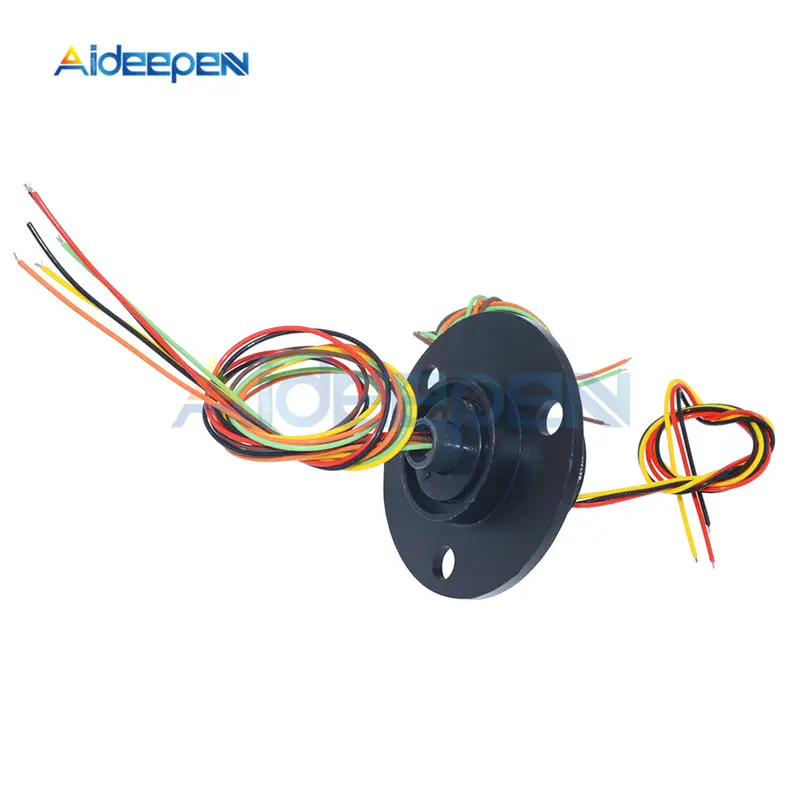

AC 220V 22mm 250Rpm 6 Wire 6 Conductors Capsule Compact Slip Ring For CCTV Monitor Electrical Test Equipment image 4

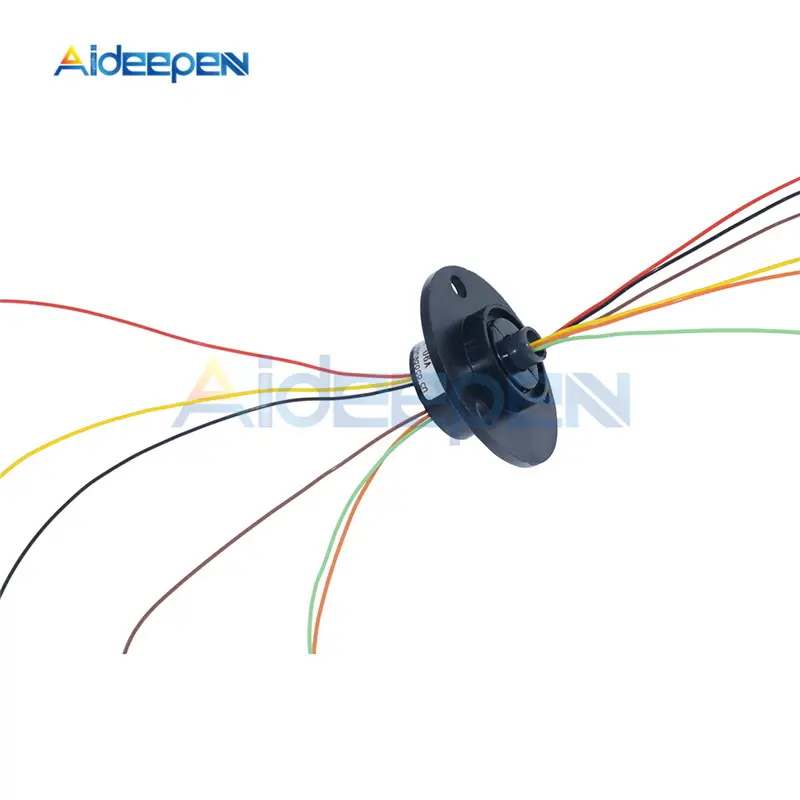

AC 220V 22mm 250Rpm 6 Wire 6 Conductors Capsule Compact Slip Ring For CCTV Monitor Electrical Test Equipment image 5

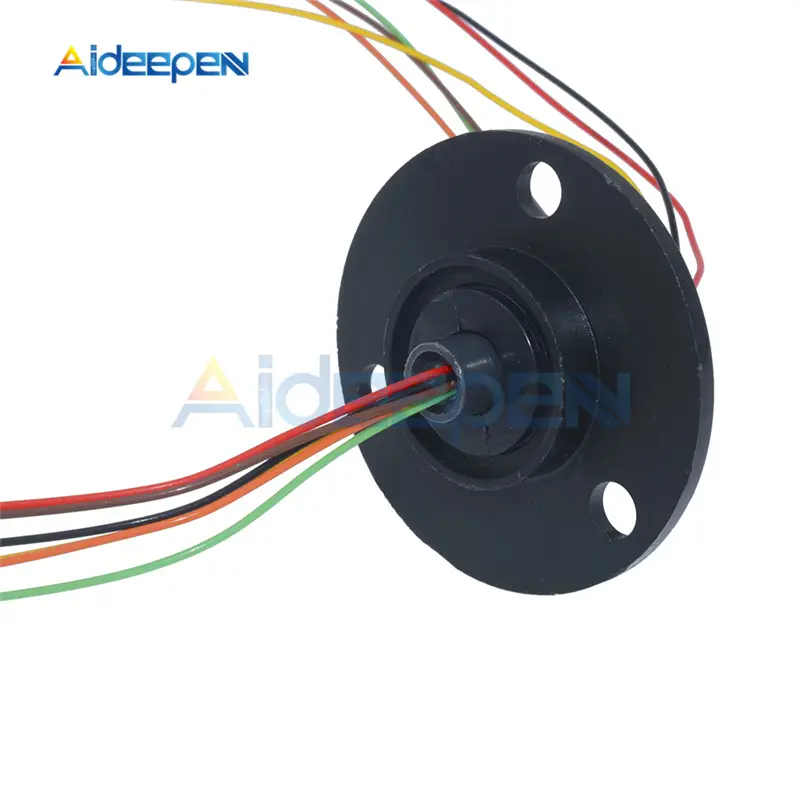

AC 220V 22mm 250Rpm 6 Wire 6 Conductors Capsule Compact Slip Ring For CCTV Monitor Electrical Test Equipment image 6
Image 1 of 6

Brand: Aideepen

AC 220V 22mm 250Rpm 6 Wire 6 Conductors Capsule Compact Slip Ring For CCTV Monitor Electrical Test Equipment

$11.63

Est. delivery 7–18 days

Est. $2.88 shipping to Canada. Exact cost at checkout

In stock

Supplier stock is confirmed when your order is processed.

Quantity
Sold by
Polar Parts
Ships from
Our supplier partnersSupport from Milton, Ontario
Shipping
Canada only
Returns
14 days, unopened items
Payment
Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

Model Number6 Wire 6 Conductors Capsule Compact Slip Ring
Output VoltageAC 220V
OriginMainland China
Semi-finishedproductNo
DIY SuppliesElectrical
ElectronicNo
Electrical Slip RingsAc Slip Ring
SKUAE-4000982871775-10000013190957085

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

AC 220V 22mm 250Rpm 6 Wire 6 Conductors Capsule Compact Slip Ring For CCTV Monitor Electrical Test Equipment Description: The capsule slip ring is a standard off-the-shelf series with gold contacts at the swivel interface. Color-coded wires are used on both the stator and rotor to simplify electrical connections. Using a 90-degree V-groove design for each ring, the ZSR-A offers smoother operation, lower torque, and lower contact wear rates than the competition. Feature: - Designed with advanced technology to reduce consumption. - The compression design allows for great flexibility in handling system size limits: 22.0mm OD and 19.53mm to 42.53mm (depending on the circuit). - Combine signals and power in the same slip ring, fully satisfying 360 degree rotation - Precision modules provide long-term maintenance - free operation (no need to clean or lubricate). Specification: - Operating voltage: 220 V / AC Operating speed: 250 rpm Circuit: 6 - Material: Engineering Plastics - Operating humidity: 60% RH or higher Operating temperature: 40 ° C ~ + 80 ° C - Operating current: 2A per circuit - Contact material: gold-plated ring - gold-plated brush - Insulation resistance: 1000MΩ@ 500 VDC - Size: 150mm 30#AWG Teflon line - Electrical strength: ≥500 VAC @ 50Hz between each circuit and all other circuits - Electrical noise: up to 70 milliohms. Tested at 6 VDC and 50 mA at 5 rpm - Working life: depending on speed and working environment Outer diameter: 22.0mm Diameter: 44.5mm Length: 19.2mm Application: - CCTV monitoring system. - Electrical test equipment. - Medical equipment. -Robotics. 1x 22mm 6 wire 6 conductor capsule compact slip ring 220V AC 250Rpm CCTV monitor
