ADS1115 16-Bit ADC Module, 4 Channels, I2C, Programmable Gain, 2.0-5.5V

Name: ADS1115 16-Bit ADC Module, 4 Channels, I2C, Programmable Gain, 2.0-5.5V
SKU: AE-1005012280162171-12000057942383254
Price: 7.19 CAD
Availability: InStock

$7.19

Est. delivery 6–12 days

Est. $3.13 shipping to Canada. Exact cost at checkout

In stock

Supplier stock is confirmed when your order is processed.

Quantity

Sold by: Polar Parts
Ships from: Our supplier partnersSupport from Milton, Ontario
Shipping: Canada only
Returns: 14 days, unopened items
Payment: Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

Type	Module
Package	SMD
Supply Voltage	2.0V To 5.5V
Dissipation Power	1a
Quantity	1
Application	Computer
Condition	New
Origin	Mainland China
SKU	AE-1005012280162171-12000057942383254

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

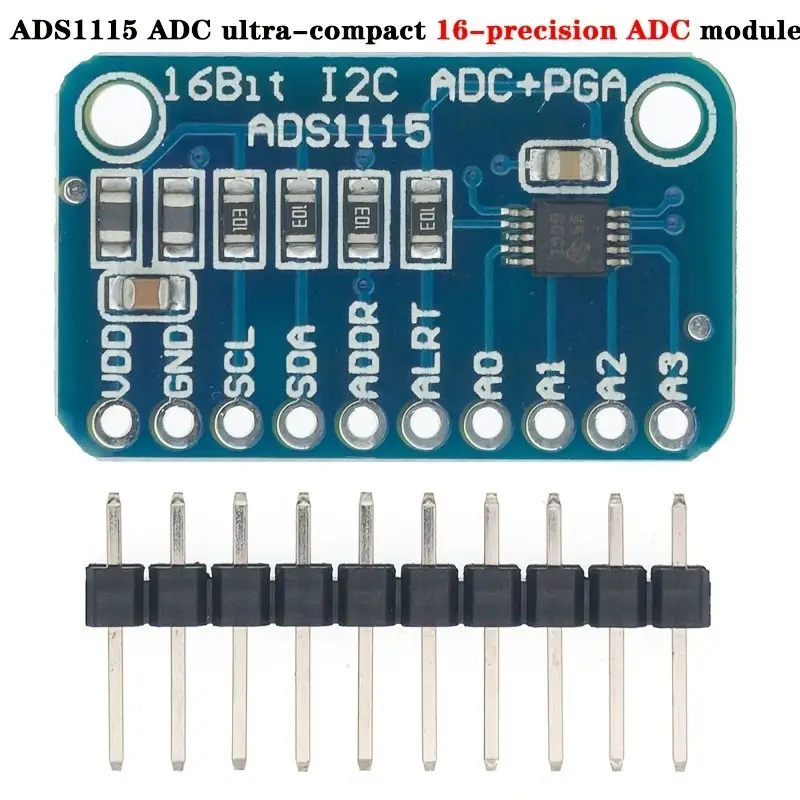

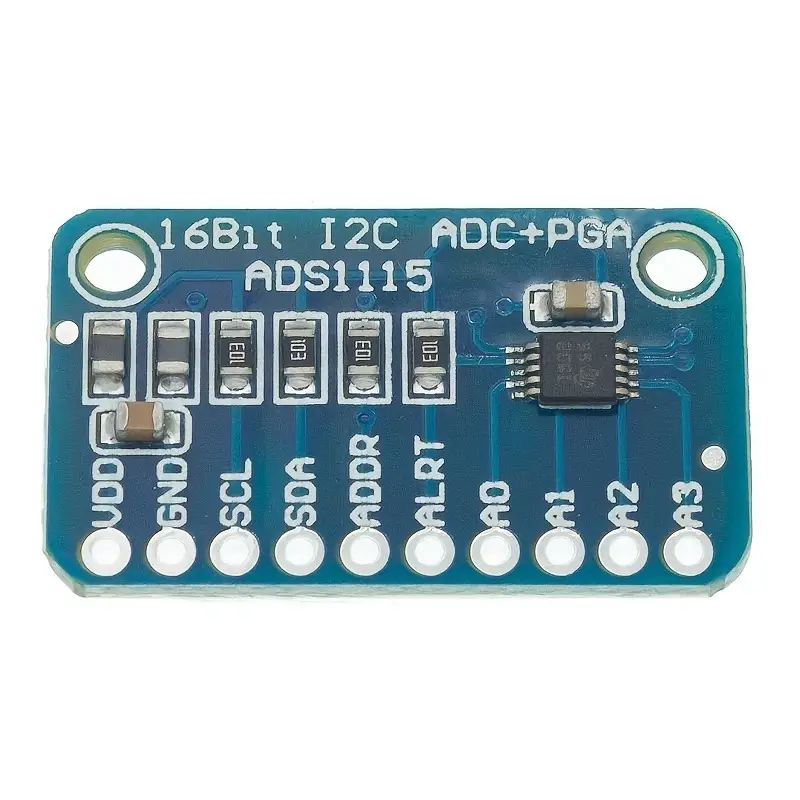

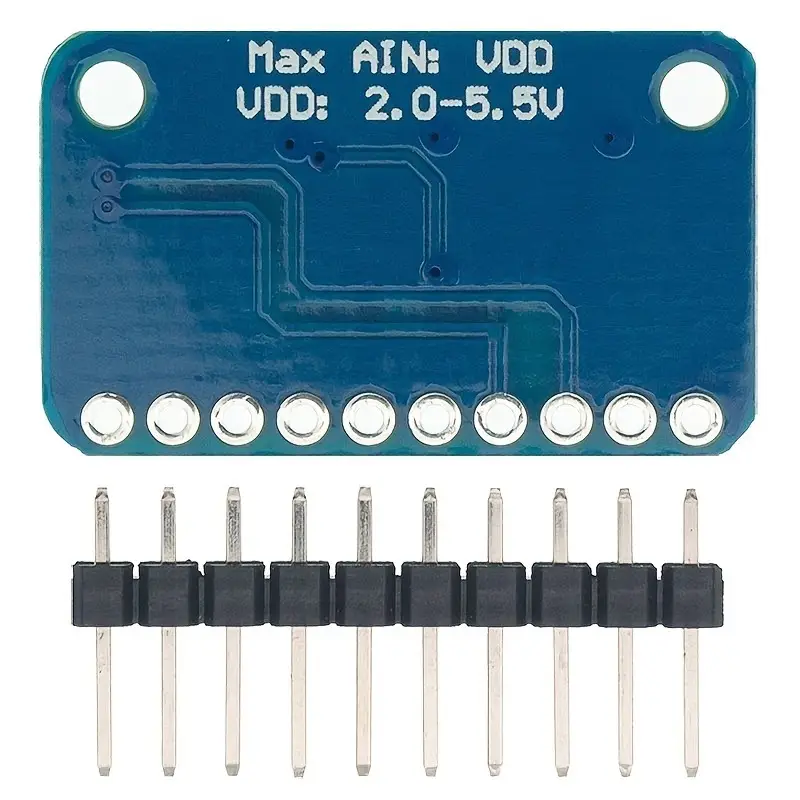

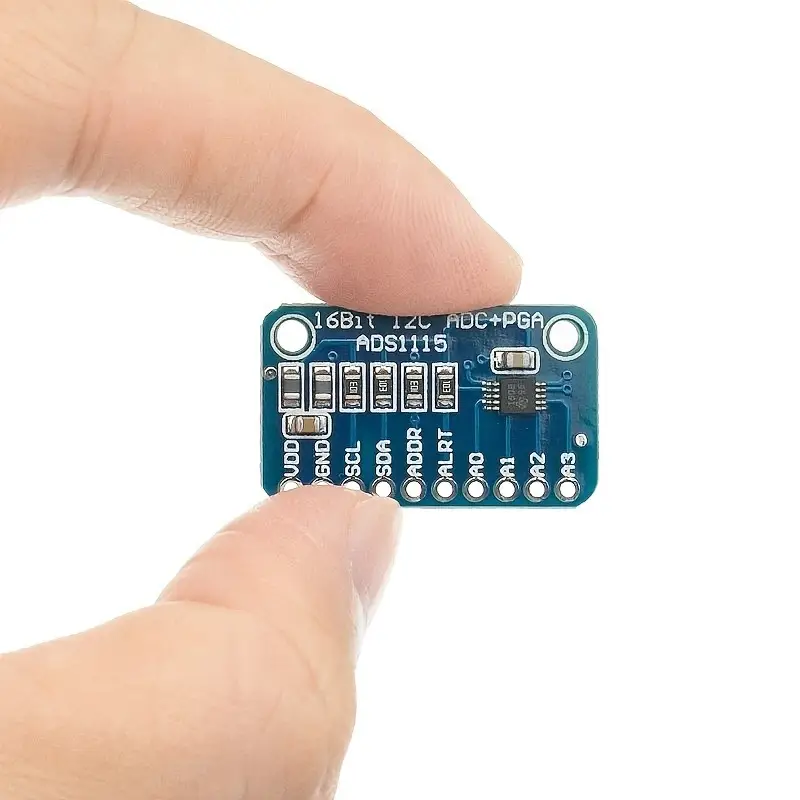

A 16-bit analog-to-digital converter board that adds 4 analog inputs, or 2 differential inputs, to Arduino and Raspberry Pi over I2C.

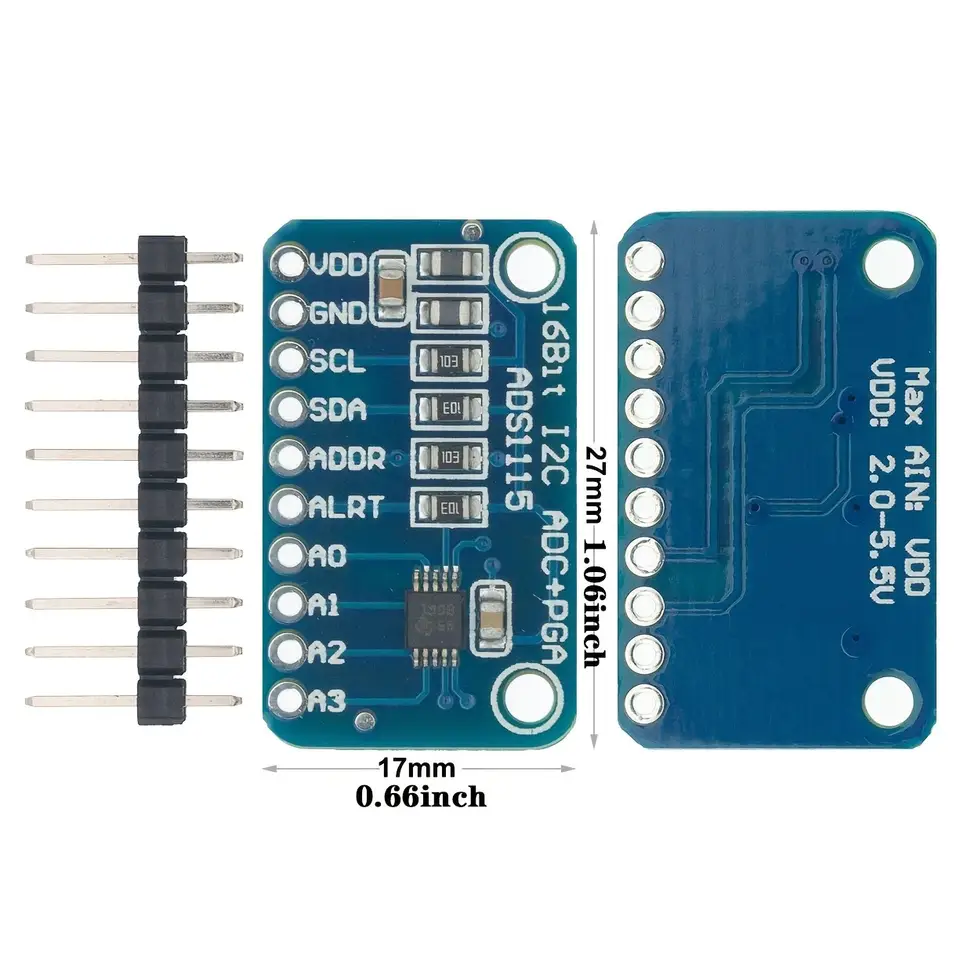

ADC Bit rate: 16 Bit Interface Type: I2C Channels: 4 Channel AN0 AN1 AN2 AN3 or 2 differential inputs Input voltage: 2.0-5.5v Channel input voltage :0-VDD Continuous Mode: Only 150μA Single-Shot Mode: Auto Shut-Down PROGRAMMABLE DATA RATE:8sps-860sps Input range programmed control, 7 types input ranges: -0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ + 1.024V, -2.048V ~ + 2.048V, -4.096V ~ + 4.096 V, -6.144V ~ + 6.144V I2C 7-bit addresses between 0x48-0x4B Size:18mm*28mm Applications Portable instrumentation Consumer goods Battery monitoring Temperature measurement Factory automation and process controls
