Brand: Benewake

Benewake TF-Luna LiDAR Range Finder, 0.2-8m, UART/I2C, 5V, for Arduino and Pixhawk

$38.18

Est. delivery 6–12 days

Shipping calculated at checkout

In stock

Supplier stock is confirmed when your order is processed.

Quantity
Sold by
Polar Parts
Ships from
Our supplier partnersSupport from Milton, Ontario
Shipping
Canada only
Returns
14 days, unopened items
Payment
Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

Brand NameRCmall
Model NumberTF0004
OriginMainland China
SKUAE-1005008932387961-12000047255515645

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

A single-point LiDAR distance sensor that reads 0.2 to 8m over UART or I2C, for drones, obstacle avoidance and level sensing.

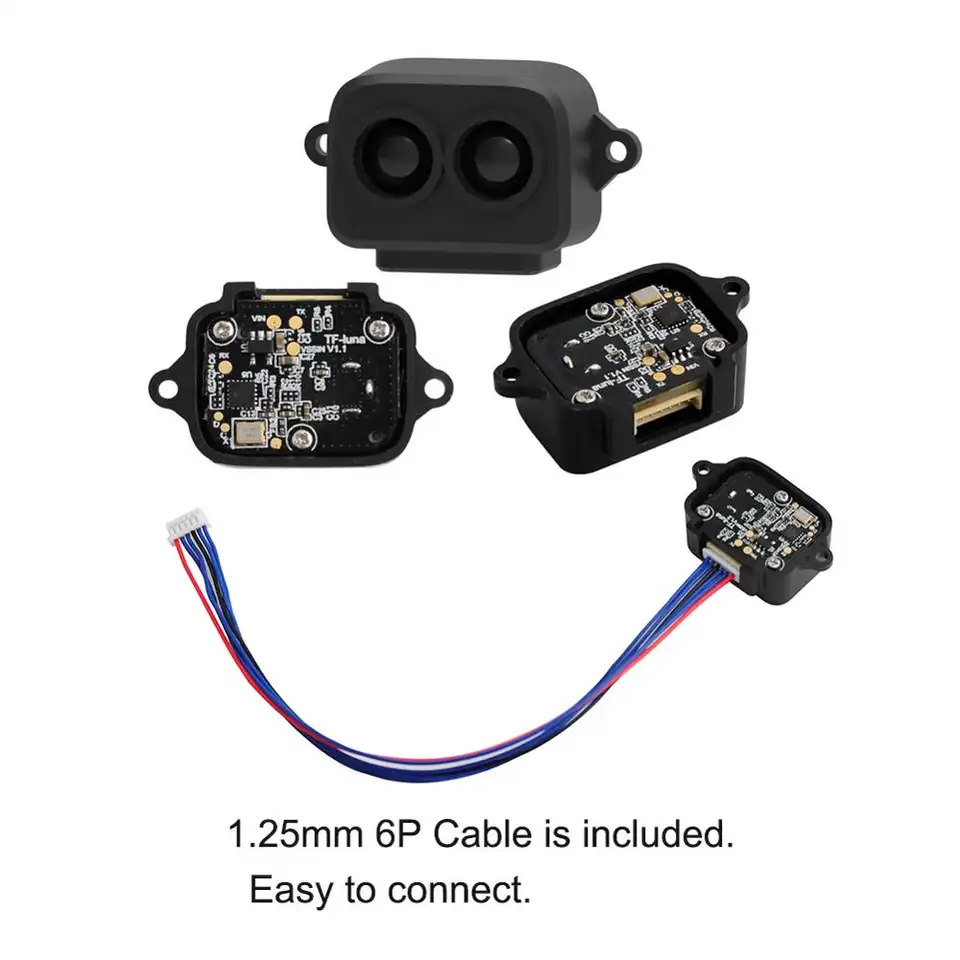

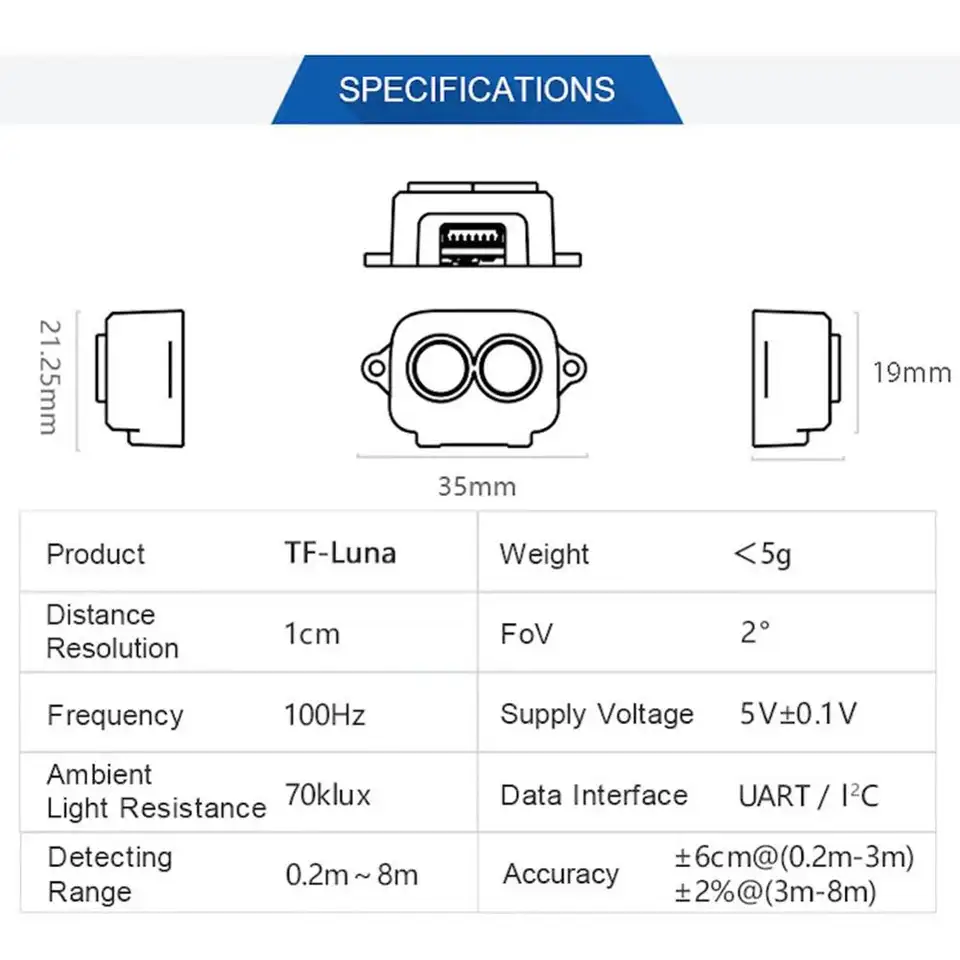

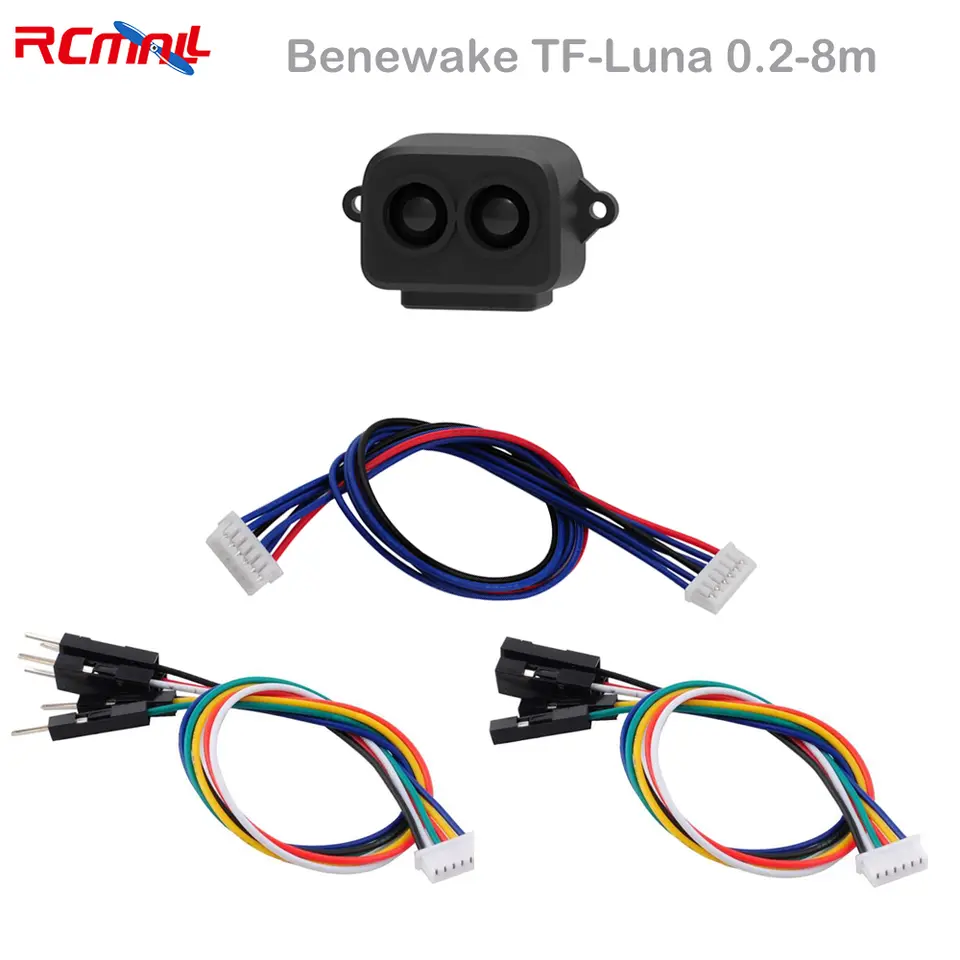

Benewake TF-Luna LiDAR Range Finder Module 5V UART IIC Interface 0.2m-8m Single-Point Micro Ranging Sensor for Arduino Pixhawk Description: Operating range: 0.2m~8m Accuracy: ±6cm@(0.2-3m), ±2%@(3m-8m) Measurement unit: cm Range resolution: 1cm FOV: 2° Frame rate: 1~250Hz( adjustable ) Supply voltage: 5V±0.1V Average current: ≤70mA Peak current: 150mA Average power: 350mW Communication level: LVTTL(3.3V) Communication interface: UART/IIC Default baud rate: 115200 Data bit: 8 Stop bit: 1 Parity check: None Light source: VCSEL Wavelength: 850nm Operating temperature : -20°C~75°C Certification:CE,FCC,ROHS Package Includes: 1 X TF-Luna LiDAR Module 3 X 1.25mm 6P cable Major Applications: Traffic Monitoring Obstacle detection Level measurement Smart device Security and obstacle avoidance Drone altitude holding and terrain following Machine control and safety sensors Distance measuring instrument FAQ Q1: Is TF-Luna available with 3.3V or other power supply voltage? A1: Sorry, it is not available for the time being. The Standard power supply of TF-Luna is 5V±0.1V. If you have any further requirement, please contact our sales person to consult a customization design matter. Is it broken? A2: This is the normal operating condition of the product. The temperature of the chip and circuit board will slightly up after a continuous operation, which is a normal case. A3: Yes, it can. TF-Luna adopts serial communication protocol so that it can connect to any control board supporting serial port communication.
