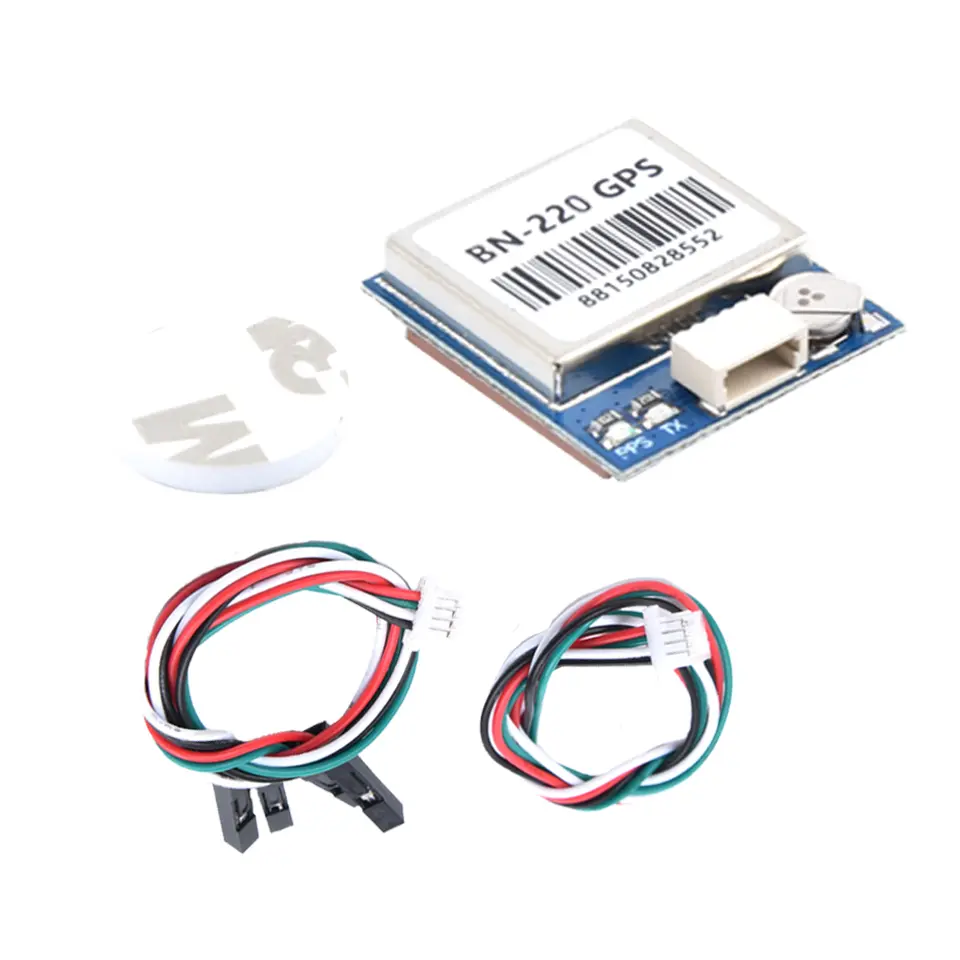

BN880 BN-880 BN-220 BN220 GPS GLONASS Antenna Module with Cables For RC Racing FPV Drone Quadcopter image 3
BN880 BN-880 BN-220 BN220 GPS GLONASS Antenna Module with Cables For RC Racing FPV Drone Quadcopter image 4
BN880 BN-880 BN-220 BN220 GPS GLONASS Antenna Module with Cables For RC Racing FPV Drone Quadcopter image 5
BN880 BN-880 BN-220 BN220 GPS GLONASS Antenna Module with Cables For RC Racing FPV Drone Quadcopter image 6
BN880 BN-880 BN-220 BN220 GPS GLONASS Antenna Module with Cables For RC Racing FPV Drone Quadcopter image 7
BN880 BN-880 BN-220 BN220 GPS GLONASS Antenna Module with Cables For RC Racing FPV Drone Quadcopter image 8
BN880 BN-880 BN-220 BN220 GPS GLONASS Antenna Module with Cables For RC Racing FPV Drone Quadcopter image 9
BN880 BN-880 BN-220 BN220 GPS GLONASS Antenna Module with Cables For RC Racing FPV Drone Quadcopter image 10
Image 1 of 10

BN-880 or BN-220 GPS Module, GPS, GLONASS and BeiDou, BN-880 with HMC5883 Compass, for FPV Drones

$26.51

Est. delivery 7–16 days

Shipping calculated at checkout

In stock

Supplier stock is confirmed when your order is processed.

Option: 1PCS BN-220 GPS
Quantity
Sold by
Polar Parts
Ships from
Our supplier partnersSupport from Milton, Ontario
Shipping
Canada only
Returns
14 days, unopened items
Payment
Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

Brand NameQX-MFLU
Model NumberBN220 BN880 GPS Module
MaterialComposite Material
Quantity1 pcs
UseVehicles & Remote Control Toys
CertificationCE
OriginMainland China
Is ElectricNo battery

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

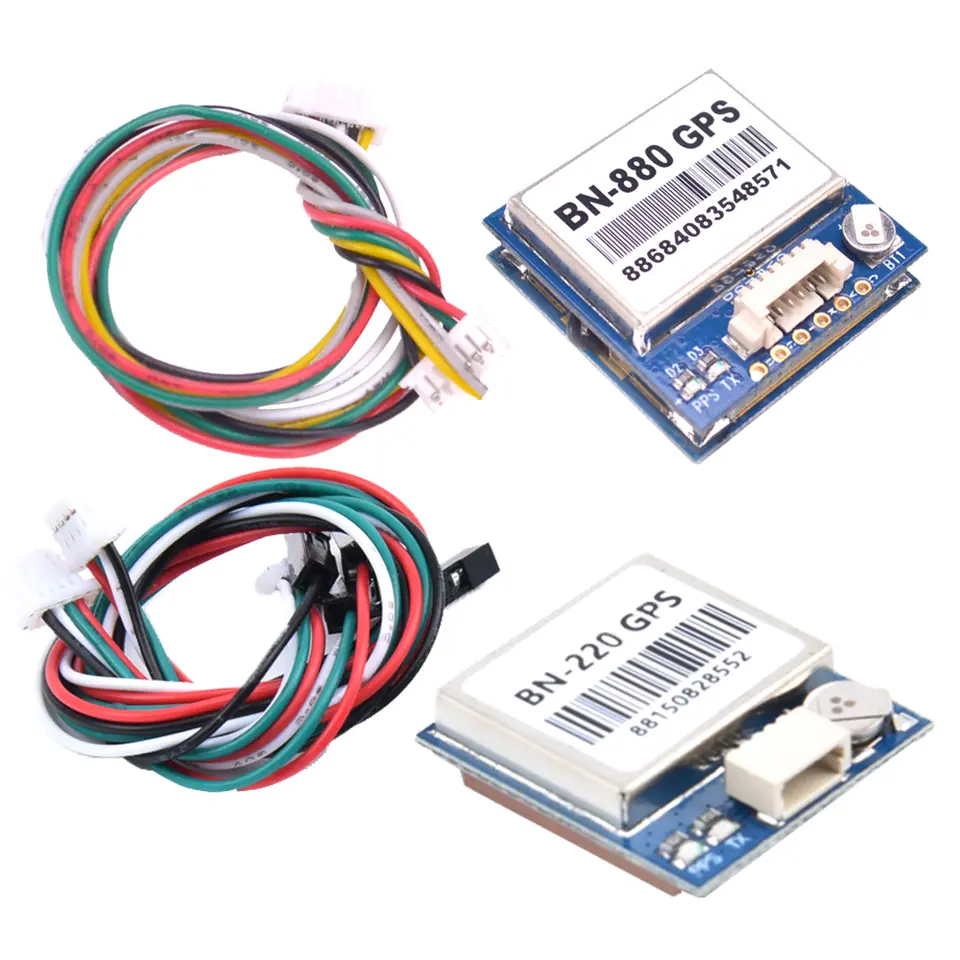

Compact GNSS receivers for FPV drones and RC models. The BN-880 adds an HMC5883 compass; the BN-220 is smaller and lighter.

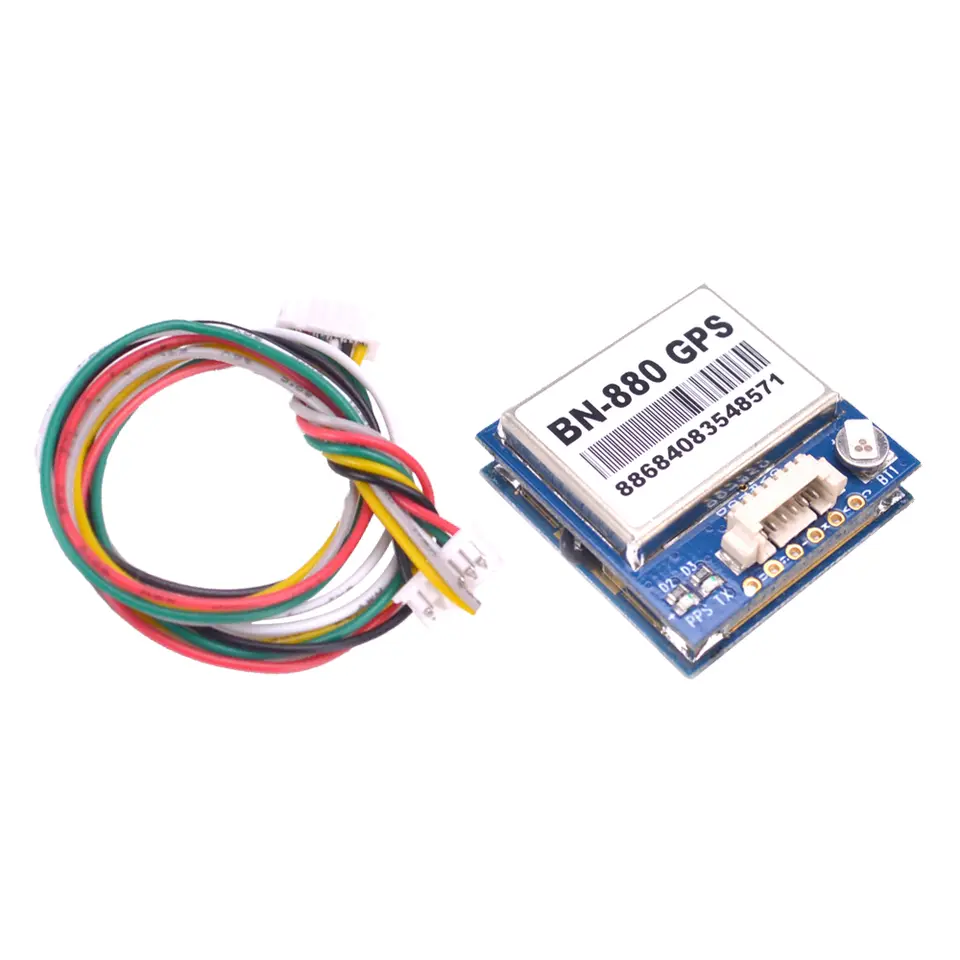

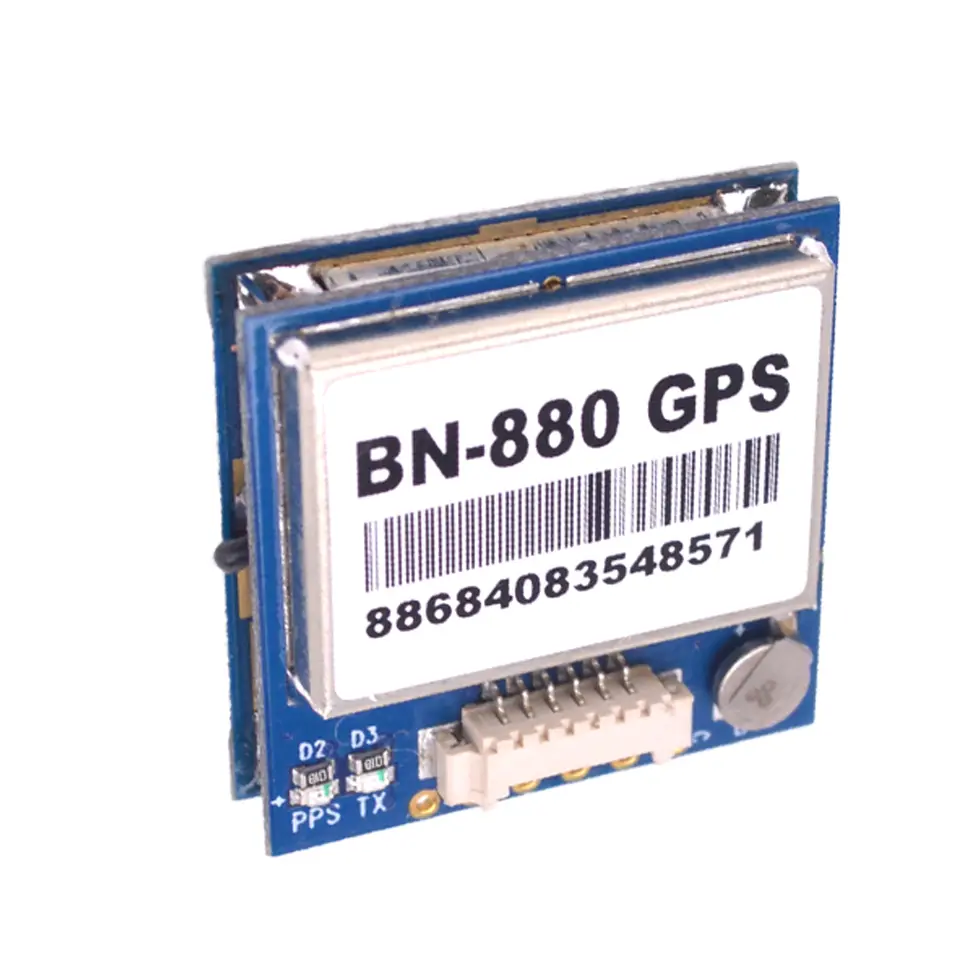

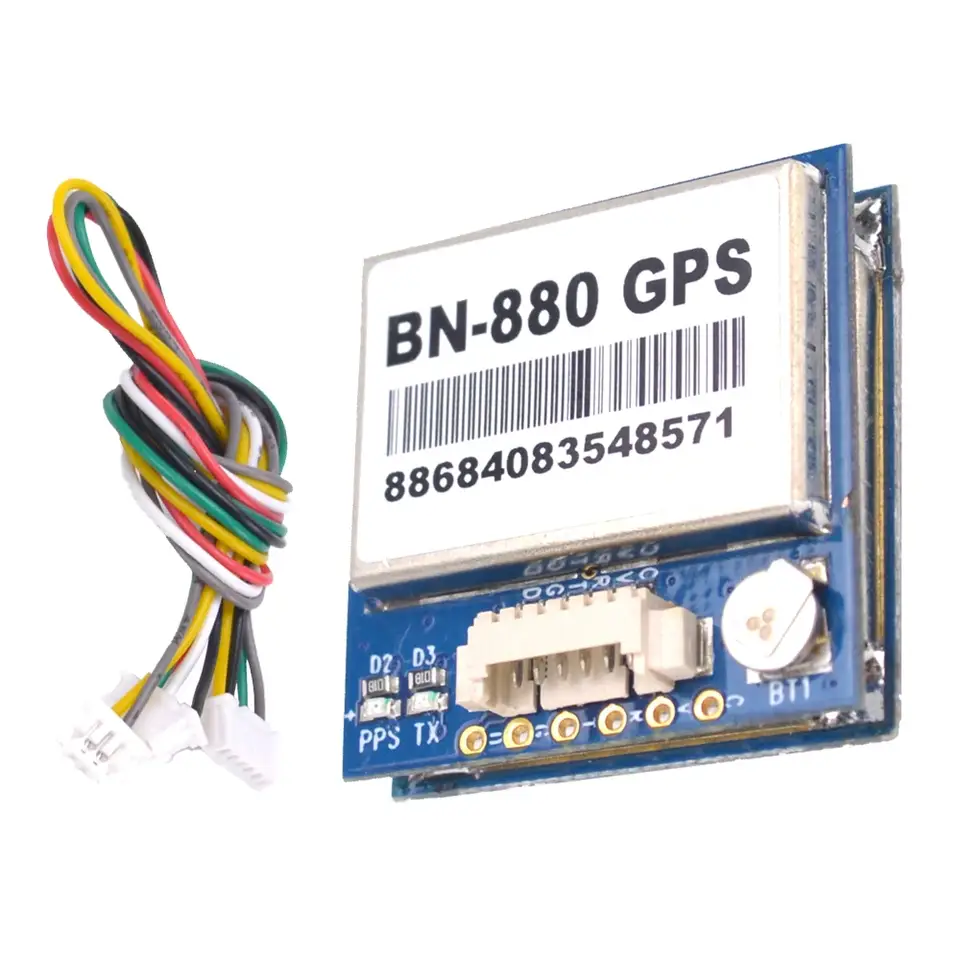

BN-880 GPS Description: Model:BN-880 Power Supply: DC Voltage 2.8V~6.0V,Typical:3.3V or 5.0V Consumption: Capture 50mA@5V Receiving Format: GPS,GLONASS,BeiDou Receiving Channel: 72 Searching Channel Receiving Sensitivity: Trace -167dBm Capture-148dBm Positioning Time: Cold Start:avg26s Warm Start:avg25s Hot Start:avg3s Level Positioning Precison: 2m At Open Wind Output Frequency: 1Hz-10Hz,Default 1Hz Speed Precison: 0.1 m/s (Without Aid) Acceleration Precison: 0.1 m/s (Without Aid) Dynamic Characteristics: Max Height:18000m Max Speed:5153m/s Max Acceleration:4G UART Interface:UART Port: TXDA and RXDA Support Rate: 4800bps to 115200bps,Default 38400dps Working Temperature: -40-+85 Storage Temperature: -40-+85 Size: 28mm x 28mm x 10mm Weight: 10g The Module's Pins: SDA,GND,TX,RX,VCC,SCL Features: GPS Module,Dual Module Compass With electronic compass IC HMC5883 1.25mm spacing between the 6pins patch seat BN-220 GPS Module: Dimension : 22mm*20mm*6mm Weight : 5.3g Connector : 1.00mm spacing between the 4pins patch seat Specification: Electrical Characteristics Chipset : M8030-KT Receiving Format : GPS,GLONASS,BeiDou,QZSS and SBAS Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1 Channels : 72 Searching Channel Sensitivity Tracking : -167dBm Reacquisition : -160dBm Cold start : -148dBm Hot start : -156dBm Accuracy Position Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky) Velocity : 0.1m/sec 95% (SA off) Timing : 1us synchronized to GPS time Acquisition Time Cold Start : 26s Warm start : 25s Hot start : 1s Data and Update Rate Support Rate : 4800bps to 921600bps,Default 9600bps Data Level : TTL or RS-232,Default TTL level Data Protocol : NMEA-0183, Default NMEA-0183 Single GNSS : 1Hz-18Hz Concurrent GNSS : 1Hz-10Hz,Default 1Hz Operational Limits Altitude : 50,000m Max Velocity : 515m/s Max Acceleration : Less than 4g Power consumption VCC : DC Voltage 3.0V-5.5V,Typical: 5.0V Current : Capture 50mA/5.0V Operating temp : -40 °C ~ +85°C Storage Temp : -40°C ~ +105°C Indicator : TX LED:blue. The data output, TX LED flashing PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed Wiring: GND,TX output,RX input,VCC(3.0v-5.5v)
