Brand: Chihai Motor

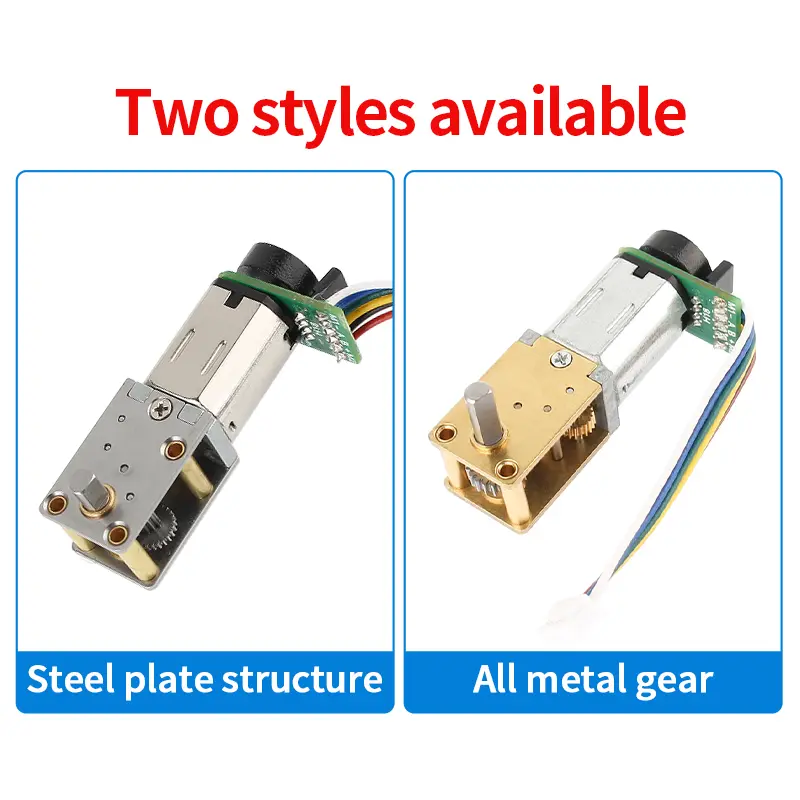

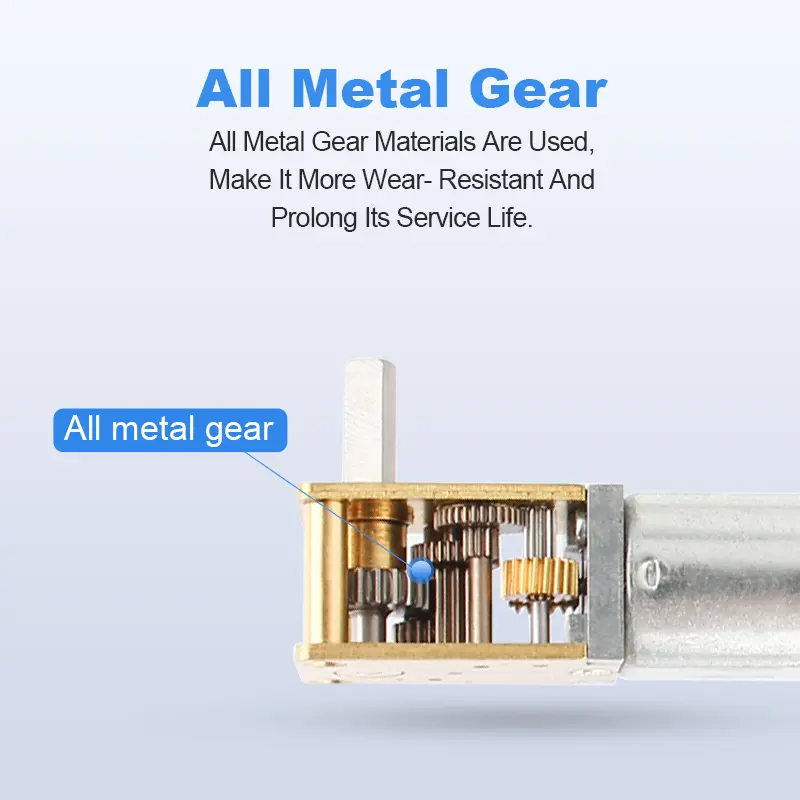

N20 Worm Gear Motor with 7PPR Encoder, Metal Gearbox, CHF-GW12T-N20ABHL, DC 3-12V

Name: N20 Worm Gear Motor with 7PPR Encoder, Metal Gearbox, CHF-GW12T-N20ABHL, DC 3-12V
Brand: Chihai Motor
SKU: AE-1005005547682347-12000042324721235
Price: 23.29 CAD
Availability: InStock

$23.29

Est. delivery 7–20 days

Est. $9.25 shipping to Canada. Exact cost at checkout

In stock

Supplier stock is confirmed when your order is processed.

Option (36 available)

Quantity

Sold by: Polar Parts
Ships from: Our supplier partnersSupport from Milton, Ontario
Shipping: Canada only
Returns: 14 days, unopened items
Payment: Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

Model Number	CHF-GW12T-N20ABHL
Type	Micro Motor
Certification	ce
Origin	Mainland China
Does it include wireless functionality?	No
Does it include a Battery?	No
Output Power	＜18.65
Continuous Current(A)	35-80mA
Output Power	max 0.6W
Commutation	Brush
Construction	Permanent Magnet
Usage	Fan
Usage	Home Appliance
Efficiency	IE 2
Torque	0.05-1.3kg.cm
SKU	AE-1005005547682347-12000042324721235

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

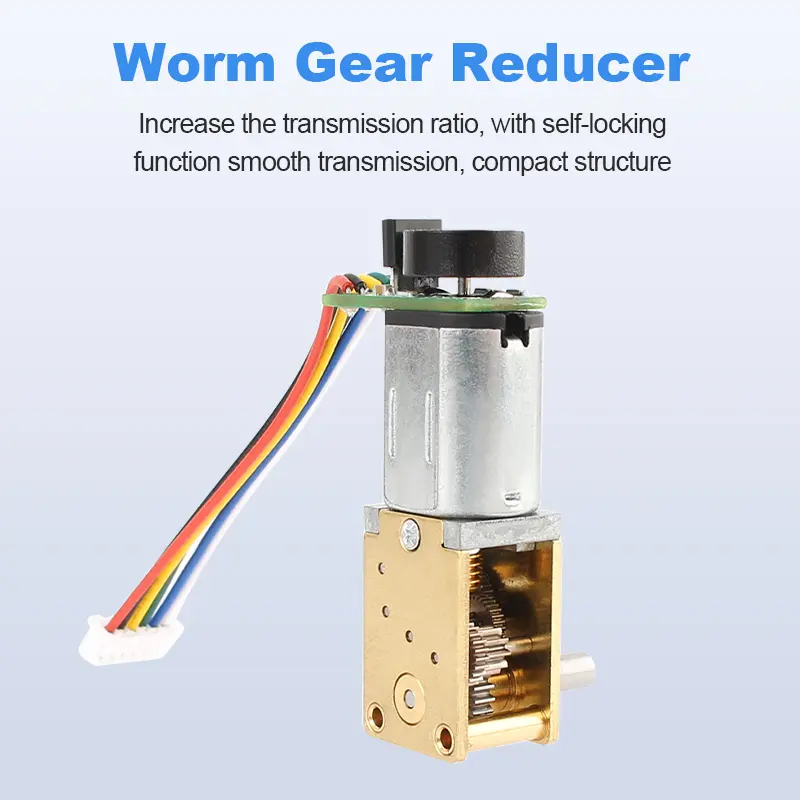

Mini N20 worm gear motor with a side-mounted 7PPR encoder and metal gearbox, for robots, manipulators and miniature gimbals.

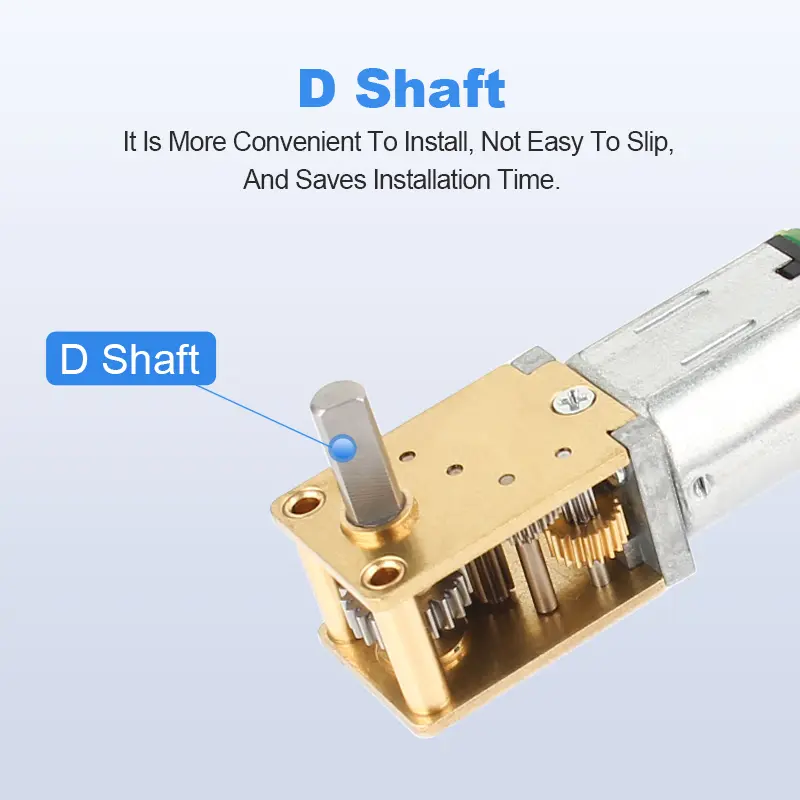

Product Description Product Type: CHF-GW12T-N20ABHL Mini DC worm gear motor with 7PPR Side welding encoder shaft length:7.5 mm D shaft diameter:3mm Voltage range:DC 3-12.0V Weight:about 16g Application:Intelligent robot, intelligent manipulator, intelligent furniture Intelligent focusing system, miniature gimbal, etc. Features: CW/CCW Precious metal Steel shaft Carbon brush Gearbox Customized electric performance and accessories can be achieved after evaluation. Detailed images Technical data Application Certifications Company Profile
