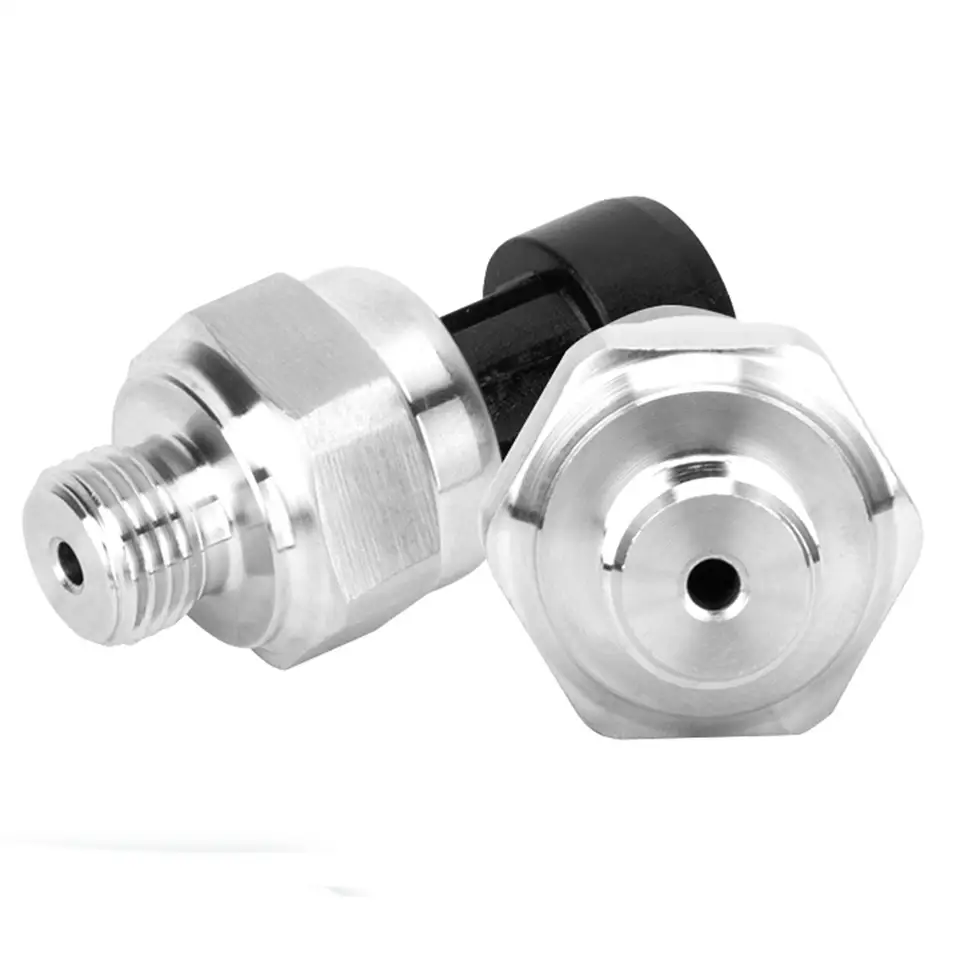

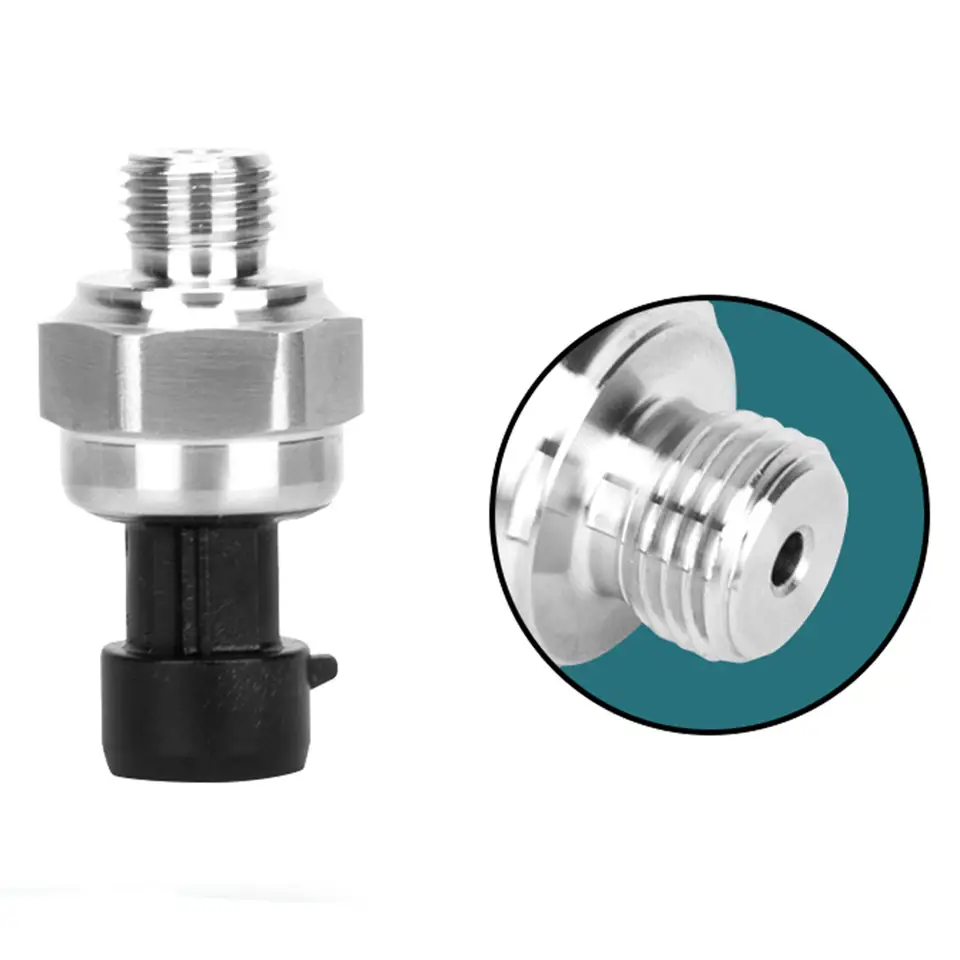

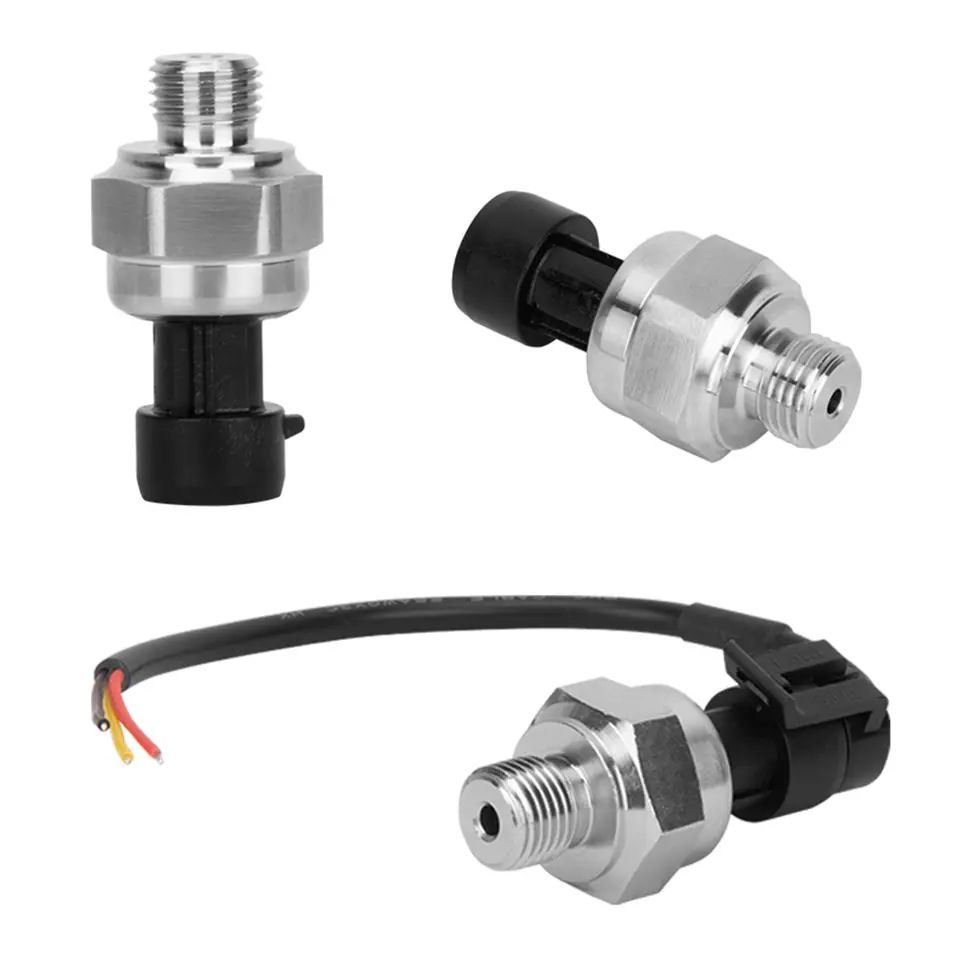

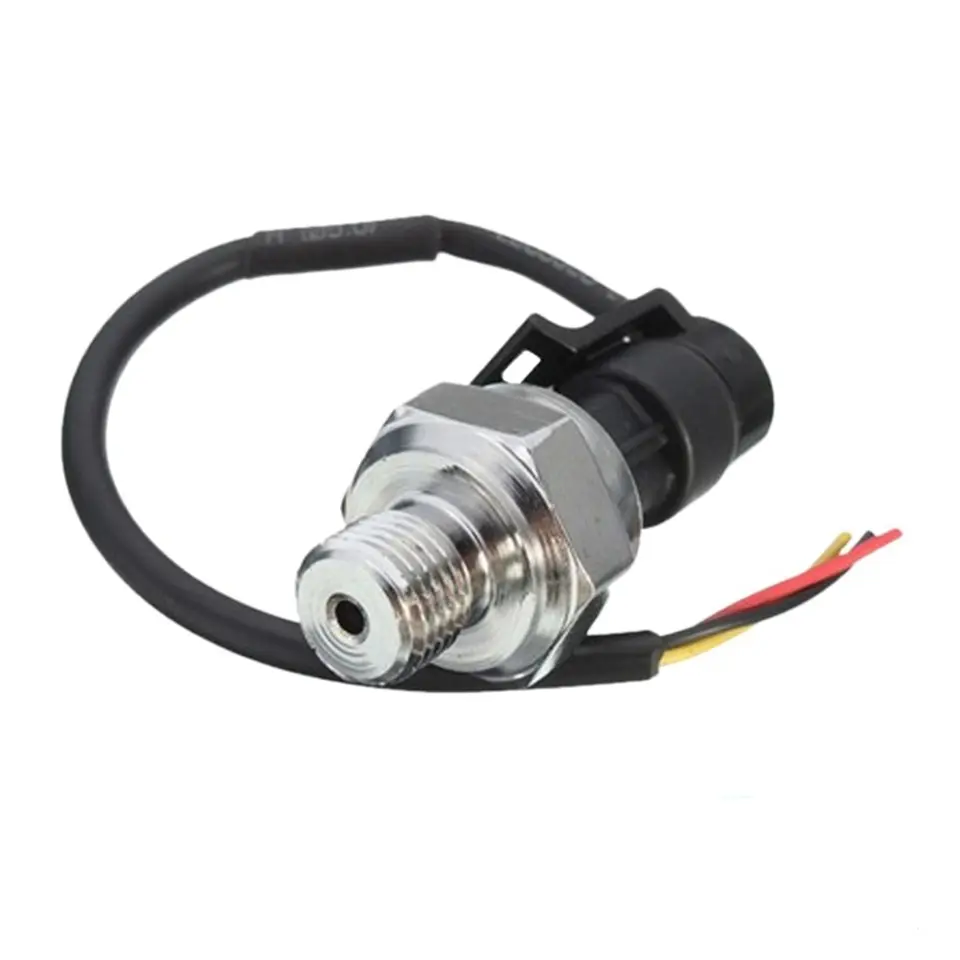

G1/4 Pressure Transducer, 0-1.2MPa, 5V, 0.5-4.5V Output, for Water, Oil and Gas

1. Suitable for various hydraulic and pneumatic pressure measurement of wall-hung boilers, gas furnaces, gas storages, etc. 2. Suitable for batches of civilian products 3. Static accuracy: plus or minus 1.0%FS 4. Pressure range 0-1.2MPa (can be customized according to customer requirements) 5. Wide temperature compensation range 6. The medium is suitable for non-corrosive gas, water, oil, etc. Note: According to user experience, it is not compatible with car, it will cause operating temperature. The range is 0-85 degrees Celsius, please pay attention! Thanks! Typical application: pressure measurement of non-corrosive liquids Specification: Working voltage: 5VDC Output voltage: 0.5-4.5 VDC Sensor Material: Carbon Steel Alloy Working current: ≤10 mA Working pressure range: 0-1.2 MPa Maximum pressure: 2.4 MPa Cable length: 19cm Breaking pressure: 3.0 MPa Operating temperature. Range: 0-85 degrees Storage temperature range: 0-100 degrees Measurement error: ±1.5 %FSO Temperature Range Error: ±3.5 %FSO Response time: ≤2.0 ms Cycle life: 500,000 pieces Application: Non-corrosive gas and liquid measurement Features: It is easy to disassemble, and the carbon steel connection is more firm. Durable stainless steel, sealed waterproof line, imported chips. Wiring: Red+, Black-, Yellow output Package Included: 1 pressure sensor
