Brand: GROW

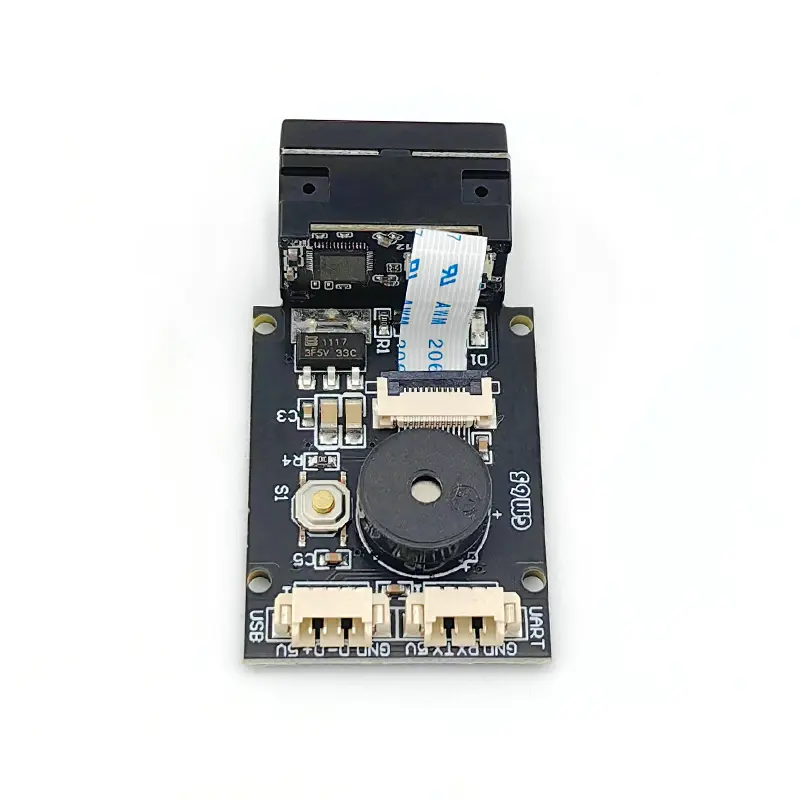

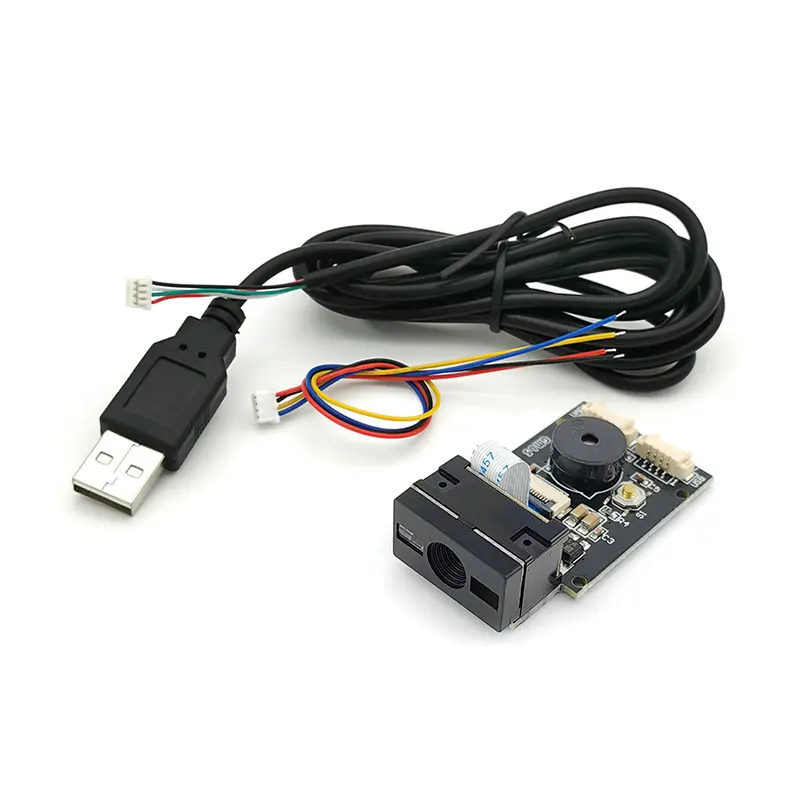

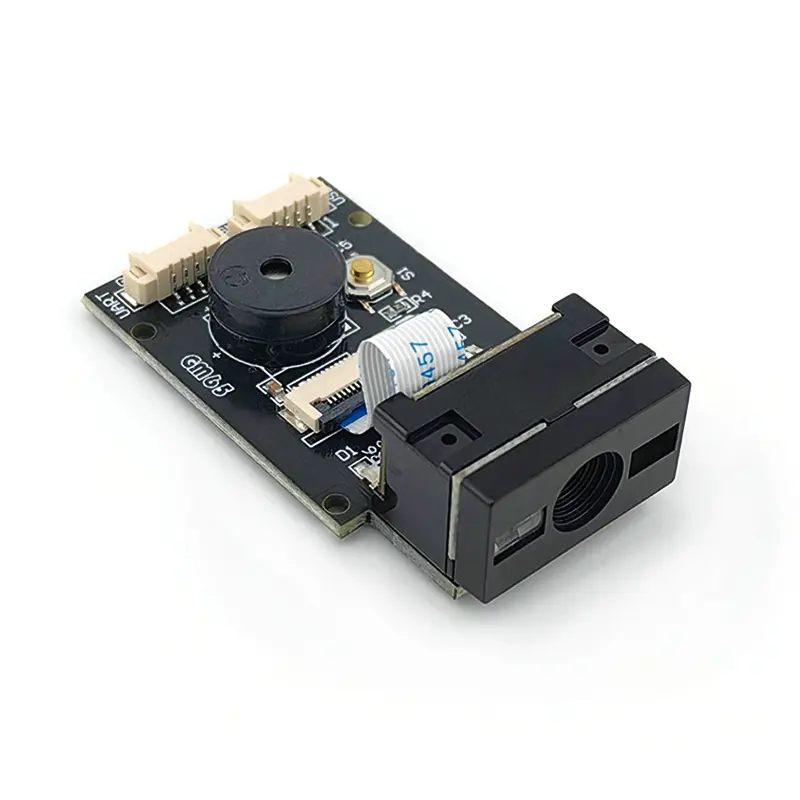

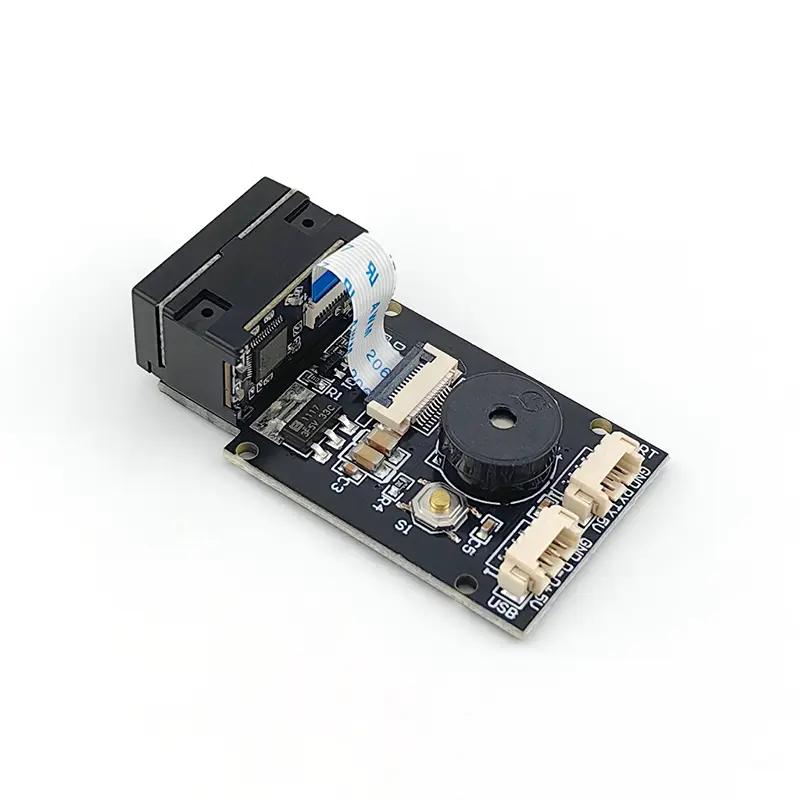

GROW GM65 1D/2D Barcode and QR Code Scanner Module with Cable, USB and UART, 5V

$35.95

Est. delivery 7–23 days

Est. $11.41 shipping to Canada. Exact cost at checkout

In stock

Supplier stock is confirmed when your order is processed.

Quantity
Sold by
Polar Parts
Ships from
Our supplier partnersSupport from Milton, Ontario
Shipping
Canada only
Returns
14 days, unopened items
Payment
Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

Model NumberGM65
TypeBarcode Scanner
Product TypeBar Code Scanner
Operating Voltage5V
Resolution0.10mm (4mil)
Interface TypeUSB, TTL232

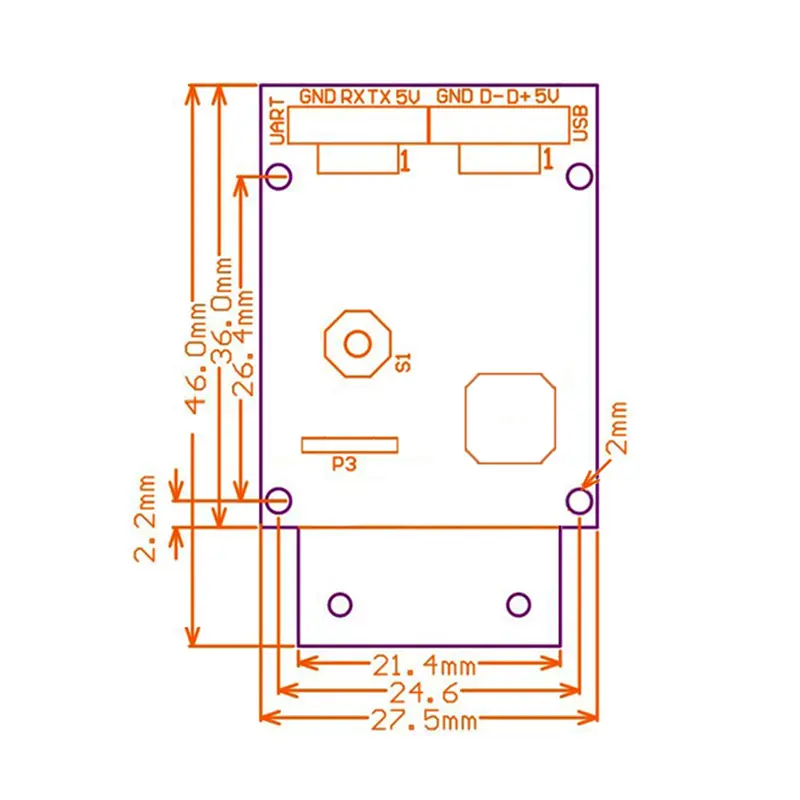

Size46.5*27.5*14mm
CertificationCE

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

A barcode scanner module that reads 1D codes and QR, Data Matrix and PDF417 codes, with USB and UART interfaces, a buzzer and a cable.

GM65 Features: 1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer. 2. High-efficiency recognization and high upload speed for improving your working efficiency. 3. With buzzer for reminding you that the scanning successfully or not. 4. Compatible with USB and UART interface. 5. Over 180 configurable options 6. Macro support replace a string in the bar code with another 7. Programmable preamble postamble and termination strings 8. Superior reading performance utilizing advanced decoding algorithms GM65 Parameters: Parameter Performance Sensor CMOS Scan Mode 640*480 Lighting White LED Collimation Light Red LED Read Code Type 1D: EAN-13, EAN-8, UPC-A, UPC-EISSN, ISBN, CodaBar,Code 128, Code93, ITF-14, ITF-6, Interleaved 2 of 5,Industrial2of5, Matrix2of5, Code 39,Code11, MSI-Plessey, GS1 Composite,GS1-Databar (RSS) 2D: QRCode, DataMatrix, PDF417, Micro QR, Micro PDF417, Aztec Contrast • ＞25% Scan Angle • • Roll:360°Pitch:65°Yaw:65° Viewing Angle 67°(Horizontal)53°(Vertical) Accuracy of reading • ≥10mil Mechanical/electrical Parameters: Parameter Performance Interface TTL-232/USB Size(mm) 46 • 27.5 • 13.5mm Weight 8.5g Prompting mode Buzzer, LED Indicator OperatingVoltage 5V Operation Current 70mA(Max) Standby Current ≤6mA(Typical) Startup time ≤250mS (Typical) Environmental Parameters: Parameter Performance Operatingtemperature -20℃~+60℃ Storage Temperature -40℃~+70℃ Operating Humidity 5%~95%(Non-Condensing) Environmental Light Normal indoor light source Fall Withstand 1.2 m drop on concrete floor (50 times 1.2 m drop on concrete floor repeatedly) You can dowload GM65 user manual from the following website: GM65 Operation Video on Youtube: Scan Head Size: Control Panel Size: For shipment list, please see the following photo:
