Brand: MHCN

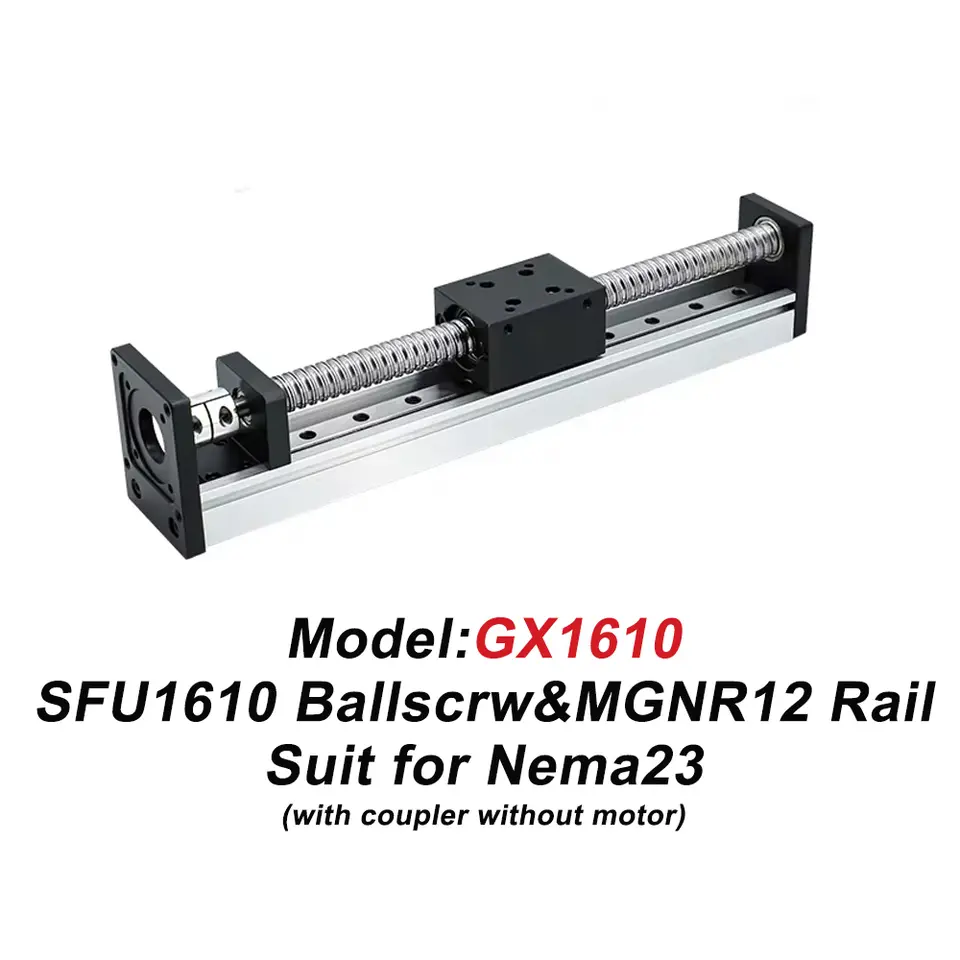

GX Ball Screw Linear Stage, SFU1204/1605/1610, MGN12 Rail, 50-200mm Stroke, NEMA 17/23

$119.51

Est. delivery 8–19 days

Shipping calculated at checkout

In stock

Supplier stock is confirmed when your order is processed.

Option: GX1204 / Effective Stroke 50
Quantity
Sold by
Polar Parts
Ships from
Our supplier partnersSupport from Milton, Ontario
Shipping
Canada only
Returns
14 days, unopened items
Payment
Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

Model NumberGX1204/GX1605/GX1610
CertificationCE
OriginMainland China
Guide Width or Diameter12mm/16mm
BallscrewSFU1204/SFU1605/SFU1610
Pitch4mm/5mm/10mm
Suit for MotorNema17/Nema23
Nema1742 motor

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

A ball screw sliding table with an MGN12 rail and coupling for CNC and 3D printer axes; takes a NEMA 17 or 23 stepper, not included.

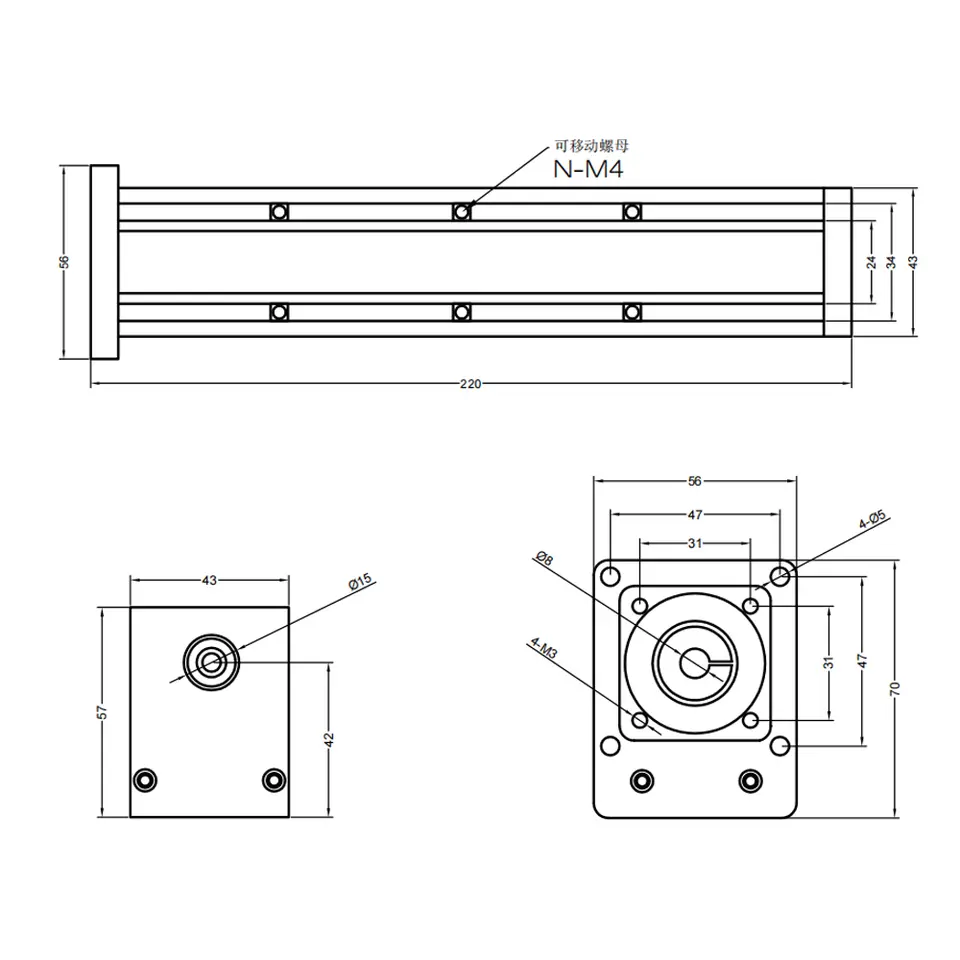

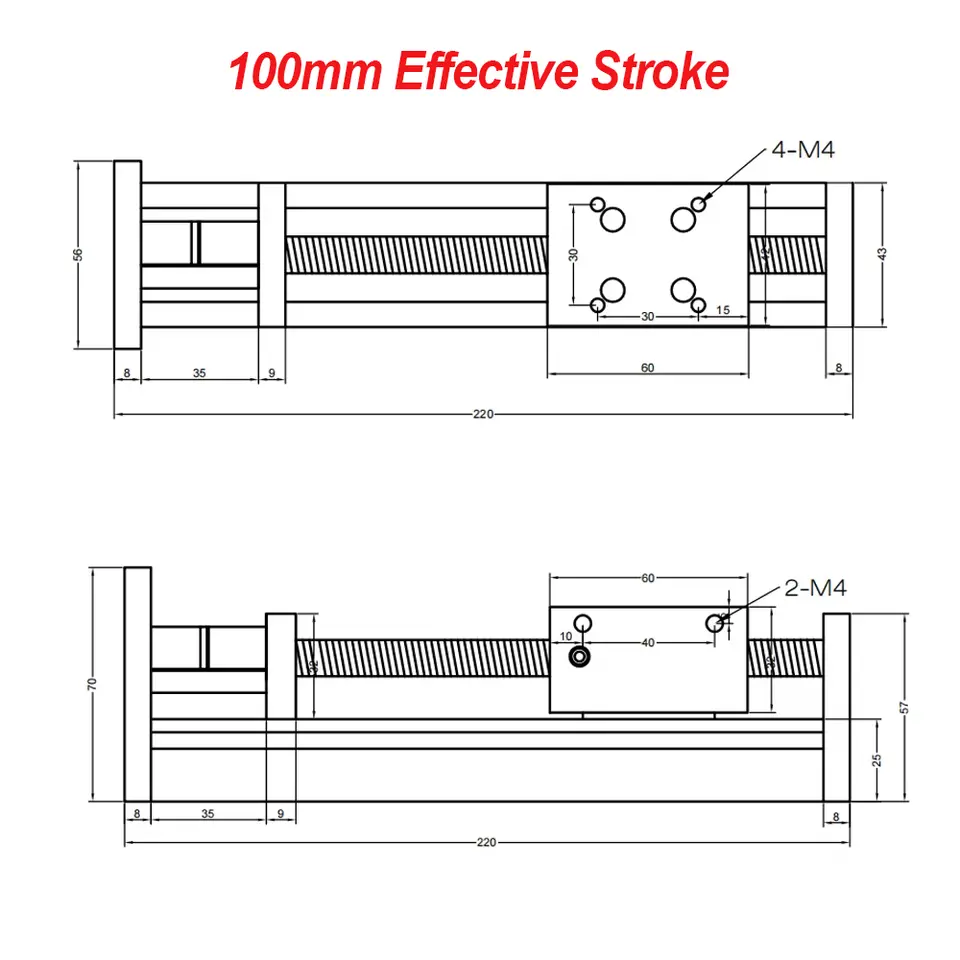

GX1204/GX1605 Black miniature guide rail sliding table GX1204, suitable for 3D printers. GX80 Black optical axis sliding table GX80, suitable for small CNC machines and 3D printers SXG1204 SXG1204 sliding table two MGNR12 rail and SFU1204 ballscrew GX150 GX150 square guide rail sliding table, suitable for heavy loads, medium and large CNC machines 1 Pcs GX1204 / GX1605 /GX1610 Linear Module ( include coupling exclude motor ) 1. G10 grade GCR15 steel ball 2. 95% dustproof, lubrication, noise reduction 3.GCR53 high carbon chromium bearing steel ①Coupling ② Aluminum plate ③ Ball screw rod(1605/1204/1610) ④ Miniature rail(MGN12) The following drawing shows an effective stroke of 100mm, and other strokes can be added or subtracted directly on this basis.
