Luckfox Pico Linux Development Board, Rockchip RV1103/RV1106, Mini, Plus, Pro and Max

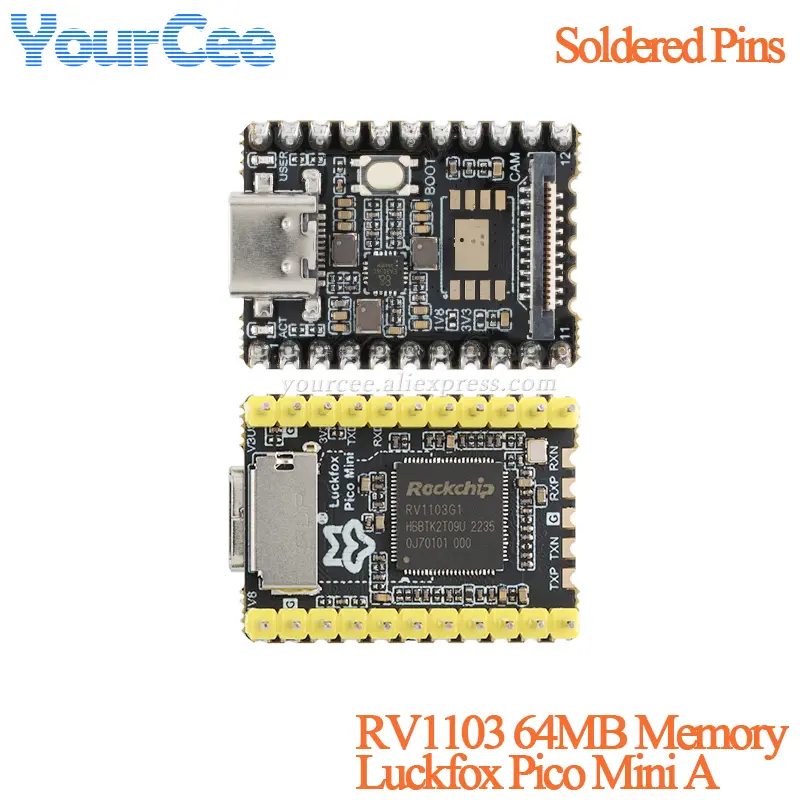

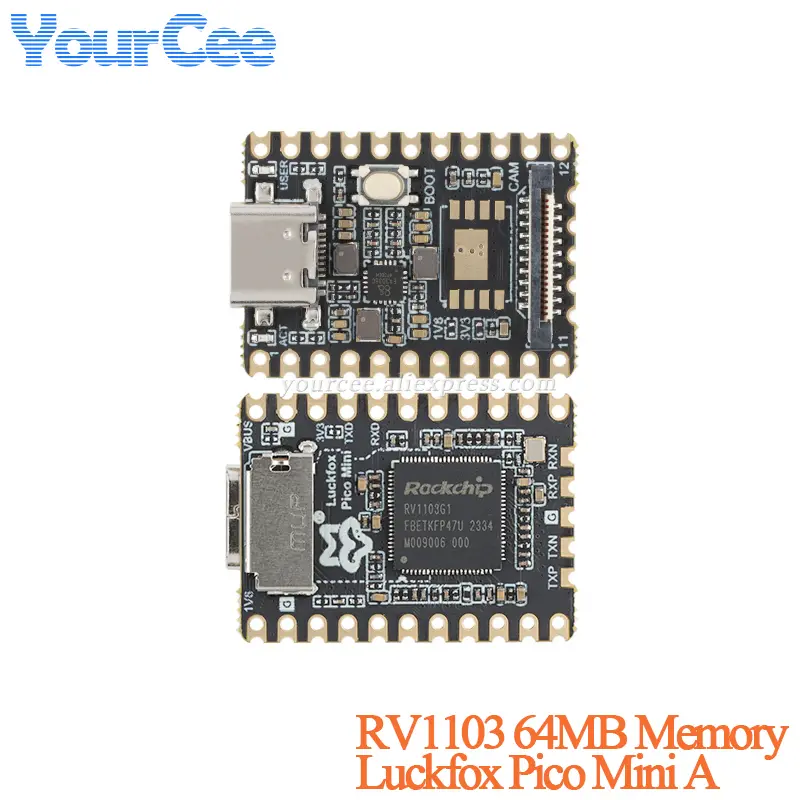

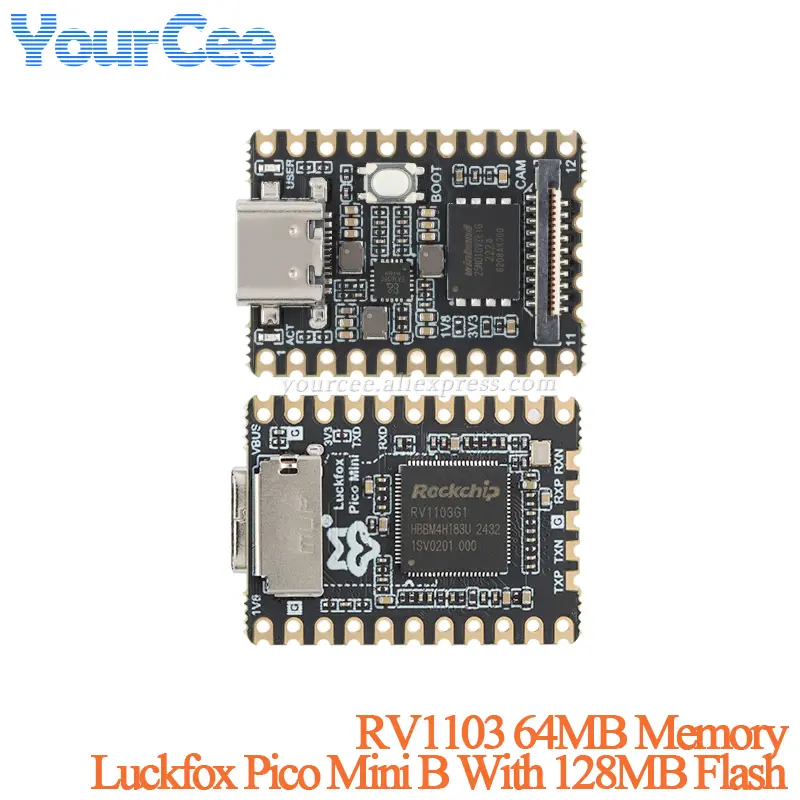

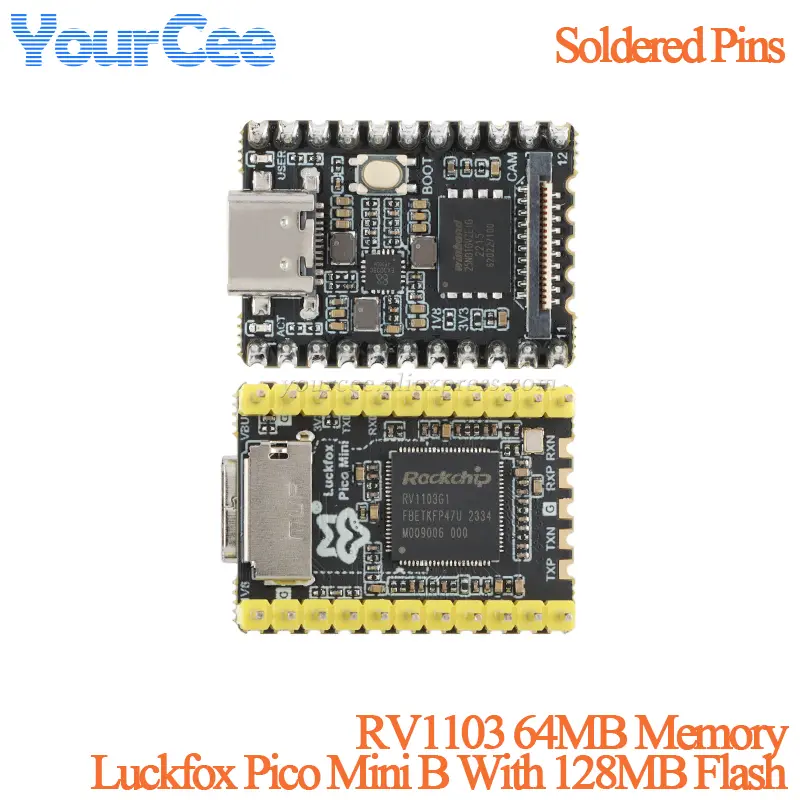

【Overview】 [] LuckFox Pico MINI is a cost-effective Linux micro development board, based on the Rockchip RV1103 chip to provide a simple and efficient development platform for developers; Supports a variety of interfaces including MIPI CSI, GPIO,UART,SPI, I2C, USB, etc., which is convenient for developing and debugging quickly. 【Specifications】 [] Processor : Cortex [email protected] + RISC-V NPU : 0.5TOPS，Support int4、int8、int16 ISP : Input 4M @30fps (Max) Memory : 64MB DDR2 USB : USB 2.0 Host/Device Camera : MIPI CSI 2-lane GPIO : 17 × GPIO pins Default Storage : Luckfox Pico Mini A : Micro SD card (Not included) Luckfox Pico Mini B : SPI NAND FLASH (128MB) 1. USB Type-C connector: for power supply and program burning 2. ACT-LED 3. USER-LED 4. BOOT button: Press it when powering on to enter download mode 5. SLC NAND FLASH: Luckfox Pico Mini B 6. CSI camera interface: MIPI CSI 2-lane 7. TF card slot 8. RV1103: Vision processor SoC with built-in ARM Cortex-A7 core 【Overview】 [] LuckFox Pico Plus is a cost-effective Linux micro development board, based on the Rockchip RV1103 chip to provide a simple and efficient development platform for developers; Supports a variety of interfaces including MIPI CSI, GPIO,UART,SPI, I2C, USB, etc., which is convenient for developing and debugging quickly. 【Specifications】 [] Processor : Cortex [email protected] + RISC-V [] NPU : 0.5TOPS, supports int4, int8 and int16 [] ISP : Input 4M @30fps (Max) [] Memory : 64MB [] USB : USB 2.0 Host/Device [] Camera : MIPI CSI 2-lane [] GPIO : 25 × GPIO pins [] Ethernet port : 10/100M Ethernet controller and embedded PHY [] Luckfox-Pico：Micro SD Slot [] Luckfox-Pico-Plus：SPI NAND FLASH (1Gb) 【Easier To Develop】 [] Luckfox-Pico Integrates TF Card Slot, Camera Interface [] Luckfox-Pico-Plus Integrates TF Card Slot, Camera Interface And Ethernet Port 1. USB Type-C connector 2. ACT-LED 3. BOOT button : Press it when powering on to enter download mode 4. TF card slot 5. RV1103 : Vision processor SoC with built-in ARM Cortex-A7 core 6. CSI camera interface : MIPI CSI 2-lane 7. GPIO header 8. USB test pads 9. BOOT test pad 10. Microphone test pads 11. Ethernet interface pads 1. USB Type-C connector 2. ACT-LED 3. TF card slot 4. BOOT button : Press it when powering on to enter download mode 5. W25N01GV : 1Gb SLC NAND FLASH 6. RV1103 : Vision processor SoC with built-in ARM Cortex-A7 core 7. CSI camera interface : MIPI CSI 2-lane 8. RJ45 Ethernet port 9. GPIO header 10. USB test pads 11. BOOT test pad 12. Microphone test pads
