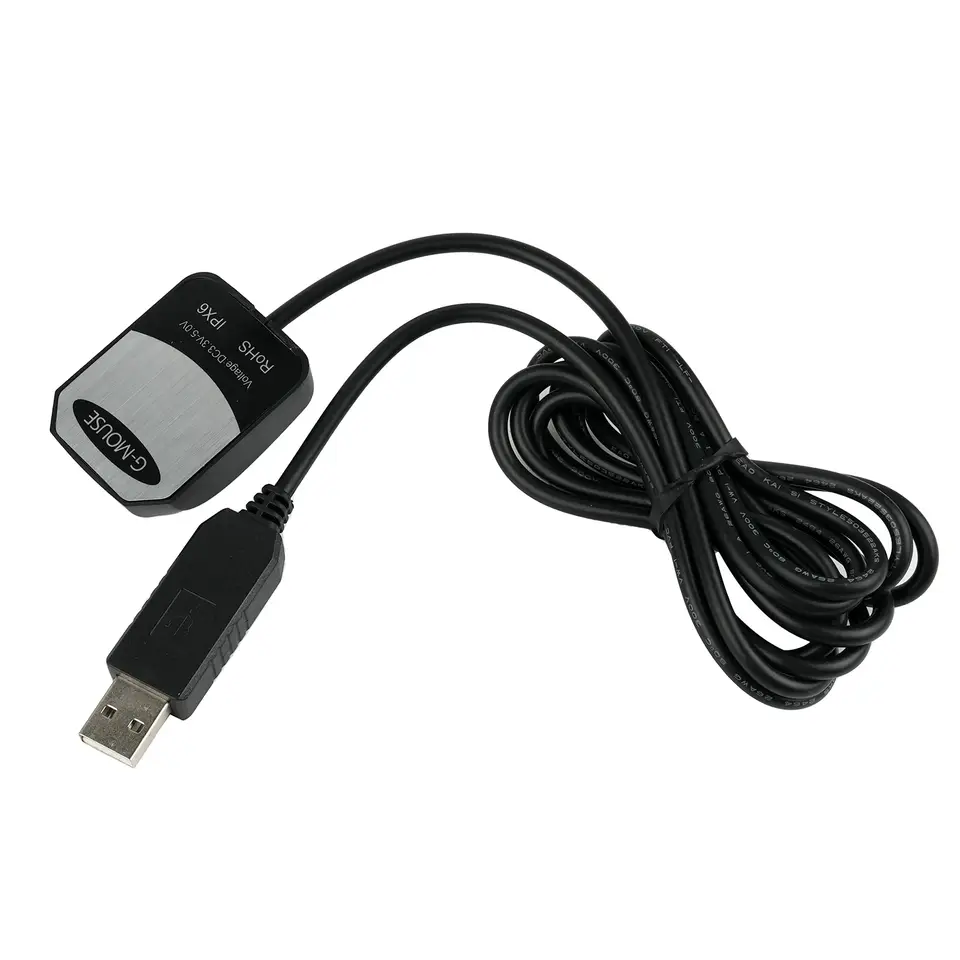

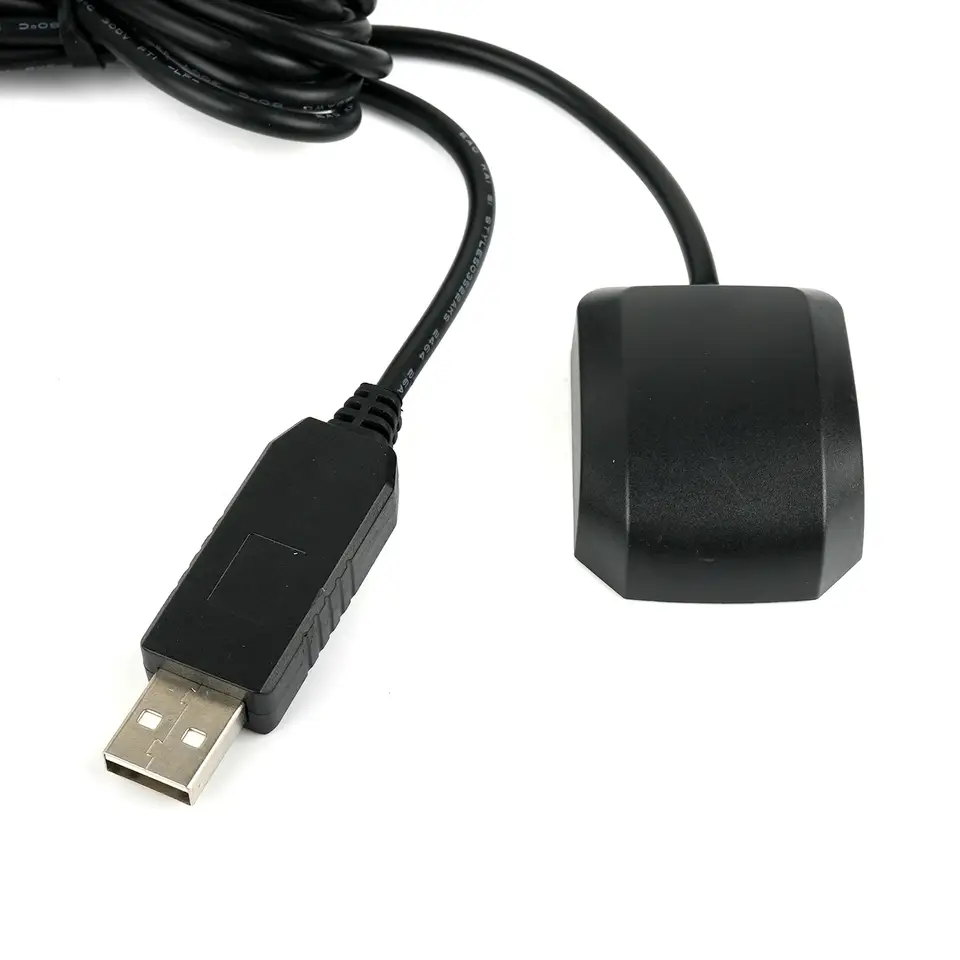

M10 G-Mouse USB GPS Receiver, GPS/BeiDou/Galileo/QZSS, CH340, 2m Cable, 1-10Hz

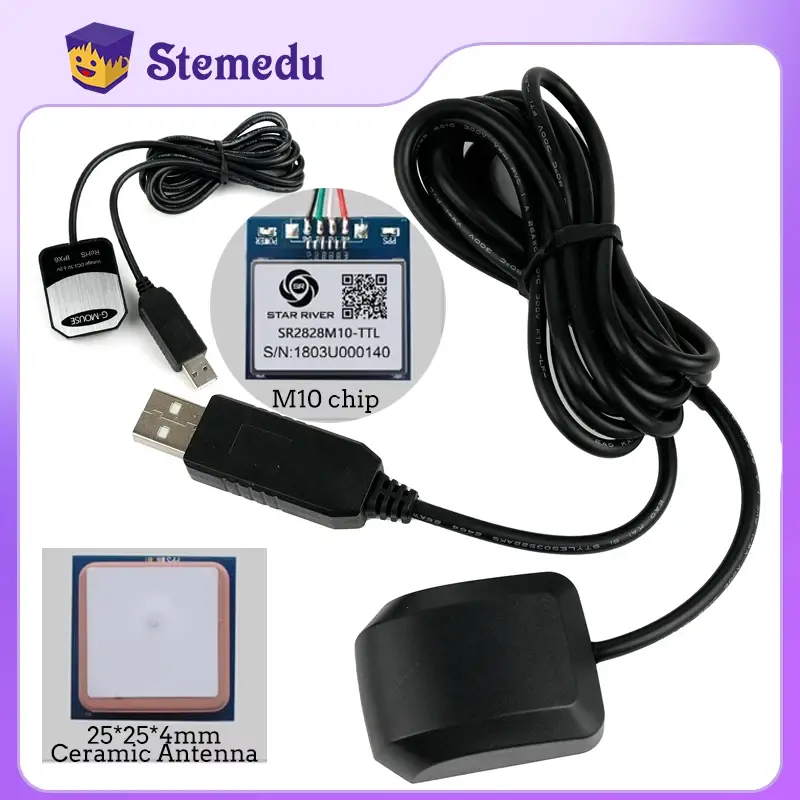

M10 G-MOUSE GPS Module with Flash CH340 USB to TTL GPS+Beidou+Galileo+QZSS Positioning Module for Car Boat Laptop Navigation Product description: The module adopts u-b-l-o-x positioning chip, which is a G-MOUSE that can track the satellite signals of up to four GNSS constellations at the same time, with low power consumption and high sensitivity. It is able to locate itself quickly and accurately in the city, canyon, under the elevated area and other places with weak signals, as well as any position inside the car. It makes the module can be widely used in car monitoring, bus stop announcement, car navigation, boat navigation, laptop navigation and other products. Highlights: - Product main chip: SR1612U10 (UBX-M10050-KB) - Built-in USB to TTL using CH340 high-performance conversion chip, USB cable length 2 meters - Support GPS+Beidou+Galileo+QZSS (default); GPS+GLONASS; GPS+Beidou multiple modes output - Built-in Flash, free to configure the baud rate, output statement, output rate, second pulse and other parameters. - Built-in TCXO crystals and Farad capacitors for faster hot-starting - 1-10Hz positioning update rate Technical Specification Item Description Product Parameters Chip Characteristics Chip UBX-M10050-KB Frequency BeiDou B1I/B1C;GPS L1 C/A; QZSS L1 C/A/S; GLONASS L10F;Galileo E1B/C;SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN Baud rate 4800bps-921600bps(default 38400bps) Sensitivity Tracking -167dBm Capture -160dBm Cold Start -148dBm Start-up time Cold Start Average 26 seconds. Warm Start Average 24 seconds Hot Start Average 1 second Accuracy Horizontal Accuracy 1.5 meter CEP Time Accuracy 30 ns Operating Limit Maximum height 80000 meter Maximum speed 500 m/s Maximum acceleration ≦ 4G Output Data Output level USB level Output protocol NMEA0183 Standard protocol (can be set to specify output statements) Update frequency 1Hz -10Hz(default 1Hz) Physical Characteristics Dimension 38 x 49 x 16 mm, Cable length 2 meter Weight 108g Connector Standard USB port Operating environment Operating Temperature -40℃ to 85℃ Storage Temperature -40℃ to 85℃ Packge inlcues: 1/2/4/10 X M10 GPS module
