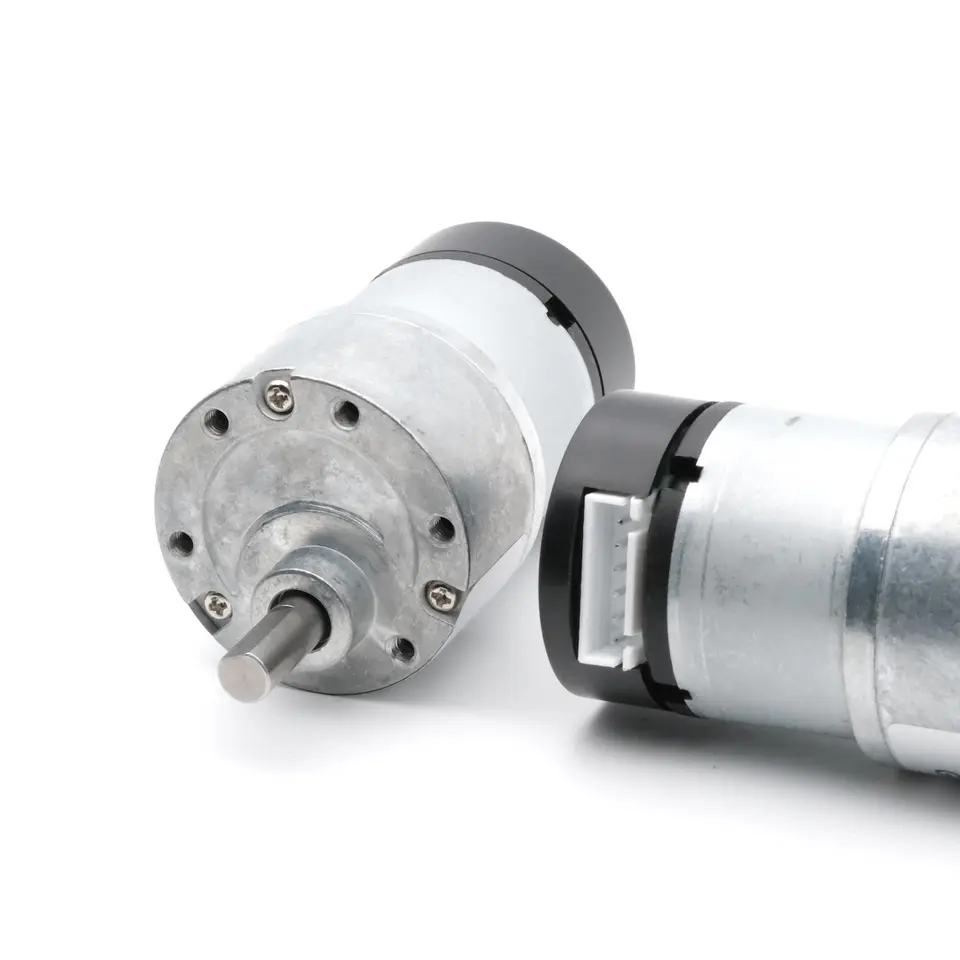

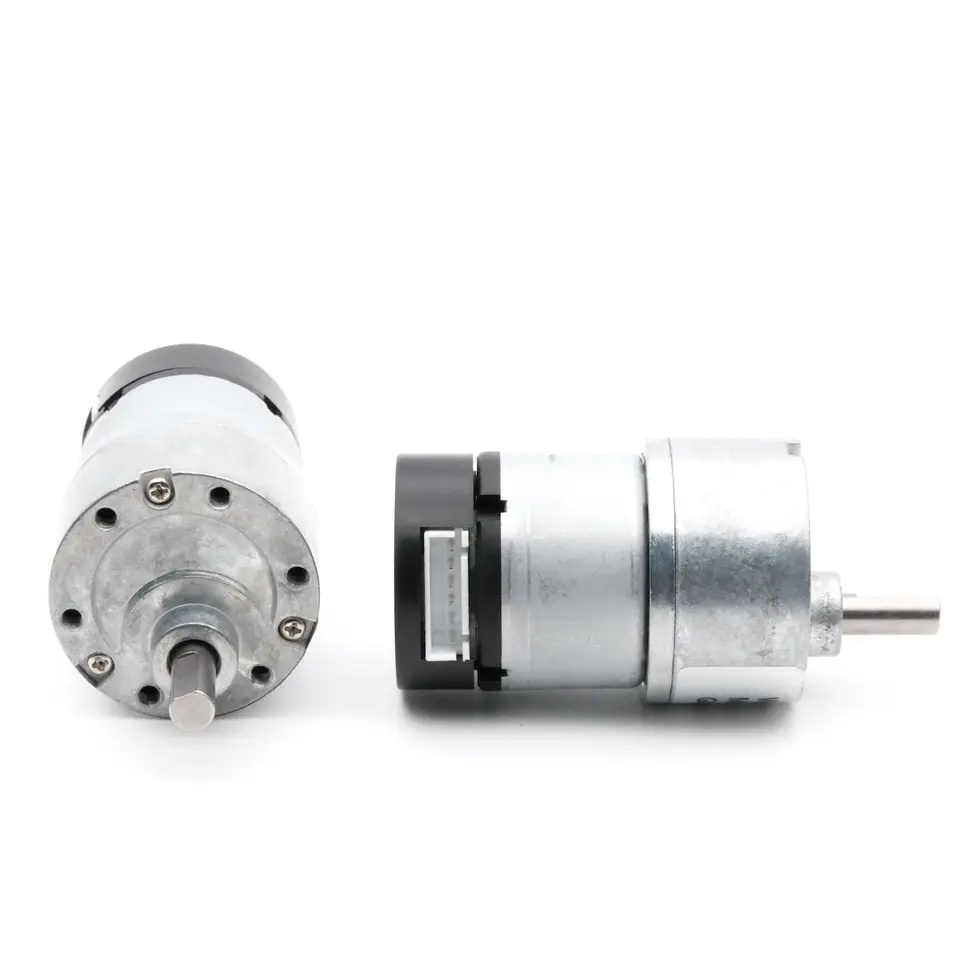

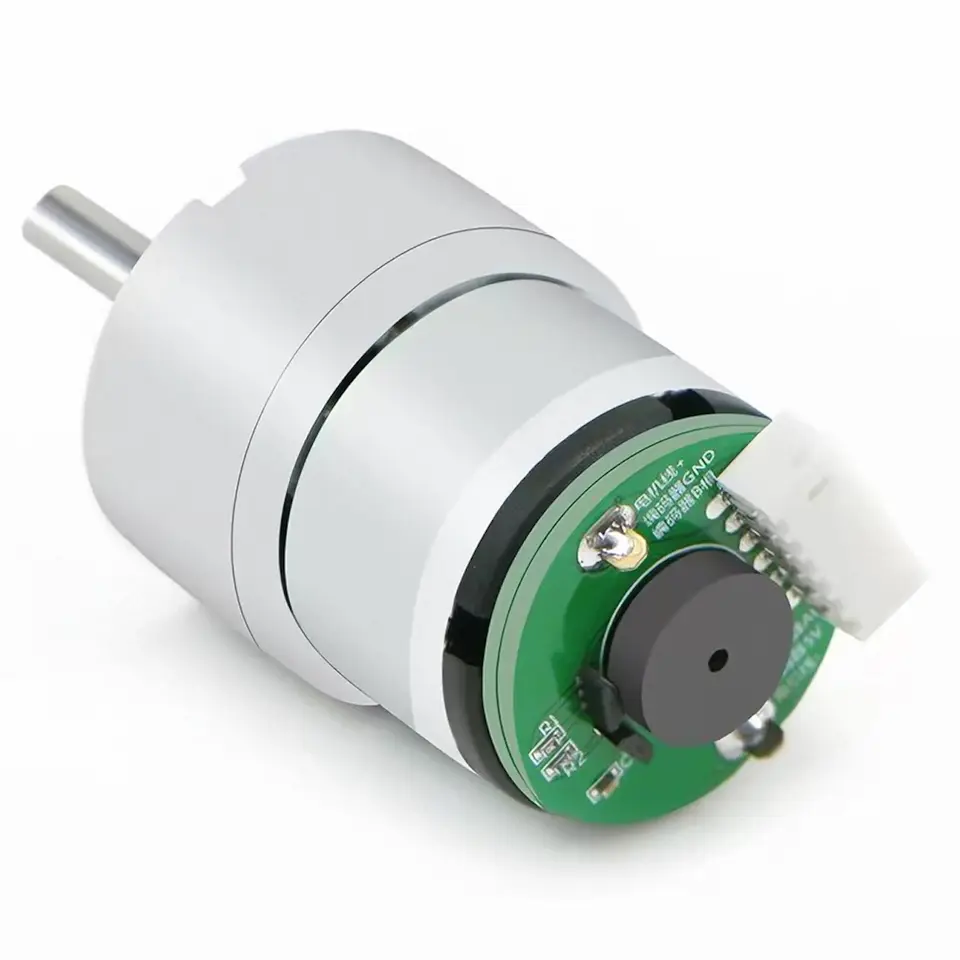

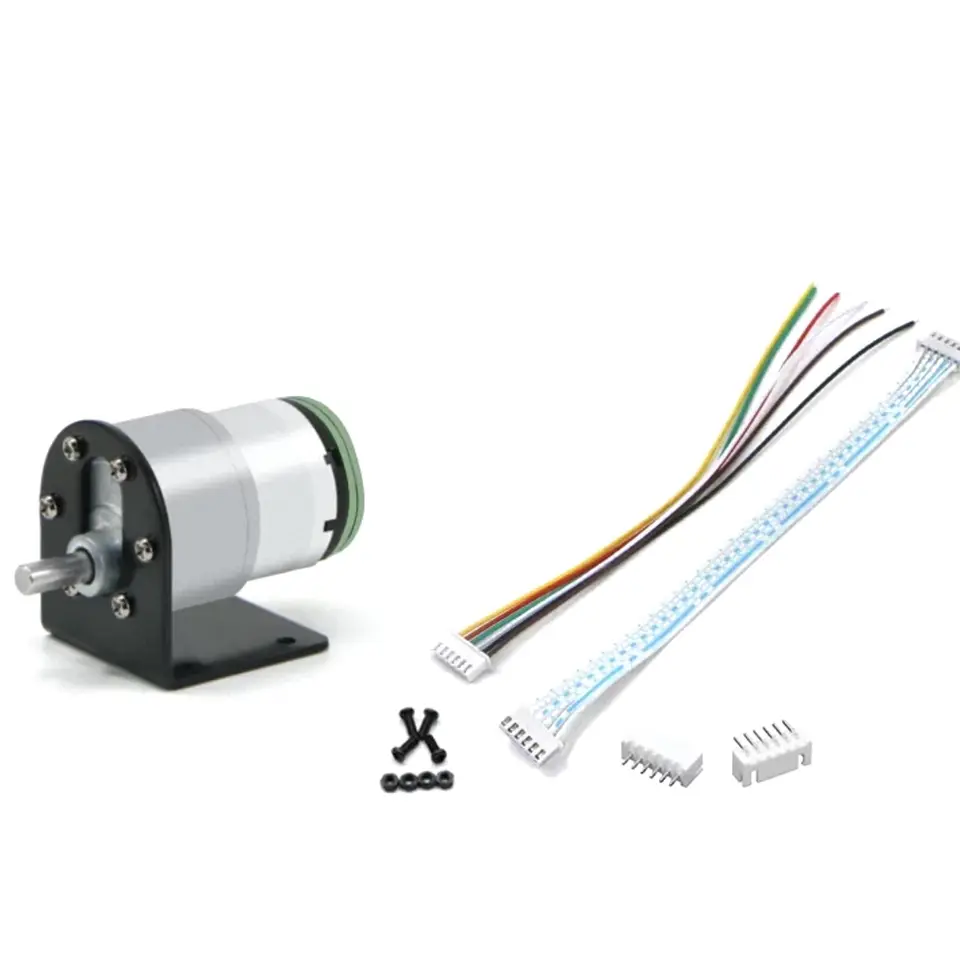

MG513 DC Gear Motor with Hall or GMR Encoder, 6mm D Shaft, 10:1 to 60:1 Ratios

Name: MG513 DC Gear Motor with Hall or GMR Encoder, 6mm D Shaft, 10:1 to 60:1 Ratios
SKU: AE-4000996252848-12000044087489364
Price: 26.76 CAD
Availability: InStock

$26.76

Est. delivery 12–22 days

Est. $13.07 shipping to Canada. Exact cost at checkout

In stock

Supplier stock is confirmed when your order is processed.

Option (12 available)

Quantity

Sold by: Polar Parts
Ships from: Our supplier partnersSupport from Milton, Ontario
Shipping: Canada only
Returns: 14 days, unopened items
Payment: Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

Model Number	MG513/JGB37-520
Type	Gear Motor
Output Voltage	Refer to the details
Use	Home Appliance
Certification	ROHS
Certification	CE
Origin	Mainland China
Does it include wireless functionality?	No
Does it include a Battery?	No
Output Power	＜18.65
Continuous Current(A)	Refer to the details
Commutation	Brush
Protect Feature	Totally Enclosed
Construction	Permanent Magnet
Usage	Car
Usage	Home Appliance
Efficiency	IE 2
Color	GRAY
Torque	Refer to the details
SKU	AE-4000996252848-12000044087489364

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

Brushed DC gear motor with a Hall or GMR encoder for speed measurement in self-balancing cars and ROS robots.

Watch the video to demonstrate the use of motor in one-wheel balancing. The main difference between the two encoders is that the accuracy of the GMR encoder is 38 times that of the Hall encoder, Compared to Hall encoders, it performs much better at low speeds and has the magnetic stability of Hall encoders. Understand the parameters: Dimensional drawings: (excluding encoder part) Output shaft diameter: 6mm D type Encoder supply voltage: 5.0V Different reduction ratios have different lengths of gearbox: 10 ratio = 22mm 20/30 ratio = 23mm 60 ratio: 25.5mm
