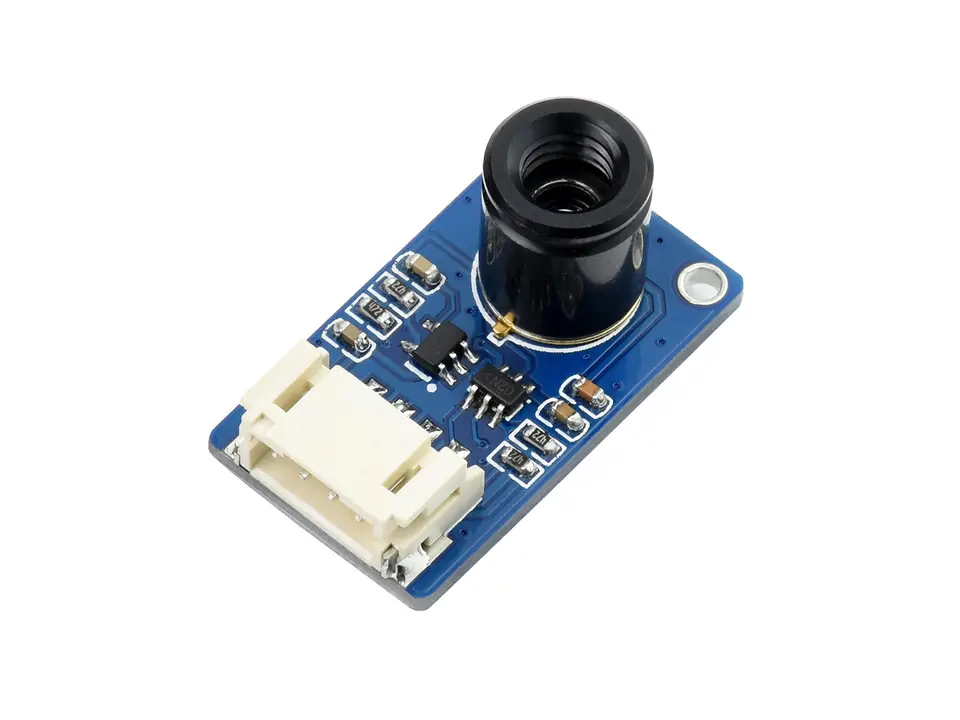

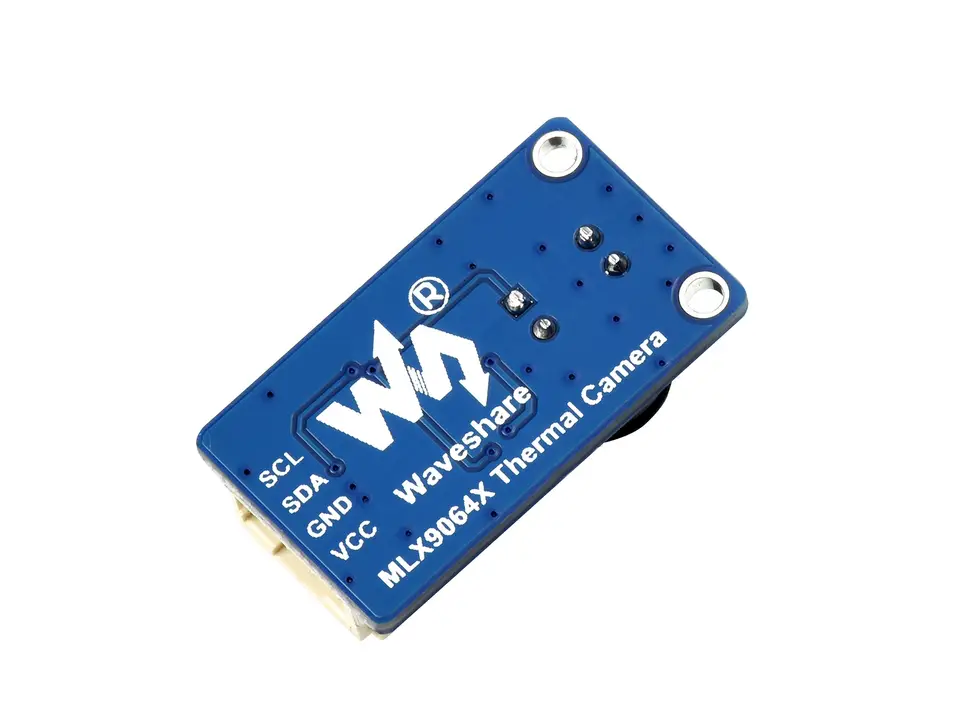

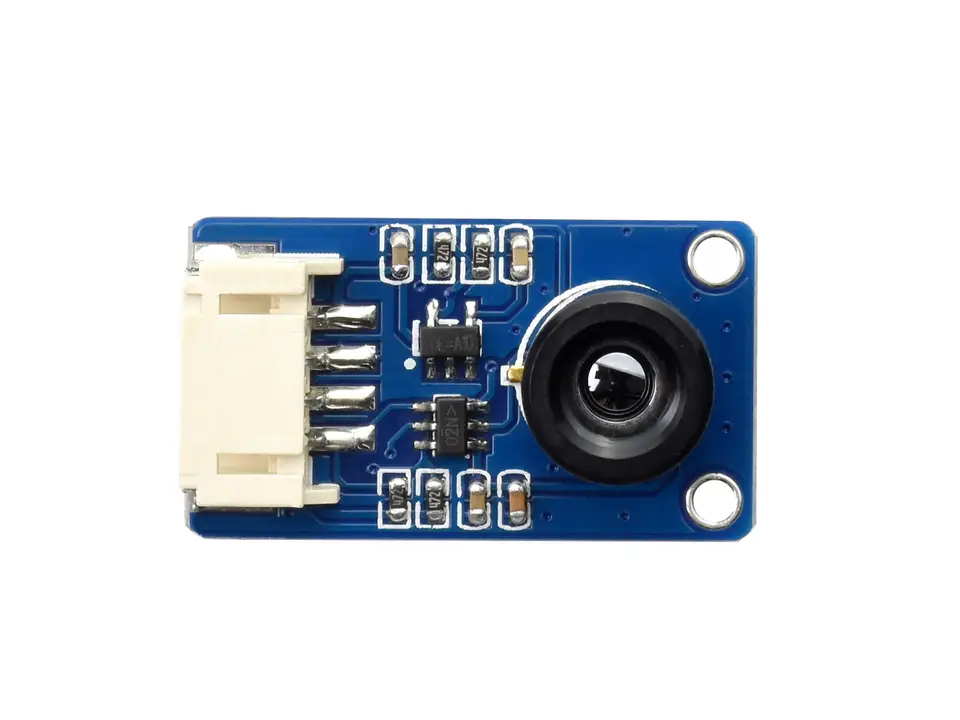

MLX90640 32x24 IR Thermal Camera Module, 55° FOV, I2C, 3.3V/5V

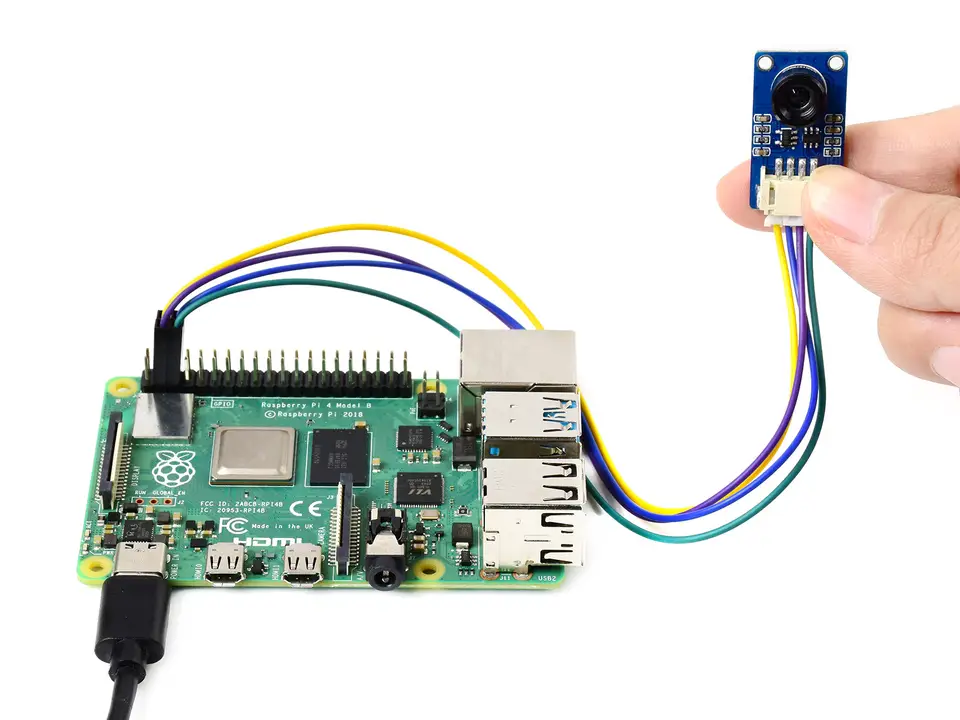

MLX90640-D55 Thermal Camera x1 PH2.0 4PIN wire x1 1 2 MLX90640 IR Array Thermal Imaging Camera, 32×24 Pixels, 55° Field Of View, I2C Interface IR Array Thermal Imaging Camera MLX90640, 32×24 IR Array Small Size, Non-Contact, Low Cost Features At A Glance The MLX90640-D55 Thermal Camera is a small size, non-contact, and low cost IR array thermal imaging camera, with 32×24 pixels. It will detect the IR distribution of objects in the field of view, turn the data into surface temperature of the objects by calculation, and then generate thermal images, for easy integration into miscellaneous industrial or intelligent control applications. Adopts MLX90640 far-infrared thermal sensor array, 32×24 pixels Communicating via I2C interface, configurable to fast mode (up to 1MHz data rate) Noise Equivalent Temperature Difference (NETD) 0.1K RMS@1Hz refresh rate Onboard voltage translator, compatible with 3.3V/5V operating voltage Programable frame rate 0.5～64Hz (0.25～32FPS) Comes with development resources and manual (examples for Raspberry Pi/Arduino(ESP32)/STM32) Typical applications: High precision non-contact temperature measurements IR thermal imaging devices, IR thermometers Smart home, intelligent building, intelligent lighting Industrial temperature control, security & safety, intrude/movement detection Specifications OPERATING VOLTAGE 3.3V/5V CURRENT FIELD OF VIEW (FOV) 55° × 35° ABSOLUTE ACCURACY ±2℃ (ambient temp. 0 ~ 50℃) COMMUNICATION BUS I2C (0x33 by default) REFRESH RATE 0.5~64Hz (0.25～32FPS) TARGET TEMPERATURE RANGE -40 ~ 300℃ OPERATING TEMPERATURE -40 ~ 85℃ DIMENSIONS 28 × 16mm MOUNTING HOLE SIZE 2.0mm I2C Control Interface Supports Host Boards Including Raspberry Pi/Arduino(ESP32)/STM32... VCC 3.3V/5V power input GND GND SDA connects to MCU I2C data pin SCL connects to MCU I2C clock pin Demonstration for reference ONLY, Raspberry Pi is NOT included. Outline Dimensions
