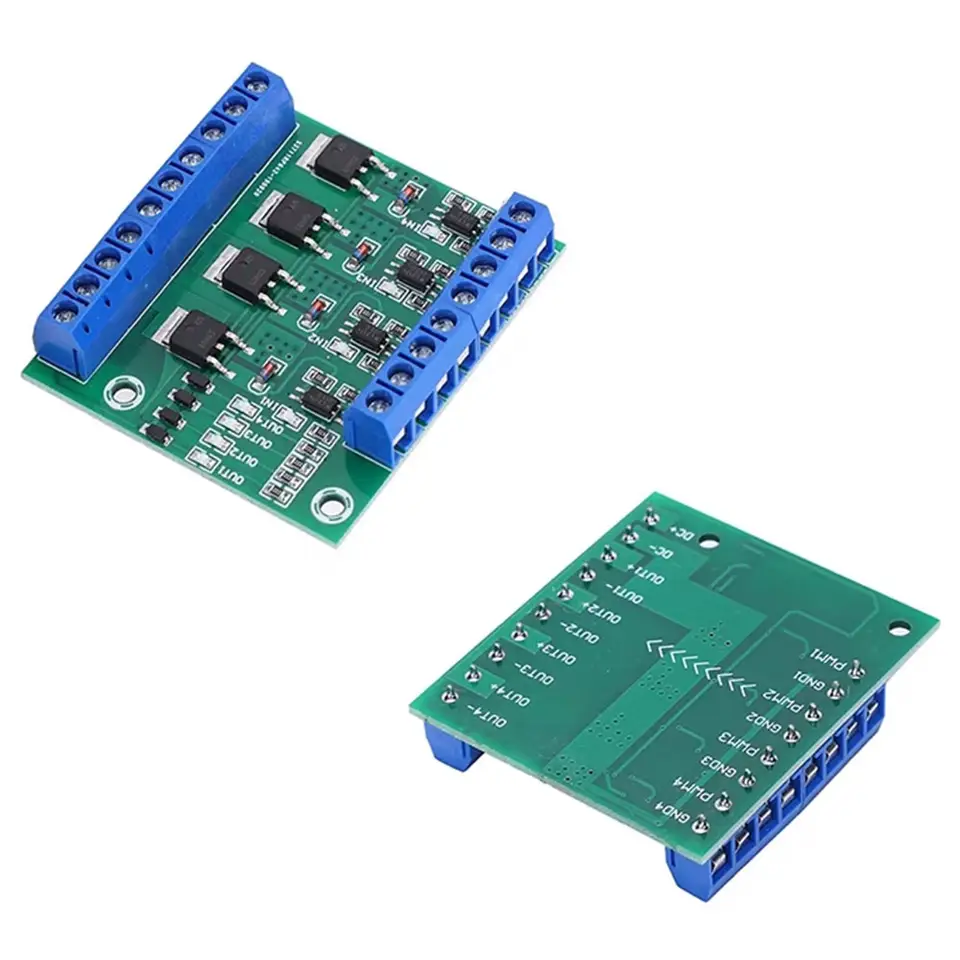

MOS FET 4 Channels Pulse Trigger Switch Controller PWM Input Steady For Motor LED 4 Way 4ch Diy Electronic Module image 1

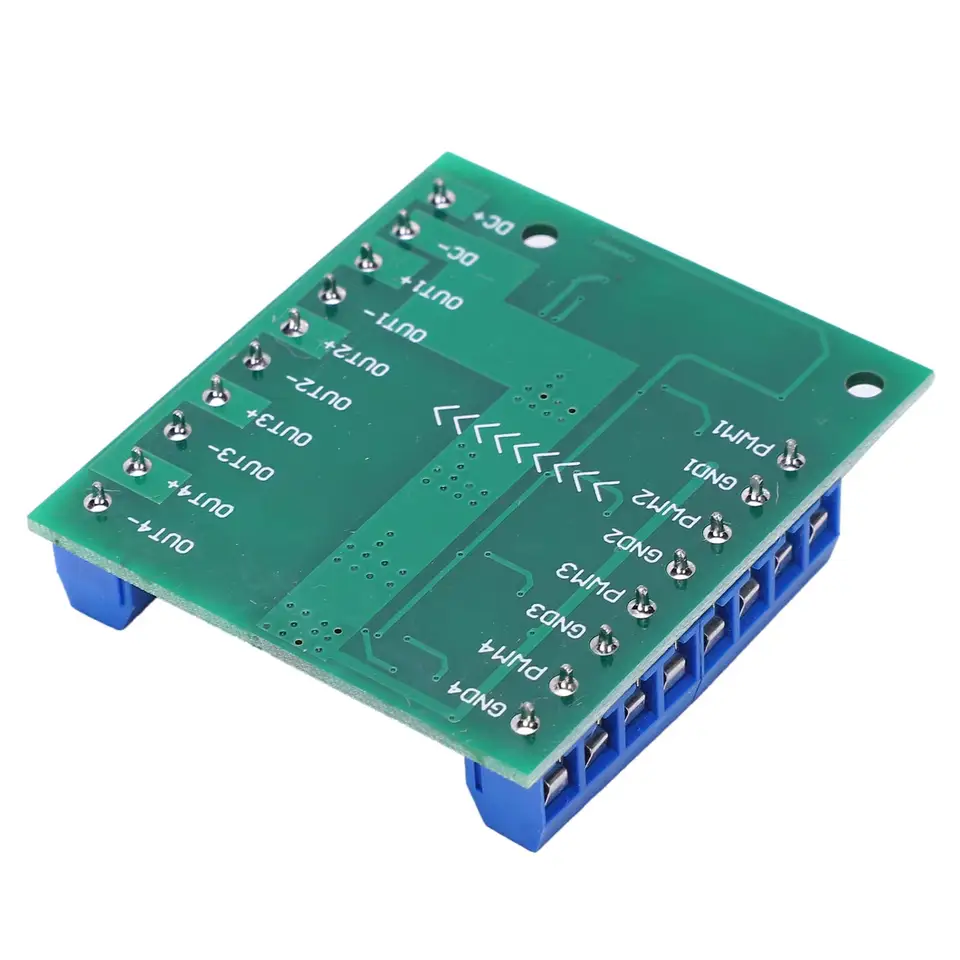

MOS FET 4 Channels Pulse Trigger Switch Controller PWM Input Steady For Motor LED 4 Way 4ch Diy Electronic Module image 2

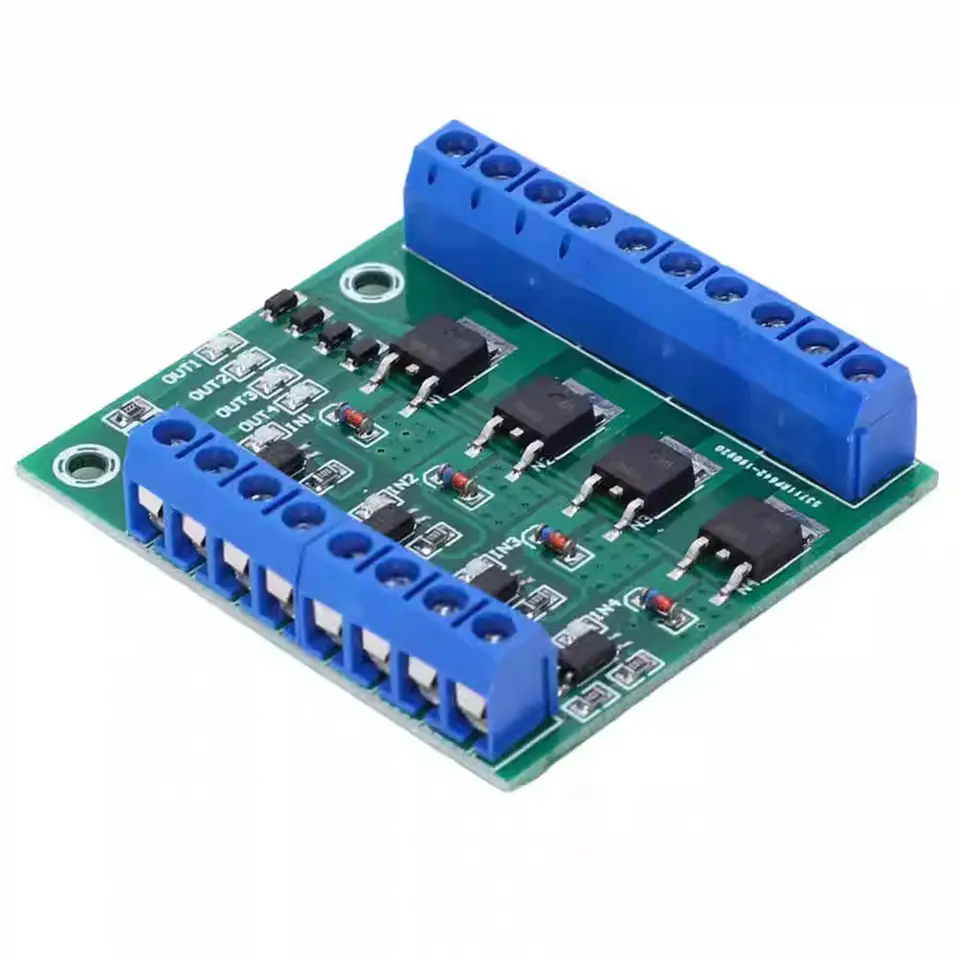

MOS FET 4 Channels Pulse Trigger Switch Controller PWM Input Steady For Motor LED 4 Way 4ch Diy Electronic Module image 3

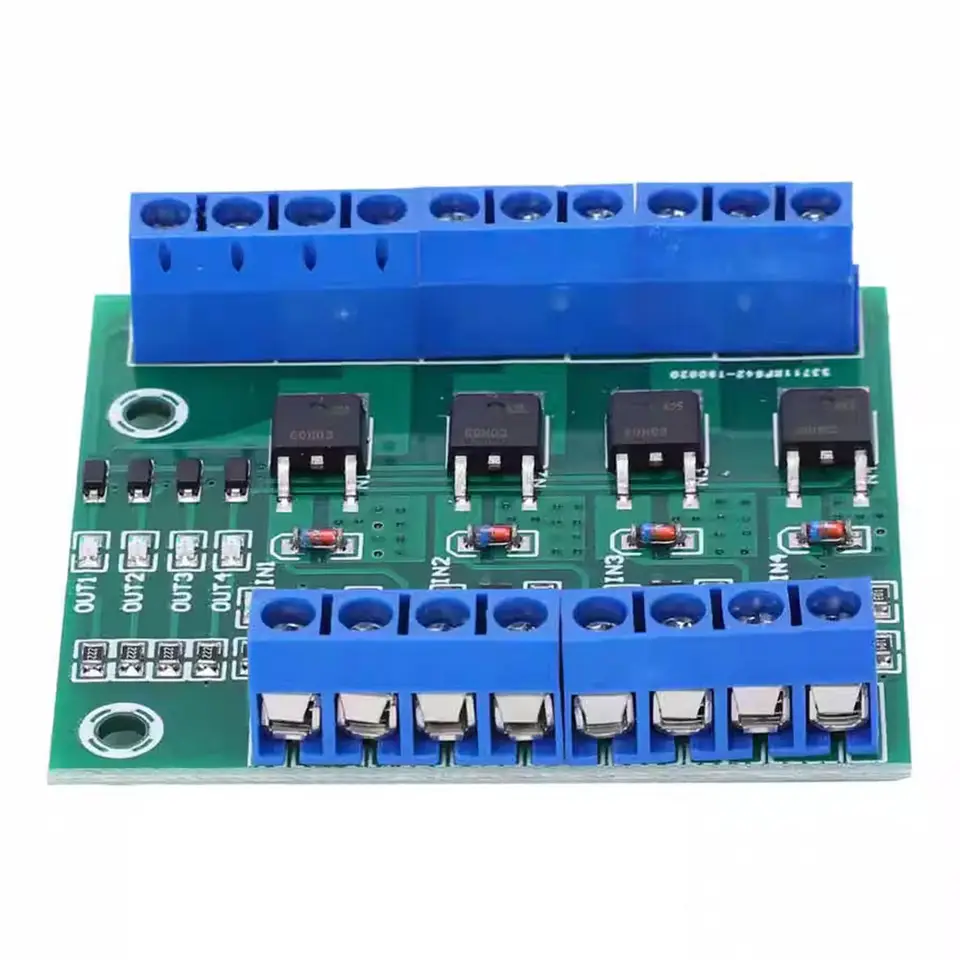

MOS FET 4 Channels Pulse Trigger Switch Controller PWM Input Steady For Motor LED 4 Way 4ch Diy Electronic Module image 4

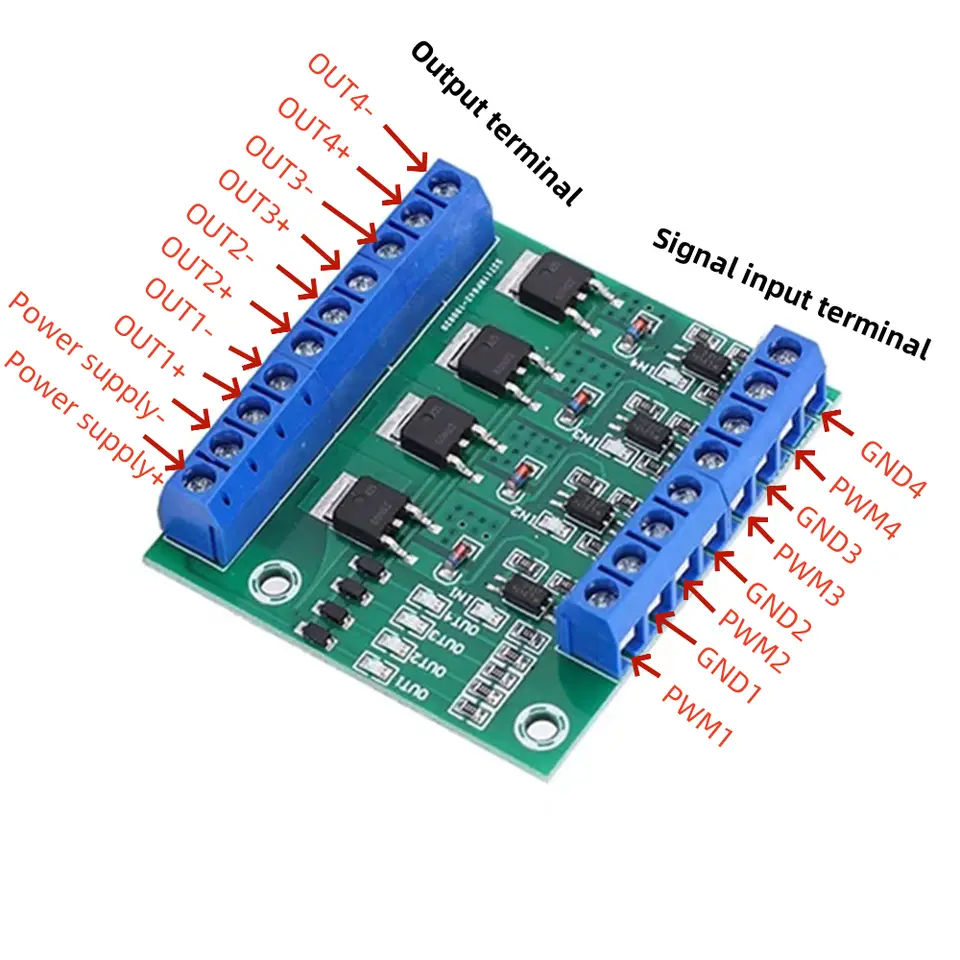

MOS FET 4 Channels Pulse Trigger Switch Controller PWM Input Steady For Motor LED 4 Way 4ch Diy Electronic Module image 5
MOS FET 4 Channels Pulse Trigger Switch Controller PWM Input Steady For Motor LED 4 Way 4ch Diy Electronic Module image 6
Image 1 of 6

4-Channel MOSFET Trigger Switch Module, PWM Input, Optocoupler Isolated, 3.7-27V, 10A

$4.58

Est. delivery 7–11 days

Est. $2.88 shipping to Canada. Exact cost at checkout

In stock

Supplier stock is confirmed when your order is processed.

Quantity
Sold by
Polar Parts
Ships from
Our supplier partnersSupport from Milton, Ontario
Shipping
Canada only
Returns
14 days, unopened items
Payment
Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

Brand NameSnow brocade
TypeDrive IC
Supply VoltageDC4-20V
ApplicationComputer
ConditionNew
OriginMainland China
SKUAE-1005006946949604-12000038819351262

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

An optically isolated four-channel MOSFET switch board that lets a microcontroller or PLC PWM-control motors, lamps, LED strips, pumps and valves.

MOS FET 4-channel pulse triggered switch controller board PWM optocoupler isolator motor LED light driver board This module is based on the FET. We can input PWM signals to control motor speed, bulb brightness, etc. Features: FET module, input and output are completely isolated from each other. Signal trigger: Digital high/low signal, can be connected to microcontroller IO, PLC interface, DC power supply, etc. Output controllable high-power devices: motor, light bulb, LED strip, DC motor, small water pump, solenoid valve. Input signal voltage: 4V~20V; Input current: approximately 5mA. Output voltage: DC 3.7V~27V, current within 10A per circuit Product size: 78x65x15mm Item weight: 52 grams Packaging weight: 54 grams Packaging included: 1 trigger switch module
