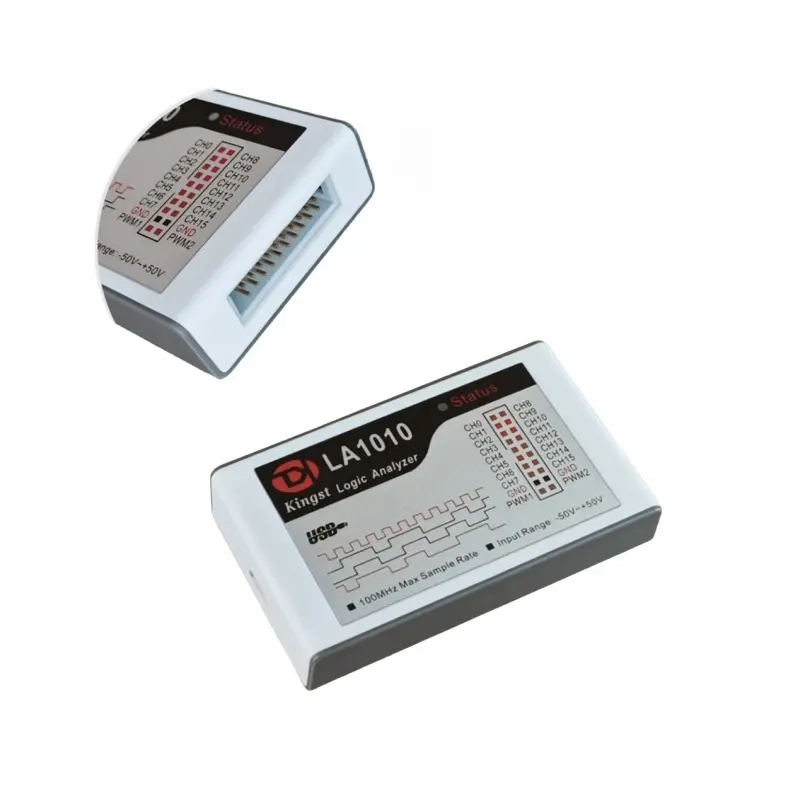

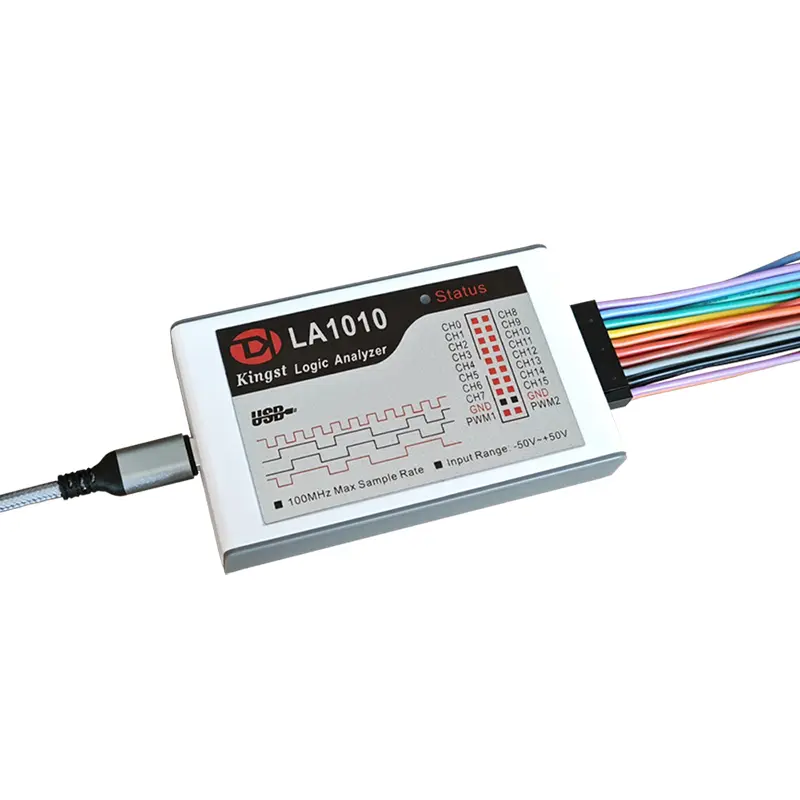

Kingst LA1010 USB Logic Analyzer, 16 Channels, 100MHz, with PWM Output

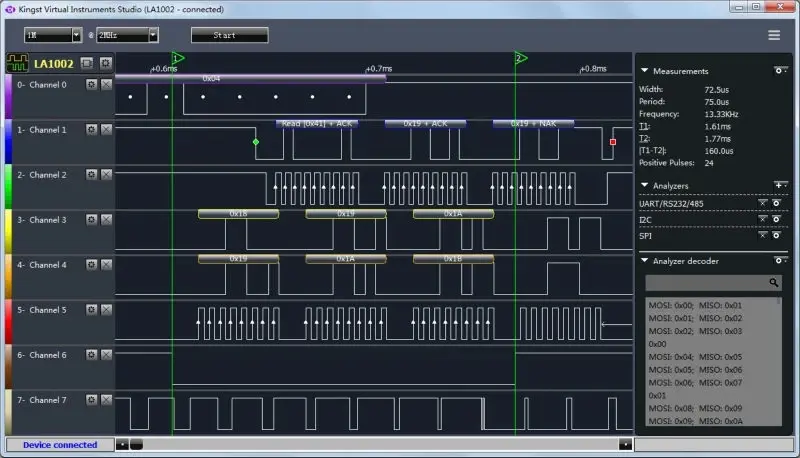

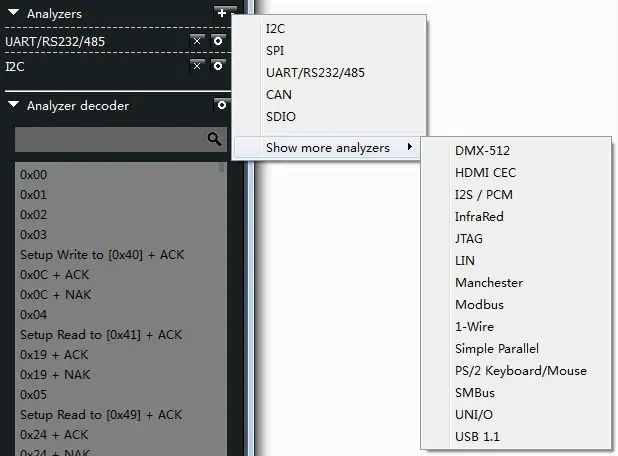

Descriptions LA1010 is a logic analyzer product with high performance. It has 16 input channels and the sample rate is up to 100 MHz. Along with the PC software KingstVIS, 16 channels of digital signal sampled simultaneously, and converted to digital waveform while displayed on monitor. Analyze signal with many standard protocols for straightforward communication data. Helps in testing and analyzing digital systems(MCU/ARM/FPGA, etc.), developing and debugging several communication programs, or monitoring and recording digital signals long-term Features ·Max sampling rate: 100MHz @ 3 channels, 50MHz @ 6 channels, 32MHz @ 9 channels, 16 MHz@ 16 channels ·Large sampling depth and supported compression ·Built-in PWM generator ·Compatible USB 2.0 / 3.0 interface ·Powerful software and easy to use ·Online automatic updates Specifications ·Input channels: 16 MAX ·Max sampling rate: 100 m ·Measurement bandwidth: 20 m ·Min pulse width captured: 20 ns ·Max sampling depth: 10 G / channel ·Input voltage range: -50 ~ +50 V ·Input impedance: 220 KΩ, 12 pF ·Adjustable threshold voltage: -4 ~ +4 V, step: 0.01 V ·PWM channels: 2 ·PWM frequency range: 0.1 ~ 10 MHz ·PWM frequency adjust step: 10 ns ·PWM pulse width step: 10 ns ·PWM output voltage: +3.3 V ·PWM output impedance: 50 Ω ·Standby current: 100 mA ·Max operating current: 150 mA ·Dimensions: 95 x 55 x 23 mm ·Supported OS: Windows XP, Vista, Windows 7/8/10(32/64bit) ·Supported standard protocols: UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG, LIN, Manchester, Modbus, 1-Wire, UNI/O, SDIO, SMBus, USB1.1, PS/2, NEC InfraRed, Parallel, etc... Interface of software Download link of software: Package include
