Raspberry Pi CM5 Mini Base IO Board Same Size as CM5 Nano Base Board (A)/ (B) for Raspberry Pi Compute Module 5 Lite/ EMMC

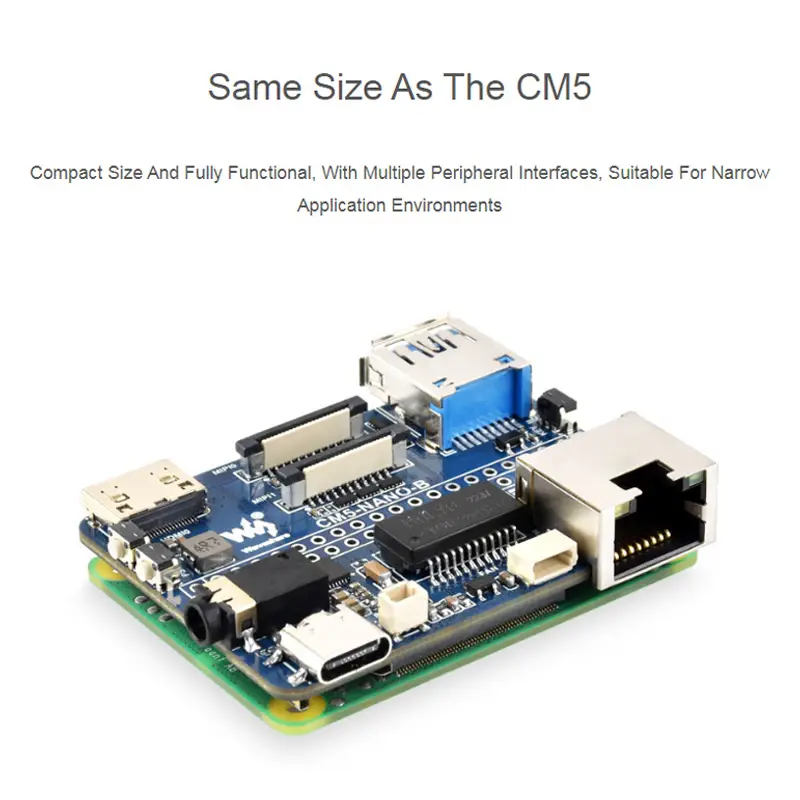

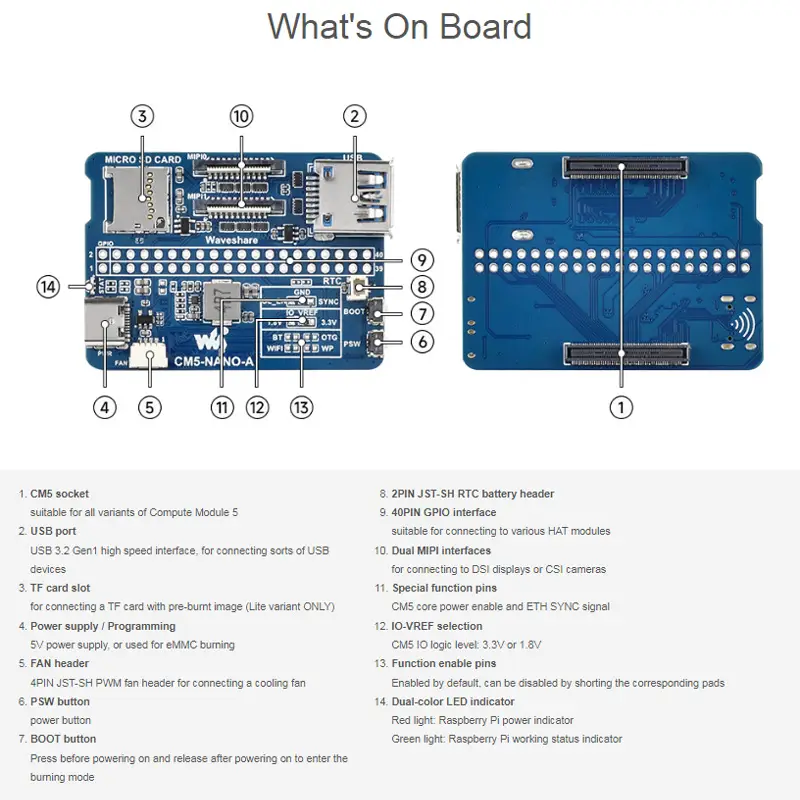

Nano Base Board (A) for Raspberry Pi Compute Module 5, Same Size As The CM5 Nano Base Board (A) for CM5 Suitable For Evaluating The Raspberry Pi CM5 Or Being Integrated Into End Products Base Board for Compute Module 5 Lite / eMMC Same Size As The CM5 Compact size and fully functional, With Multiple Peripheral Interfaces, Suitable for Narrow Application Environments Note: the CM5 is NOT included. Please buy it separately. Specifications CM5 socket suitable for all variants of Compute Module 5 Connector Raspberry Pi 40PIN GPIO interface × 1 USB USB 3.2 Gen1 Type A port × 1 MIPI MIPI 4-lane interface × 2 (22pin 0.5mm FPC connector) Storage TF card socket for Compute Module 5 Lite (without eMMC) variants Power input 5V Dimensions 55 × 40mm What's On Board CM5 socket suitable for all variants of Compute Module 5 USB port USB 3.2 Gen1 high speed interface, for connecting sorts of USB devices TF card slot for connecting a TF card with pre-burnt image (Lite variant ONLY) Power supply / Programming 5V power supply, or used for eMMC burning FAN header 4PIN JST-SH PWM fan header for connecting a cooling fan PSW button power button BOOT button Press before powering on and release after powering on to enter the burning mode 8. 2PIN JST-SH RTC battery header 9. 40PIN GPIO interface suitable for connecting to various HAT modules 10. Dual MIPI interfaces for connecting to DSI displays or CSI cameras 11. Special function pins CM5 core power enable and ETH SYNC signal 12. IO-VREF selection CM5 IO logic level: 3.3V or 1.8V 13. Function enable pins Enabled by default, can be disabled by shorting the corresponding pads 14. Dual-color LED indicator Red light: Raspberry Pi power indicator Green light: Raspberry Pi working status indicator Outline dimensions Resources & Services WIKI: Nano Base Board (B) for Raspberry Pi Compute Module 5, Same Size As The CM5 Nano Base Board (B) for CM5 Suitable For Evaluating The Raspberry Pi CM5 Or Being Integrated Into End Products Base Board for Compute Module 5 Lite / eMMC Same Size As The CM5 Compact size and fully functional, With Multiple Peripheral Interfaces, Suitable for Narrow Application Environments Note: the CM5 is NOT included. Please buy it separately. Specifications CM5 socket Suitable for all variants of Compute Module 5 Networking Gigabit Ethernet RJ45 connector Connector Raspberry Pi 40PIN GPIO interface × 1 USB USB 3.2 Gen1 Type A port × 1 MIPI MIPI 4-lane interface × 2 (22pin 0.5mm FPC connector) Video Mini HDMI port × 1, supports 4K output Audio USB audio 3.5mm jack Storage TF card socket for Compute Module 5 Lite (without eMMC) variants Power input DC 5V 5A PCIe 16PIN PCIe connector (PCIe Gen2/3 x1) Dimensions 55 × 41mm What's On Board CM5 socket Suitable for all variants of Compute Module 5 PCIe interface 16PIN PCIe connector, for connecting sorts of PI5 PCIe adapter boards TF card slot for connecting a TF card with pre-burnt image (Lite variant ONLY) Other function pins Supports for extended functions Mini HDMI port Supports 4K output BOOT button Press before powering on and release after powering on to enter the burning mode PSW button power button 3.5mm jack Audio output 9. Power supply / Programming 5V power supply, or used for eMMC burning 10. 2PIN JST-SH RTC battery header 11. FAN header 4PIN JST-SH PWM fan header for connecting a cooling fan 12. RJ45 Gigabit Ethernet port for network access 13. Dual-color LED indicator Red light: Raspberry Pi power indicator Green light: Raspberry Pi working status indicator 14. User button connected to GPIO21 15. USB port USB 3.2 Gen1 high speed interface, for connecting sorts of USB devices 16. Dual MIPI interfaces for connecting to DSI displays or CSI cameras 17. 40PIN GPIO interface suitable for connecting to various HAT modules Outline dimensions Resources & Services WIKI:
