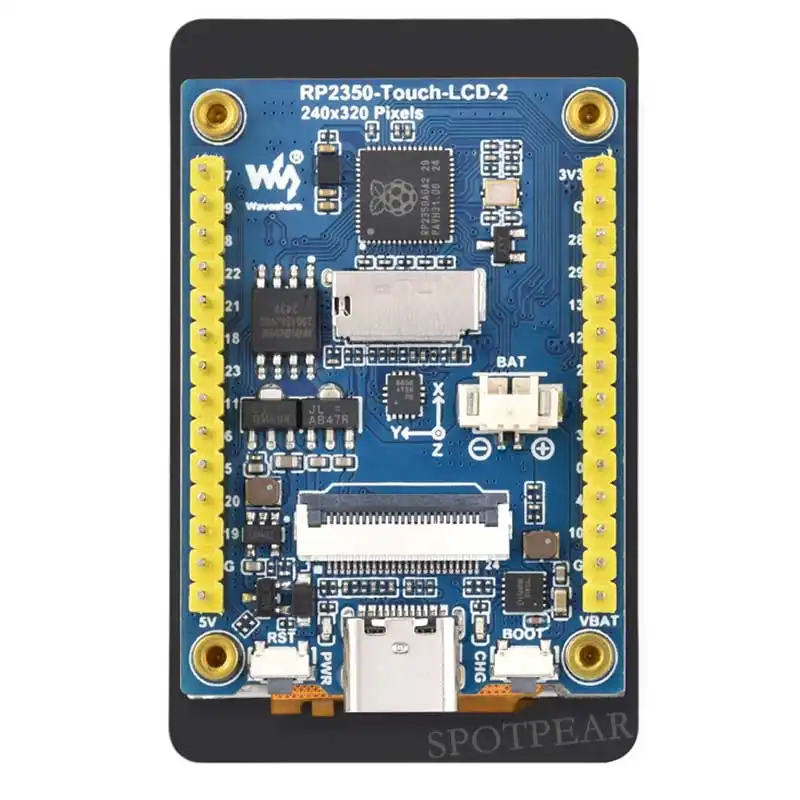

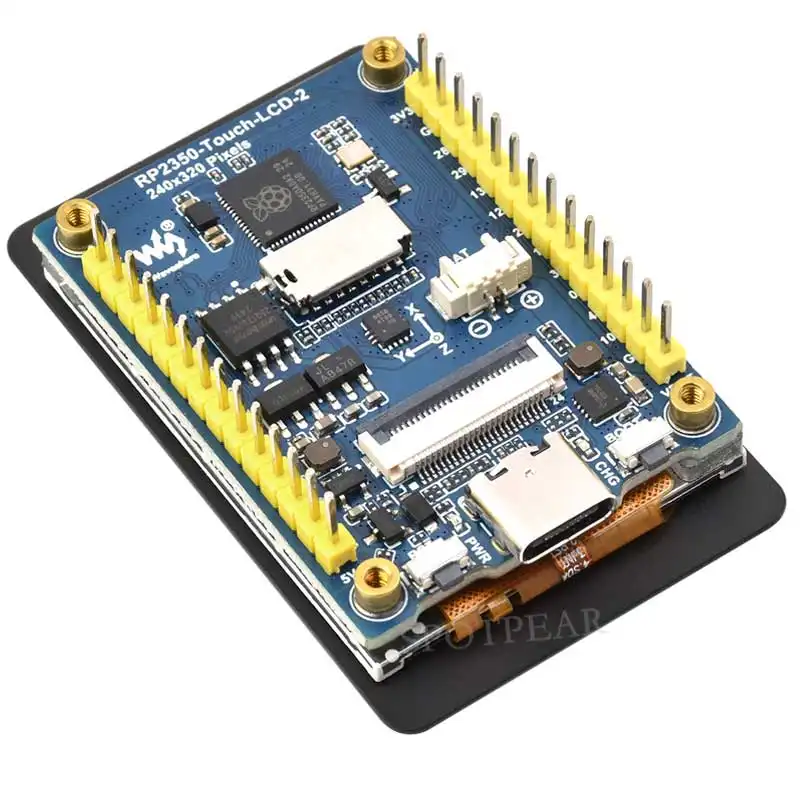

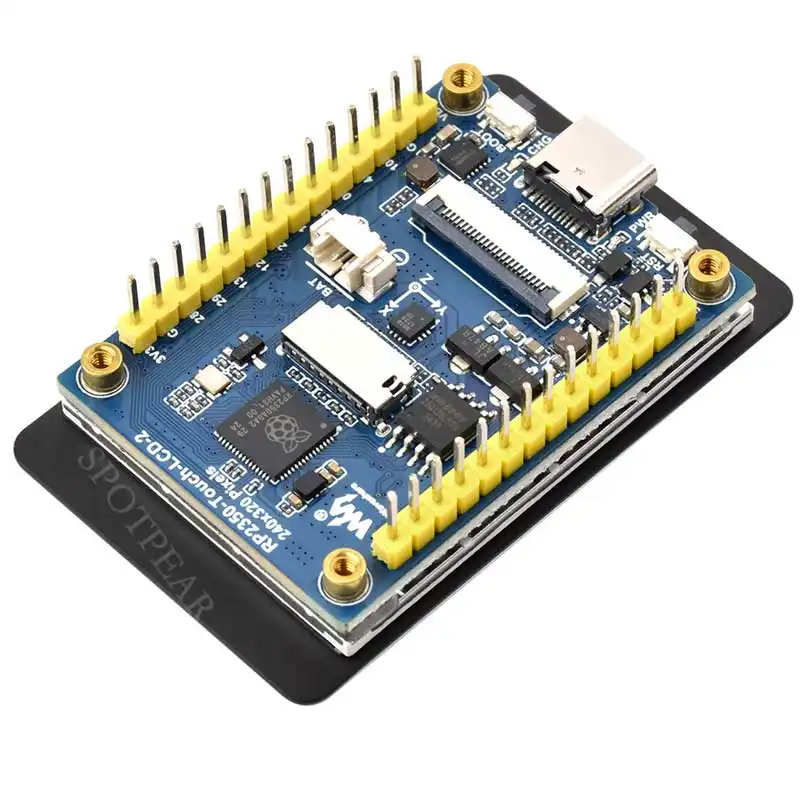

RP2350 Development Board with 2-inch Capacitive Touch LCD, 240x320, 6-Axis IMU

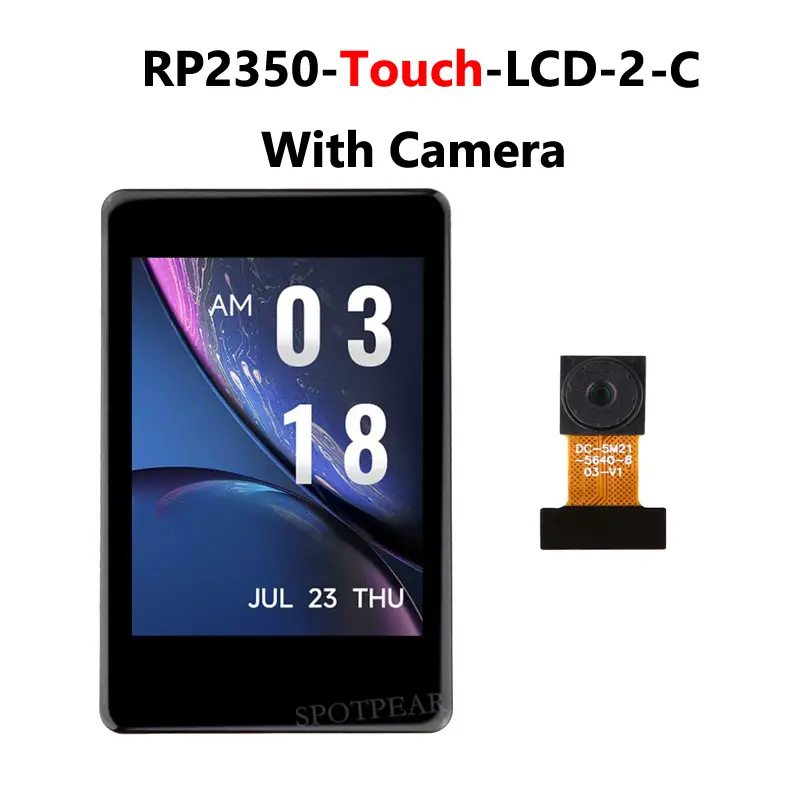

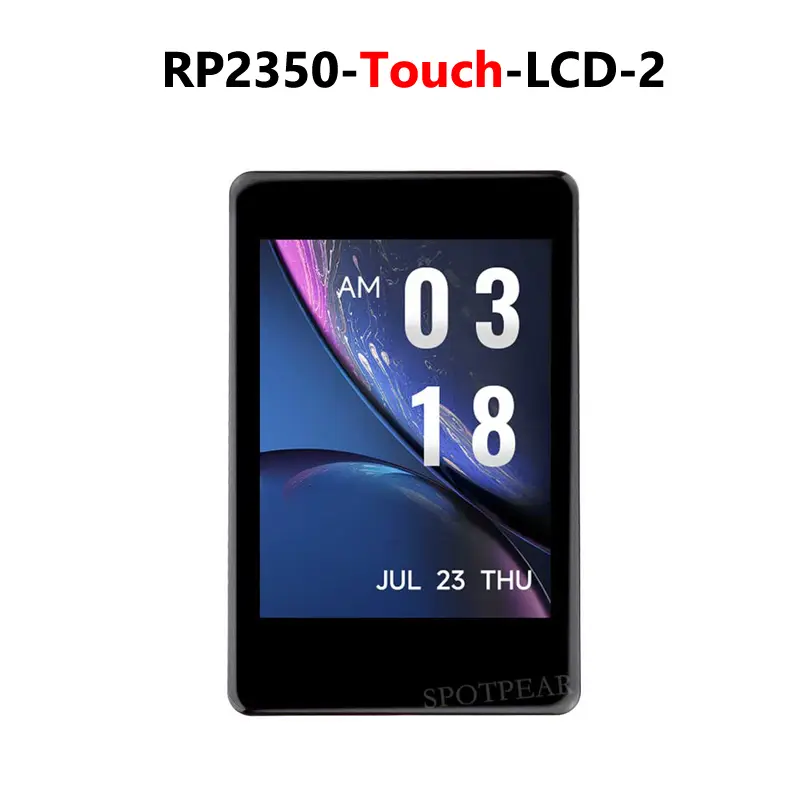

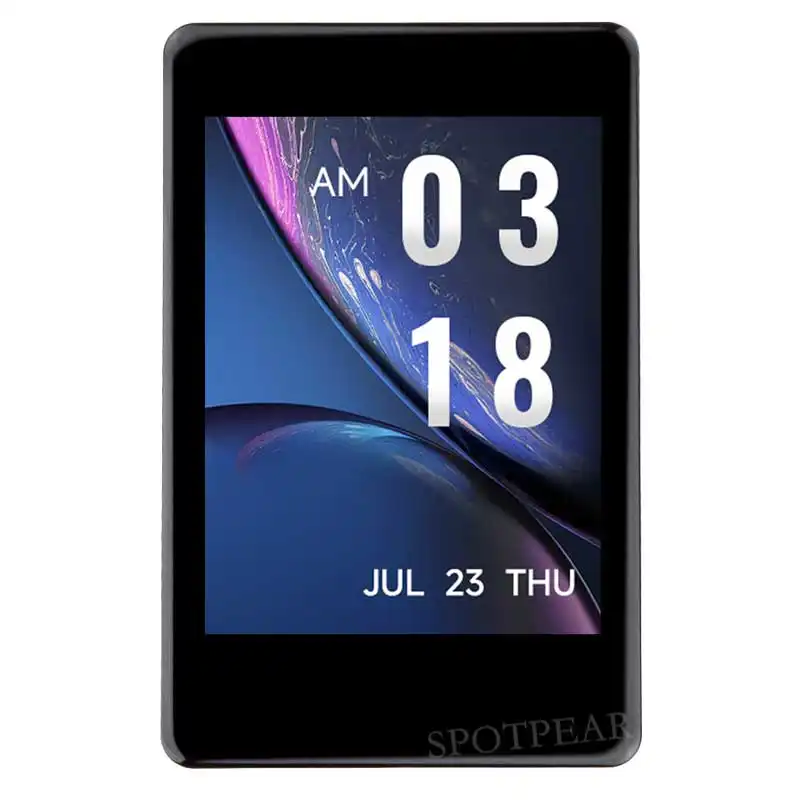

RP2350 Touch LCD Development Board Designed based on Raspberry Pi RP2350 Version selection Product Features This product is a low-cost, high-performance microcontroller development board. In a small form factor, it has a 2-inch capacitive touch LCD screen, camera interface, Micro SD card slot, lithium battery charging chip, and six-axis sensor (three-axis accelerometer and three-axis gyroscope) and other peripherals on board, making it easy to develop and integrate into products. RP2350 microcontroller chip designed with Raspberry Pi Unique dual-core, dual-architecture, equipped with a dual-core ARM Cortex-M33 processor and a dual-core Hazard3 RISC-V processor, both running at clock frequencies up to 150MHz Built-in 520KB SRAM and 16MB on-chip Flash Uses Type-C interface, no need to worry about plugging it in the right or wrong direction Onboard 2-inch capacitive touch LCD screen, 240 × 320 resolution, 262K colors Onboard camera interface, compatible with mainstream cameras such as OV5640, suitable for image and video acquisition Onboard lithium battery charging and discharging interface, suitable for mobile scenarios USB1.1 host and device support Supports low power sleep and hibernation modes USB can be recognized as mass storage for drag-and-drop program downloading Bring out 22 multi-function GPIO pins 2 SPI, 2 I2C, 2 UART, 2 12-bit ADC, and 14 controllable PWM channels Precise on-chip clocks and timers Onboard temperature sensor 12 Programmable I/O (PIO) state machines for custom peripheral support IPS display panel Excellent display performance, 262K color, wide viewing angle Support OV5640 etc. Mainstream cameras The version with OV5640 camera is optional. The OV5640 camera supports 5 million pixels and is suitable for image acquisition, video surveillance and other application scenarios to meet diverse needs. Usage Examples The basic version does not include a camera, and a version with an OV5640 camera is available as an option. Unique dual-core, dual-architecture The unique dual-core, dual-architecture capability of the RP2350 allows users to switch between a pair of industry-standard Arm Cortex-M33 cores and a pair of open hardware Hazard3 cores, giving developers the opportunity to experiment with the RISC-V architecture in a stable, well-supported environment. Support C/C++, MicroPython, Arduino Equipped with a complete SDK and open source tutorials, it is easy to get started and can be quickly embedded into the application Resource Overview Pin Definition Product size Package Contains [] RP2350-Touch-LCD-2 x1 [] RP2350-Touch-LCD-2-C x1
