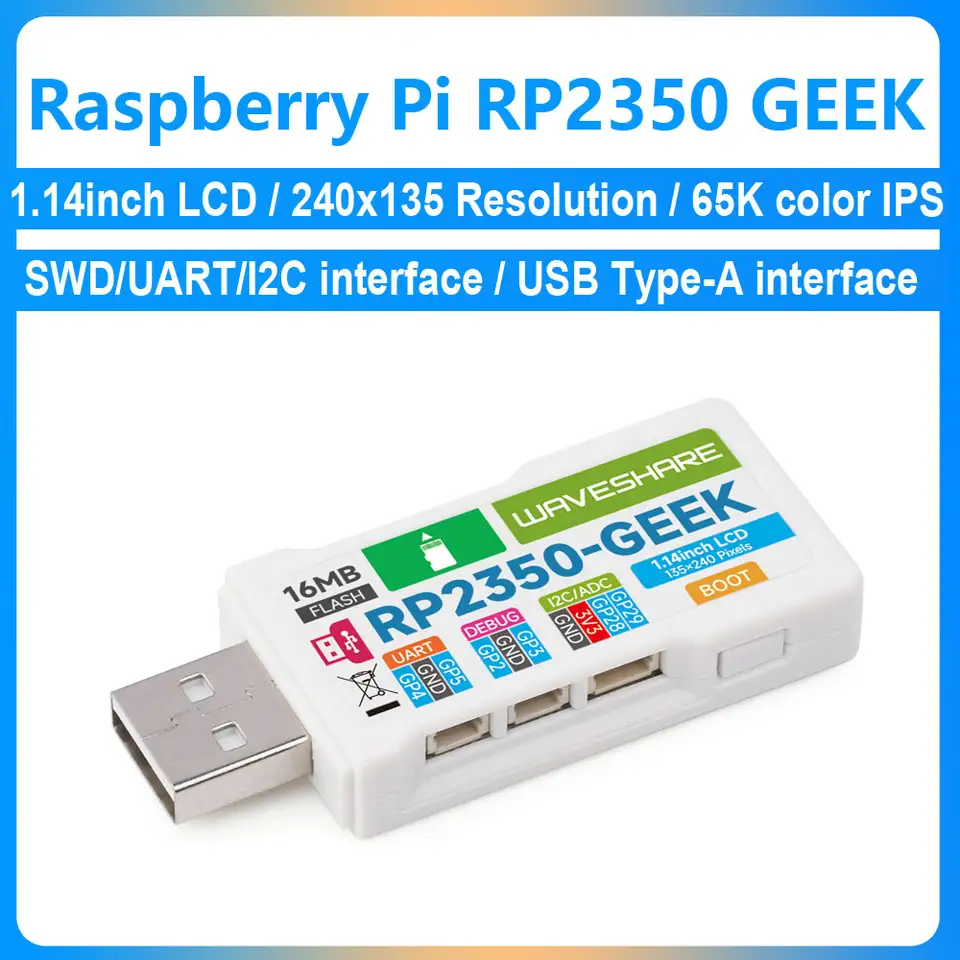

Raspberry Pi Pico 2 RP2350 GEEK RP2350A chip 1.14inch LCD 240x135 Resolution 65K color SWD/UART/I2C For OpenOCD/CMSIS-DAP

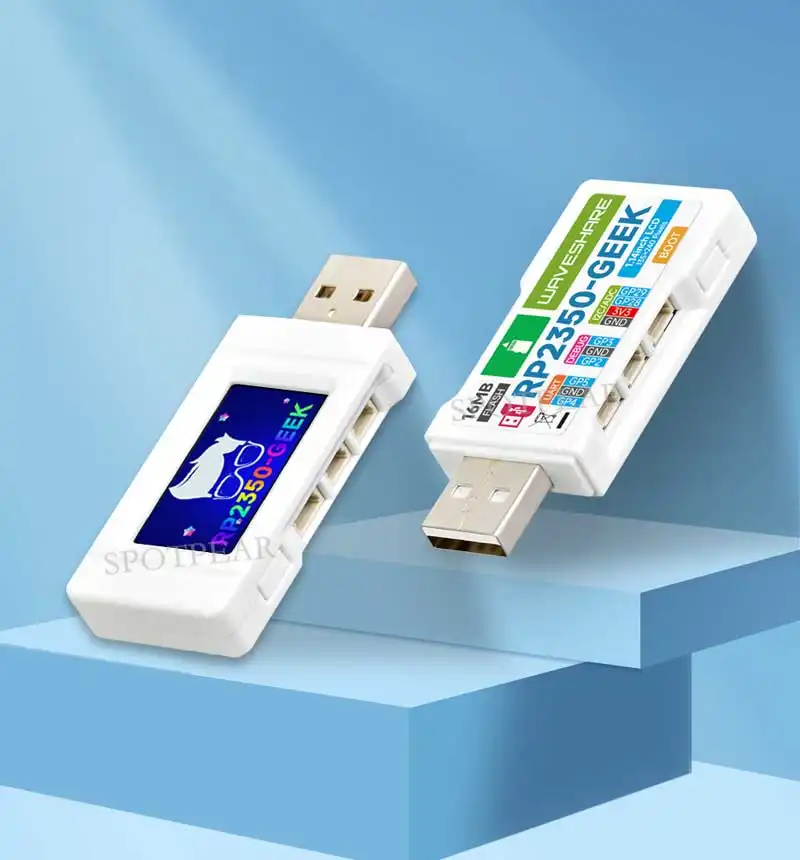

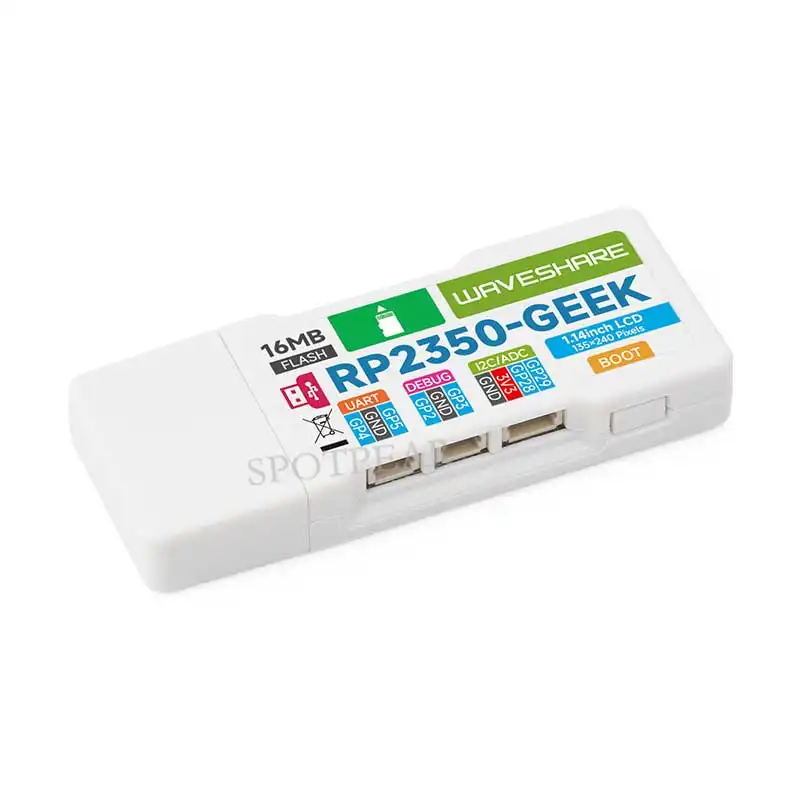

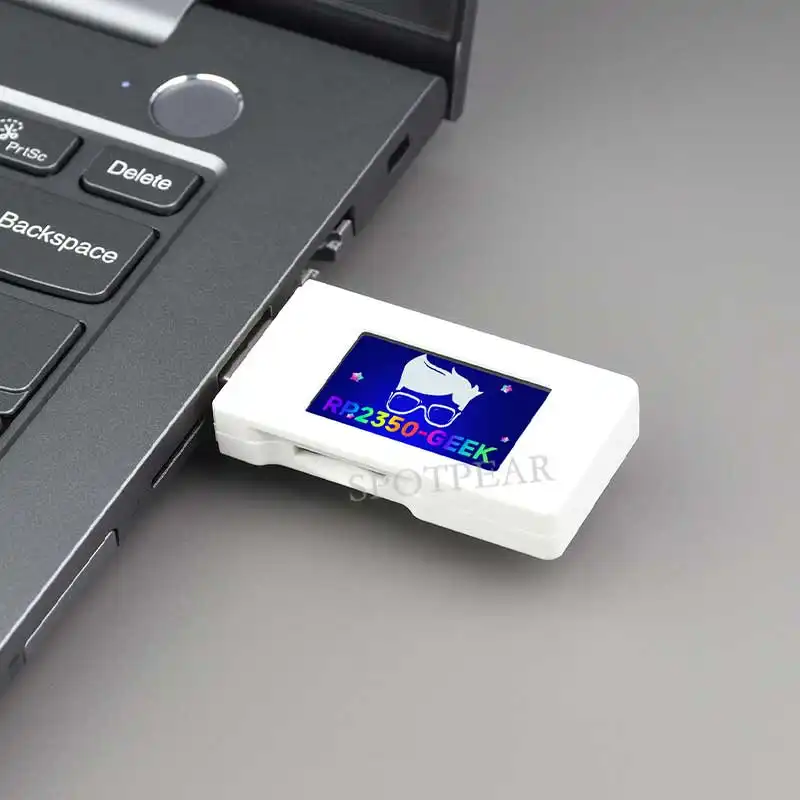

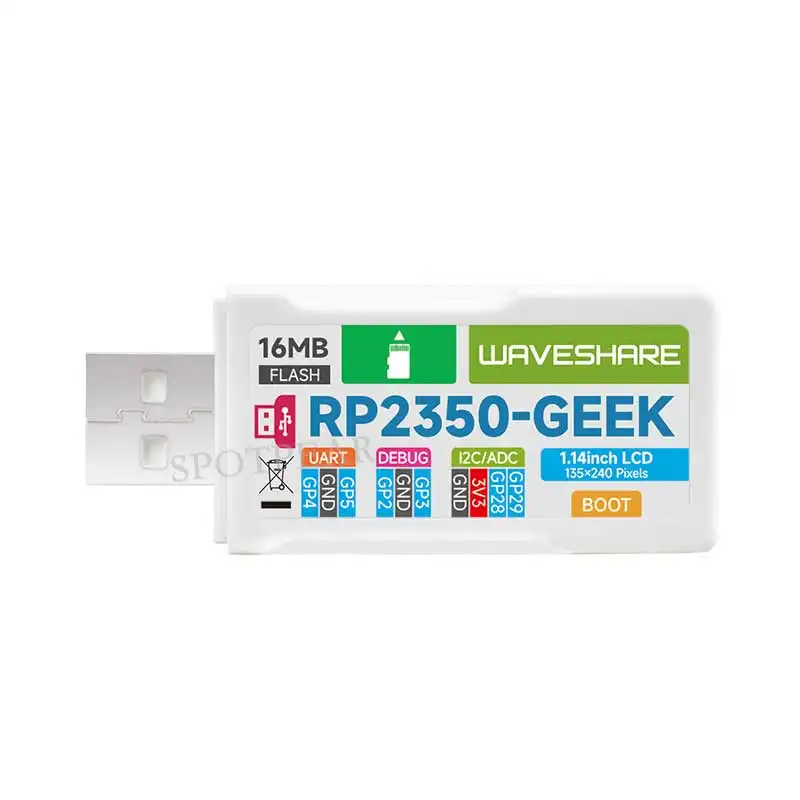

Wi-Fi 7 Wireless BE200 NIC For debugging most 3.3V Arm microcontrollers Board Specifications RP2350-GEEK is a geeks development board designed by Spotpear, onboard USB Type-A interface, 1.14inch LCD screen, TF card slot, and other peripherals. Provides different firmware for SWD port, UART port, and I2C port. Key features include: RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom Onboard 3PIN SWD port for connecting the debugged target board Standard CMSIS-DAP interface can be used to debug most ARM-based microcontrollers Works with OpenOCD and other tools supporting CMSIS-DAP Adopts the Raspberry Pi 3PIN Debug Connector Specification Onboard 3PIN USB to UART bridge Onboard 4PIN I2C port for the testing target board Onboard 1.14inch 240×135 pixels 65K color IPS LCD display Equipped with plastic case and cables Open-source firmware, more convenient to upgrade Combines Multiple Functions In One Onboard Multiple Interfaces And 1.14inch LCD Display, Compatible With Multiple Debugging Methods Application Example Connect To The Debugging Interface Of Pico Via The 3PIN SWD Cable • for reference only, the Raspberry Pi Pico 2 is NOT included. Onboard Resources 1. USB Type-A interface 5. TF card slot Supports SDIO interface and SPI interface communication 2. UART port 6. W25Q128JVSIQ 16MB NOR-Flash 3. SWD port 7. RP2350 4. I2C port 8. BOOT button Product Show Outline Dimensions PACKAGE CONTENT [] RP2350-GEEK
