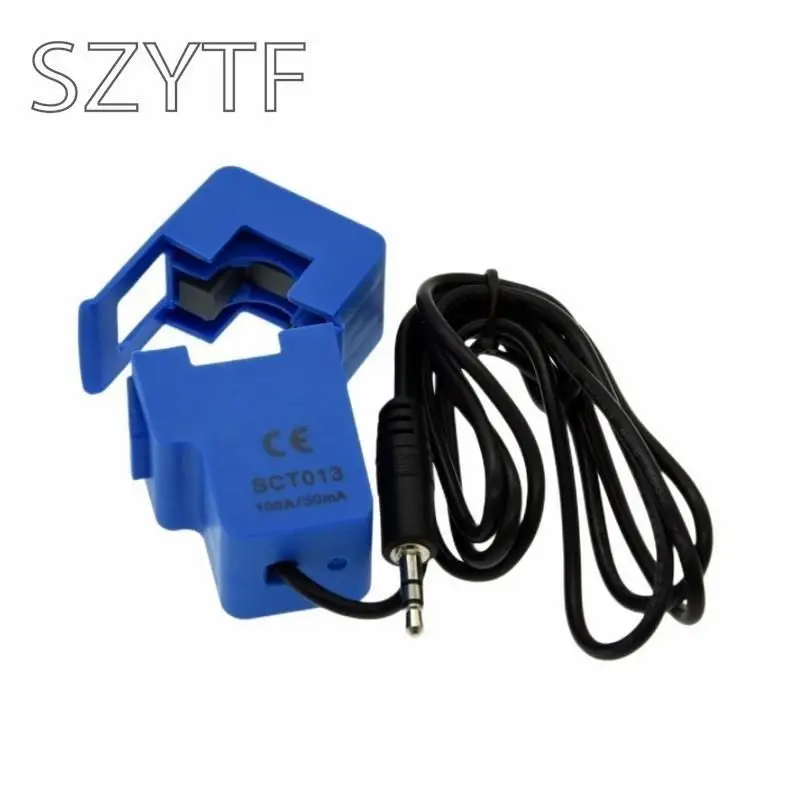

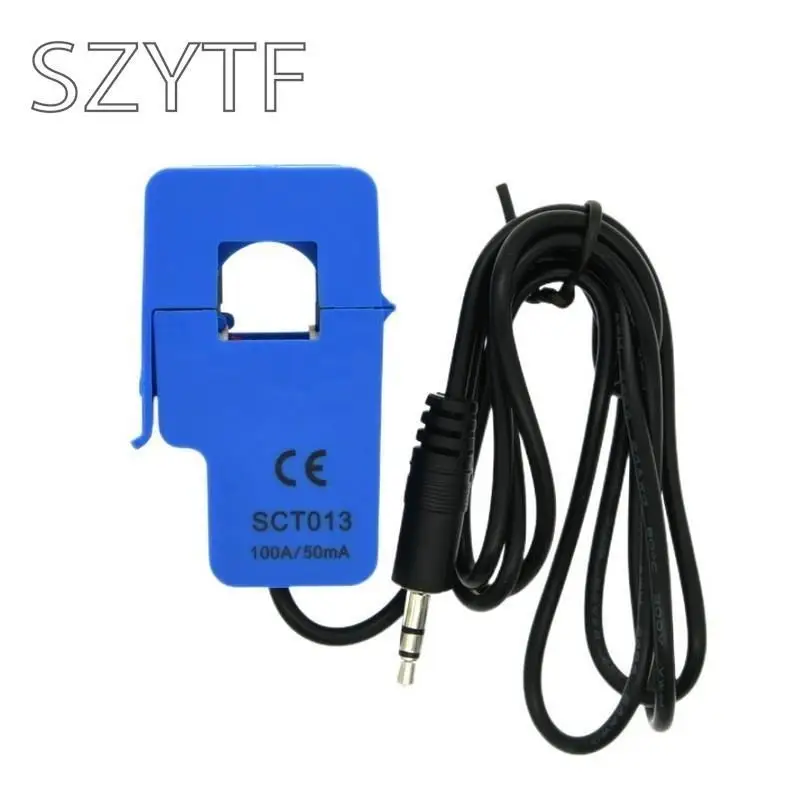

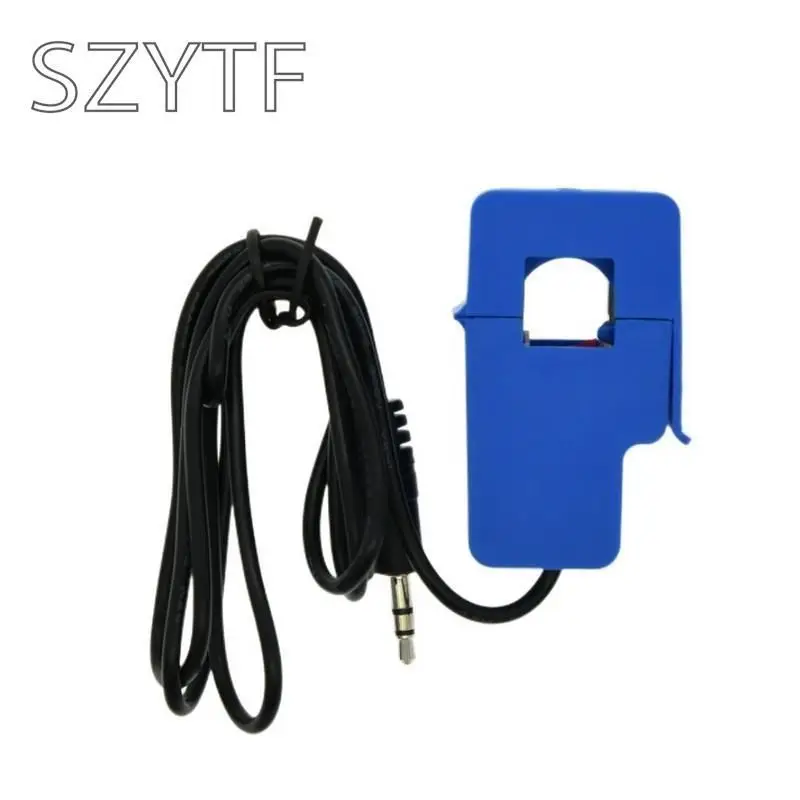

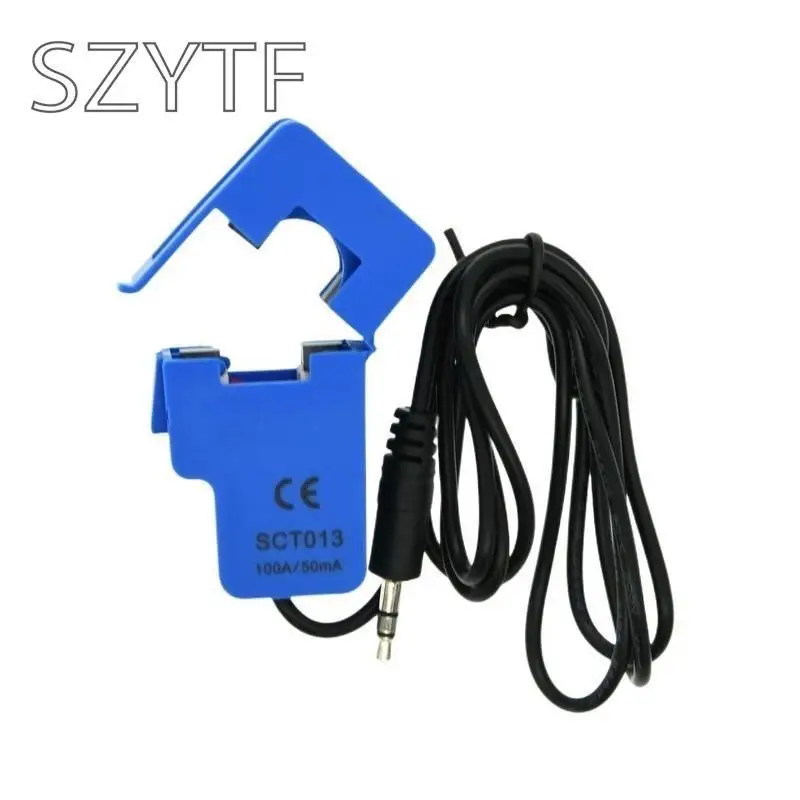

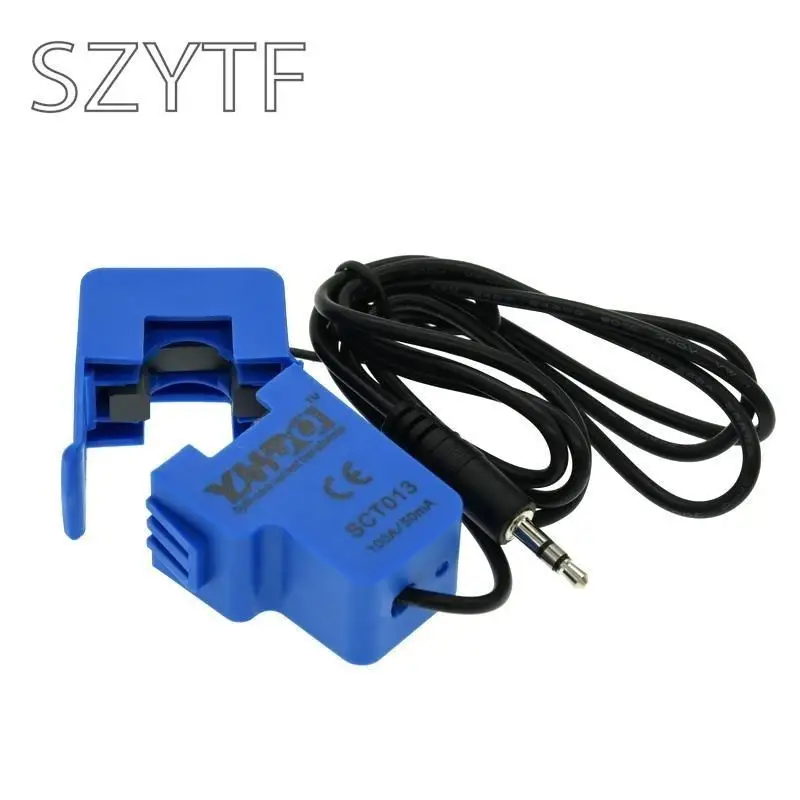

SCT-013 Split-Core AC Current Transformer, 5A to 100A, 1V or 50mA Output

Name: SCT-013 Split-Core AC Current Transformer, 5A to 100A, 1V or 50mA Output
SKU: AE-32708887594-12000058969208707
Price: 10.45 CAD
Availability: InStock

$10.45

Est. delivery 7–17 days

Est. $2.88 shipping to Canada. Exact cost at checkout

In stock

Supplier stock is confirmed when your order is processed.

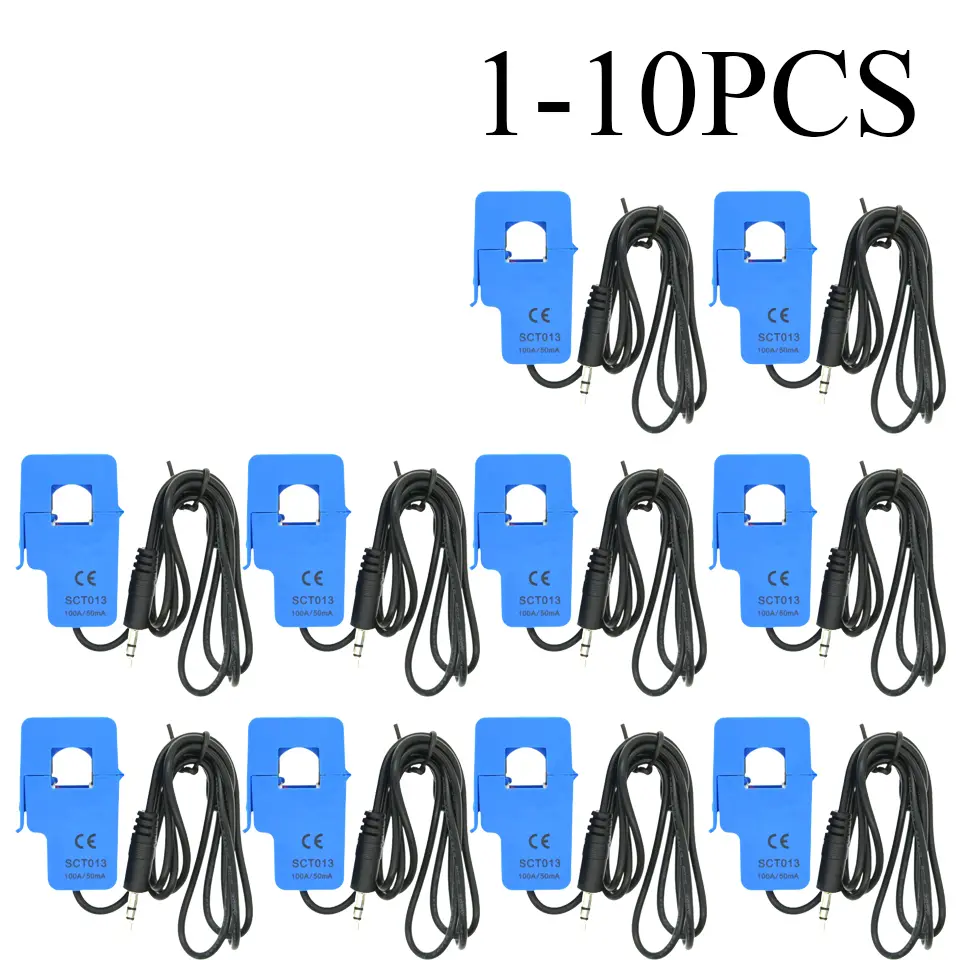

Option (27 available)

Quantity

Sold by: Polar Parts
Ships from: Our supplier partnersSupport from Milton, Ontario
Shipping: Canada only
Returns: 14 days, unopened items
Payment: Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

Brand Name	SZYTF
Type	vibration sensor
Material	Metal
Origin	Mainland China
Output	Switching Transducer
SKU	AE-32708887594-12000058969208707

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

A non-invasive split-core current transformer that clips over a wire to measure AC current in motors, lighting and other equipment.

Model : SCT013 Frequency : 50HZ-150KHZ Retractable transformer SCT-013 Rated Input Current : 100A Model : SCT-013 Rated Input Current : 60A / 100A Features : Opening size: 13mm × 13mm, is fully compatible with similar foreign products ; non-linearity of ± 3% (10% ~ 120% of rated input current ) ; lead length 1.5 m, the standard three-pin plug Φ3.5 output ; current, voltage, two output forms ( built- shaped output voltage sampling resistor ). Uses: Current measurement for AC motors, lighting equipment, air compressor, monitoring and protection. Core material : ferrite mechanical strength : opening and closing times of not less than 1000 times (20 °c test ) Safety indicators : Dielectric strength ( between housing and output ) 6000V AC / 1min retardant characteristics meet UL94-V0 Operating temperature : -25 ° C~ + 70 °C
