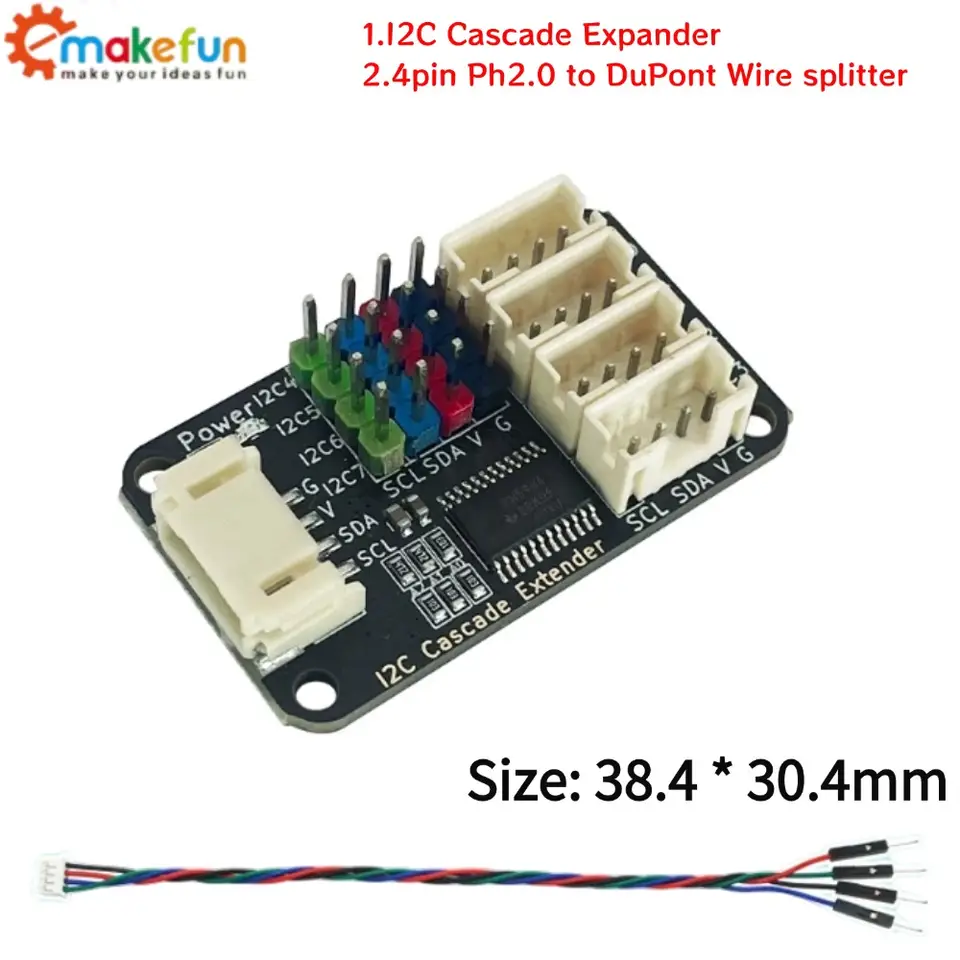

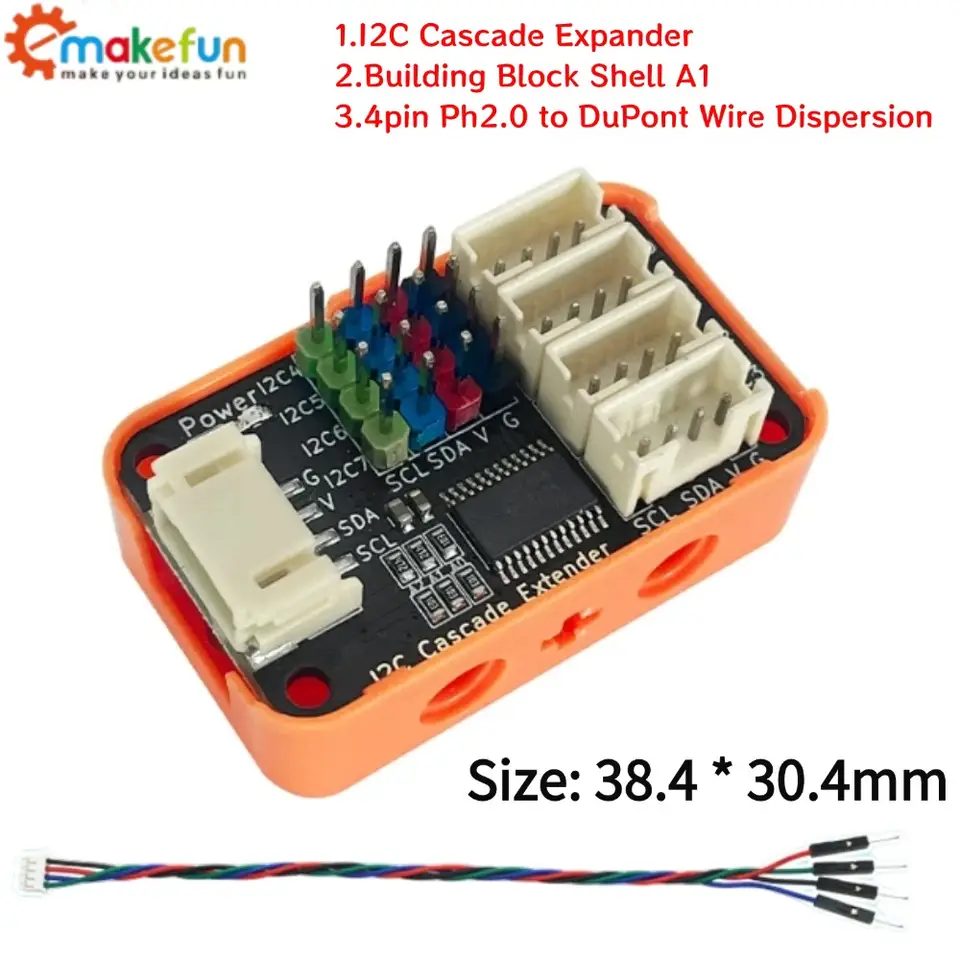

Emakefun TCA9548A 8-Channel I2C Multiplexer Module, PH2.0 and Pin Headers, 3.3-5V

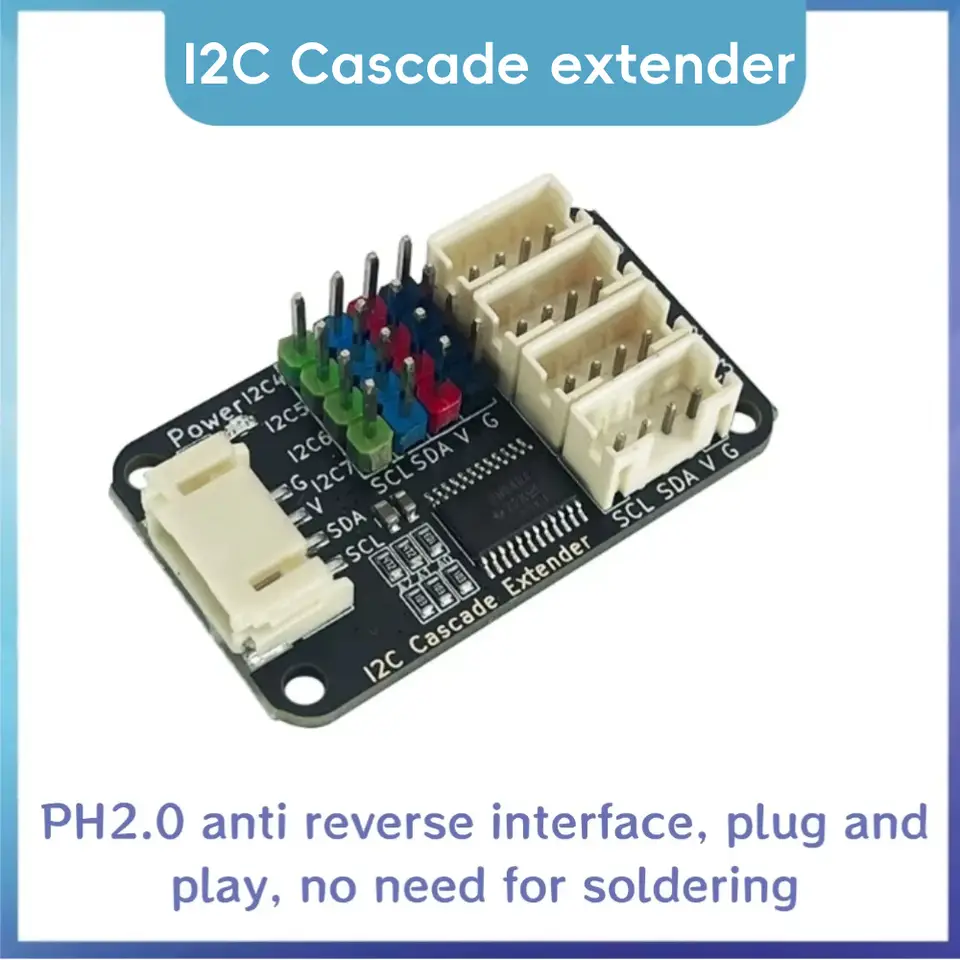

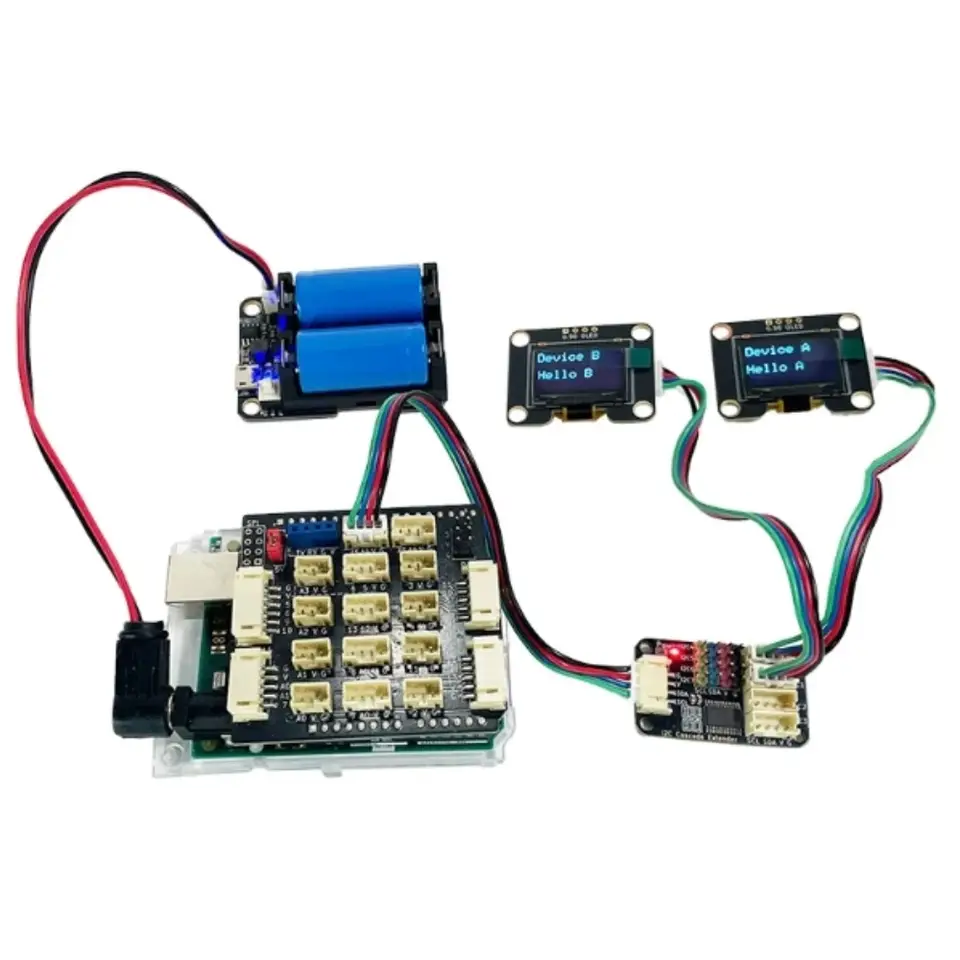

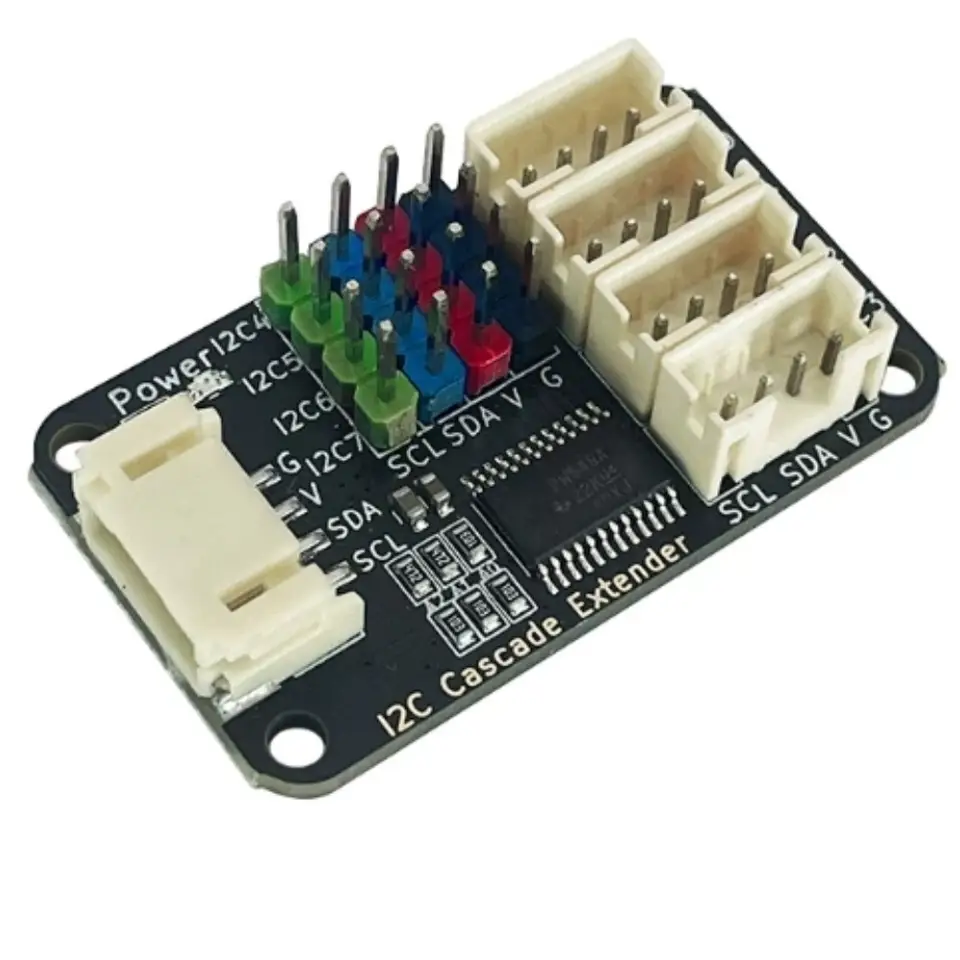

Product documentation Product Introduction I2C cascaded extender is an extension module specifically designed to solve I2C bus device address conflicts. It has a built-in multiplexer switch that can expand an I2C host port into 8 independent I2C sub channels (4 PH2.0 interfaces and 4 pin headers). Through this module, users can connect multiple I2C sensors or devices with the same address (such as OLED displays) to the I2C bus of the same motherboard, and achieve separate addressing and communication, perfectly solving the problem of fixed address I2C devices not being able to be used in parallel. The module adopts PH2.0 anti reverse interface, which is plug and play and does not require welding. Its default I2C address is 0x74, and the I2C address can be adjusted within the range of 0x74 to 0x77 by configuring the contact points on the back of the module, greatly expanding the system's sensor access capability. It is very suitable for projects that require a large number of similar I2C devices, such as robots, environmental monitoring, and multi-sensor data acquisition. Note: If you only need to expand the number of physical interfaces (such as insufficient I2C interfaces on the main control board) instead of resolving address conflicts, you can choose the I2C-IO expansion module. • Operating voltage: 3.3V~5.0V • Interface: PH2.0 spacing interface, pin layout interface • Number of expansion ports: 4 PH2.0 interfaces (0-3 channels) and 4 pin headers (4-7 channels) (a total of 8 channels) • Communication protocol: I2C • Default I2C Address: 0x74 • Configurable I2C address range: 0x74~0x77 (set by configuring contact points A1/A0 through the back address) I2C speed: Supports standard mode (100kHz) and fast mode (400kHz) • Connection method: PH2.0 4PIN anti reverse DuPont wire • Size: 38.4 • 30.4mm, compatible with LEGO bricks and M4 screw fixing holes Size chart schematic diagram
