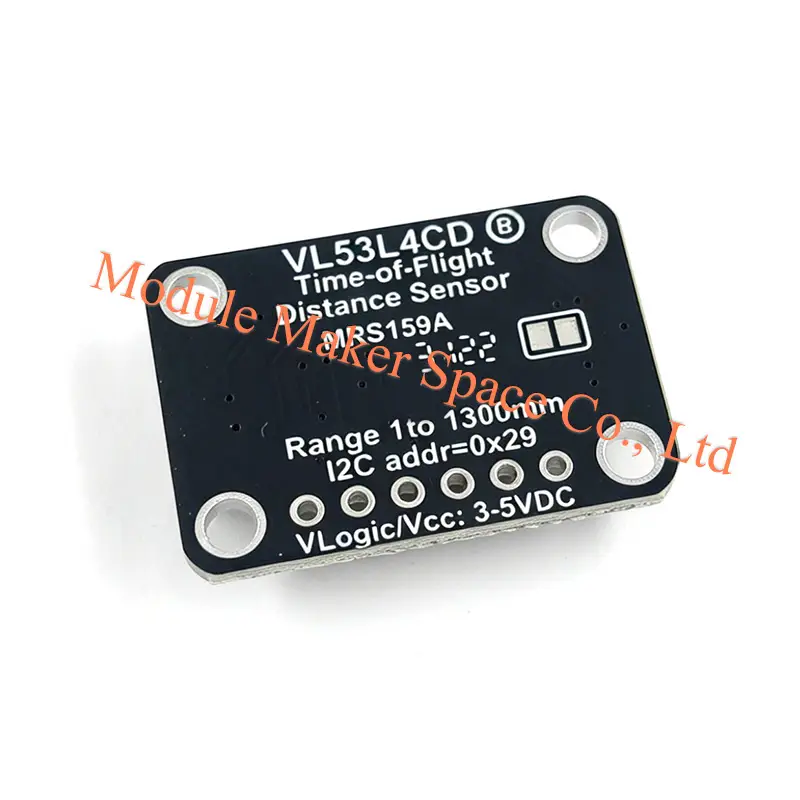

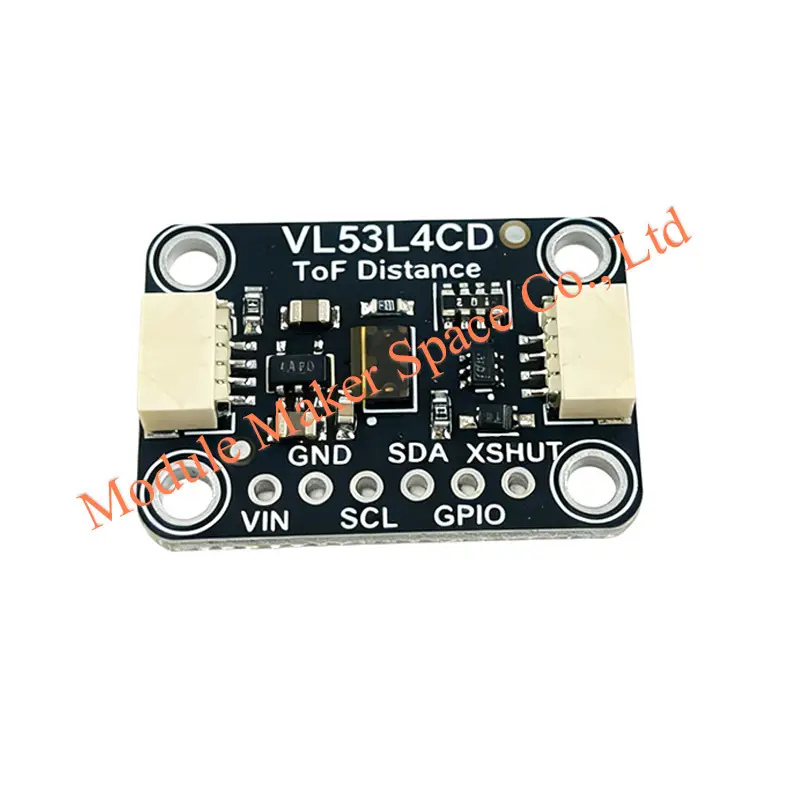

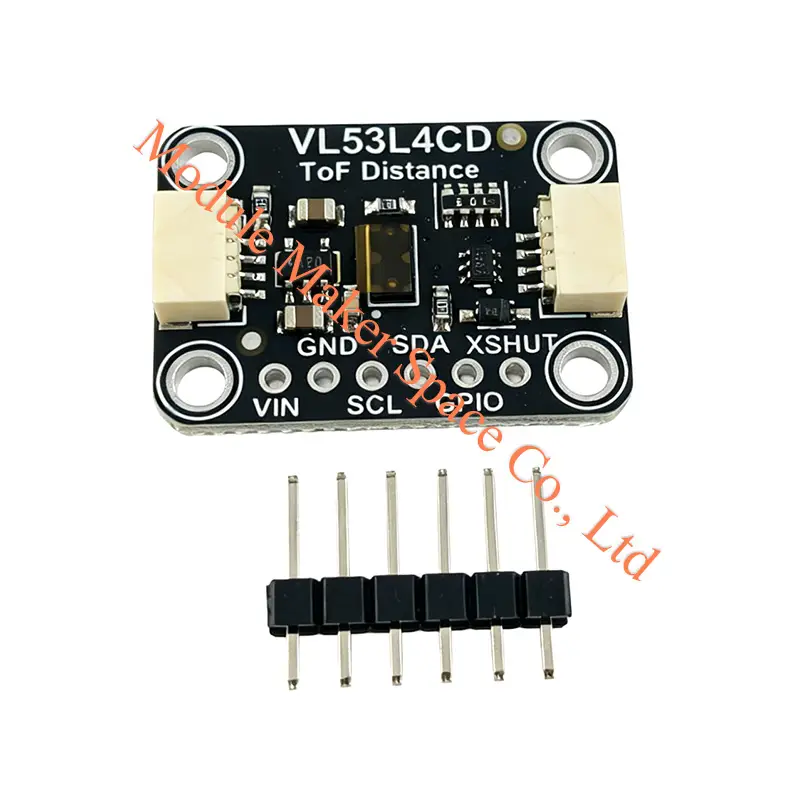

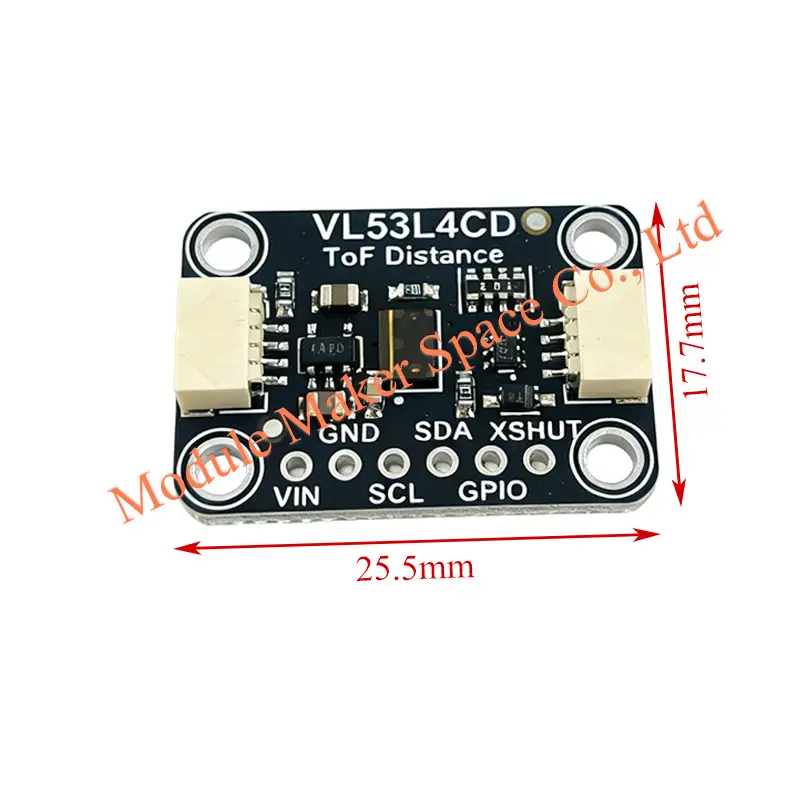

VL53L4CD Time-of-Flight (ToF) Distance Sensor Module | 1 to 1300mm Range | Compatible with STEMMA QT & Qwiic Product introduction: The VL53L4CD is a high-performance Time-of-Flight (ToF) laser-ranging sensor, ideal for precise short to medium-distance measurement. It operates by emitting an invisible laser beam and accurately measuring the time it takes for the light to reflect back to the sensor—a method known as "Time-of-Flight." Unlike ultrasonic sensors that use a wide sound cone or analog infrared sensors that measure light intensity, the VL53L4CD provides superior precision. Its narrow laser beam creates a very tight sensing cone, ensuring you measure the distance directly in front of it without the common pitfalls of inaccurate linearity or "double imaging" (ambiguity between very close and very far objects). Consider this sensor the upgraded successor to popular models like the VL6180X and VL53L0X. It masterfully combines the best of both: it can detect objects as close as 1 mm (near-contact) and reach up to an impressive 1300 mm. Features & Advantages: High Accuracy & Long Range: Measures distances from 0 to 1300 mm with a high degree of accuracy. Excellent Short-Range Linearity: Provides reliable measurements starting from just 1 mm from the sensor body. Narrow Field of View: Features an 18° diagonal FoV, minimizing interference from objects outside the target area. High Speed: Capable of continuous ranging at up to 100 Hz, perfect for fast-moving applications. Low Power Operation: Includes autonomous low-power modes with programmable interrupt thresholds to wake a host controller, saving energy. Easy Integration: Our breakout board handles all the complexity! It comes with a voltage regulator and level-shifting circuitry, making it compatible with both 3.3V and 5V. Simple I2C Interface: Connect it easily using just two data wires, plus power and ground. Technical Specifications: Operating Range: 0 - 1300 mm Field of View: 18° diagonal Ranging Frequency: Up to 100 Hz Interface: I2C Supply Voltage: 2.8 V (regulated on-board, accepts 3-5V input) Board Dimensions: 25.5mm x 17.7mm x 4.6mm Weight: 3g About us: We deal in all kinds of lC brands world-wide. Our products are widely applied in civilian, industrial and military fieldslE work, communication, home appliances, RF, video display, memoriesRAM development, medical instruments, power supply system, programcontrolleddevices,digital devices,industrial equipments, aviation andnavigation equipments, etc. We also supply Amplifier board,LCD Display,Soldering iron,Temperature controller,mppt solar controller,charger,Active balancer,BMS,battery tester,indicator,esp8266 and so on We have extensive industry knowledge and sufficient inventory. This enables us to provide a complete and versatile technical supports to our customers. Our products have been exported to many countries and regions around the world, and we have a good reputation among our customers. Company warehouse:
