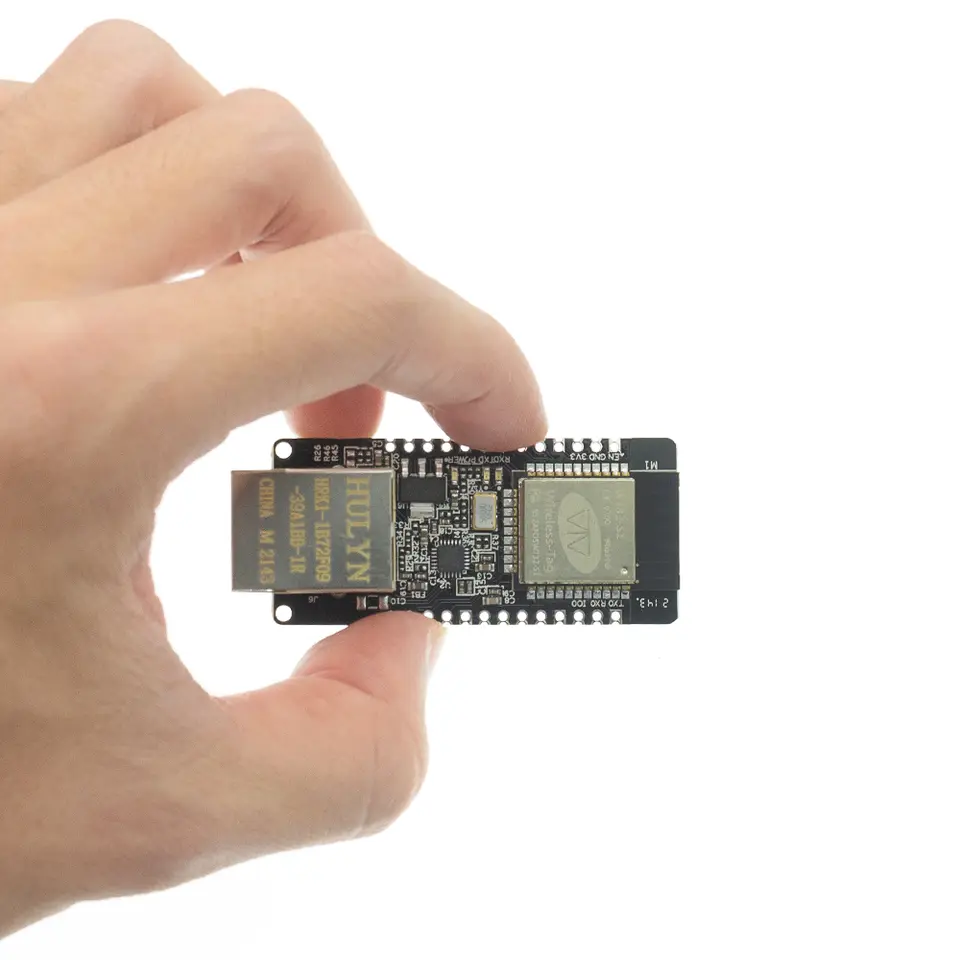

WT32-ETH01 Embedded Serial Port Networking Ethernet Bluetooth-Compatible WIFI Combo Gateway MCU ESP32 Wireless Module Board image 1

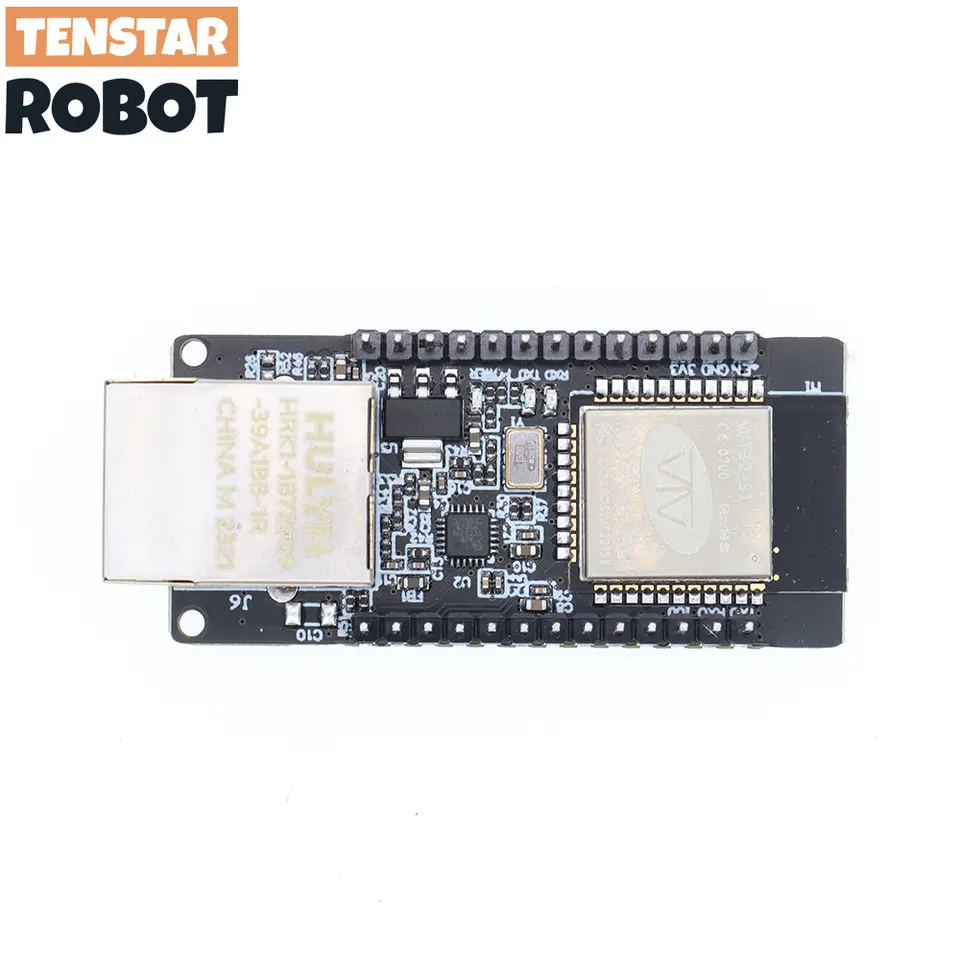

WT32-ETH01 Embedded Serial Port Networking Ethernet Bluetooth-Compatible WIFI Combo Gateway MCU ESP32 Wireless Module Board image 2

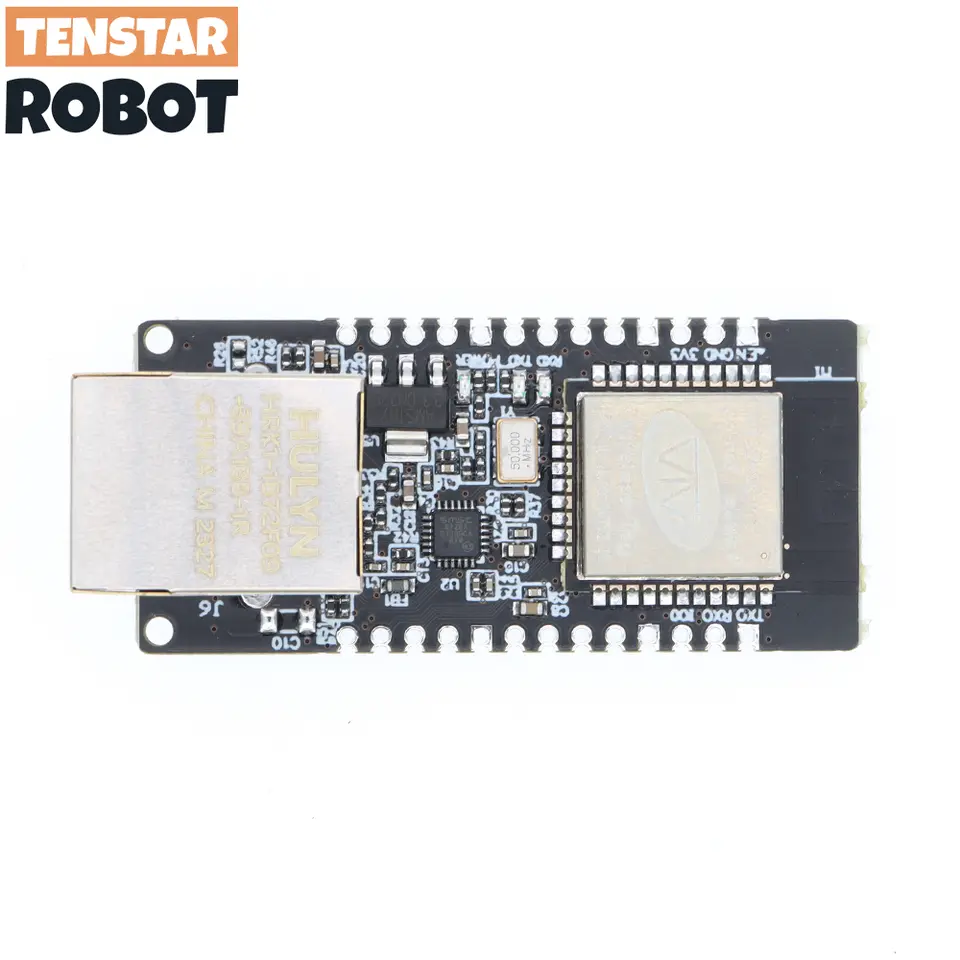

WT32-ETH01 Embedded Serial Port Networking Ethernet Bluetooth-Compatible WIFI Combo Gateway MCU ESP32 Wireless Module Board image 3

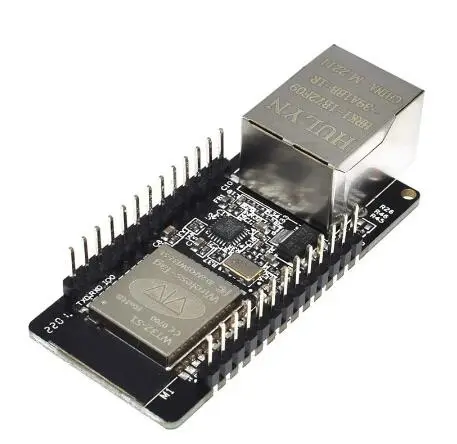

WT32-ETH01 Embedded Serial Port Networking Ethernet Bluetooth-Compatible WIFI Combo Gateway MCU ESP32 Wireless Module Board image 4

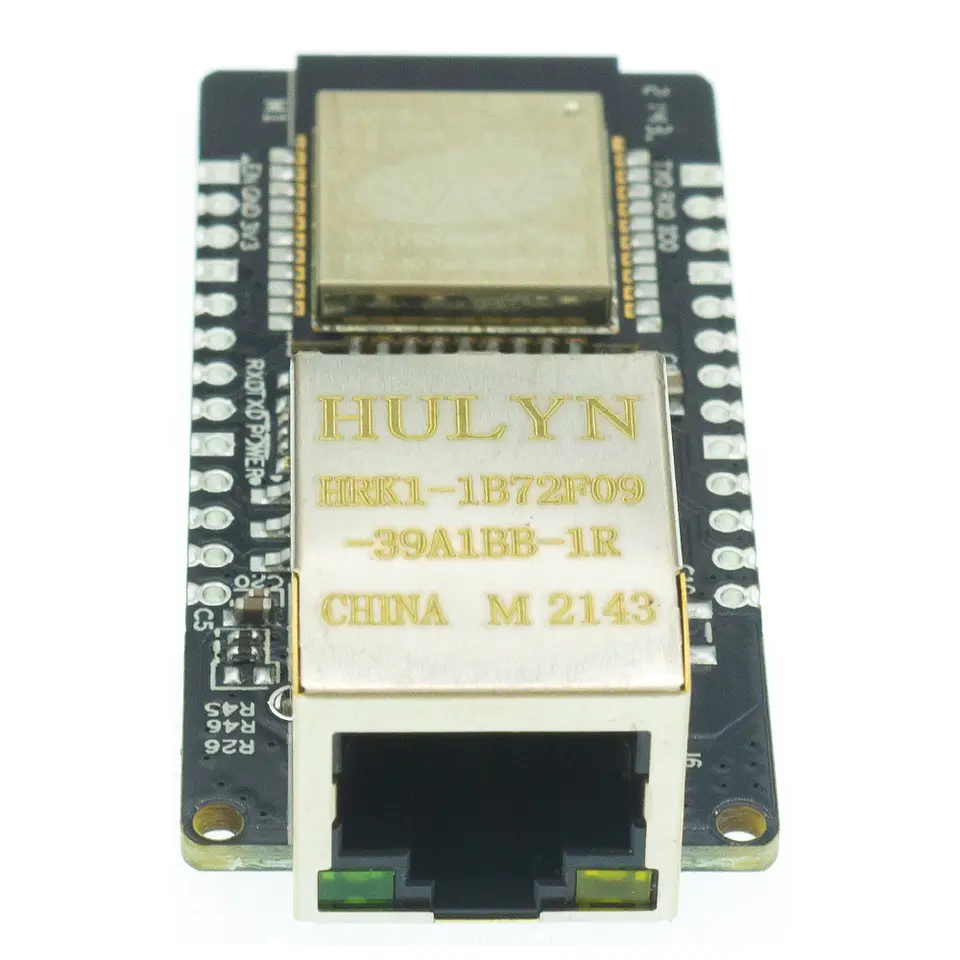

WT32-ETH01 Embedded Serial Port Networking Ethernet Bluetooth-Compatible WIFI Combo Gateway MCU ESP32 Wireless Module Board image 5

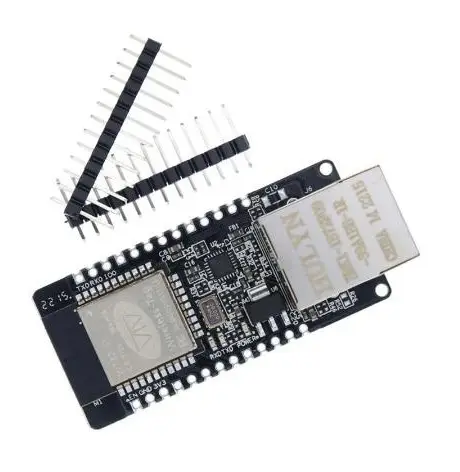

WT32-ETH01 Embedded Serial Port Networking Ethernet Bluetooth-Compatible WIFI Combo Gateway MCU ESP32 Wireless Module Board image 6

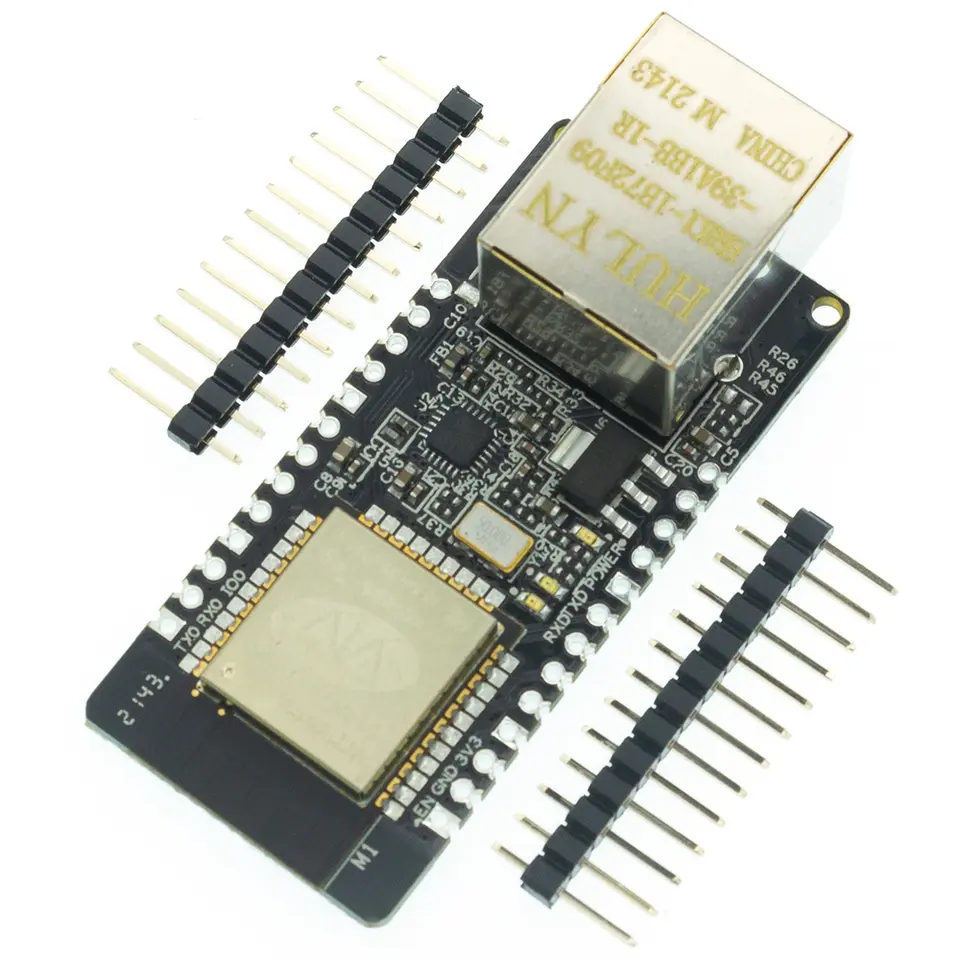

WT32-ETH01 Embedded Serial Port Networking Ethernet Bluetooth-Compatible WIFI Combo Gateway MCU ESP32 Wireless Module Board image 7

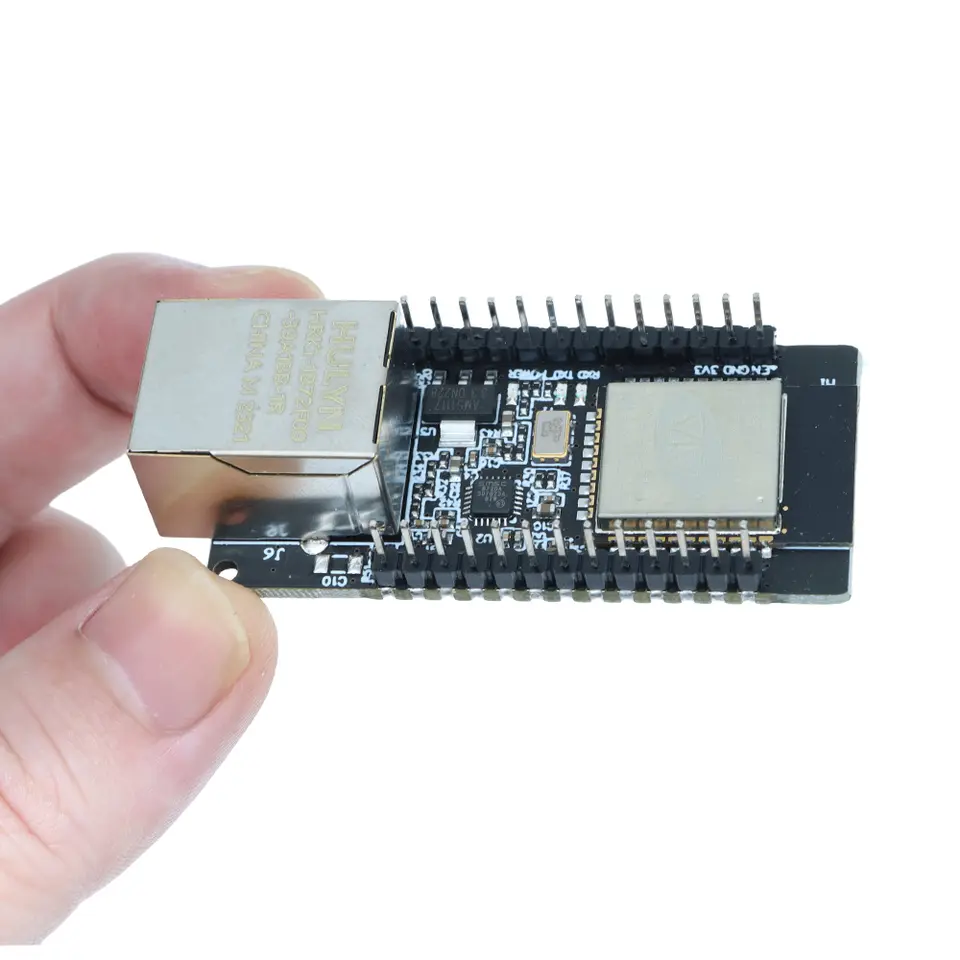

WT32-ETH01 Embedded Serial Port Networking Ethernet Bluetooth-Compatible WIFI Combo Gateway MCU ESP32 Wireless Module Board image 8
Image 1 of 8

Brand: TENSTAR ROBOT

WT32-ETH01 Embedded Serial Port Networking Ethernet Bluetooth-Compatible WIFI Combo Gateway MCU ESP32 Wireless Module Board

$18.70

Est. delivery 7–16 days

Est. $3.13 shipping to Canada. Exact cost at checkout

In stock

Supplier stock is confirmed when your order is processed.

Option: no soldered pins
Quantity
Sold by
Polar Parts
Ships from
Our supplier partnersSupport from Milton, Ontario
Shipping
Canada only
Returns
14 days, unopened items
Payment
Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

TypeModule
PackageDIP
Supply Voltage5V
Dissipation Power1
Operating Temperature1
ApplicationComputer
ConditionNew
OriginMainland China

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

WT32-ETH01 Embedded Serial Port Networking Ethernet Bluetooth WIFI MCU Module ESP32 Wireless Combo Gateway Module Board Note:it is not included pins Main features of ETH 01 gateway: Using dual-core Xtensa 832-bit LX6 microcontroller. Integrated SPI flash memory 32 Mbit\SRAM 520 KB Support TCP server, TCP client, UDP server, UDP client working mode Supports four data ports of serial port, wifl, Ethernet and Bluetooth to be combined in pairs, and data is transparently transmitted Support to connect to the network via wired network or wifi to upgrade the firmware Support wifi to connect to the Internet or LAN through the router, establish tcp/udp connection, and access the user's designated service Device. Support wired network access Support user secondary development Industrial grade working temperature range: -40~+85 Serial port baud rate: 80-5000000 Network protocol: IPv 4, tcp/udp Software encryption: AES/RSA/ECC/SHA
