XR2206 Function Generator DIY Kit, Sine, Triangle and Square, 1Hz to 1MHz, with Case

$11.15

Est. delivery 6–12 days

Est. $3.13 shipping to Canada. Exact cost at checkout

In stock

Supplier stock is confirmed when your order is processed.

Quantity
Sold by
Polar Parts
Ships from
Our supplier partnersSupport from Milton, Ontario
Shipping
Canada only
Returns
14 days, unopened items
Payment
Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

Brand NameVoktta
Model NumberXR2206
OriginMainland China
DIY SuppliesElectrical
Battery Includedno
Display Size3.0 - 4.9 Inches
SKUAE-1005006099916070-12000035740841713

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

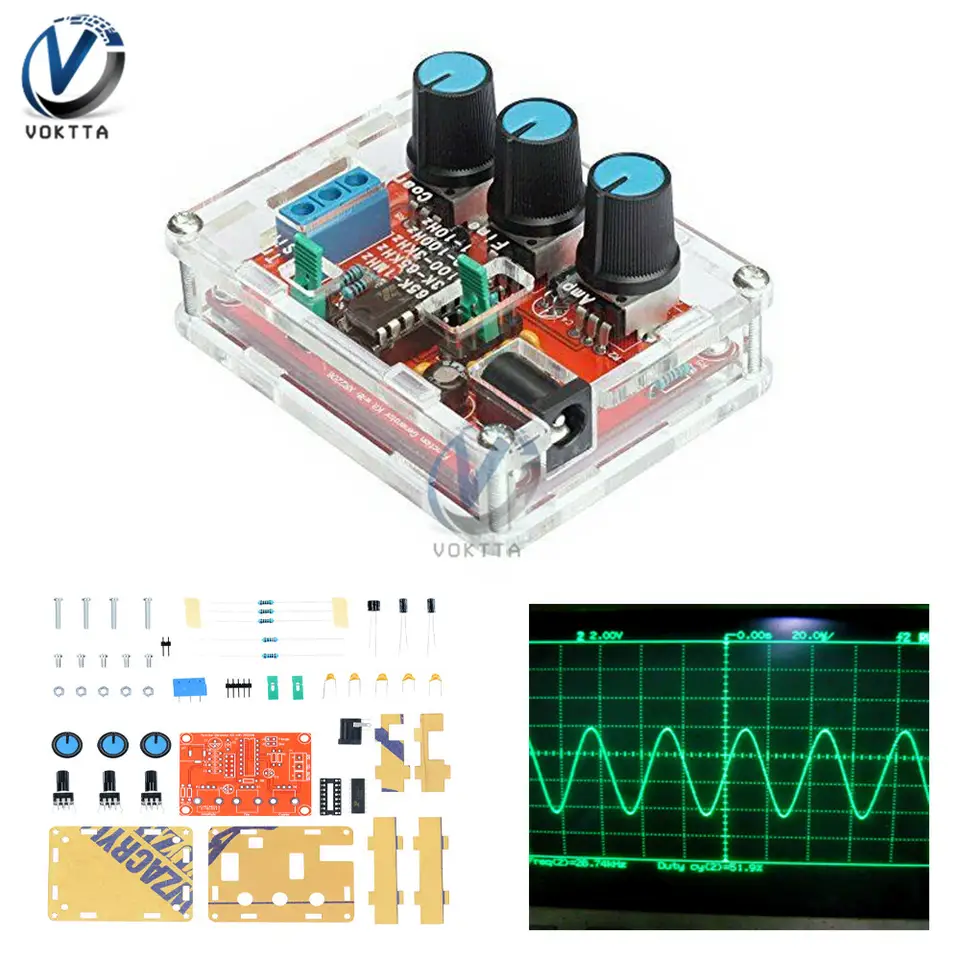

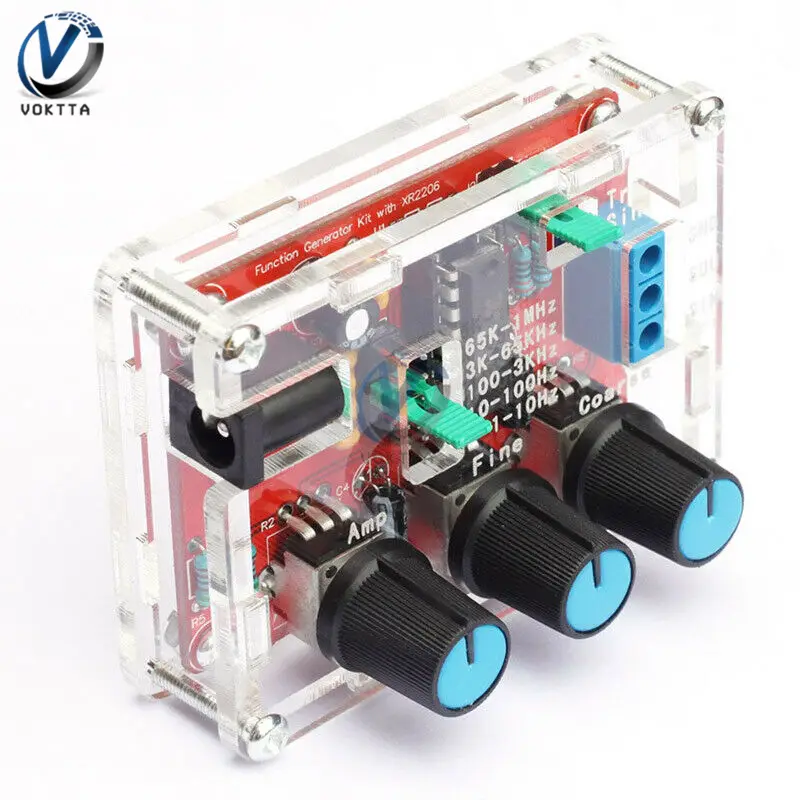

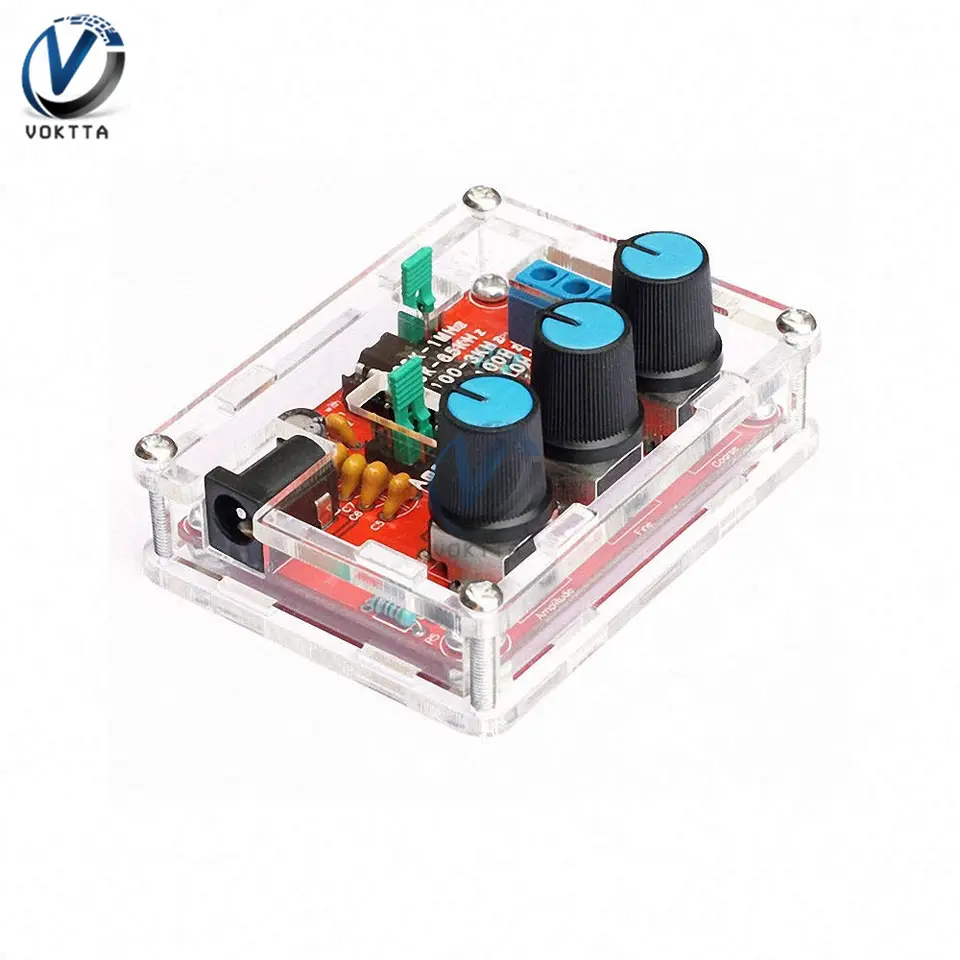

An XR2206 signal generator DIY kit with case that outputs sine, triangle and square waves from 1Hz to 1MHz.

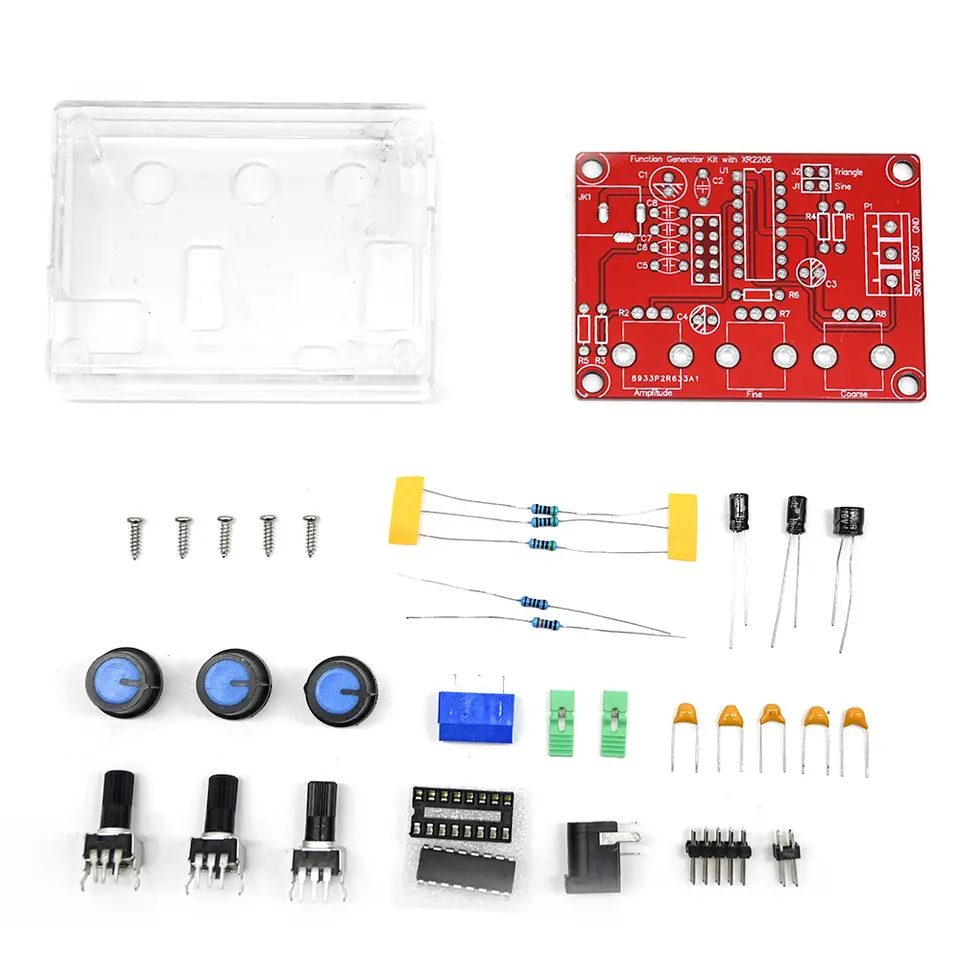

DIY XR2206 Function Generator Kit Square Wave Signal Generator Module 1Hz-1MHz Adjustable Frequency Pulse with Cover Box Protect Specification: Voltage Supply: 9-12V DC Input Waveforms: Square, Sine & Triangle Impedance: 600 Ohm + 10% Frequency: 1Hz - 1MHz SINE WAVE Amplitude: 0 - 3V at 9V DC input Distortion: Less than 1% (at 1kHz) Flatness: +0.05dB 1Hz - 100kHz SQUARE WAVE Amplitude: 8V (no load) at 9V DC input Rise Time: Less than 50ns (at 1kHz) Fall Time: Less than 30ns (at 1kHz) Symmetry: Less than 5% (at 1kHz) TRIANGLE WAVE Amplitude: 0 - 3V at 9V DC input Linearity: Less than 1% (up to 100kHz) 10mA Package Included: 1 x Signal Generator DIY Kit Triangle Square Output 1Hz-1MHz with Case
