Stepper Motor Pulse Generator Module, PWM Output, Forward/Reverse and Speed Control, 12/24V

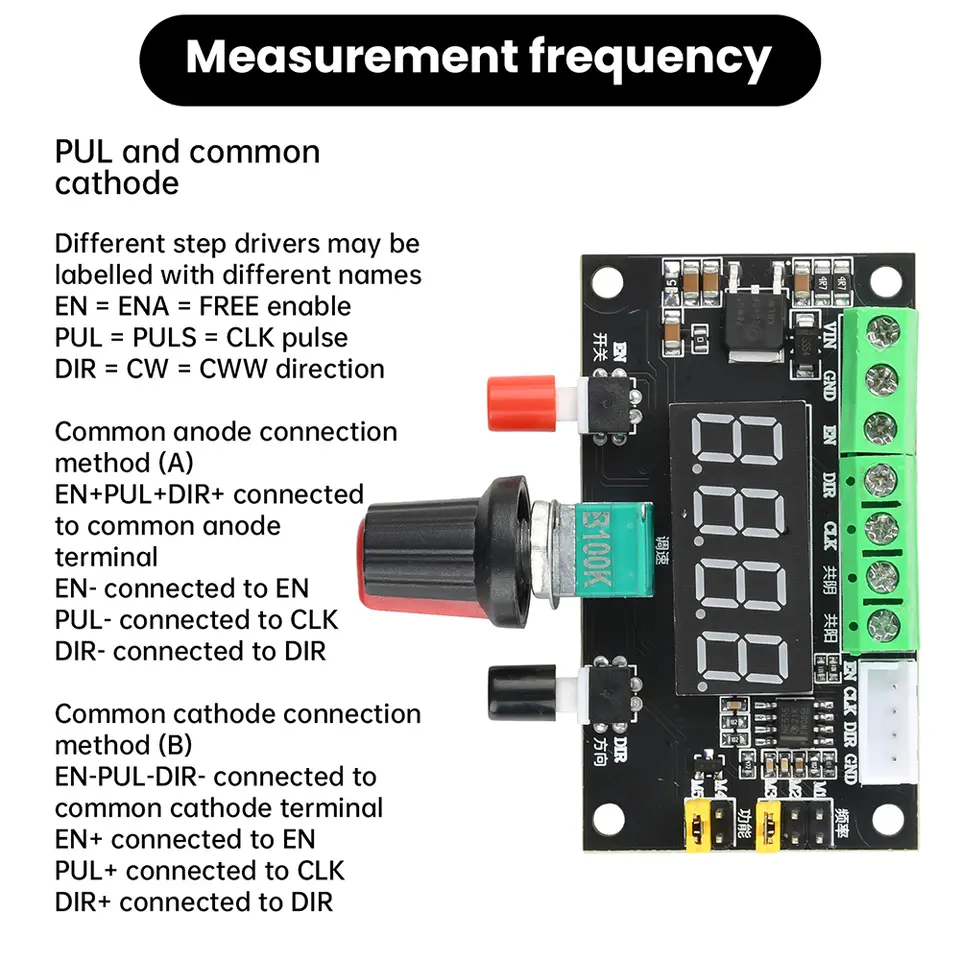

Product Features: 1. Supports 12V/24V power supply, accommodating diverse stepper motor drive requirements 2. Enables forward and reverse control for flexible adaptation to complex scenarios 3. Integrated speed regulation module for precise motor speed adjustment 4. Outputs PWM pulse signals with high stability and rapid response 5. Comprehensive functionality suitable for multiple automation control applications Product Description: 1. This module functions as a pulse generator, supplying control signals to the stepper driver. A dedicated driver is essential for controlling stepper motors. 2. This simple controller + stepper motor driver + stepper motor + DC power supply can form a basic control platform. 3. The controller offers three selectable low-frequency signals via jumper settings: high (5.4k-160kHz), intermediate (540-16.6kHz), and low (80-2.4kHz). 4. Capable of generating both pulse signals and PWM signals, selectable via jumper settings. 5. Measurement frequency: PUL and common cathode. Different stepper drivers may use distinct labelling: EN = ENA = FREE Enable PUL = PULS = CLK Pulse DIR = CW = CWW Direction Common anode connection method (A) EN+ PUL+ DIR+ connect to common anode terminal EN- connect to EN PUL- connect to CLK DIR- connect to DIR Common Cathode Connection Method (B) EN- PUL- DIR- connect to common cathode terminal EN+ connect to EN PUL+ connect to CLK DIR+ connect to DIR Packing List: Module*1
