Brand: Mabuchi

Mabuchi FK-130RH Micro DC Motor, 130 Size, 09490 (3-24V) or 15210 (3-12V)

$5.70

Est. delivery 8–16 days

Est. $2.87 shipping to Canada. Exact cost at checkout

In stock

Supplier stock is confirmed when your order is processed.

Option: 12V / 0 / B FK-130RH-15210
Quantity
Sold by
Polar Parts
Ships from
Our supplier partnersSupport from Milton, Ontario
Shipping
Canada only
Returns
14 days, unopened items
Payment
Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

Model NumberMabuchi 130 Motor
Model NumberFK-130RH
TypeMicro Motor
Certificationce
OriginMainland China
Does it include wireless functionality?No
Does it include a Battery?No
Output Power735-746（include746）

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

Mabuchi 130-size brushed micro motor with a 2mm shaft for DIY, hobby and toy projects.

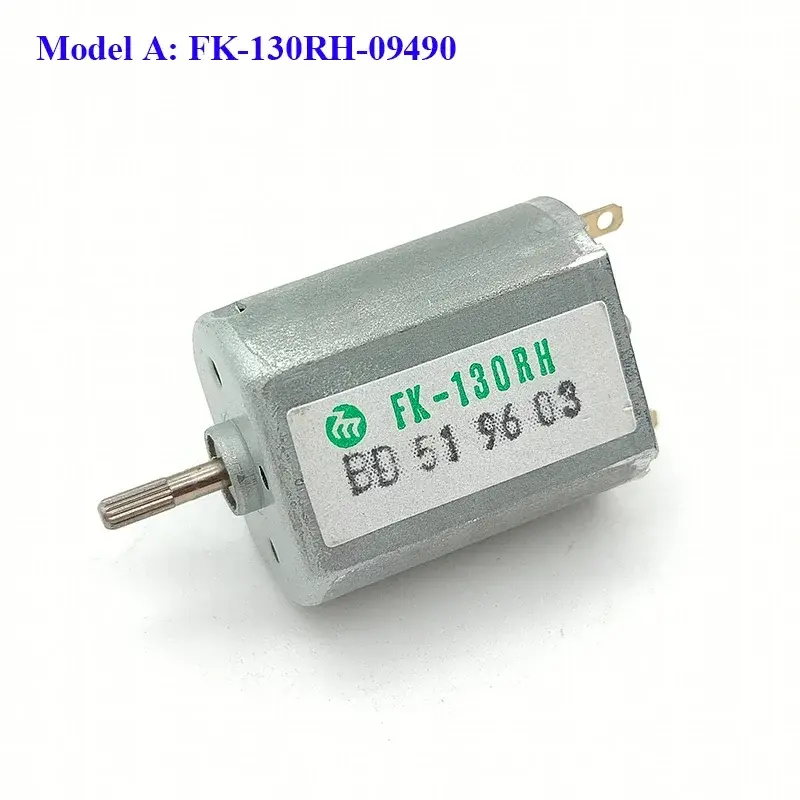

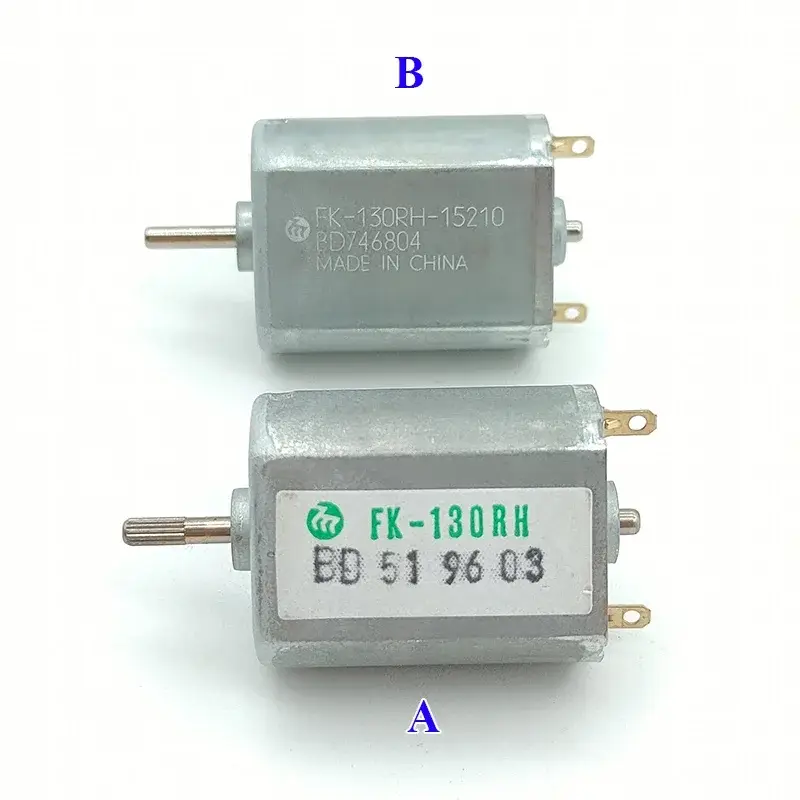

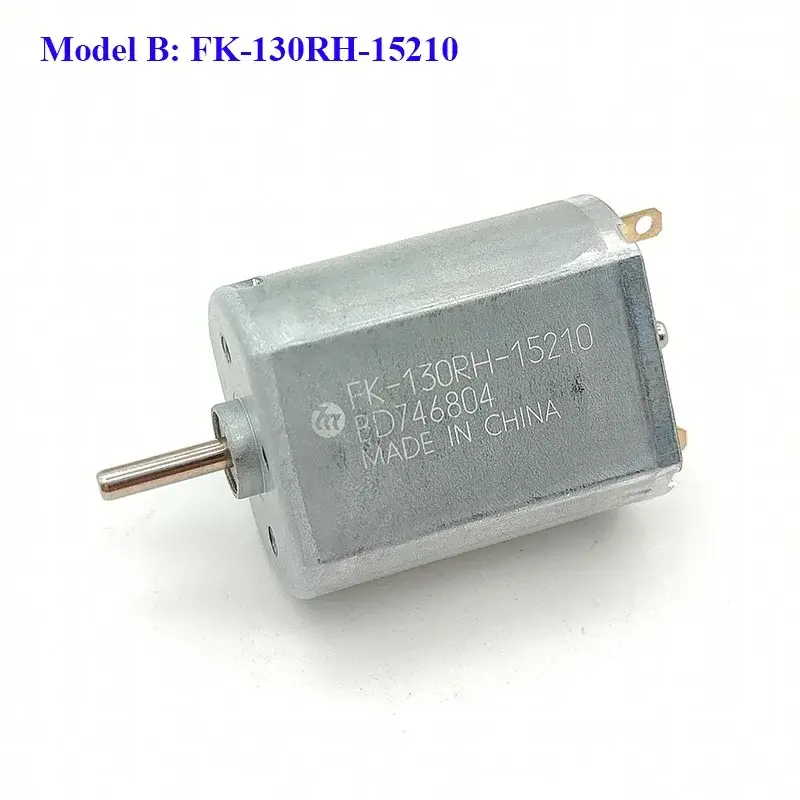

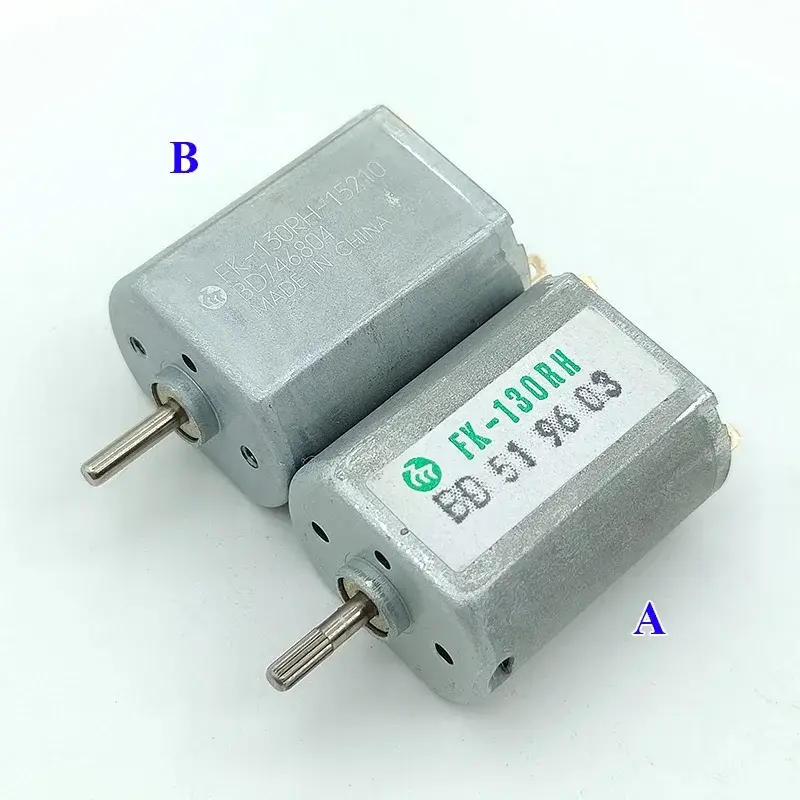

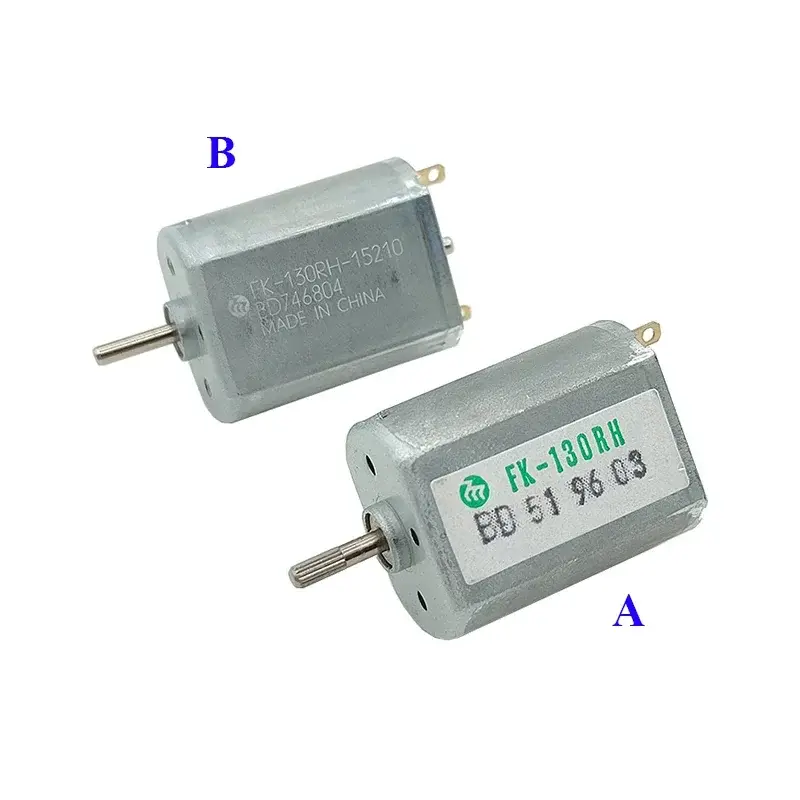

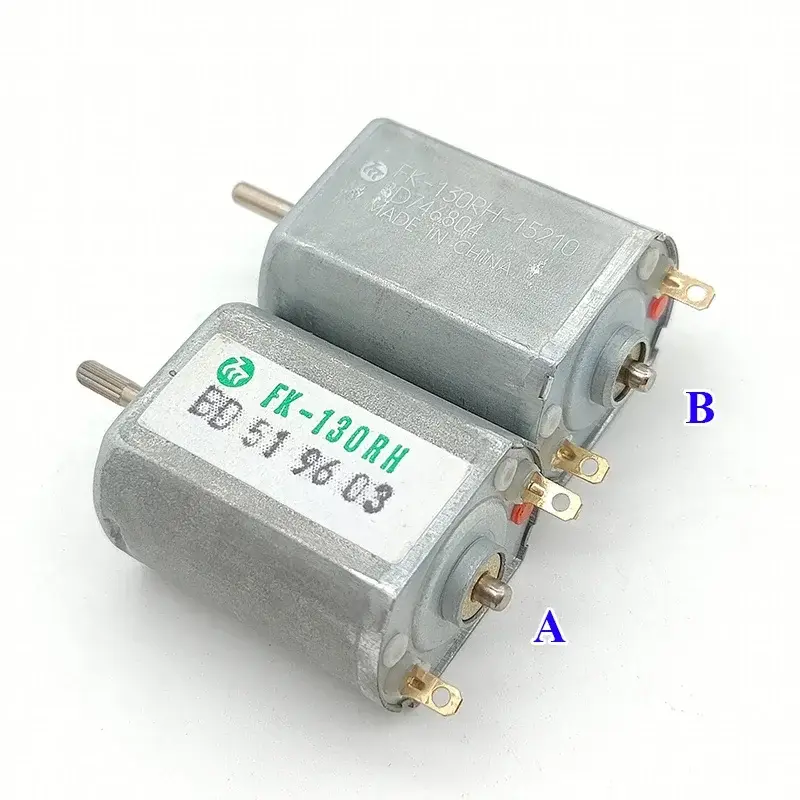

Specification: Model A: FK-130RH-09490 1.Brand: MABUCHI MOTOR 2.Model: FK-130RH-09490 3.Motor size: 20.25mm*15.4mm 4.Motor height: 25mm 5.Output shaft diameter: 2.0mm / 2.1mm(Knurled shaft) 6.Output shaft length: 8mm (not include step height) 7.Weight: 25g 8.Voltage range: DC 3.0V-24.0V 9.Test data: Voltage:3.0V No-load speed:1800RPM No-load current:25mA Voltage:6.0V No-load speed:4200RPM No-load current:27mA Voltage:12.0V No-load speed:9000RPM No-load current:27mA Voltage:18.0V No-load speed:13000RPM No-load current:38mA Voltage:24.0V No-load speed:17500RPM No-load current:55mA Model B: FK-130RH-15210 1.Brand: MABUCHI MOTOR 2.Model: FK-130RH-15210 3.Motor size: 20.3mm*15.4mm 4.Motor height: 25.2mm 5.Output shaft diameter: 2.0mm 6.Output shaft length: 7.9mm (not include step height) 7.Weight: 25g 8.Voltage range: DC 3V-12V 9.Test data: Voltage:3.0V No-load speed:5500RPM No-load current:65mA Voltage:6.0V No-load speed:11500RPM No-load current:75mA Voltage:9.0V No-load speed:17500RPM No-load current:85mA Voltage:12.0V No-load speed:23500RPM No-load current:99mA Package List: Motor x 1PCS
