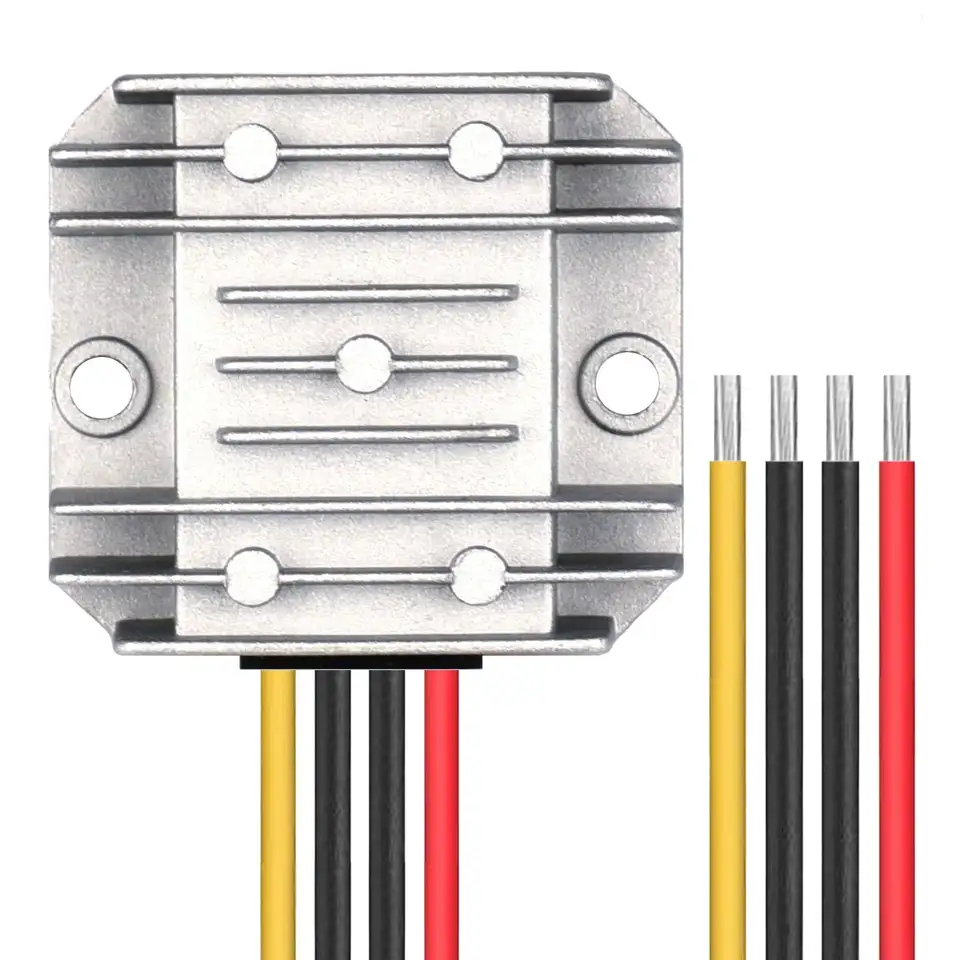

24V to 12V 10A Converter DC DC Buck Converter Step Down 18V~35Vto12V 5A Voltage Reducer Waterproof Module Transformer (10A 120W) image 1

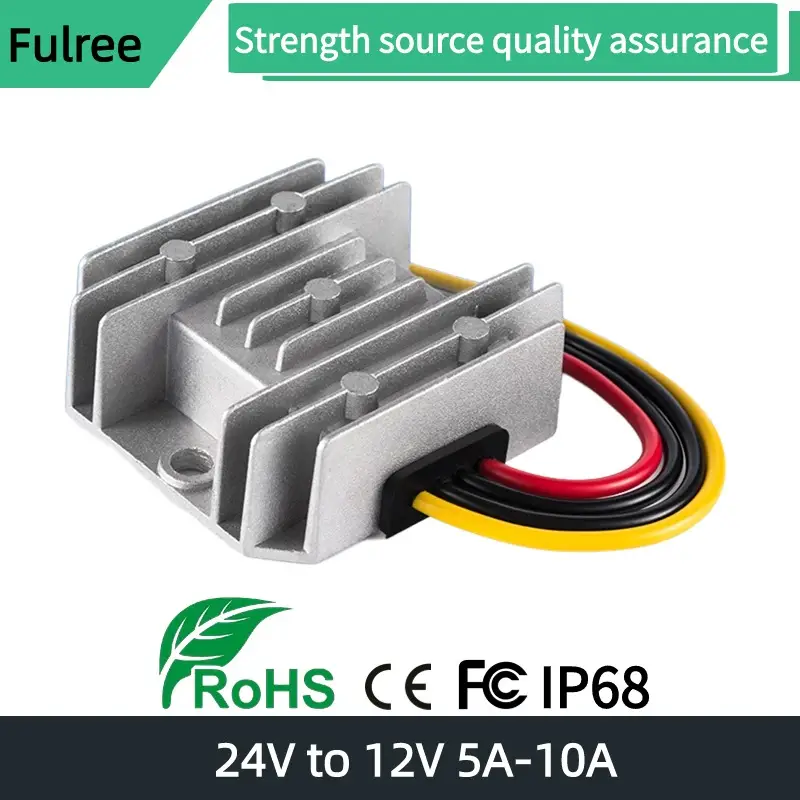

24V to 12V 10A Converter DC DC Buck Converter Step Down 18V~35Vto12V 5A Voltage Reducer Waterproof Module Transformer (10A 120W) image 2

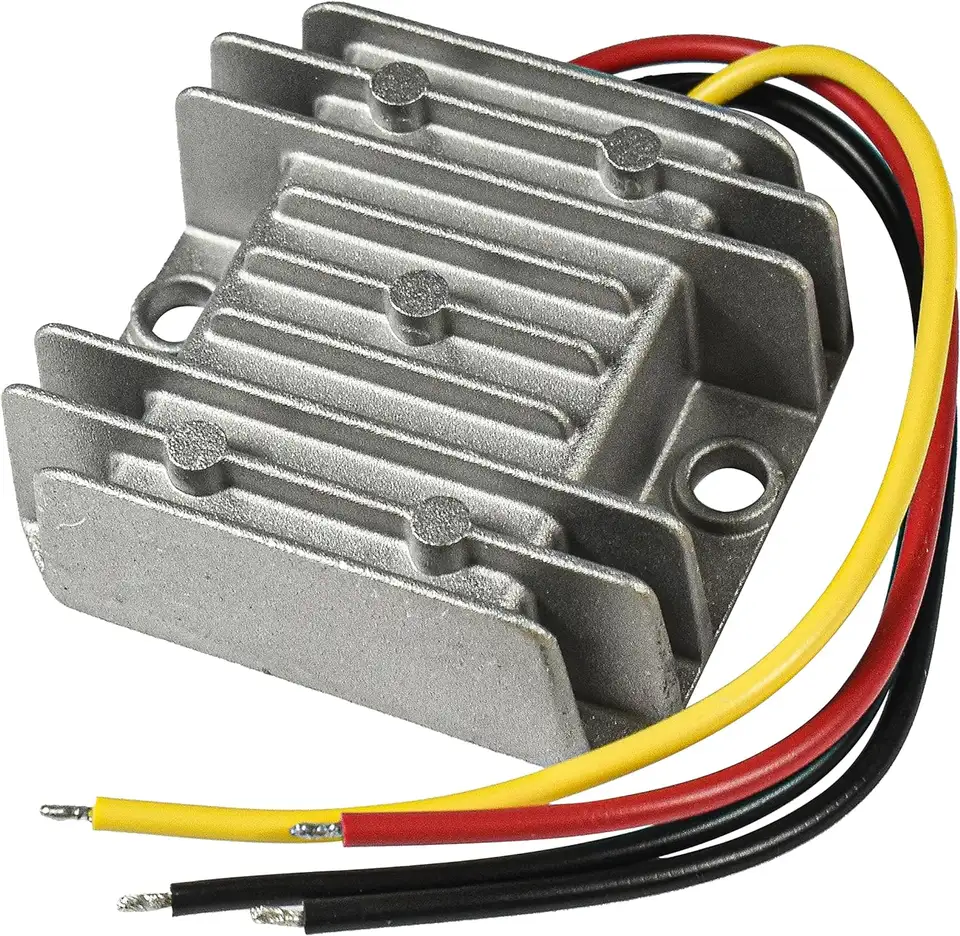

24V to 12V 10A Converter DC DC Buck Converter Step Down 18V~35Vto12V 5A Voltage Reducer Waterproof Module Transformer (10A 120W) image 3

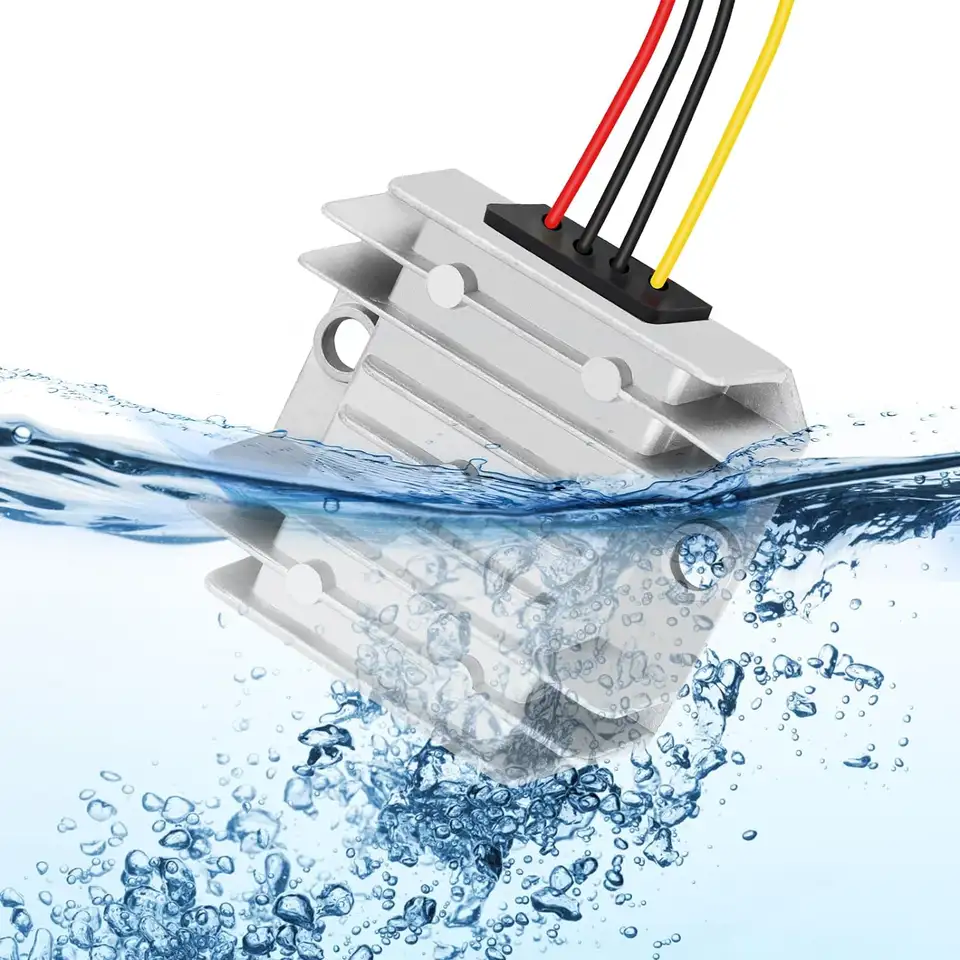

24V to 12V 10A Converter DC DC Buck Converter Step Down 18V~35Vto12V 5A Voltage Reducer Waterproof Module Transformer (10A 120W) image 4
24V to 12V 10A Converter DC DC Buck Converter Step Down 18V~35Vto12V 5A Voltage Reducer Waterproof Module Transformer (10A 120W) image 5

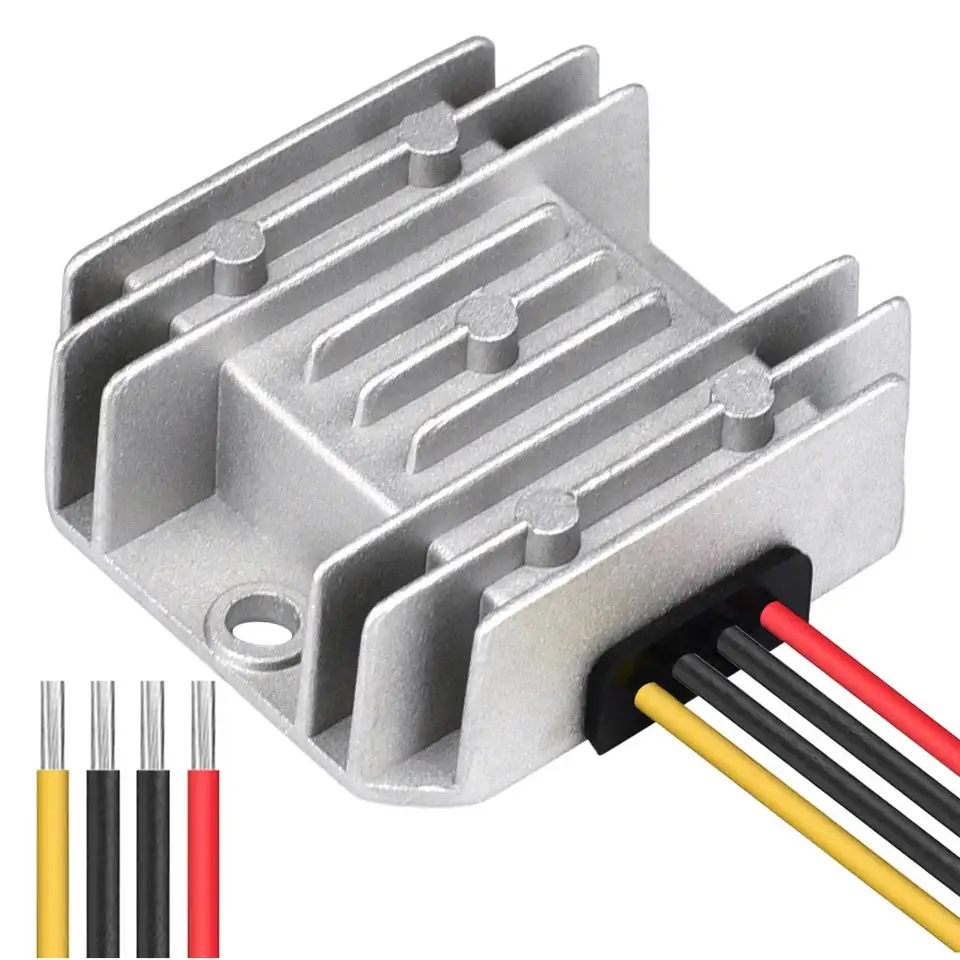

24V to 12V 10A Converter DC DC Buck Converter Step Down 18V~35Vto12V 5A Voltage Reducer Waterproof Module Transformer (10A 120W) image 6
24V to 12V 10A Converter DC DC Buck Converter Step Down 18V~35Vto12V 5A Voltage Reducer Waterproof Module Transformer (10A 120W) image 7
Image 1 of 7

Brand: Fulree

Fulree 24V to 12V DC-DC Buck Converter, 5A or 10A, 18-35V Input, IP68 Waterproof

$17.22

Est. delivery 7–16 days

Est. $3.13 shipping to Canada. Exact cost at checkout

In stock

Supplier stock is confirmed when your order is processed.

Option: 24V to 12V 5A
Quantity
Sold by
Polar Parts
Ships from
Our supplier partnersSupport from Milton, Ontario
Shipping
Canada only
Returns
14 days, unopened items
Payment
Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

Model NumberF35J12V4L
TypeDC/DC Converters

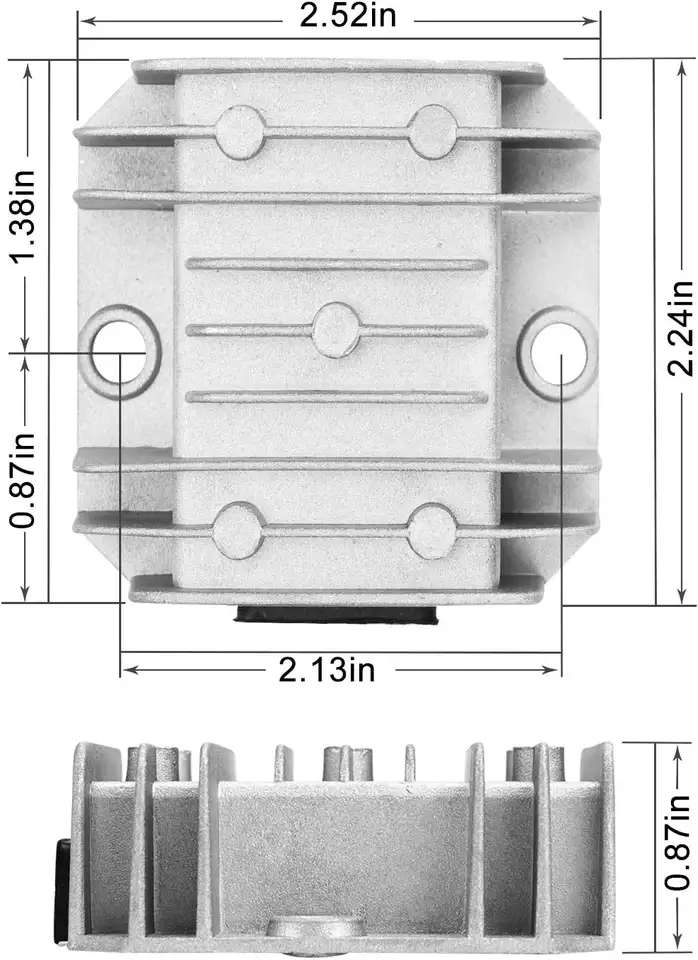

Size64*58 * 22MM
CertificationCE
OriginMainland China
Output Frequency150mV
Output TypeSINGLE
Output Current5A fiberglass

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

A waterproof step-down converter that turns an 18-35V DC input into 12V DC, at 5A (60W) or 10A (120W).

Product Name DC DC Converter 24V to 12V 5A10A Brand Fulree Model number F35J12V5A4L F35J12V10A4L Module Properties non-isolated buck module Rectification synchronous rectification Input (cable length: 13-14cm) Input Voltage DC 24V Input Voltage Range DC 18-35 V Output(cable length: 13-14 cm) Output Voltage DC 12 V Output Current 5A/60W 10.0/120W Conversion Efficiency 90% Voltage regulation ± 1% Load regulation ± 2% Ripple (Full load test) No-load current Working Temperature -40 ~ +85 ℃ Waterproof IP68 Protections Over-current, Over-voltage, Overheat, Output Short circuit Product Size 64*58*22 mm Product Weight 100g Cooling Way Free air convection
