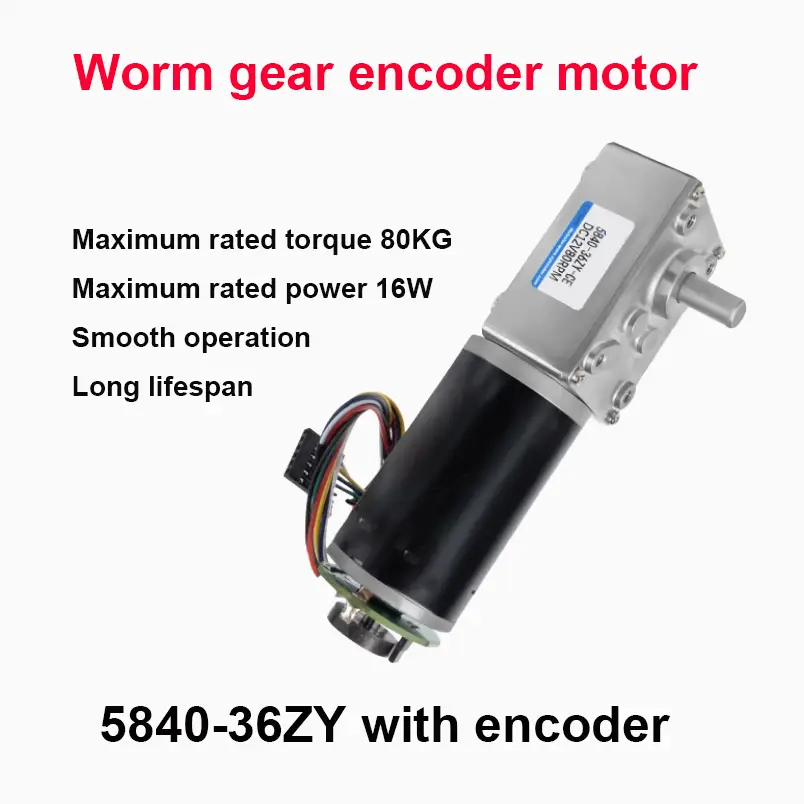

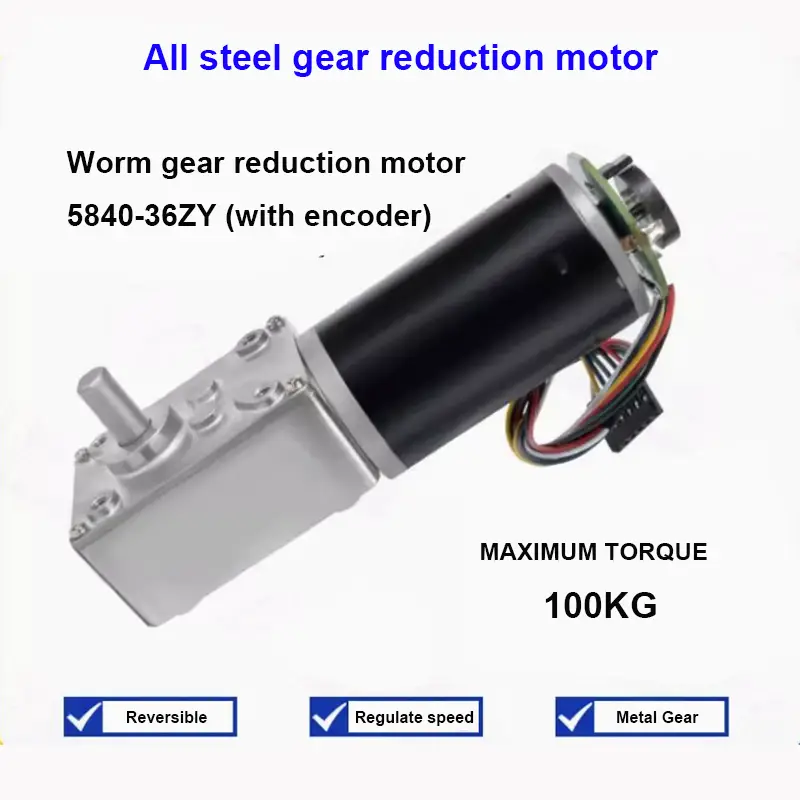

5840 Right-Angle Worm Gear DC Motor with Encoder, 12V/24V, 6-470 RPM

Name: 5840 Right-Angle Worm Gear DC Motor with Encoder, 12V/24V, 6-470 RPM
SKU: AE-1005009330854258-12000048777284549
Price: 50.32 CAD
Availability: InStock

$50.32

Est. delivery 7–23 days

Est. $23.76 shipping to Canada. Exact cost at checkout

In stock

Supplier stock is confirmed when your order is processed.

Option (20 available)

Quantity

Sold by: Polar Parts
Ships from: Our supplier partnersSupport from Milton, Ontario
Shipping: Canada only
Returns: 14 days, unopened items
Payment: Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

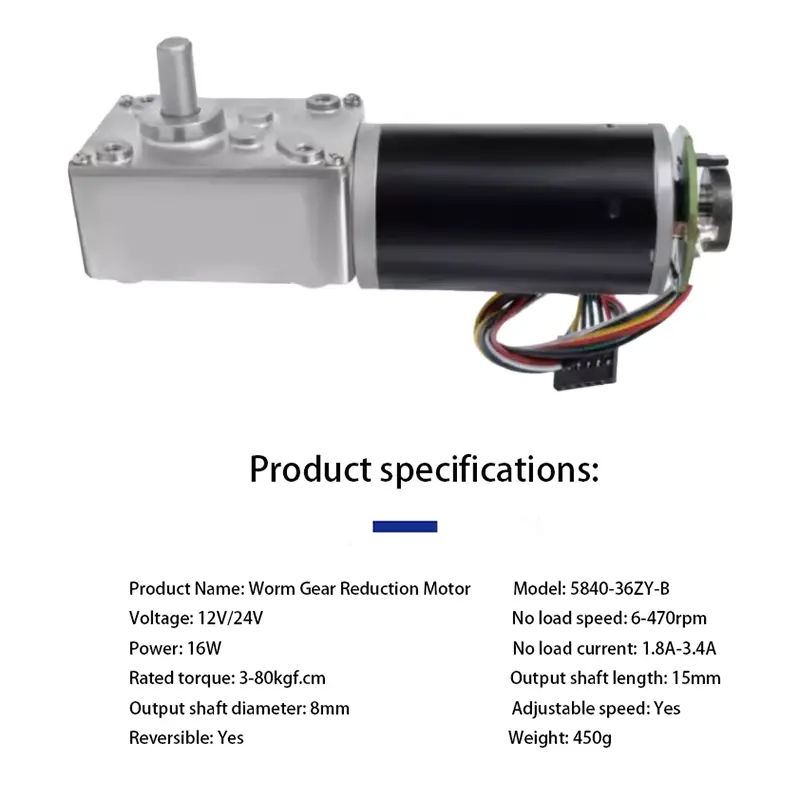

Specifications

Model Number	5840-31ZY-B
Type	Gear Motor
Output Voltage	12V/24V
Use	BOAT
Use	Fan
Use	Home Appliance
Certification	CE
Origin	Mainland China
Does it include wireless functionality?	No
Does it include a Battery?	No
Output Power	18.65-37.5（include18.65and37.5）
Continuous Current(A)	1.8-3.4A
Commutation	Brush
Protect Feature	Drip-proof
Construction	Permanent Magnet
Efficiency	IE 1
Color	GRAY
Torque	3-80kgf.cm
SKU	AE-1005009330854258-12000048777284549

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

Brushed right-angle worm gear motor with a 16 PPR A/B encoder, reversible, in 12V or 24V versions from 6 to 470 RPM.

From left to right: Motor power cord 1 Motor power cord 2 Encoder power supply negative pole Positive pole of encoder power supply Signal A, 16PPR Signal B, 16PPR
