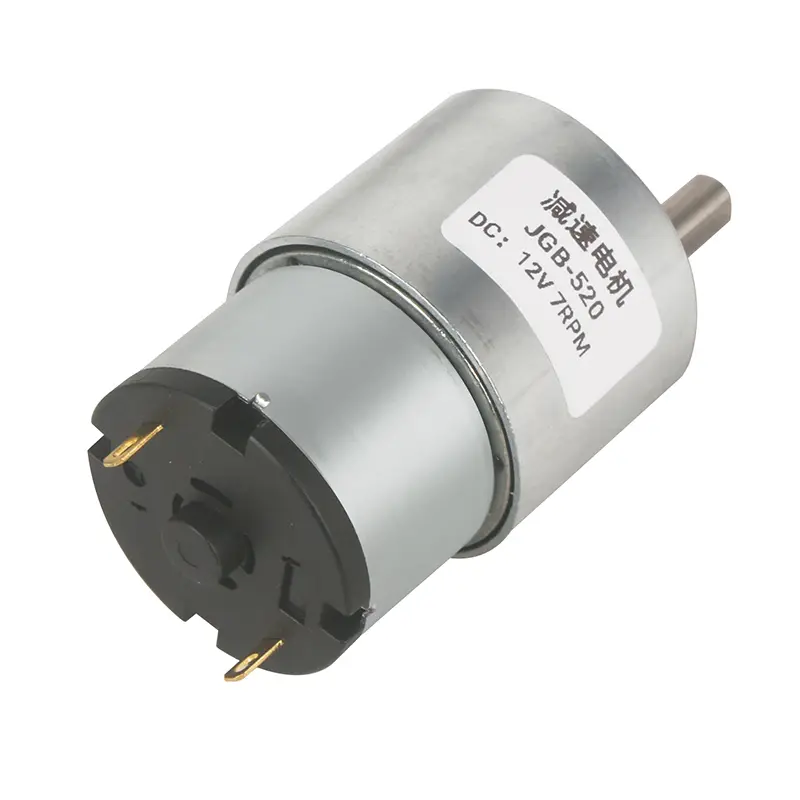

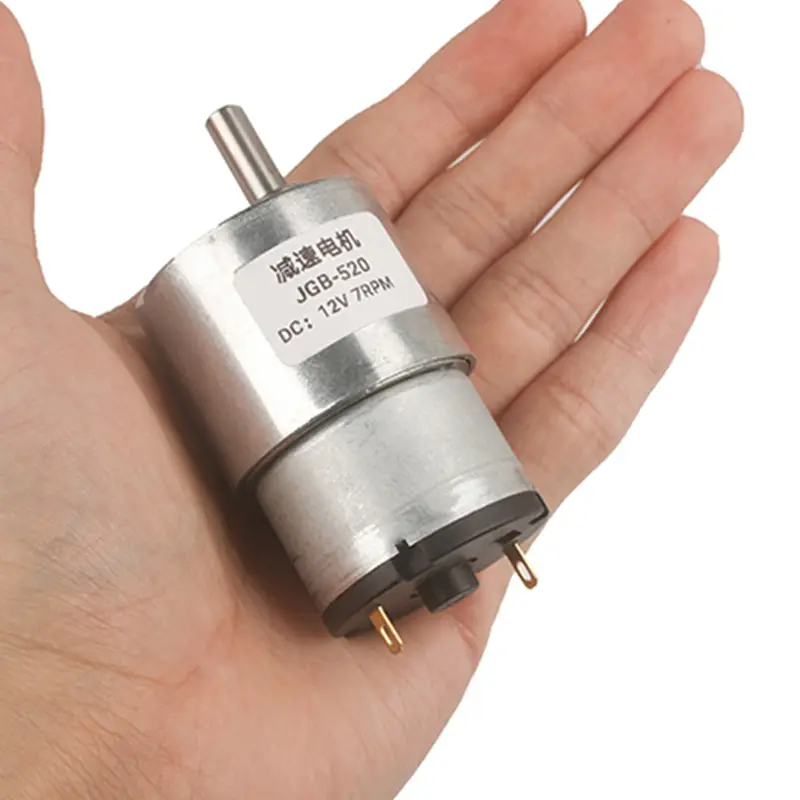

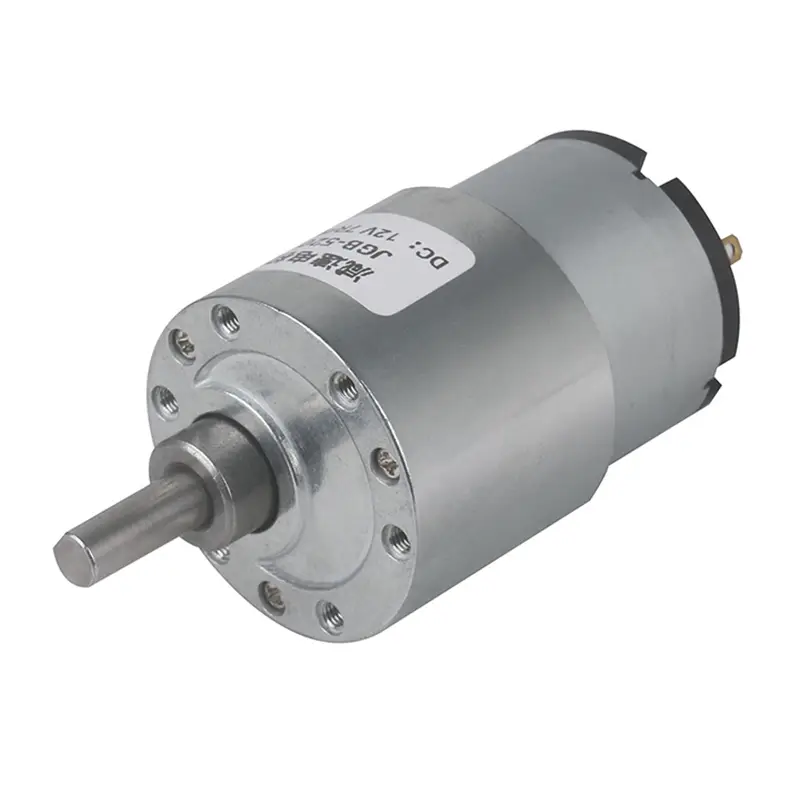

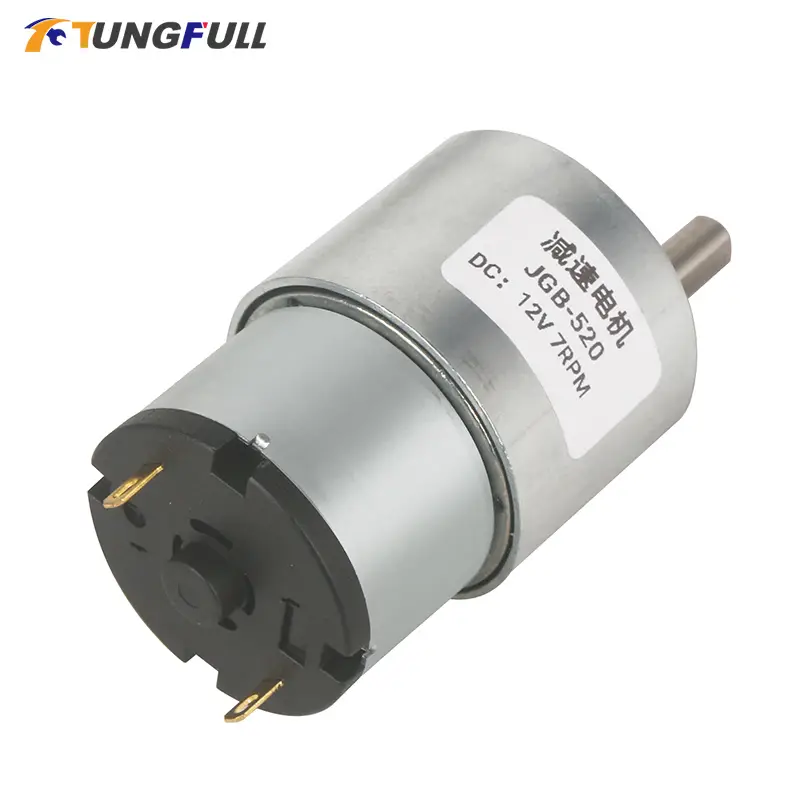

JGB37-520 DC Gear Motor, 6V/12V/24V, 7-960 RPM, Reversible

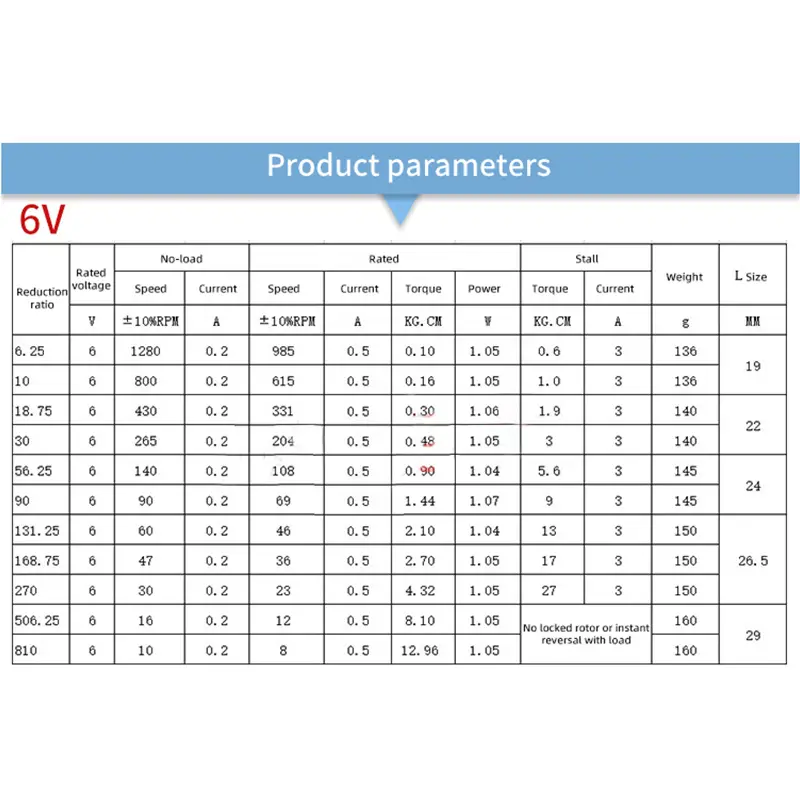

Product name: DC reduction motor Revolutions: 10-1280rpm Current: 1A Motor size: 37 • 52MM Speed regulation: adjustable Weight: 151g Model: JGB37-520 Voltage: DC 6V12V24V Power: 2W Use for 24 consecutive hours Output shaft size: 6 • 15MM Forward and reverse: Yes Explanation of motor related parameter names 1. No load speed: the speed at which the motor is normally energized without load. (Unit: rpm or r/min or r/min） 2. No load current: the current of the motor under normal energization and no load state. (Unit: MA mA 3. Load torque: rated torque of motor during load test, only for test reference; (Unit: gcm g/cm or kgcm kg/cm) 4. Load speed: the speed of motor under load torque. (Unit: rpm or r/min or r/min) 5. Load current: current of motor under load torque. (Unit: mA mA or A A) 6. Locked rotor torque: also called starting torque, is the maximum torque standard that the motor can withstand. If the torque is exceeded, the motor will stop or lock up. (Unit: gcm kg/cm or kgcm kg/cm) 7. Locked rotor current: also called starting current, which is the maximum current when the motor stops due to locked rotor; (Unit: mA sea milliampere or A ampere
