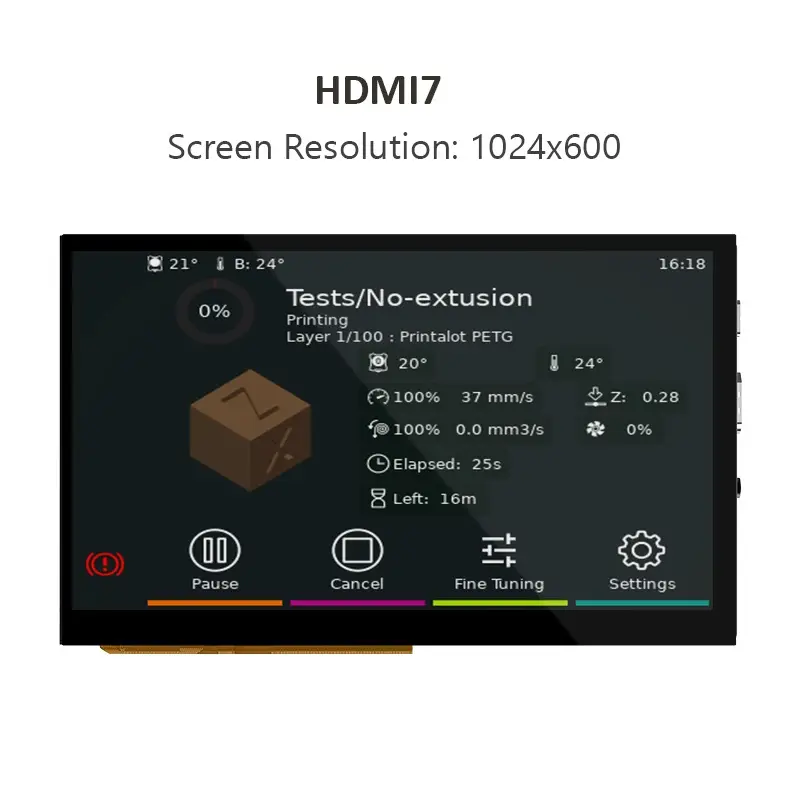

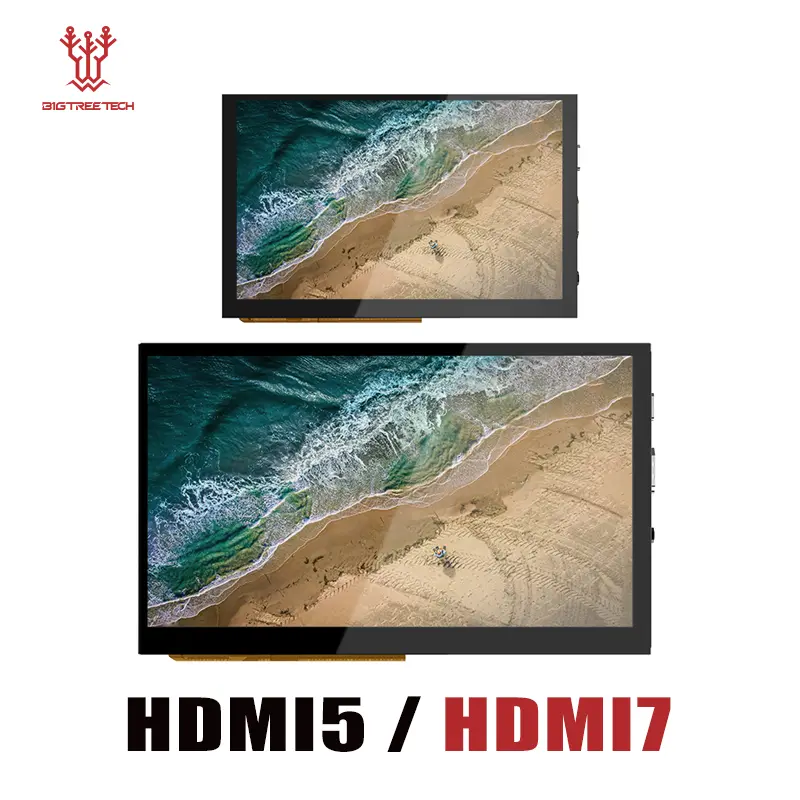

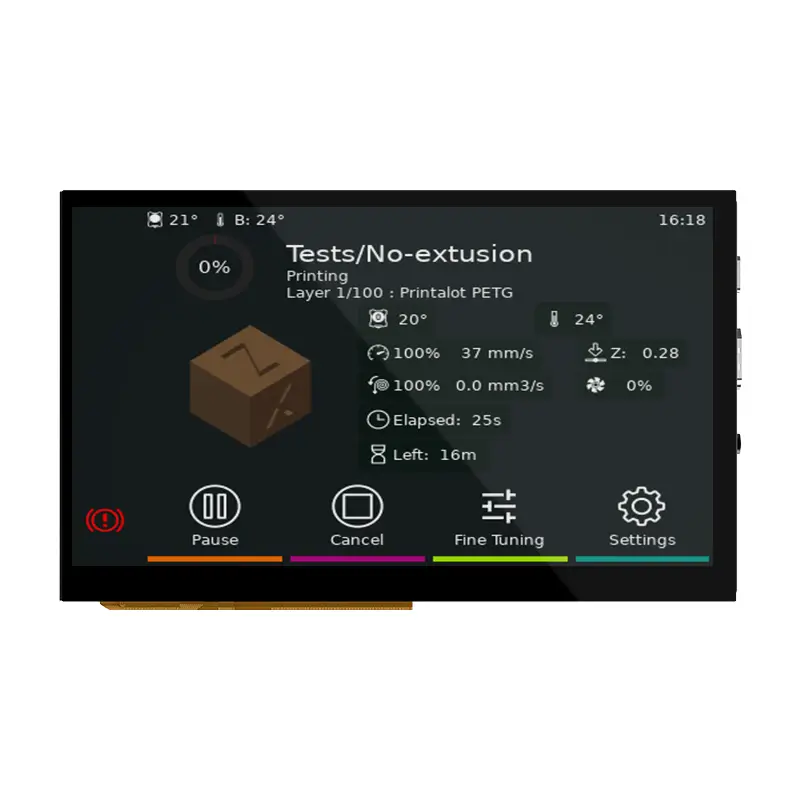

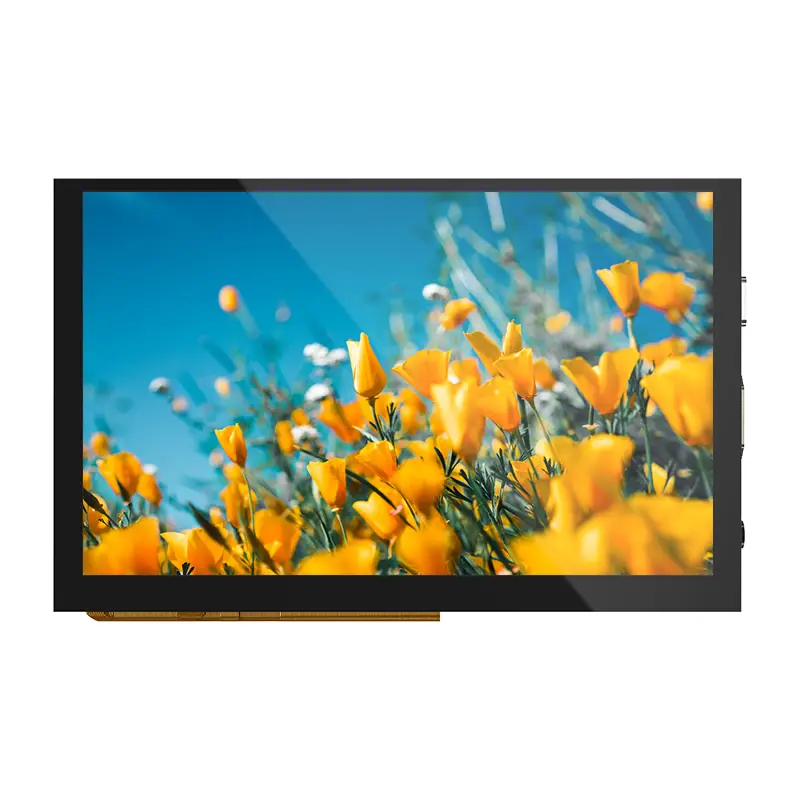

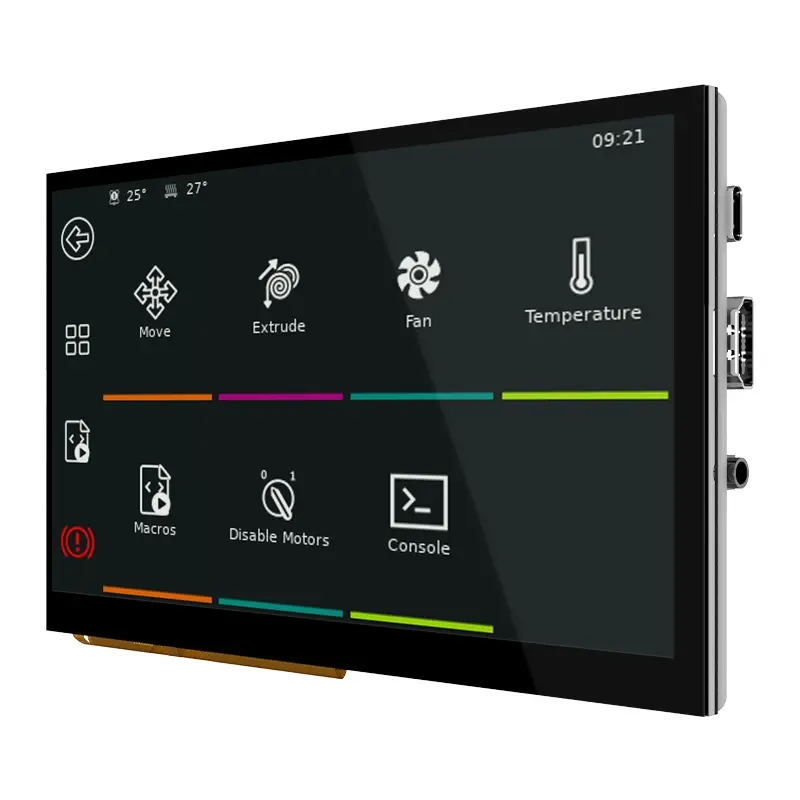

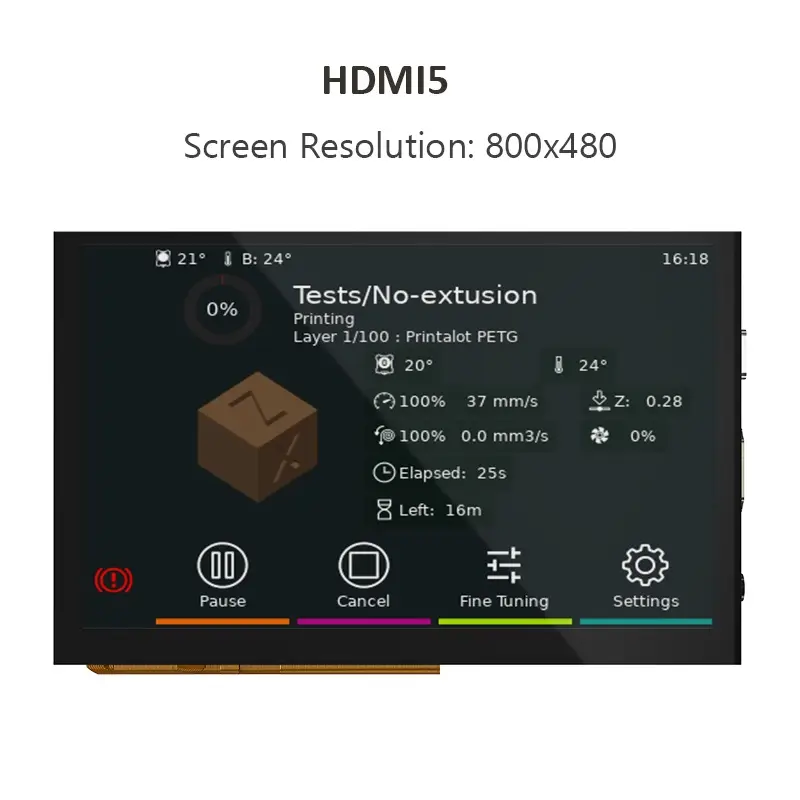

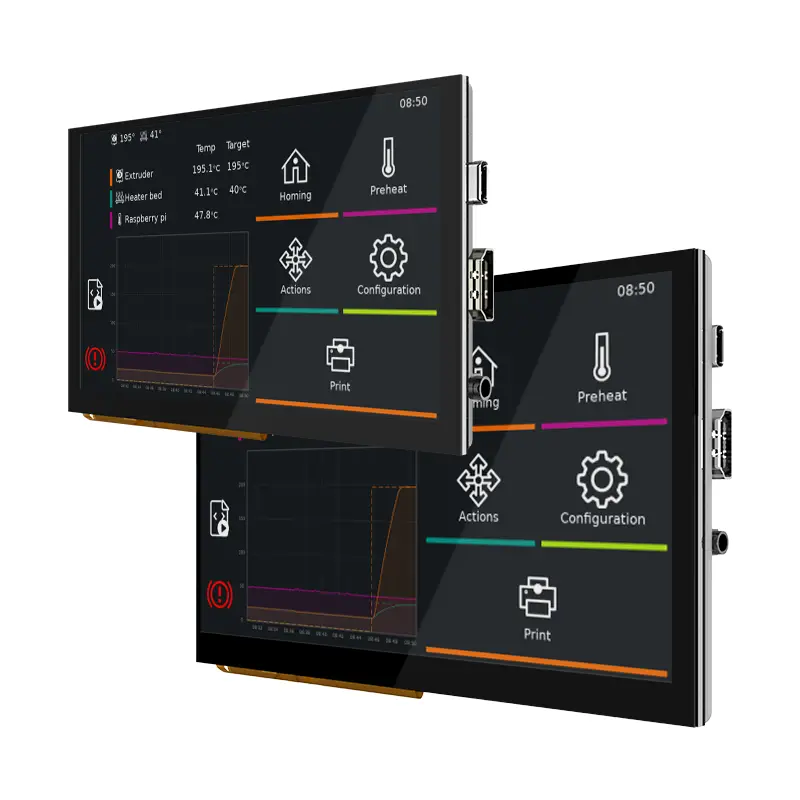

BIGTREETECH HDMI5 or HDMI7 IPS Capacitive Touch Screen, 5-Inch 800x480 or 7-Inch 1024x600

HDMI 5 is sent randomly in two versions. The differences between V1.2 and V1.1 are as follows: 1) The HDMI interface and USB-C interface on the V1.2 version have been changed to be arranged perpendicular to the screen, making it easier for Voron2.4 users to route cables from behind the HDMI5 V1.2 screen. 2) The USB-C cable provided with the V1.2 version has been changed to a right-angle terminal. For Voron2.4 machines, the cable can be better routed from behind the screen; 3) The HDMI cable provided with the V1.2 version is an HDMI2.0 to MicroHDMI right-angle terminal. Not only can it be better routed from behind the screen, but it can also be directly connected to the MicoHDMI interface on the BTT Pi and Manta series motherboards, without the need for HDMI V1.1 Use the adapter that way. 4) The adapter provided with the V1.2 version has been changed to microHDMI to HDMI2.0. If you need to connect HDMI5 V1.2 to a device with an HDMI2.0 interface, you can also use this adapter. 1、HDMI5 Brief Introduction BIGTREETECH HDMI5 V1.0 is a universal 5 inch HDMI display screen developed by the 3D printing team of Shenzhen Big Tree Technology Co., Ltd. 1.1 Main Features HDMI input, can work with Raspberry Pi. Connect to a PC, it can be used as a PC monitor. The LCD adopts a 5-inch IPS capacitive touch screen with a resolution of 800x480. Support 5-point touch. Built-in audio decoding circuit, support 3.5mm headphone jack audio output. Support brightness and display direction adjustment. 2、 HDMI7 Brief Introduction BIGTREETECH HDMI7 V1.0 is a universal 7 inch HDMI display screen developed by the 3D printing team of Shenzhen Big Tree Technology Co., Ltd. 2.1 Main Features HDMI input, can work with Raspberry Pi. Connect to a PC, it can be used as a PC monitor. Adopt a 7-inch IPS capacitive touch screen with a resolution of 1024x600, support 5-point touch. Built-in audio decoding circuit, support 3.5mm headphone jack audio output. Support brightness and display direction adjustment.
