Brushless Motor Driver Board, Hall-Free, 12-36V 15A 500W, Forward/Reverse, PWM Speed Control

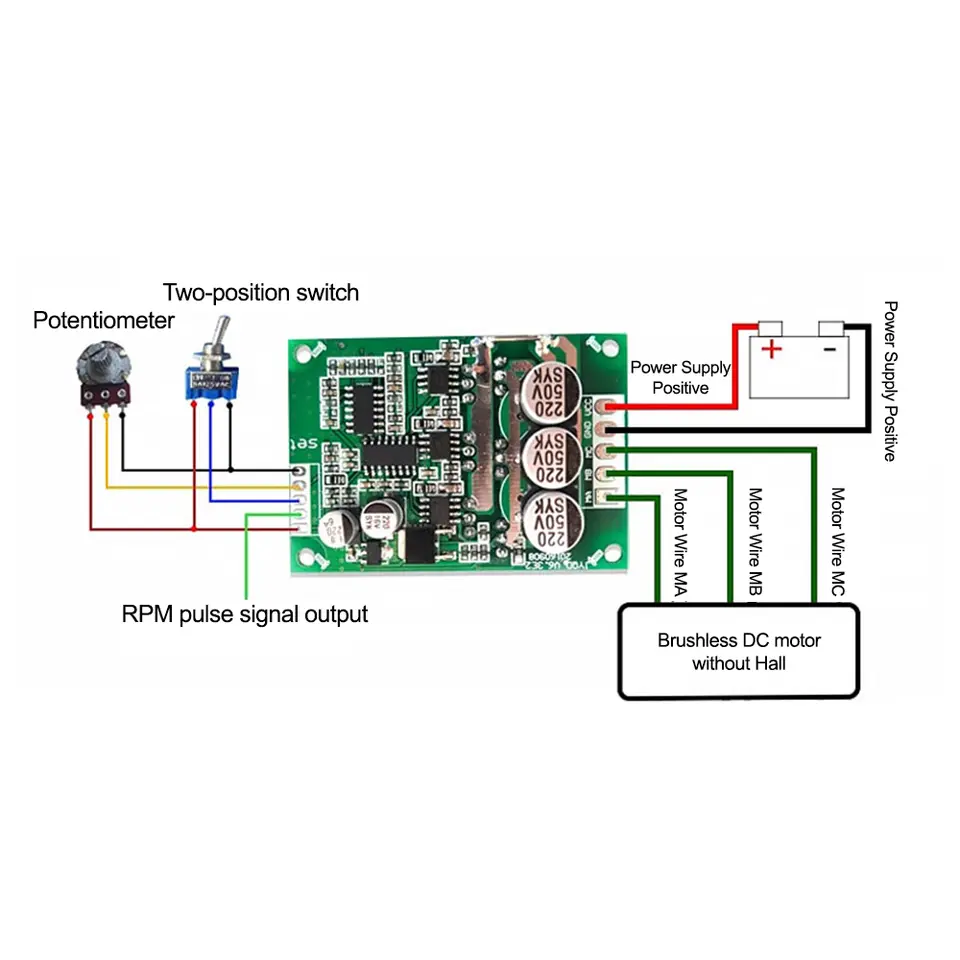

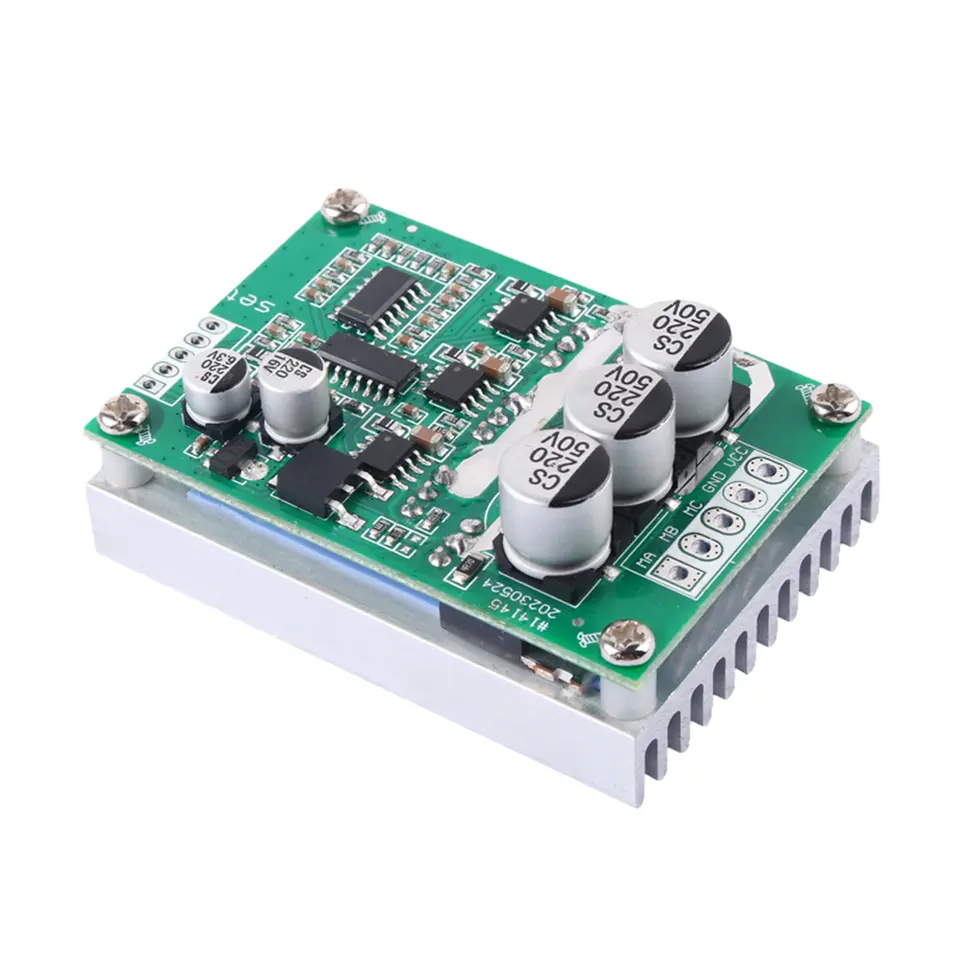

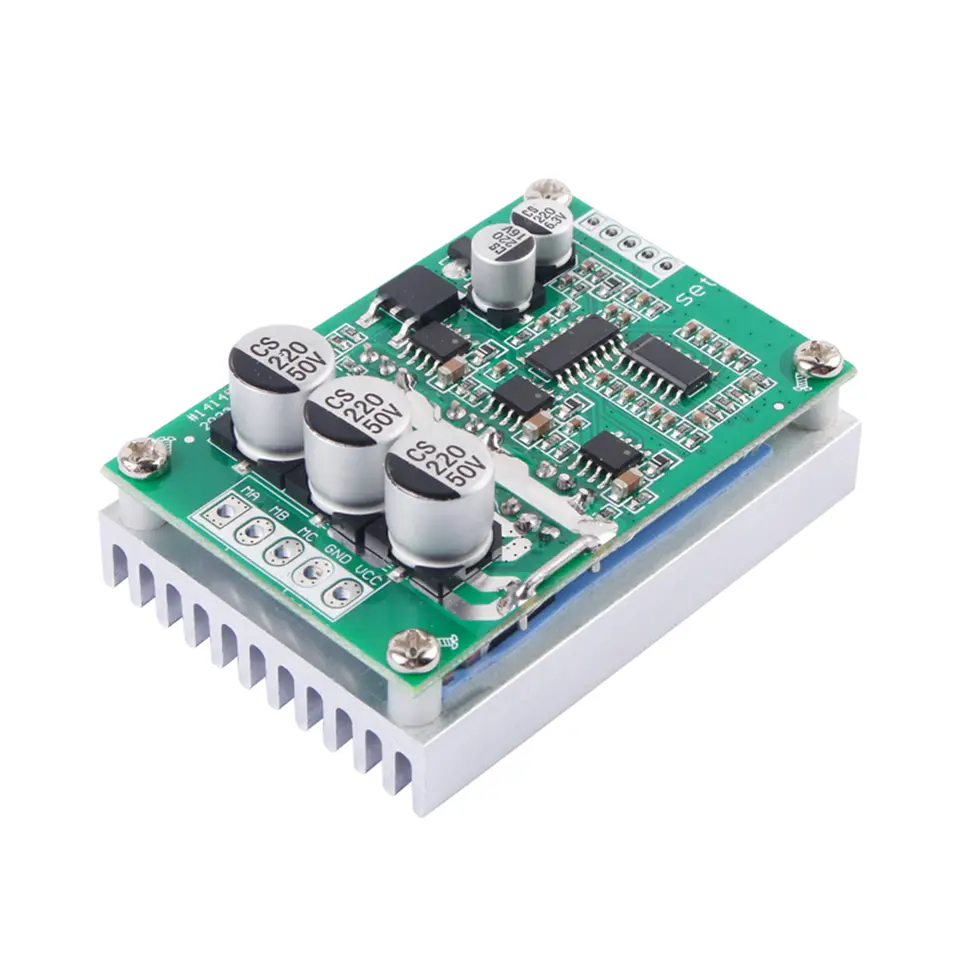

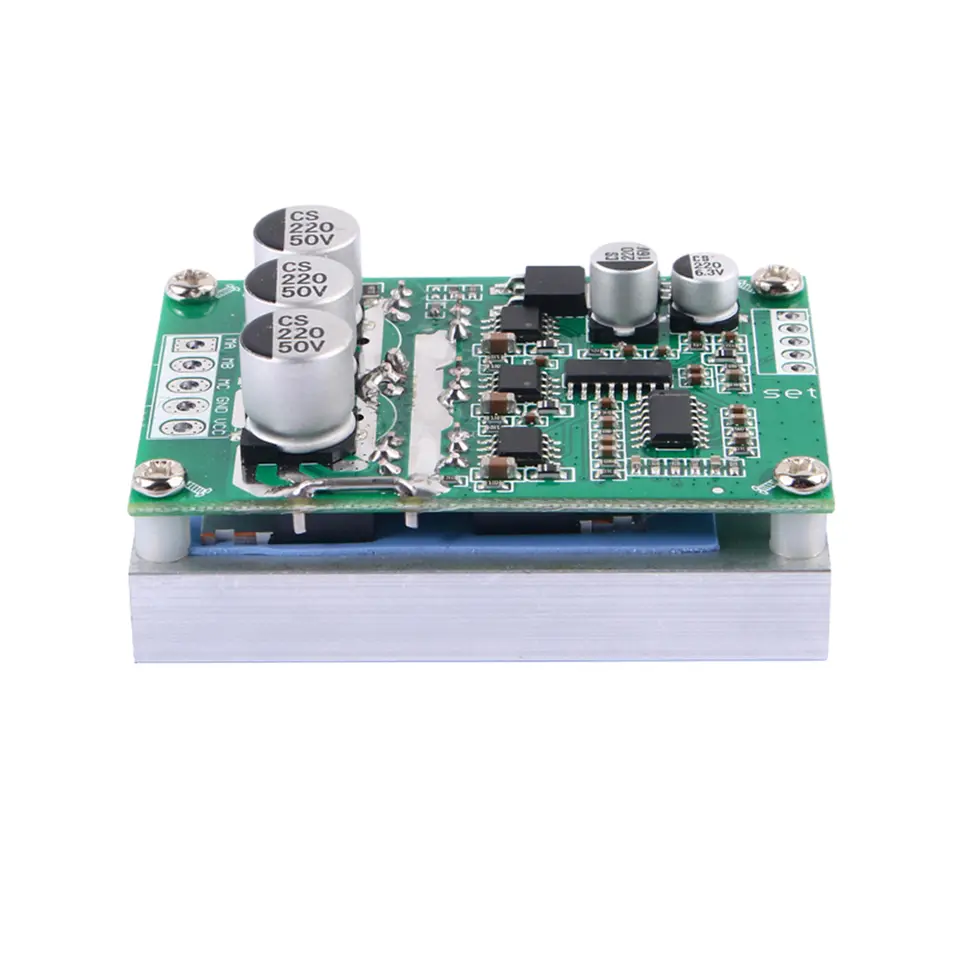

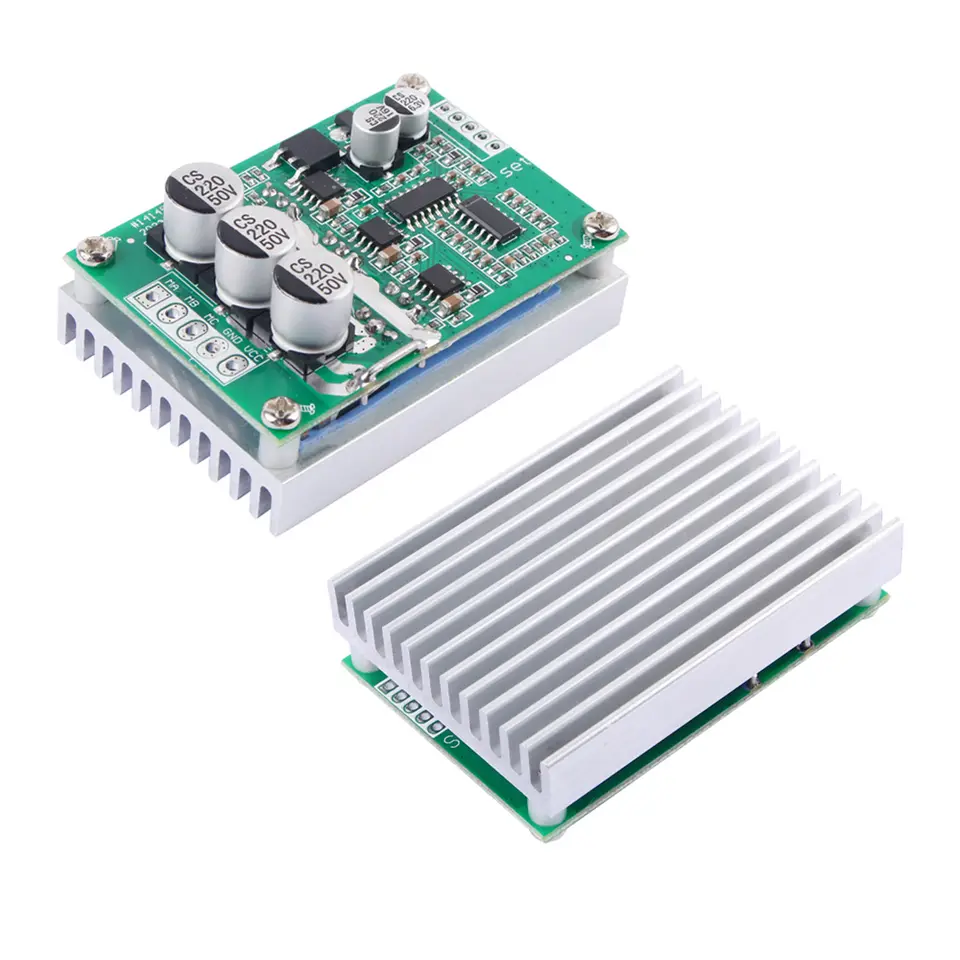

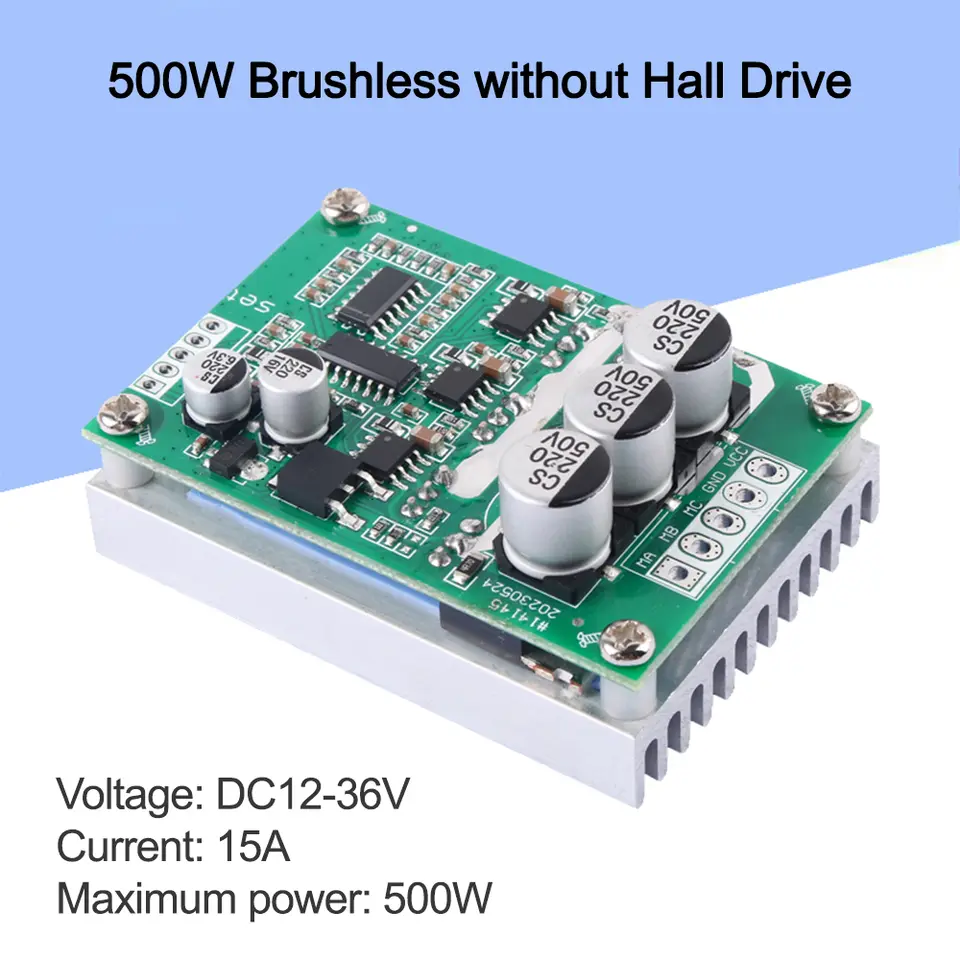

DC 12-36V 500W 15A Brushless Hall Free Motor Driver Board Motor Foward Reverse Speed Controller Control Switch Module Feature: 1. The driver supports forward and reverse switching, potentiometer speed control, potentiometers are generally available for 10-50K, and PWM 5V signal speed control 3. Easy to use, the driver board comes with a 18mm thick heat sink 4. Exquisite and compact appearance, components are neatly arranged 5. Wide range of applications Voltage input: DC12-36V Maximum current: 15A Maximum power: 500W Note: It is best to use the adjustable power supply current limiting mode to test whether the actual no-load current is abnormal when testing the driver, so as to avoid abnormal instantaneous high power burning the driver The output UVW three-phase should not be short-circuited, otherwise it will burn the driver. For high-power use, see the actual heat generation. If the heat generation is large, add a fan to force air cooling The driver does not have a socket and wire, you need to solder with an electric soldering iron, and you need to prepare the forward and reverse switch and speed potentiometer yourself. When soldering with a soldering iron, be sure to pay attention to good grounding to avoid induction damage to the driver Motor driver board*1
