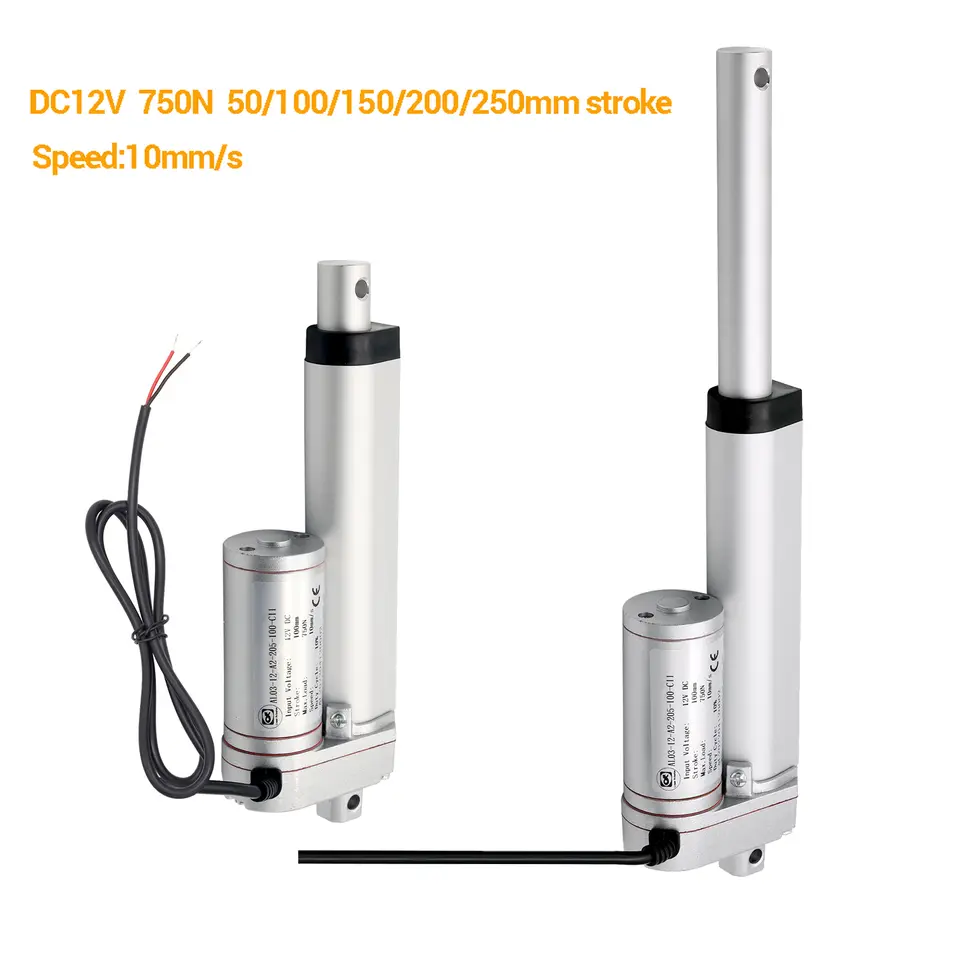

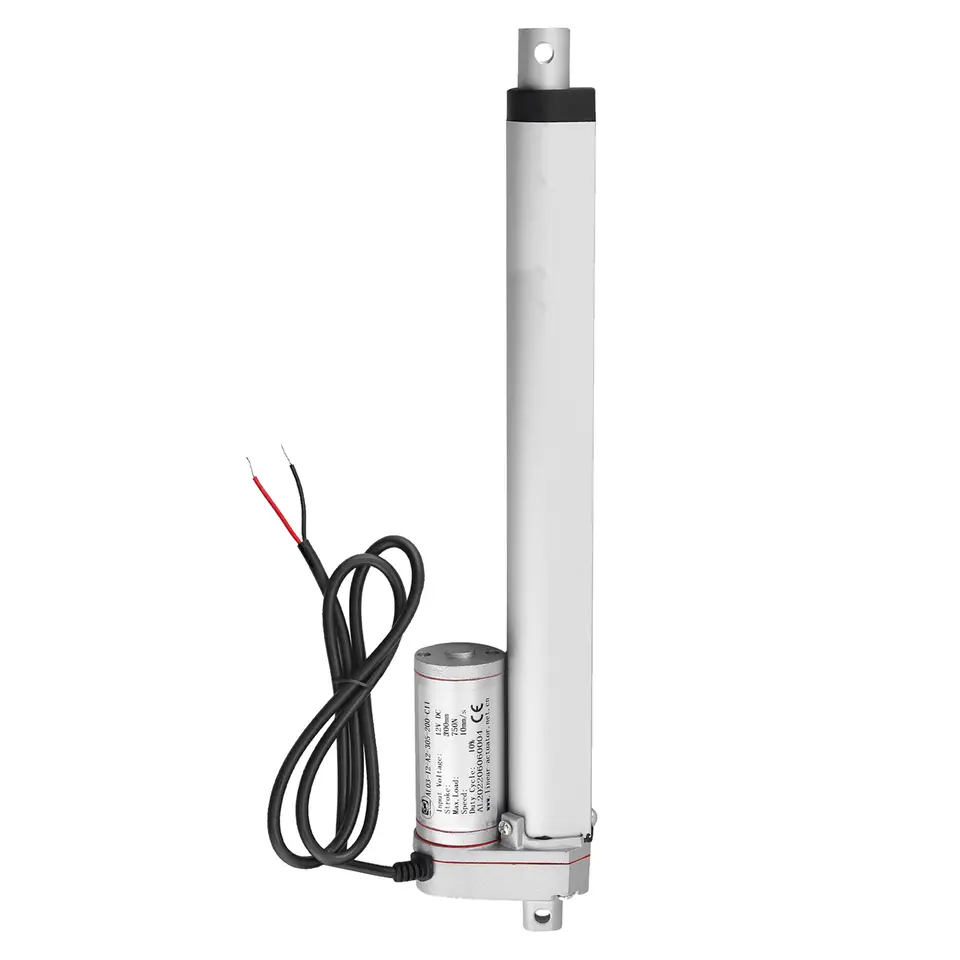

12V DC Linear Actuator, 750N Load, 10 mm/s, 50 to 350 mm Stroke with Limit Switches

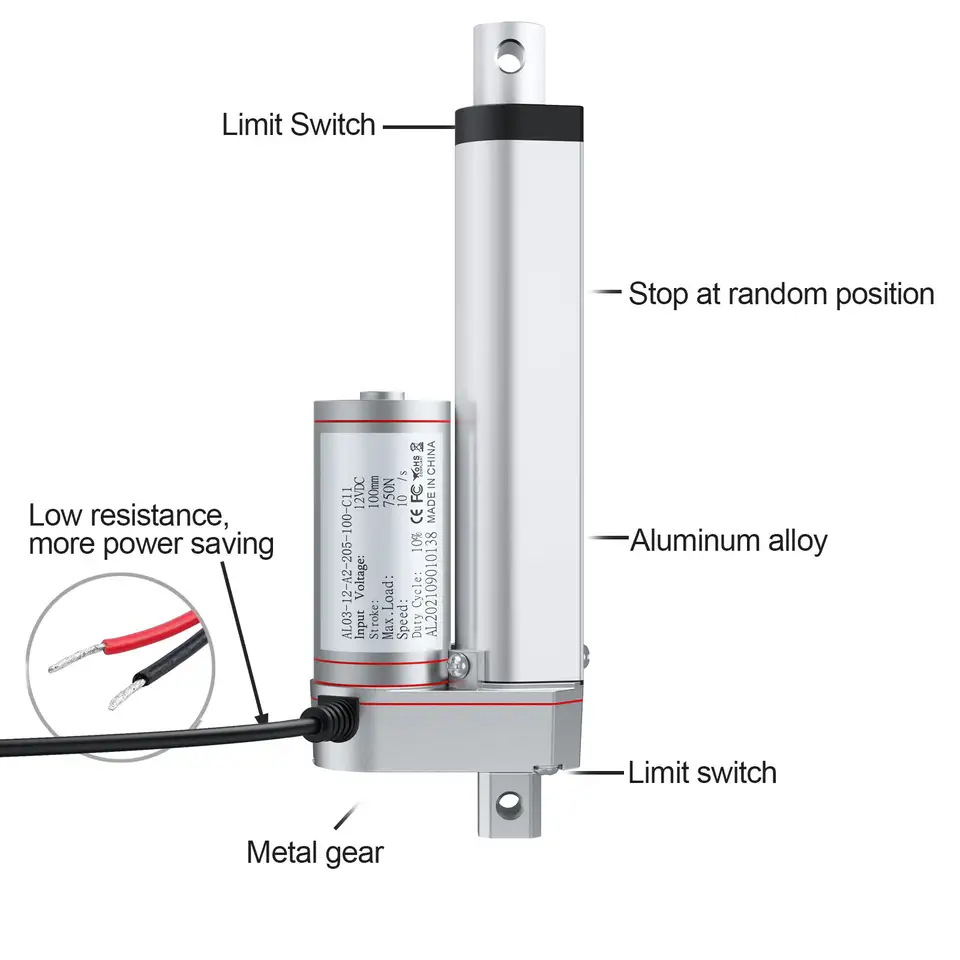

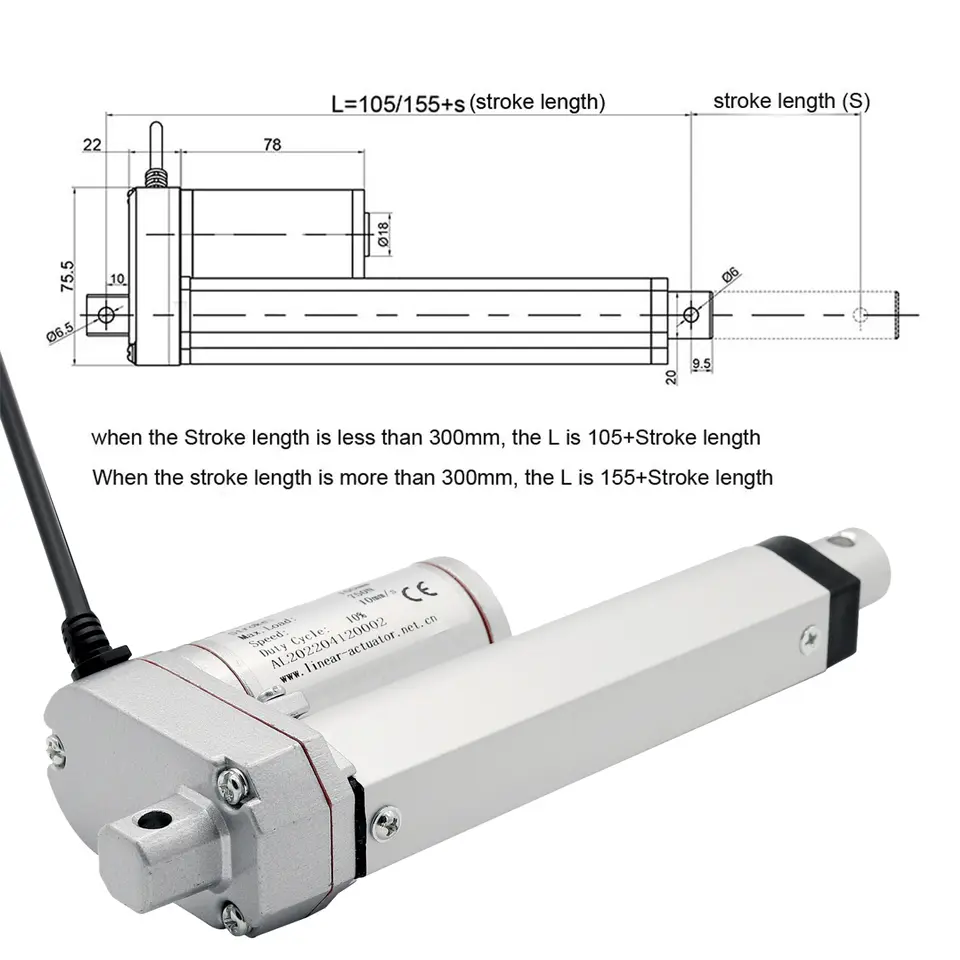

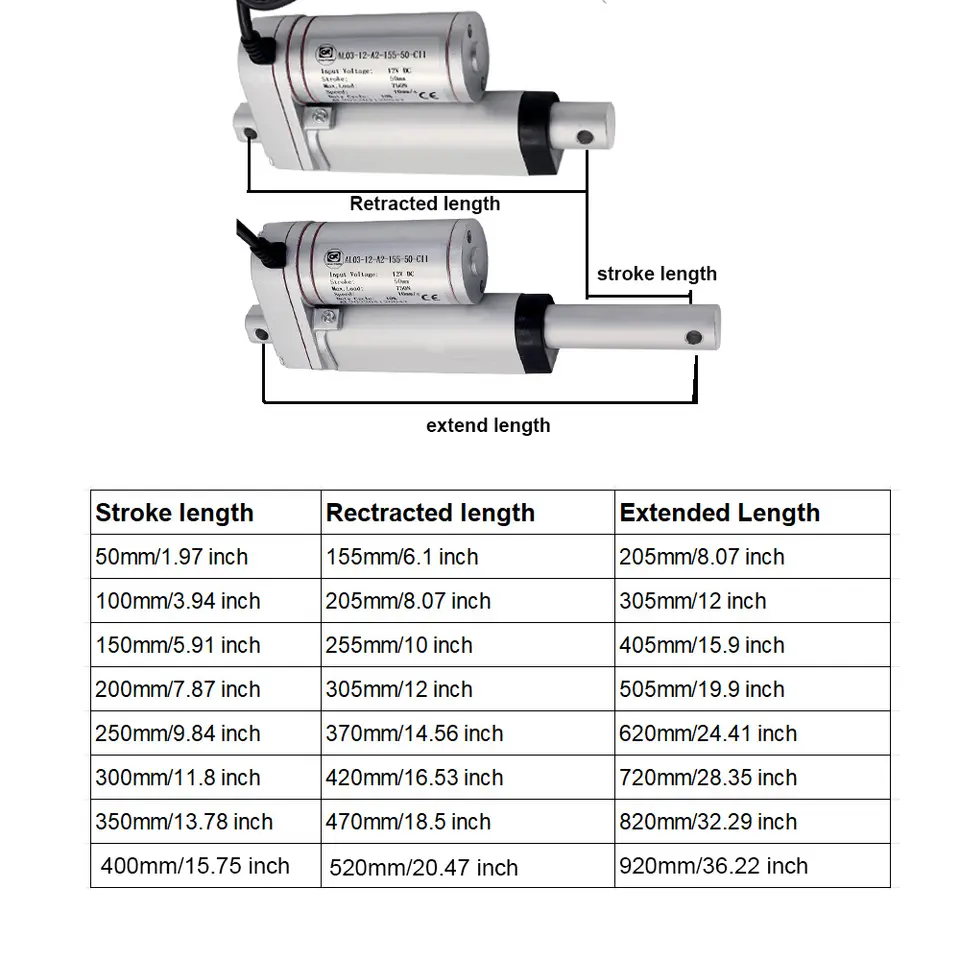

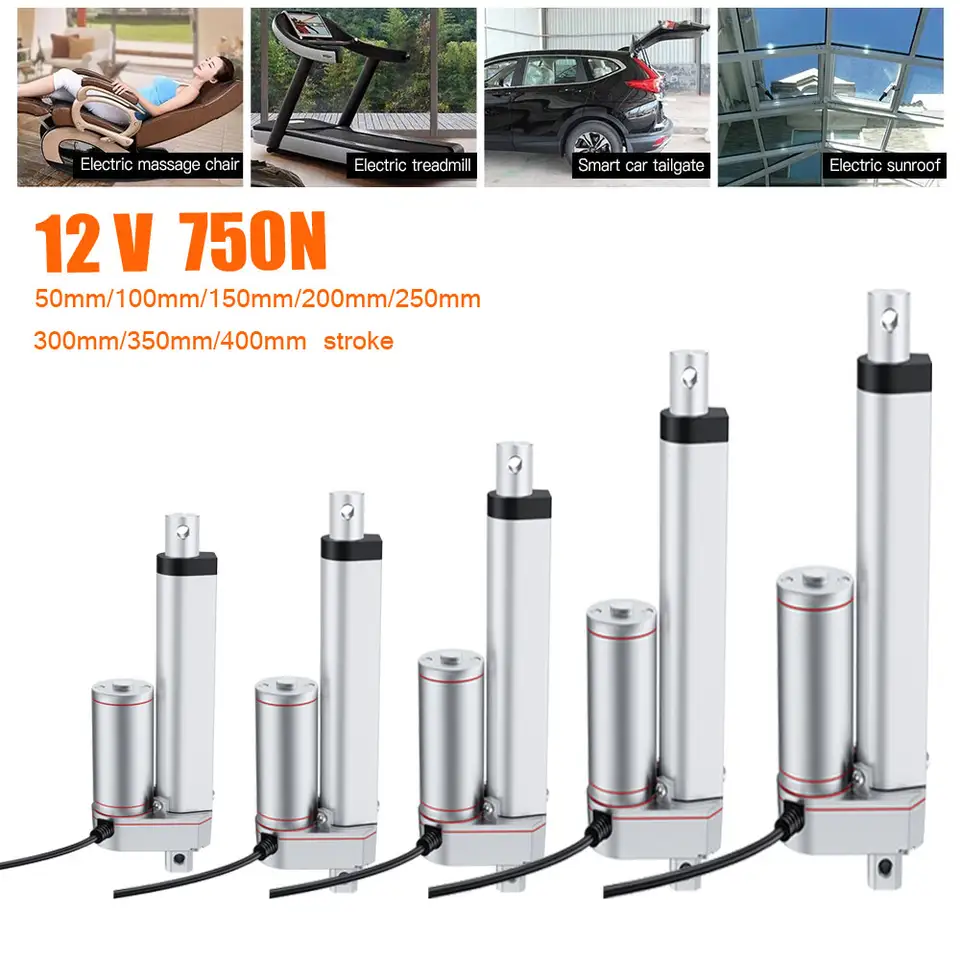

Technical Parameters: Material: Aluminum alloy Load capacity: 750N/160LBS (can lift /push up to 75kg) Input Voltage: 12V DC Speed: 10mm/s Stroke Length:50mm/100mm/150mm/200mm/250mm/300mm/350mm Working frequency: 20% Rated power: 20W, maximum 30W. Push bar Each side contains a travel limit switch. When the telescopic bar runs to the top or to the top, it will automatically disconnect the electricity. The motor will not idle. Cut off the power, it can be stop at any position, with self-locking function. The push rod is driven by a DC motor with a screw drive. The telescopic rod can only be retracted without rotation. The motor is positive and negative. For example, if the positive electrode is stretched and the negative electrode is shrunk, the telescopic direction of the rod can be changed by changing it. Ambient temperature -20°C to +75°C. Standard protection class: IP54. (Waterproof splash, can not be soaked in water Low noise design, noise level less than 42dB. Please do not disassemble the machine. Product features: drive other objects to push, pull, rise, drop. Product Applications: TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more. Package Included: 1×Linear Actuator Motor
