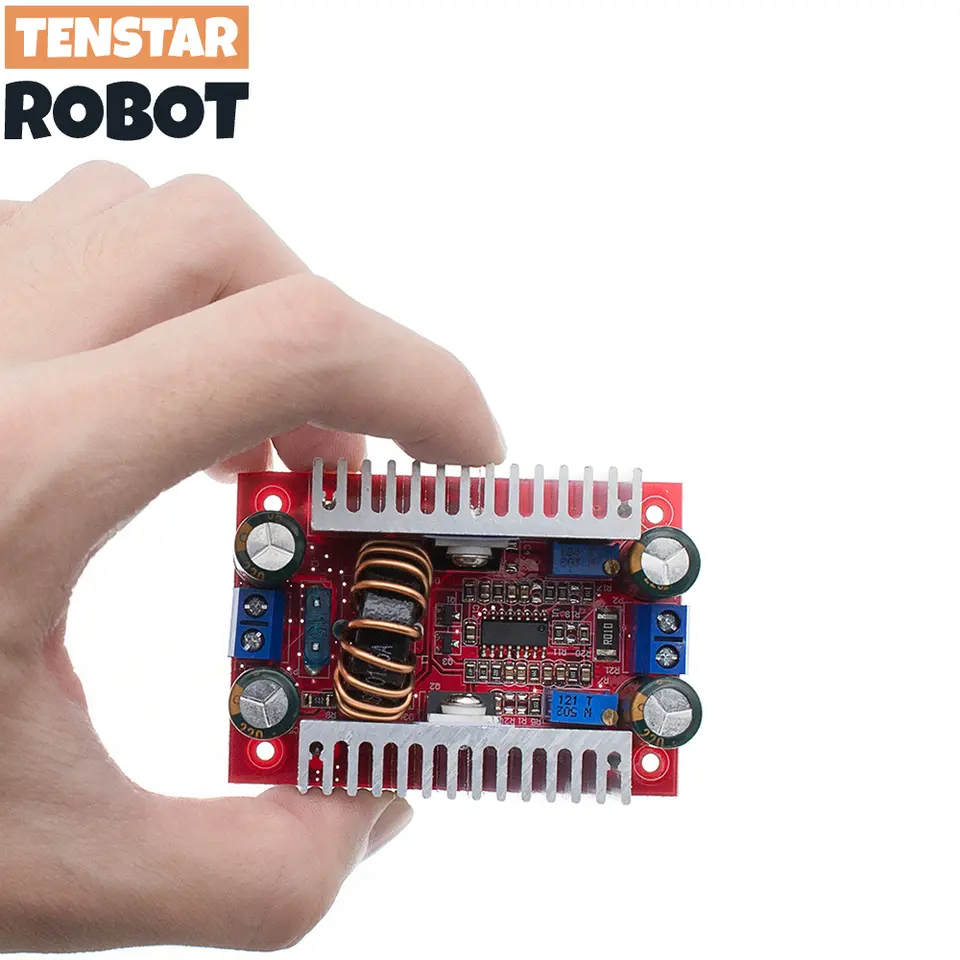

DC 400W 15A Step-up Boost Converter Constant Current Power Supply LED Driver 8.5-50V to 10-60V Voltage Charger Step Up Module image 1

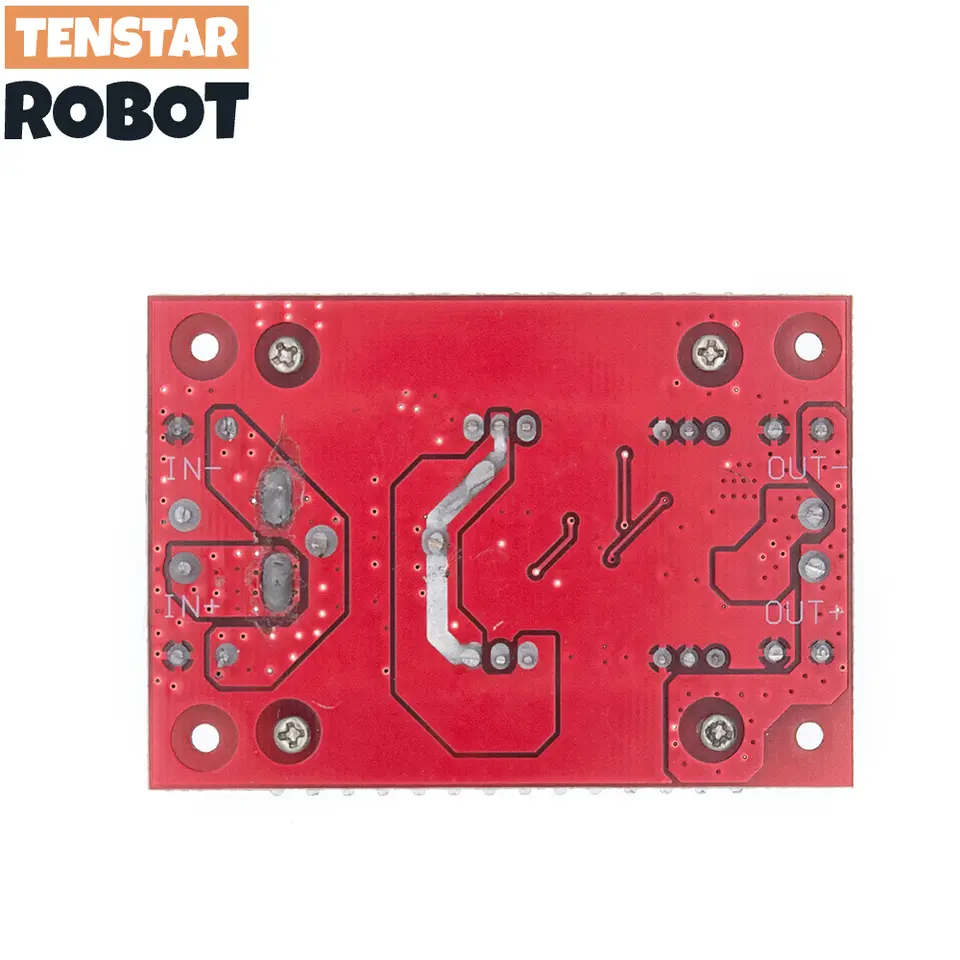

DC 400W 15A Step-up Boost Converter Constant Current Power Supply LED Driver 8.5-50V to 10-60V Voltage Charger Step Up Module image 2

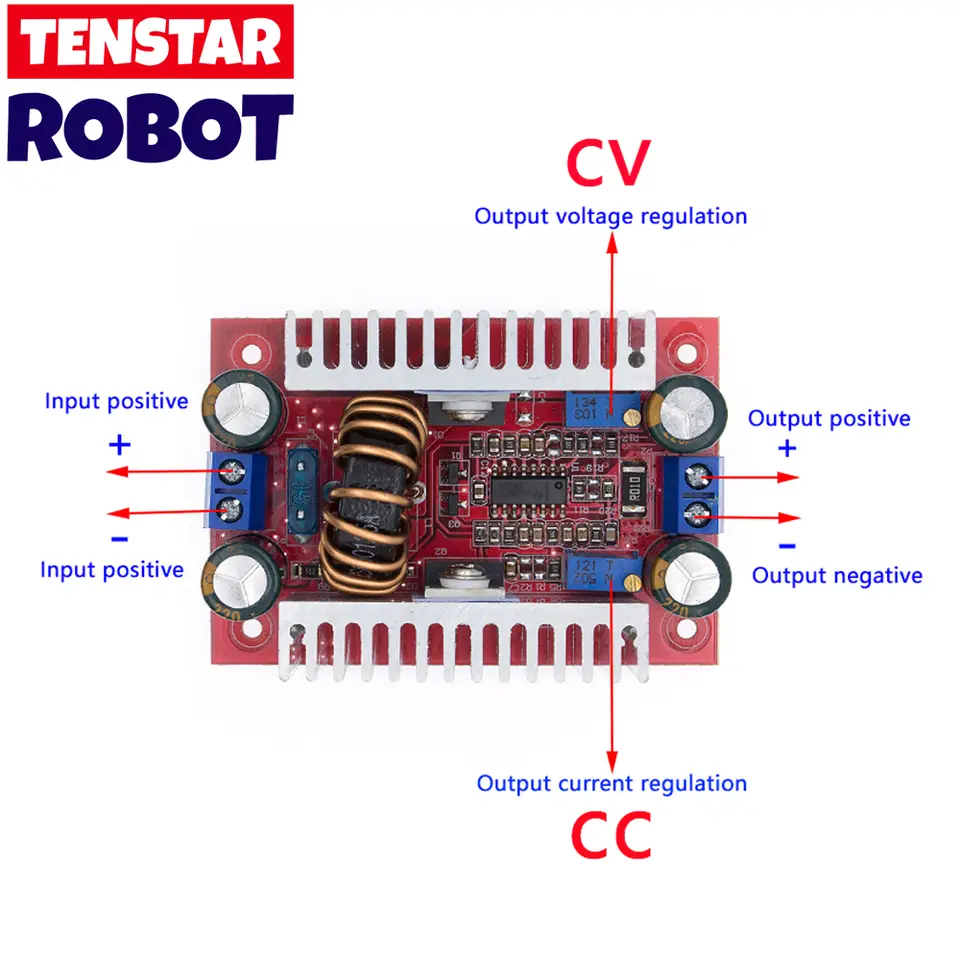

DC 400W 15A Step-up Boost Converter Constant Current Power Supply LED Driver 8.5-50V to 10-60V Voltage Charger Step Up Module image 3

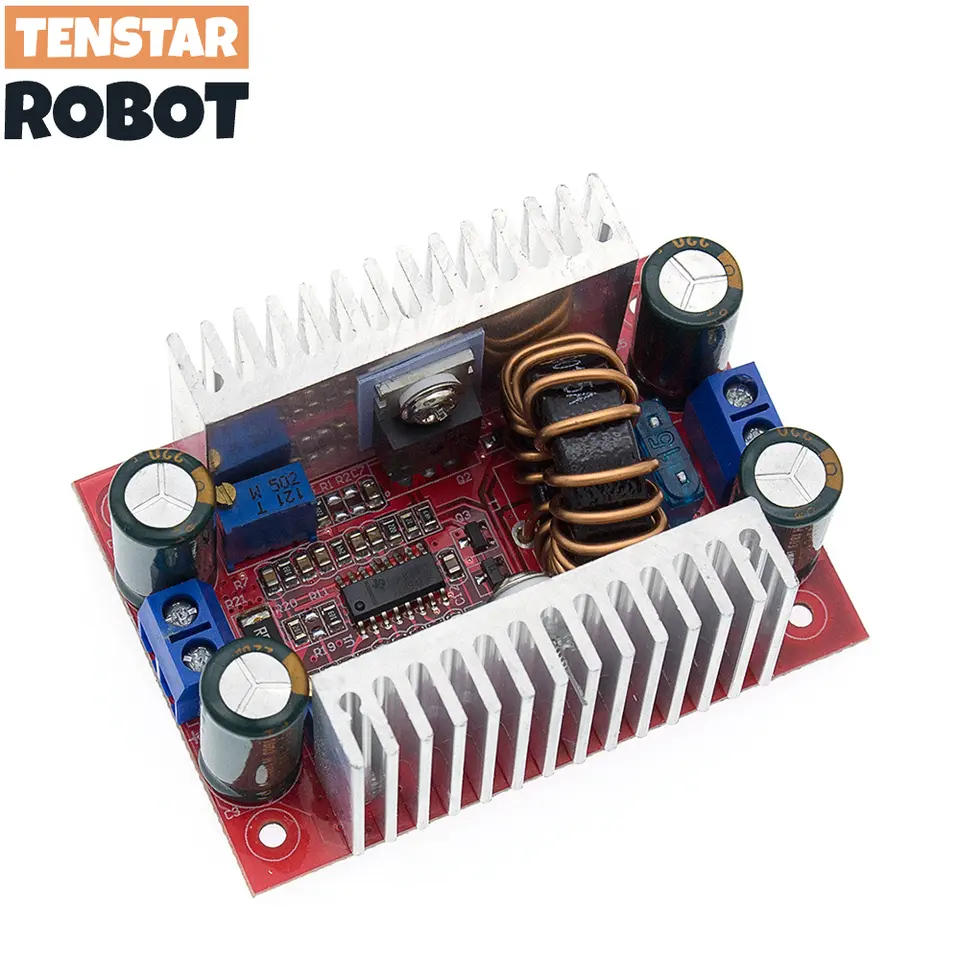

DC 400W 15A Step-up Boost Converter Constant Current Power Supply LED Driver 8.5-50V to 10-60V Voltage Charger Step Up Module image 4

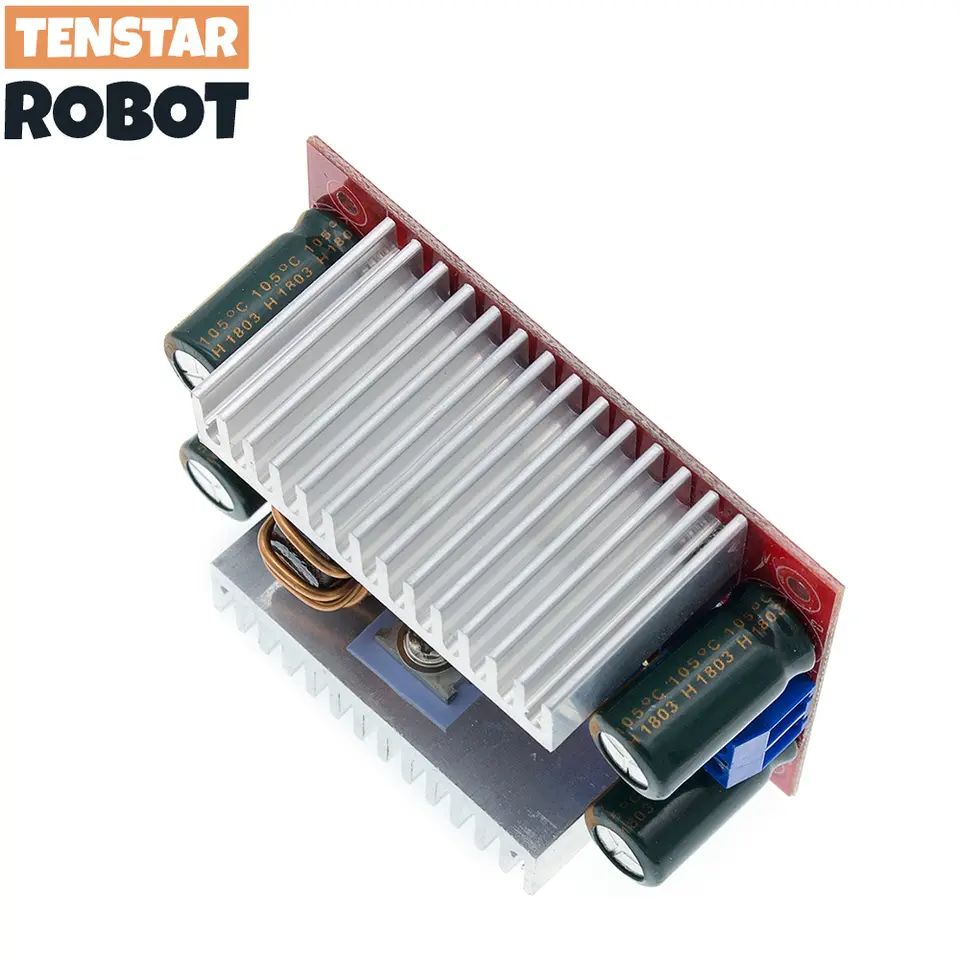

DC 400W 15A Step-up Boost Converter Constant Current Power Supply LED Driver 8.5-50V to 10-60V Voltage Charger Step Up Module image 5

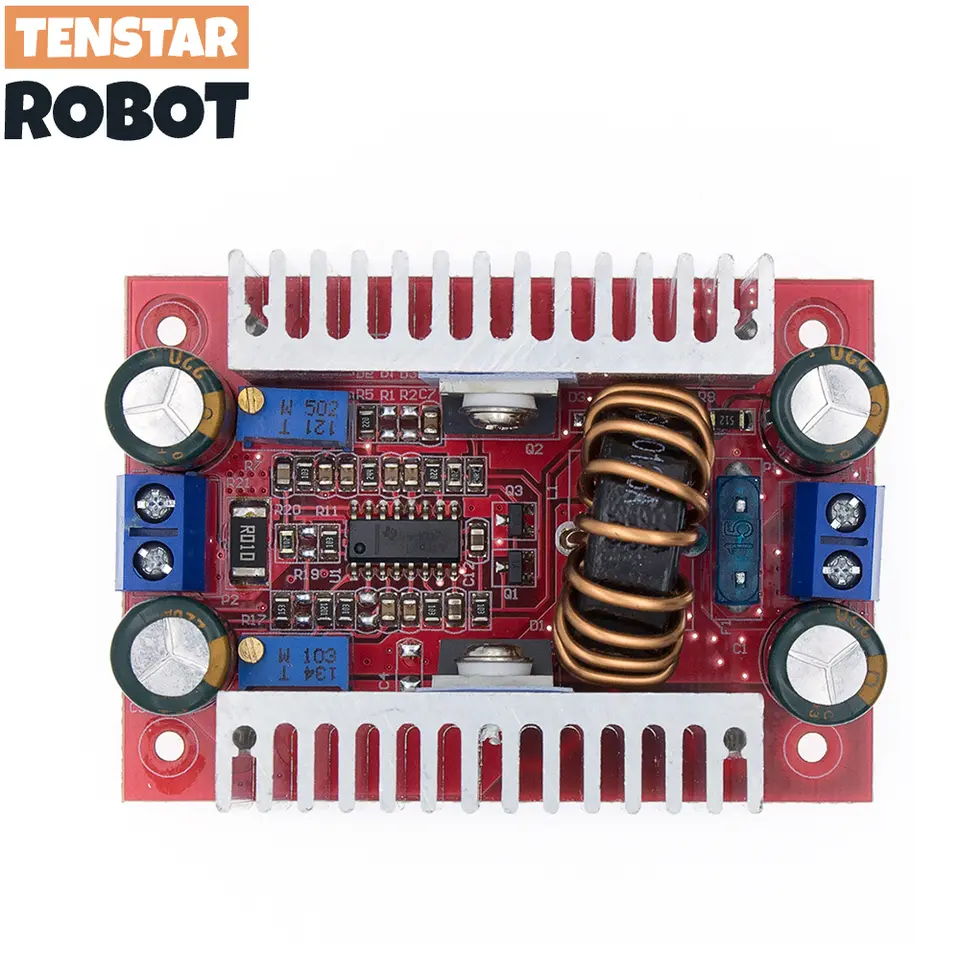

DC 400W 15A Step-up Boost Converter Constant Current Power Supply LED Driver 8.5-50V to 10-60V Voltage Charger Step Up Module image 6
DC 400W 15A Step-up Boost Converter Constant Current Power Supply LED Driver 8.5-50V to 10-60V Voltage Charger Step Up Module image 7
Image 1 of 7

400W DC-DC Boost Converter, 8.5-50V In, 10-60V Out, Constant Current 0.2-12A, LED Driver

$10.16

Est. delivery 6–12 days

Est. $3.13 shipping to Canada. Exact cost at checkout

In stock

Supplier stock is confirmed when your order is processed.

Quantity
Sold by
Polar Parts
Ships from
Our supplier partnersSupport from Milton, Ontario
Shipping
Canada only
Returns
14 days, unopened items
Payment
Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

Model NumberDC 400W 15A Step-up Boost Converter
TypeOther
OriginMainland China
EU LVD VoltageLow voltage: Below 50Vac or 75Vdc
Current TypeDC
Power (W)up to 1 kW
Number of socketsNot
PhaseSingle-phase

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

A non-isolated step-up module with adjustable output voltage and constant current, for power supplies, battery charging and LEDs.

Description: Module name :400W boost constant current module Module properties: non-isolated step-up module (BOOST) Input voltage: DC8.5V-50V Input current: 15A (MAX) exceeds 8A please enhance heat dissipation Quiescent current: 10mA (12V liter 20V, the output voltage, the higher the current will increase too quiet) Output voltage: 10-60V continuously adjustable Constant] range: 0.2-12A Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation) Operating frequency: 150KHz Conversion efficiency: up to 96% Overcurrent protection: yes Input reverse polarity protection: no Installation: 4 2.55mm screw holes Connection method: Connection Output Module size: 67mm X48mm X 28mm (LxWxH) Single module: 60 g Applications: 1. DIY a power supply, 12V can input and output can 12-50V adjustable. 2. the power supply for your electronic device, according to your system can set the output voltage value. 3. as the car power supply for your laptop, PDA or a variety of digital products supply. 4. DIY a mobile notebook power supply: 12V coupled with high-capacity lithium battery pack, so you can go where light where books. 5; solar panel regulator. 6 to the battery, rechargeable lithium batteries. 7. driving high-power LED lights.
