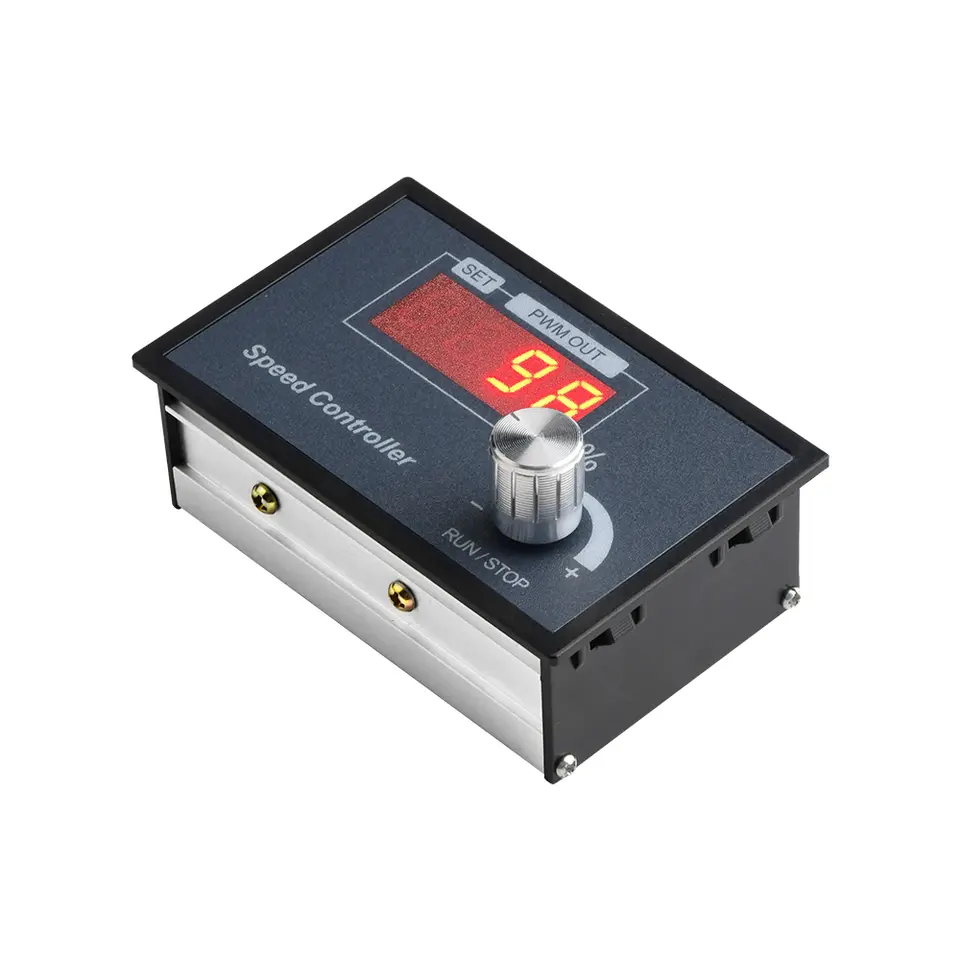

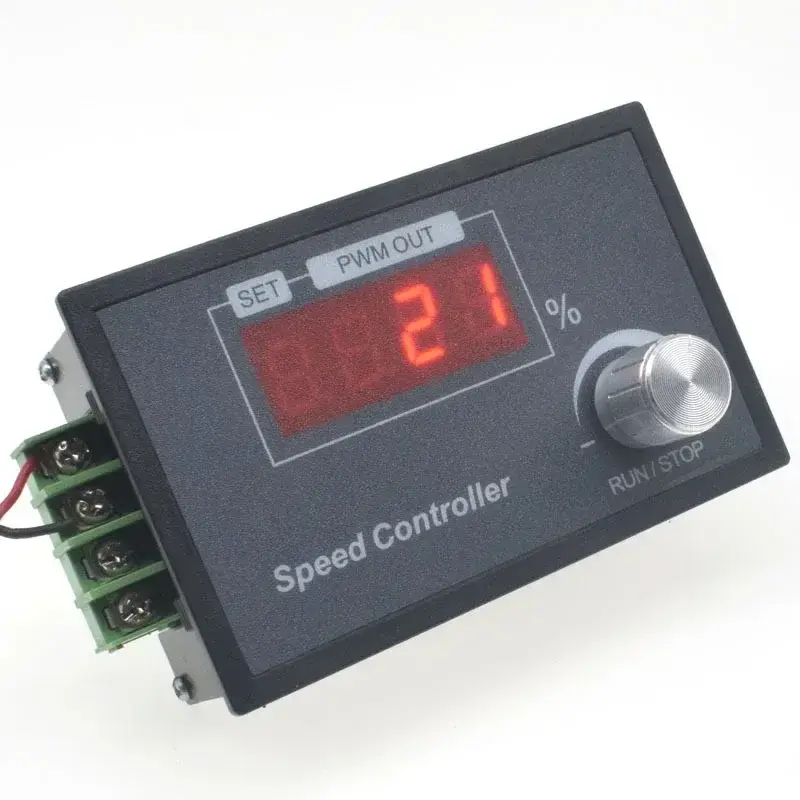

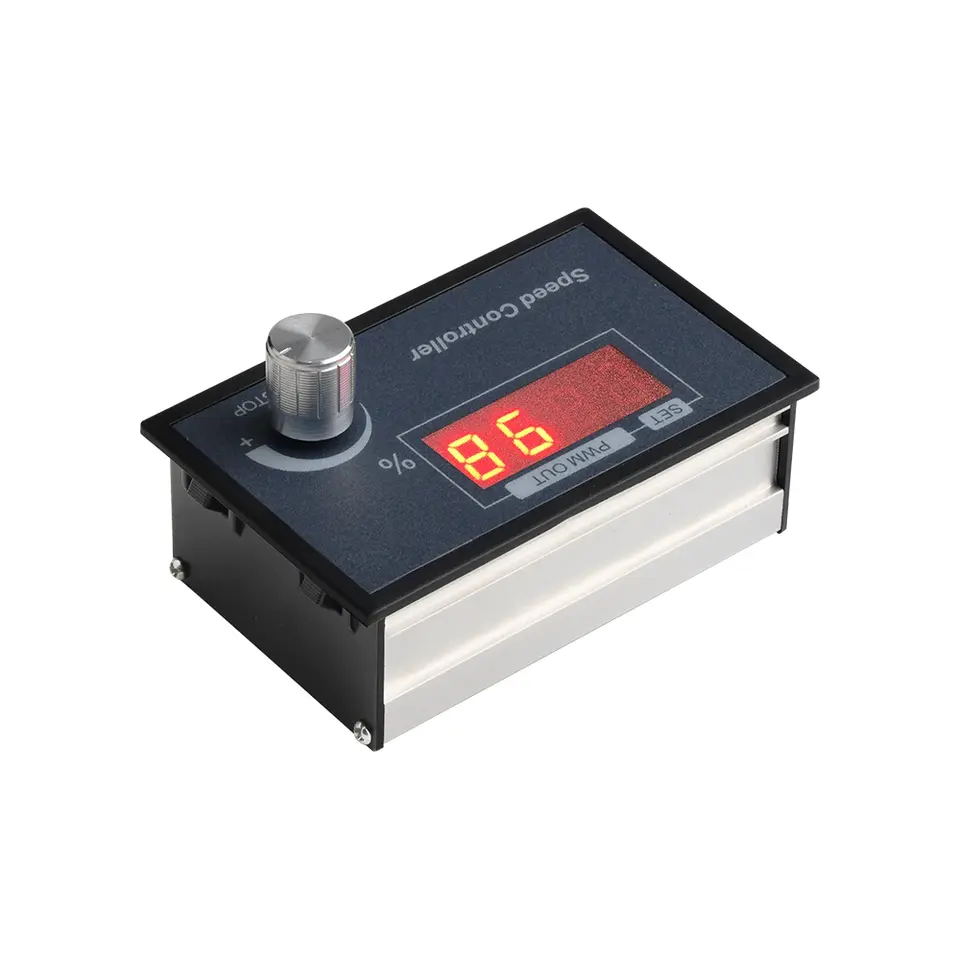

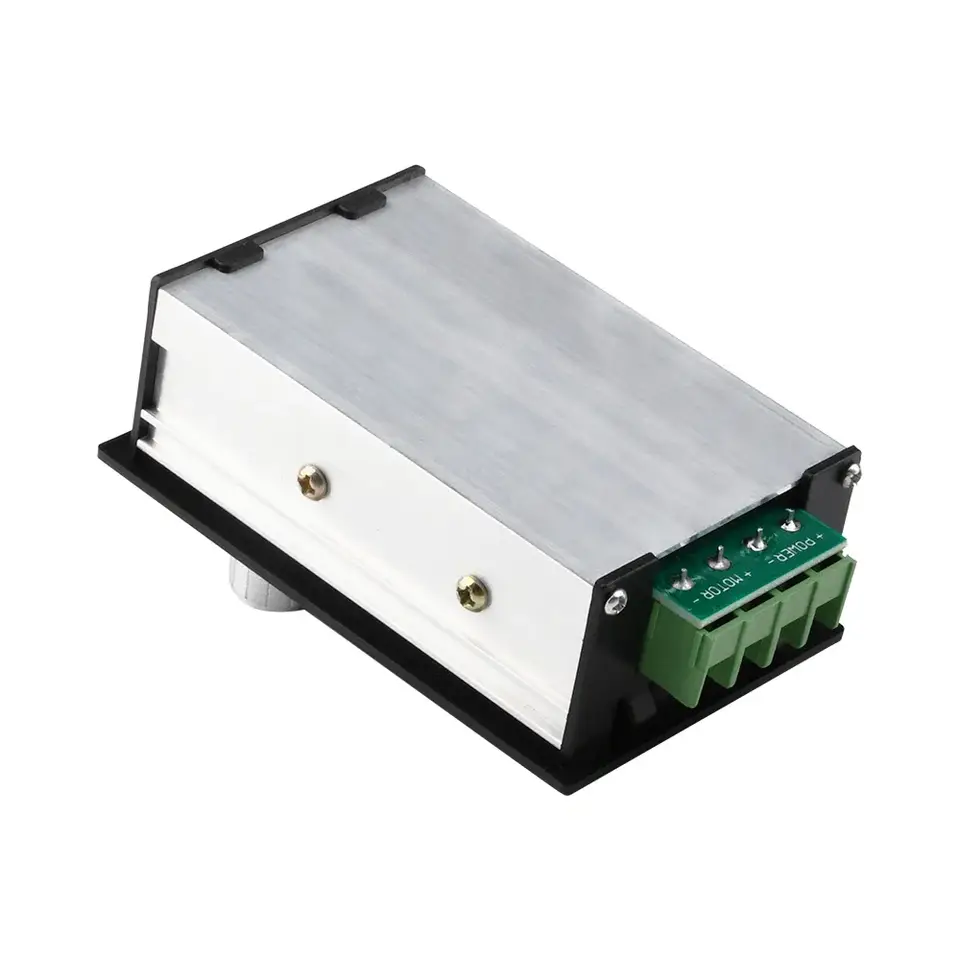

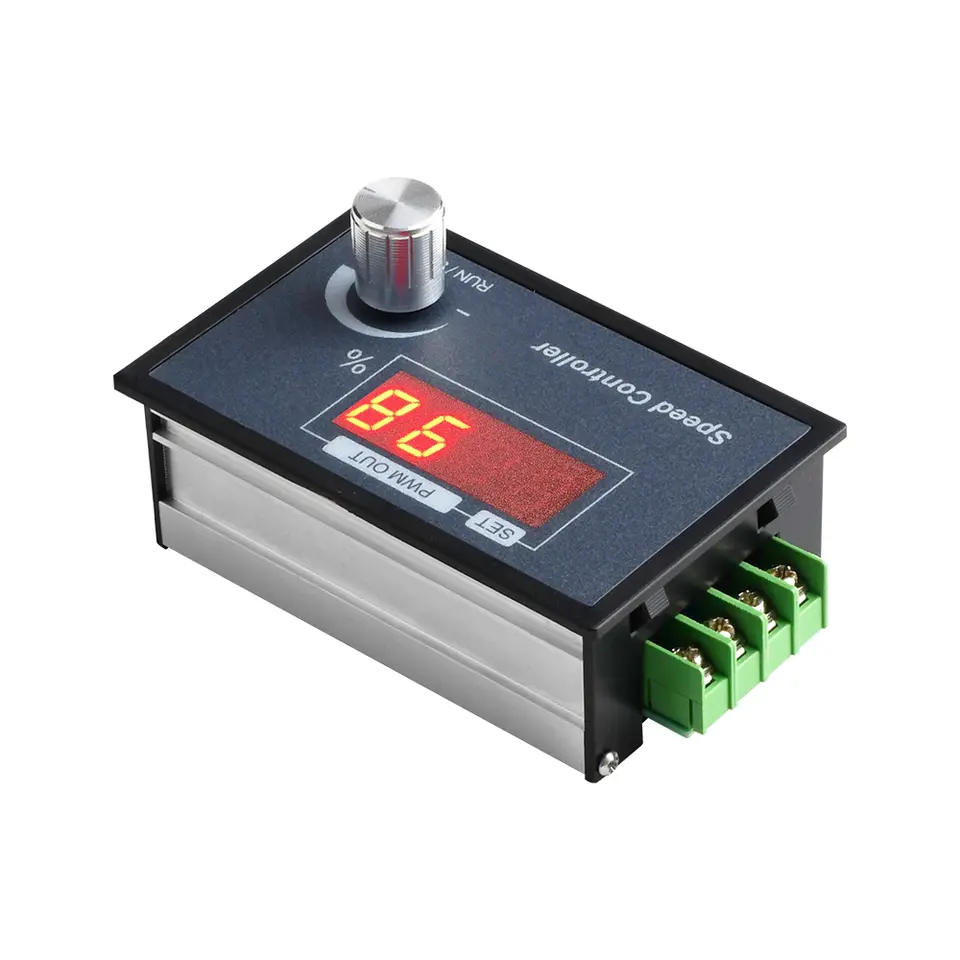

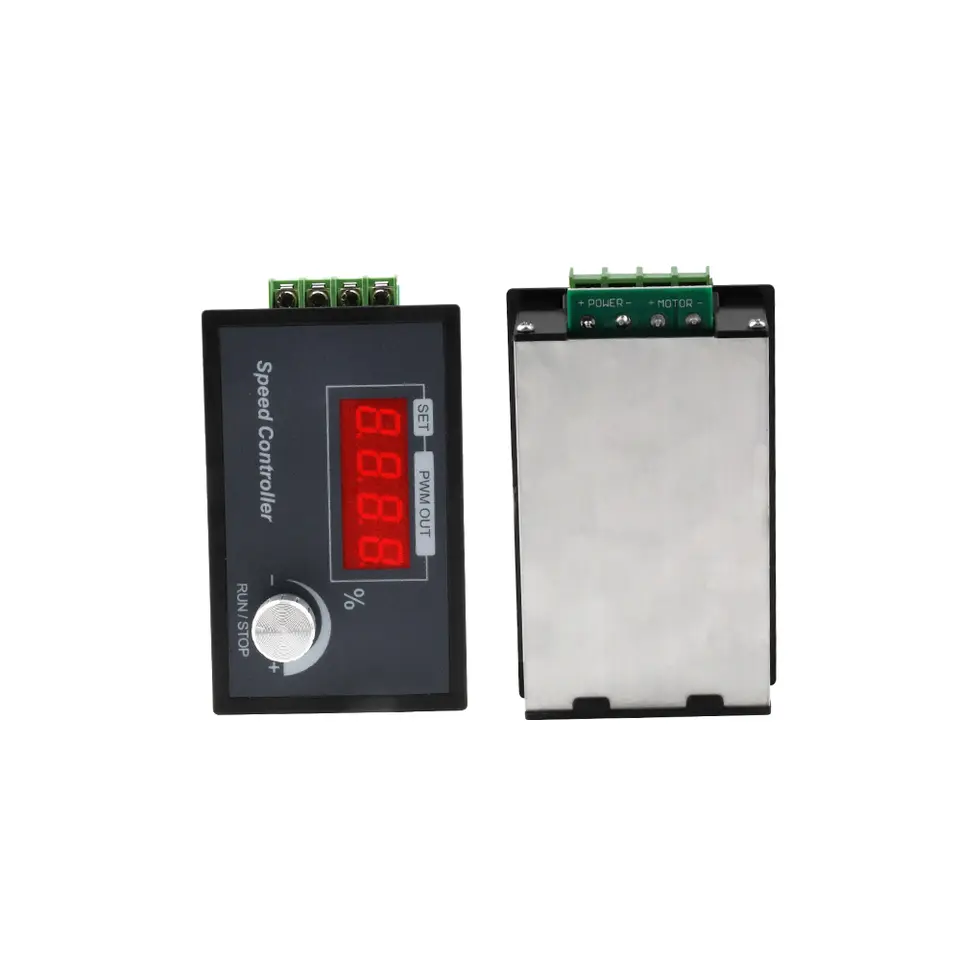

DC 6-60V PWM Brushed Motor Speed Controller, Encoder Knob, Digital Display, 20A Continuous

Product Features Knob with start/stop function Slow start/stop time can be set Limit the upper and lower speed limit Frequency 1-100KHZ can be set Optional digital encoder knob Stable and durable High precision Better consistency Parameters can be set to power-down storage Product parameters Input voltage: DC6-60V (the specific voltage is equal to the rated voltage of the motor) Output voltage: linear under load Output current: 0-30A Continuous current: within 20A Speed regulation type: current regulation Speed regulation type: encoder knob 360 degrees Speed regulation range: 0-100% Setting frequency: 1-100KHZ can be set Slow start and stop: can be set Speed digital display: 0-100 percentage table Wiring type: fence type terminals Support motor: brush motor Module size: L*W*H 96mm*61mm*34mm Product net weight: 105g Panel opening: L*W 92mm*56mm Installation: Embedded Digital encoder knob operation: Short press--Switch motor start/stop Long press--Enter setting interface Clockwise--increase Counterclockwise--decrease Enter setting interface short press: switch function 1 function 2 function 3 function 4 function 5 function 6 long press save and exit Enter setting interface rotate: left turn to reduce the value, right turn to increase the value Slow start time setting Function 1: 000 - 100 Slow start to 100% speed time is adjustable between 0-10 seconds Default is 1 second. Slow stop time setting Function 2: 000 - 100 The slow stop time is adjustable between 0-10 seconds, default is 1 second. Lower Speed Limit Setting Function 3: 000 - 080 The minimum speed is adjustable from 0-80% and less than the maximum speed setting value. Upper Speed Setting Function 4: 000 - 100 The maximum speed is adjustable from 0-100% and is greater than the minimum speed setting value Default is 100%. Acceleration and deceleration value setting Function 5: 001 002 005 010 015 020 025 The speed changes 1%, 2%, 5%, 10%, 15%, 20%, 25% for each revolution. Frequency setting Function 6: Adjustable between 1-100KHZ Default 15KHZ. Note: The input voltage must be divided into positive and negative. The input voltage must be divided into positive and negative, not to mention 220V. The input voltage should be equal to the rated voltage of the motor within 6-60V. If the motor 12V input 12V motor 36V input 36V Slow start setting: Long press the knob for 3 seconds to enter setting function 1 Left turn to reduce the slow start time Right turn to increase the slow start time Long press the knob for 3 seconds to save and exit. Slow stop setting Long press the knob for 3 seconds to enter the setting interface Switch to function 2 by short press the knob Rotate the knob to adjust the size Long press the knob for 3 seconds to save the exit Lower speed limit setting Long press knob for 3 seconds to enter setting interface Switch to function 3 by short press knob Rotary knob to adjust size Long press knob for 3 seconds to save and exit Upper speed limit setting Press and hold the knob for 3 seconds to enter the setting interface Switch to function 4 by pressing the knob briefly Rotate the knob to adjust the size Press the knob for 3 seconds to save and exit Acceleration and deceleration value setting Press and hold knob for 3 seconds to enter setting interface Press and hold knob to switch to function 5 Rotary knob to adjust the size Press and hold knob for 3 seconds to save and exit. Frequency setting Press and hold the knob for 3 seconds to enter the setting interface Switch to function 6 by pressing the knob briefly Rotate the knob to adjust the size Press the knob for 3 seconds to save the exit Product List 1X Speed Controller
