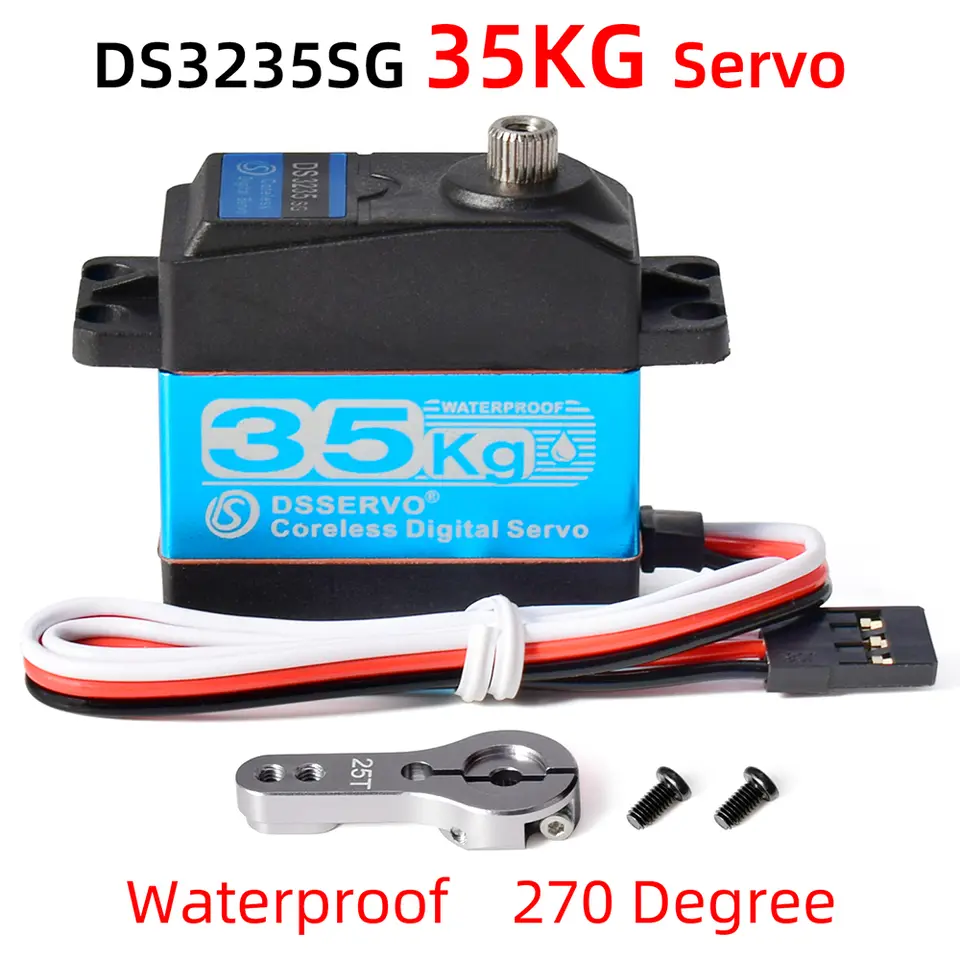

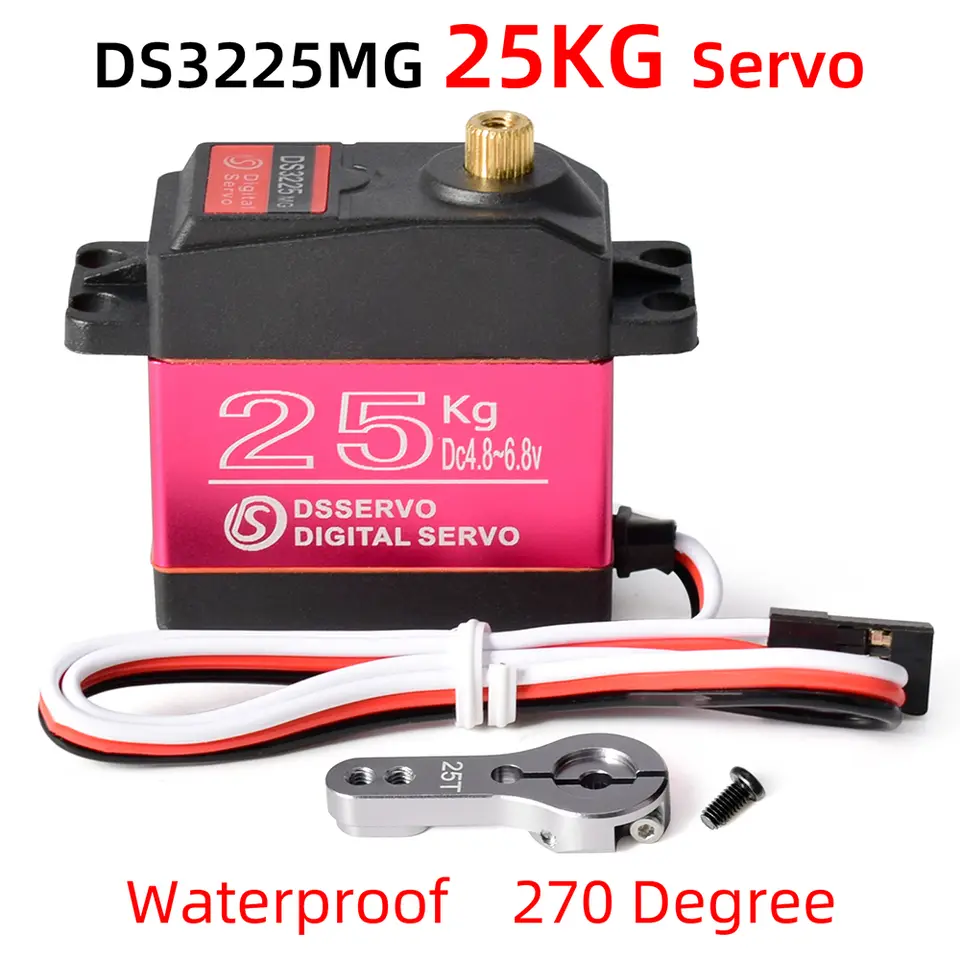

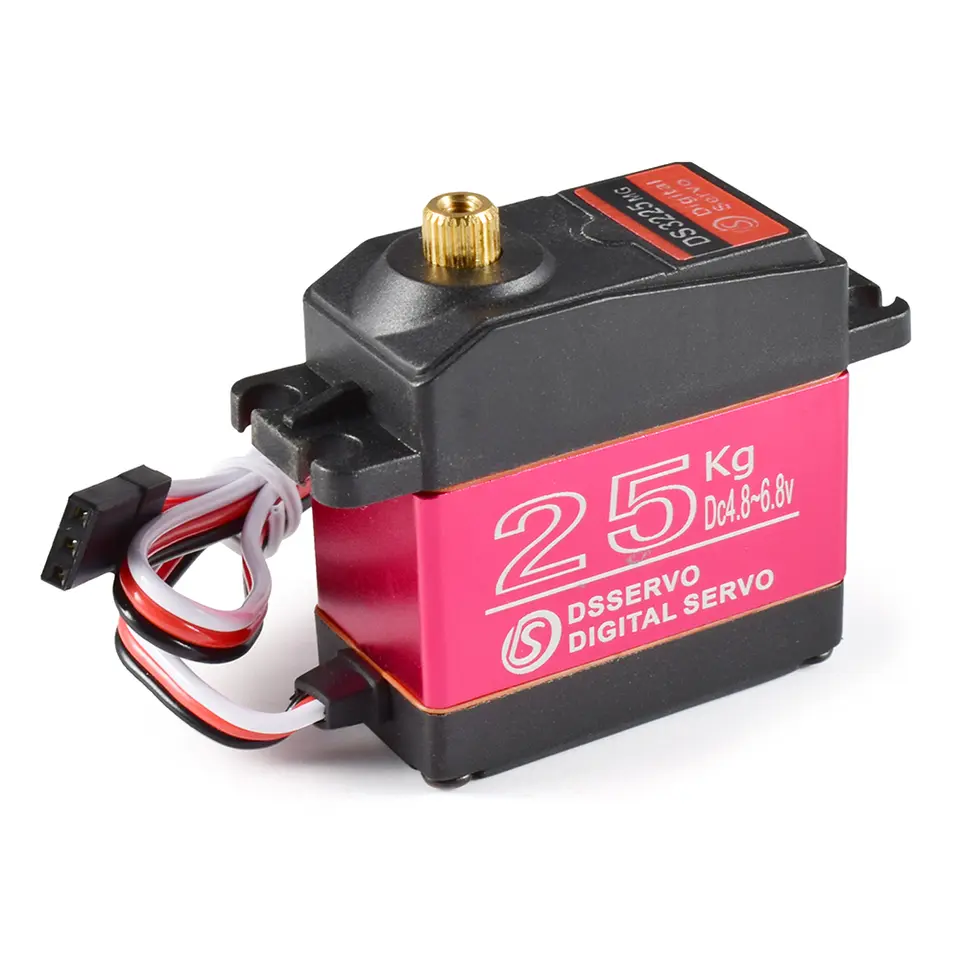

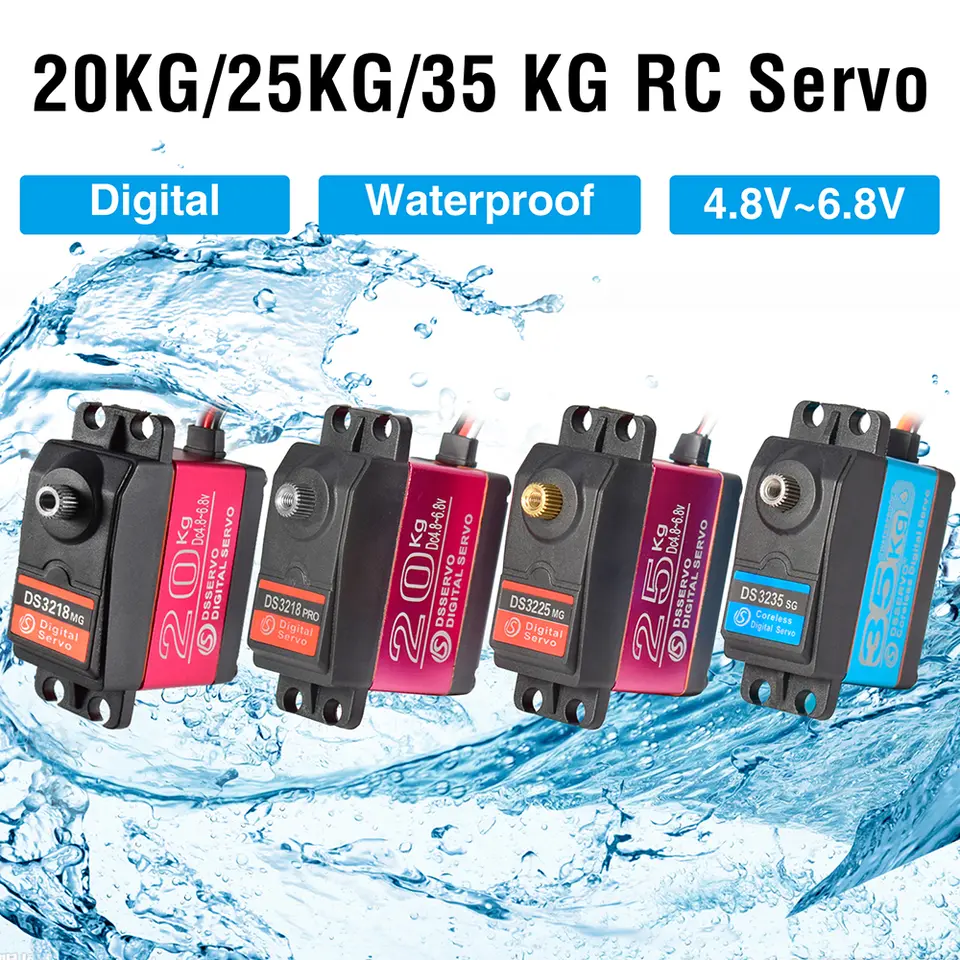

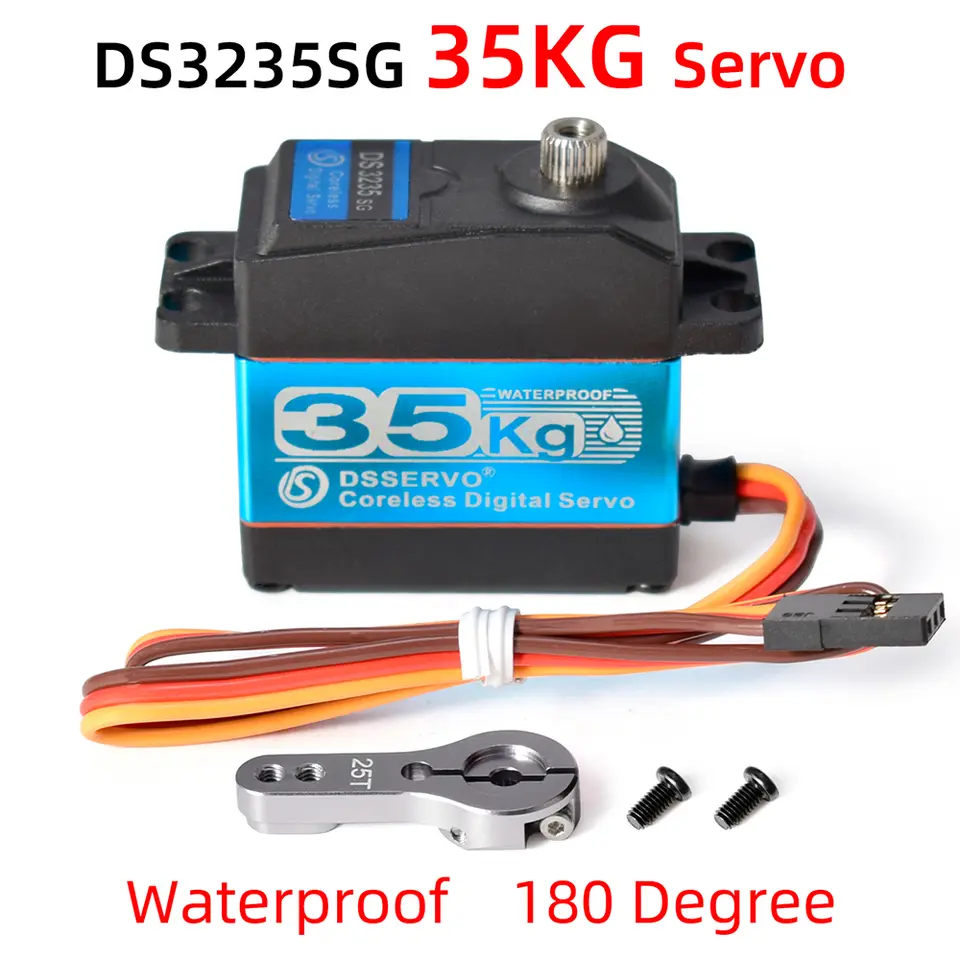

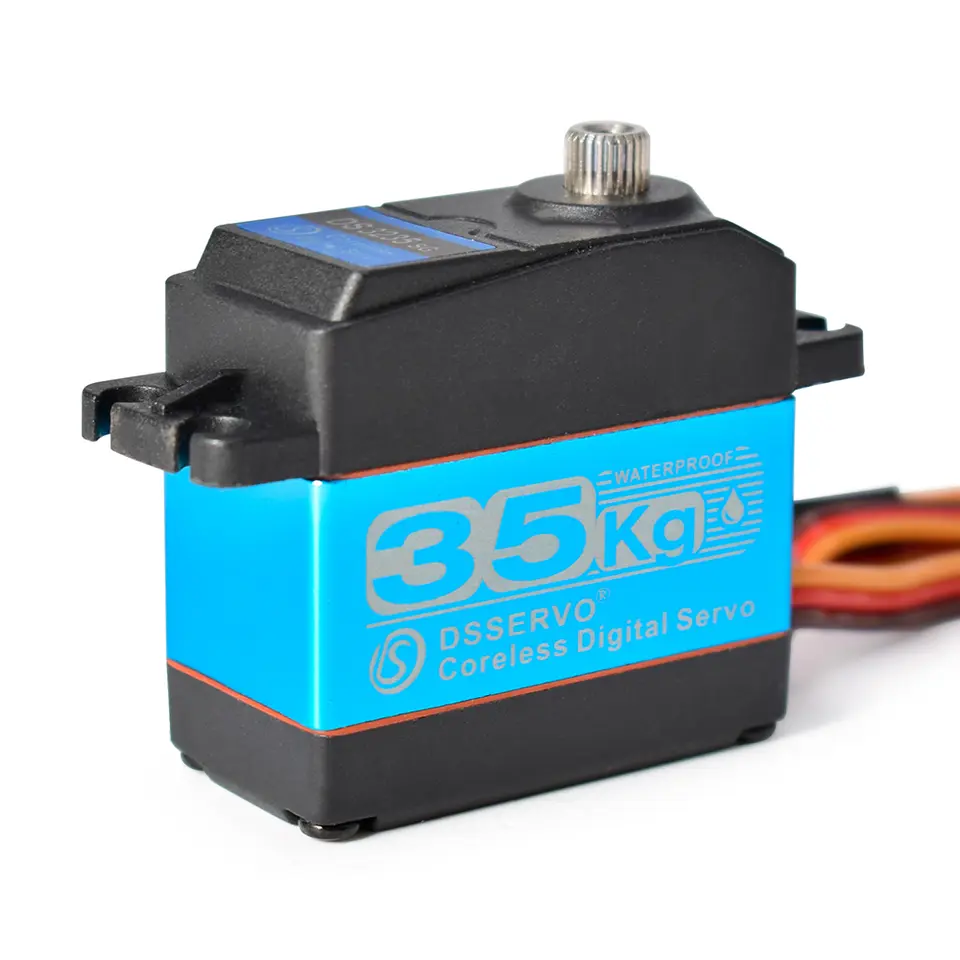

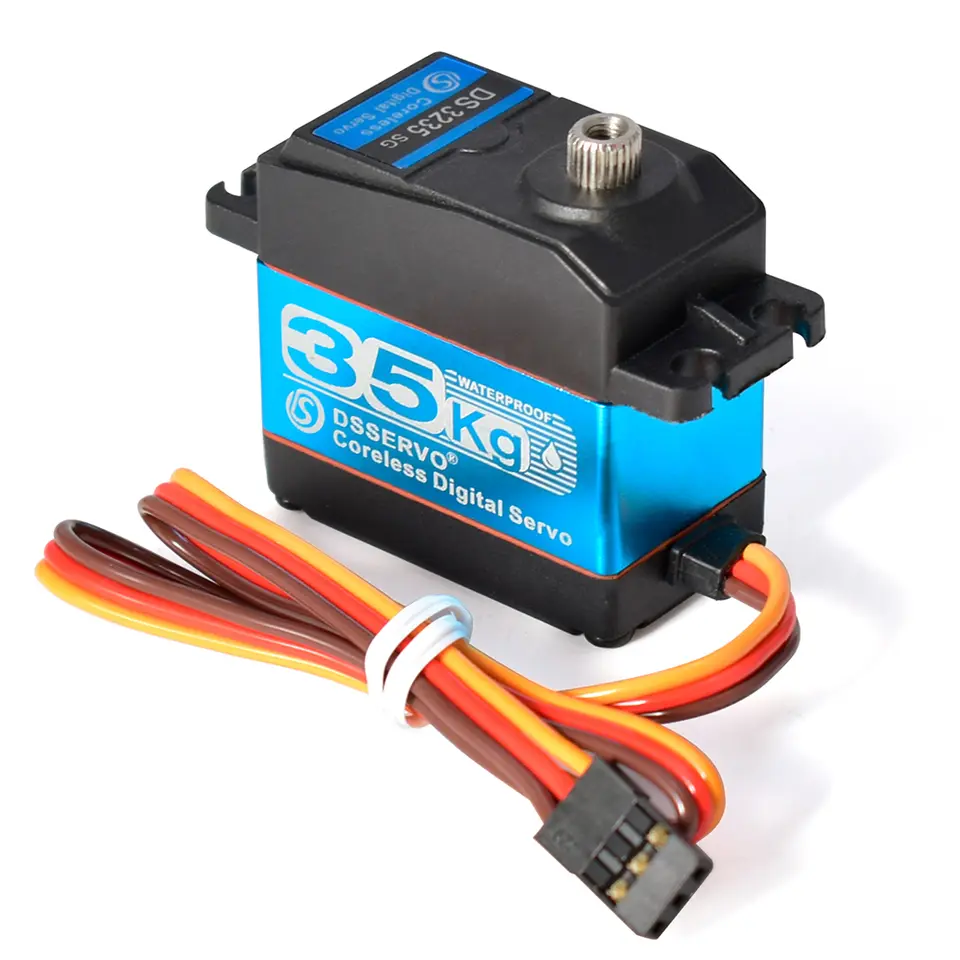

Waterproof Metal Gear Digital Servo, DS3218, DS3225 or DS3235, 180 or 270 Degree

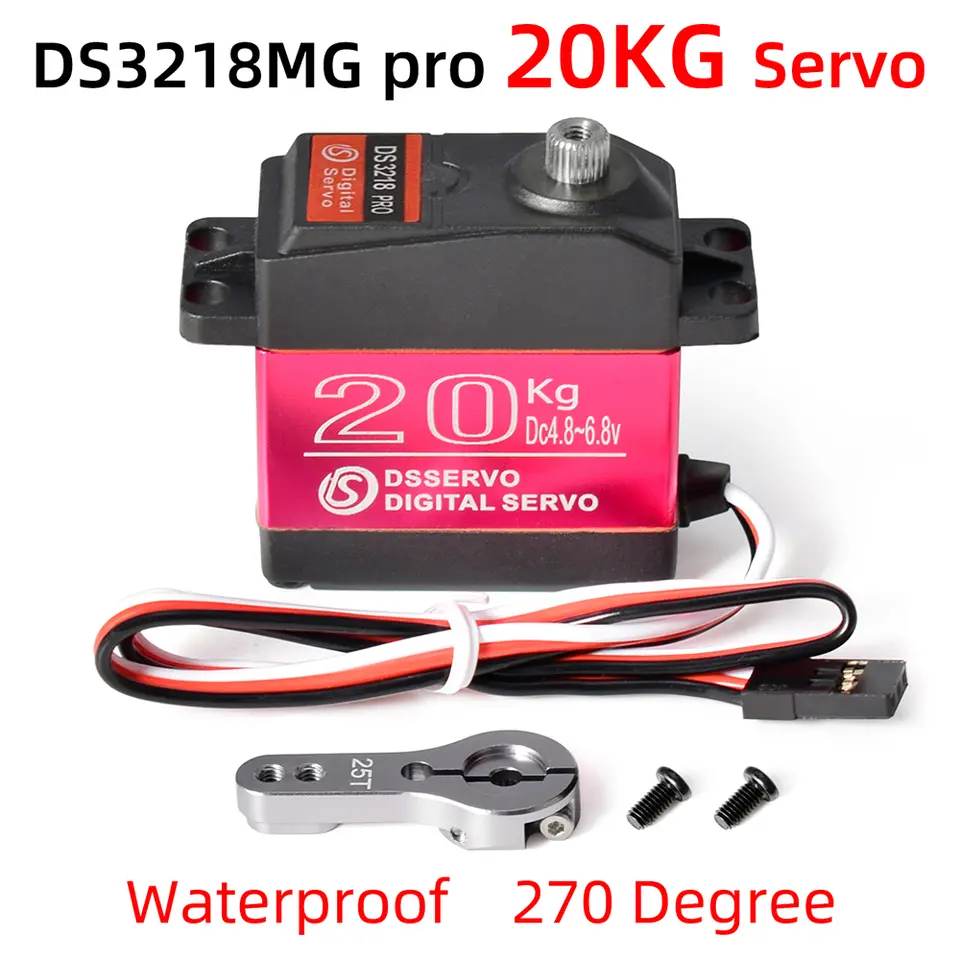

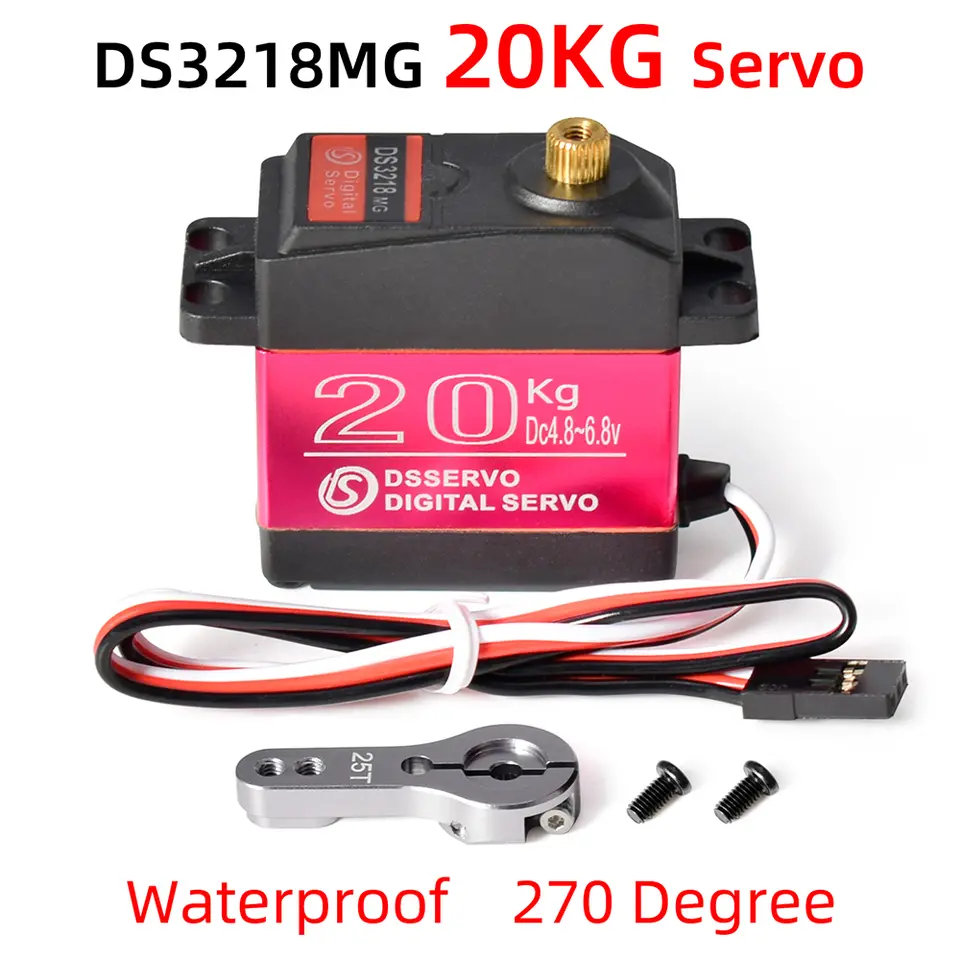

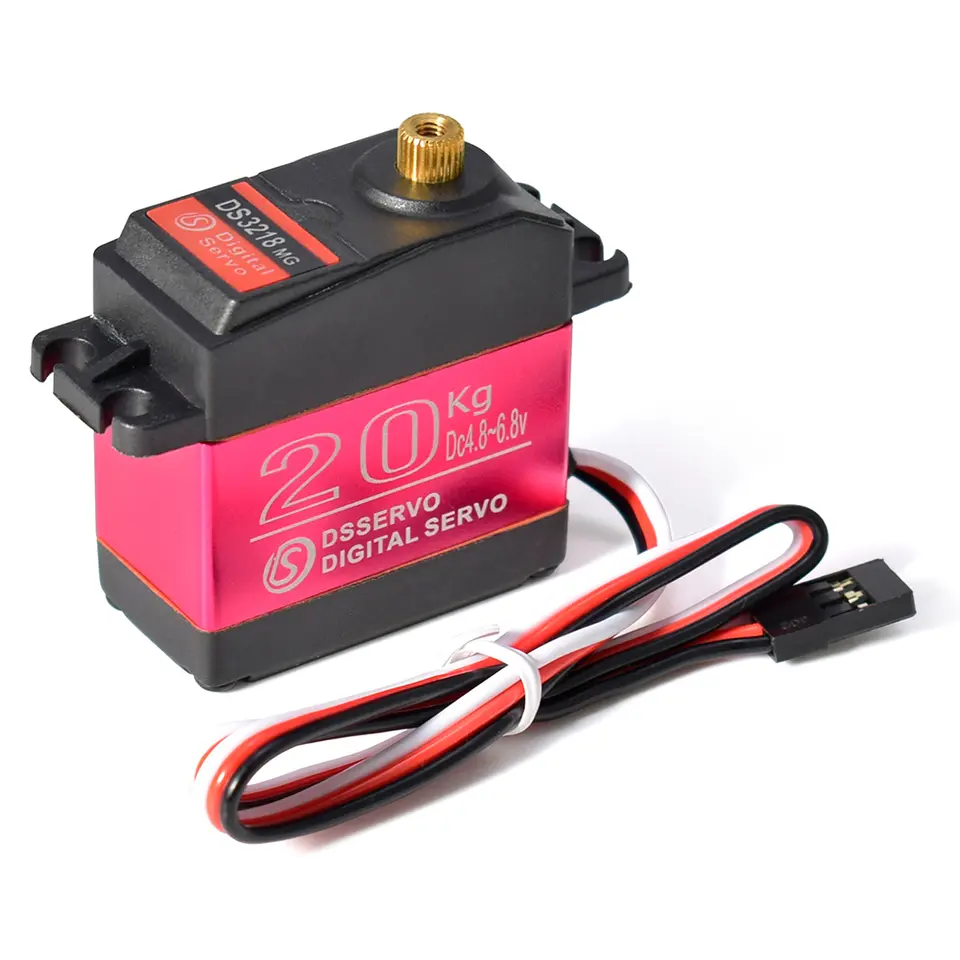

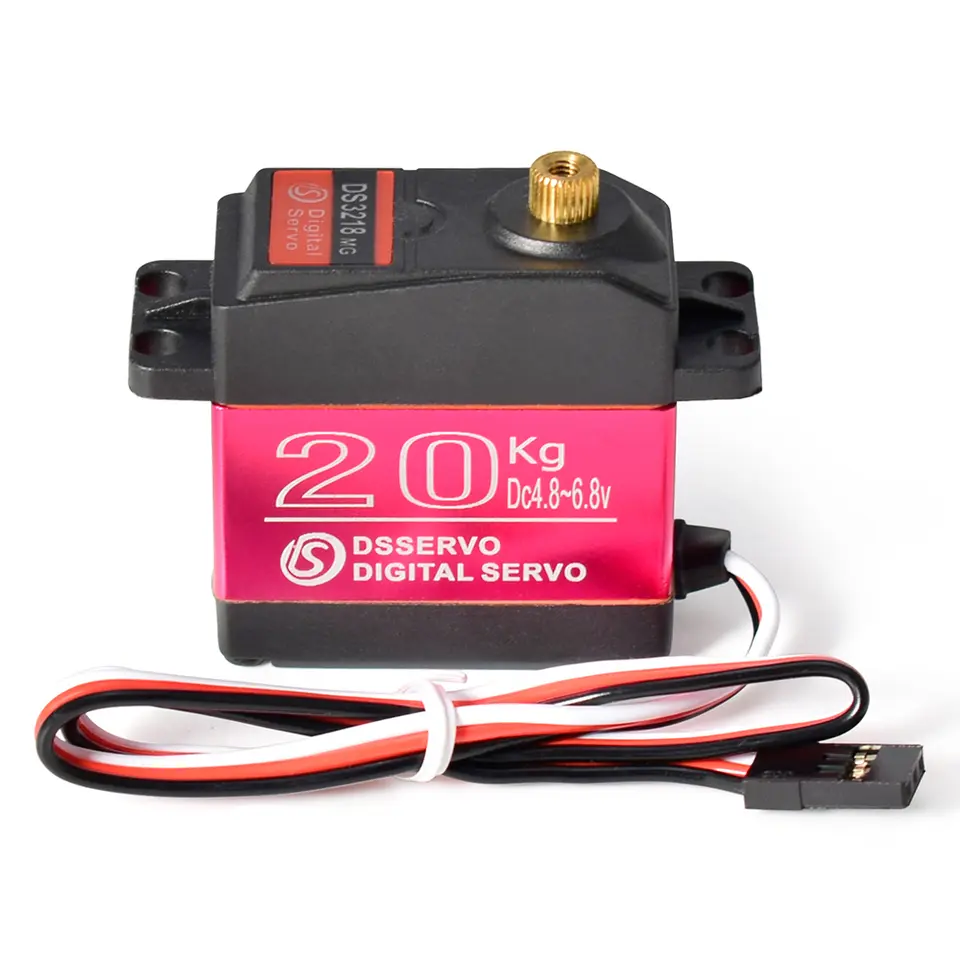

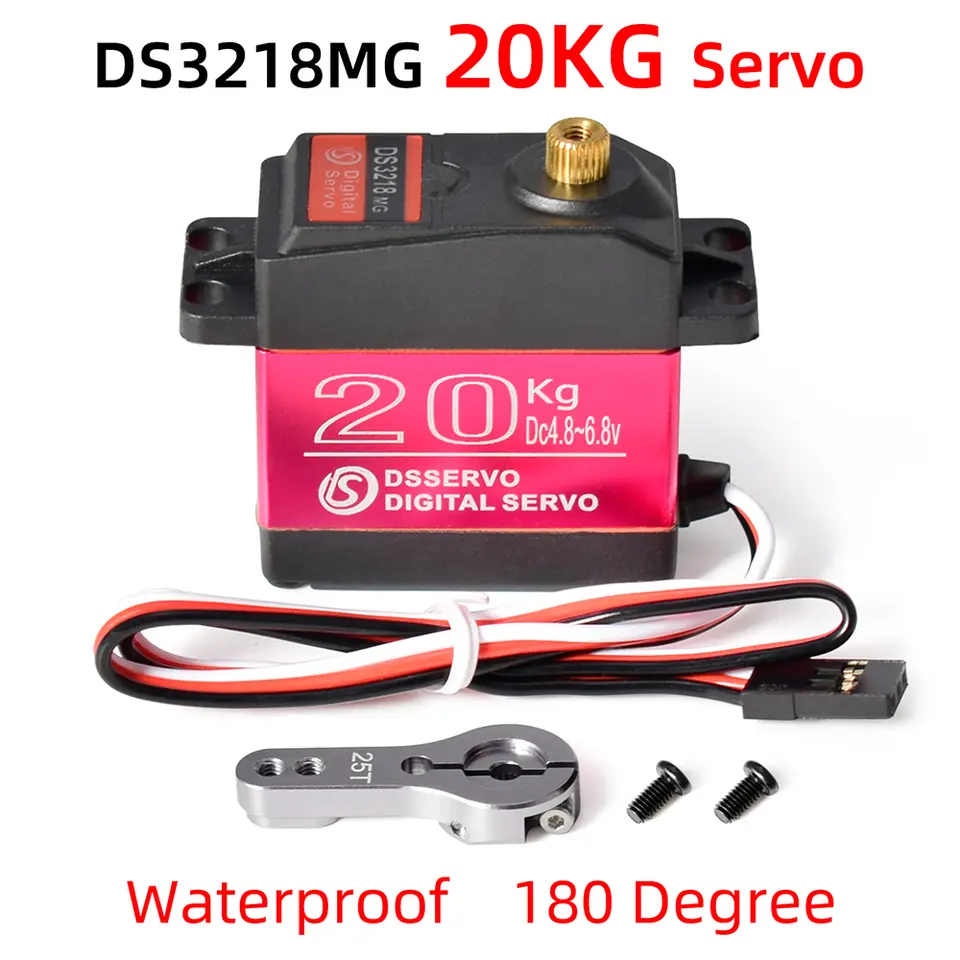

Features: 1.High performance digital standard servo. 2.High-precision metal gears with hard anodizing. 3.CNC aluminium middle Shell. 4.Dual ball bearings. Description: Dsservo Waterproof Servo DS3218 20KG DS3225 25KG DS3235 35KG 180/270 Degree Metal Gear Digital Servo for 1/8 1/10 1/12 RC Cars Robotic DIY. Specifications: Model: DS3218MG Item Name: DS3218MG Digital Servo Rotation angle:180 degree,270 degree optional Dead Band: 3μsec Operating Voltage: 4.8V~6.8V Operating Speed (5V): 0.16sec / 60° at no load Operating Speed (6.8V): 0.14sec / 60° at no load Stall Torque (5V): 19 kg/cm (263.8oz/in) Stall Torque (6.8V): 21.5 kg/cm (298.5 oz/in) Motor Type: Carban Brush Motor Gear Type: Copper & Aluminum Working Frequency: 1520μs / 333hz CE Certification: Yes Size: 40.5 • 40 • 20mm Weight: 60g Model: DS3218MG pro Item Name: DS3218MG pro Digital Servo Rotation angle:180 degree,270 degree optional Dead Band: 3μsec Operating Voltage: 5.0V~6.8V Operating Speed (5V): 0.12sec / 60° at no load Operating Speed (6.8V): 0.09sec / 60° at no load Stall Torque (5V): 21 kg/cm Stall Torque (6.8V): 23.5 kg/cm Motor Type: Carban Brush Motor Gear Type: Copper & Aluminum Working Frequency: 1520μs / 333hz CE Certification: Yes Size: 40.5 • 40 • 20mm Weight: 60g Model: DS3225MG Item Name: DS3225MG Digital Servo Rotation angle:180 degree,270 degree optional Dead Band: 3μsec Operating Voltage: 4.8V~6.8V Operating Speed (5V): 0.15sec / 60° at no load Operating Speed (6.8V): 0.13sec / 60° at no load Stall Torque (5V): 21 kg/cm (263.8oz/in) Stall Torque (6.8V): 24.5 kg/cm (298.5 oz/in) Motor Type: DC Motor Gear Type: Copper & Aluminum Working Frequency: 1520μs / 333hz CE Certification: Yes Size: 40.5 • 40 • 20mm(1.58 x 0.79 x 1.60 in) Weight: 60g Model: DS3235MG Item Name: DS3235MG Digital Servo Rotation angle:180 degree,270 degree optional Operating voltage range: 5-7.4V Operating speed (at no load) : 0.13 sec/60 degree @5.0V Operating speed (at no load): 0.12 sec/60 degree @6.0V Operating speed (at no load): 0.11 sec/60 degree @ 7.4V Stall torque (at locked): 29kg/cm @5.0V Stall torque (at locked): 32kg/cm @6.0V Stall torque (at locked) : 35kg/cm @7.4V Stall current (at locked): 1.9A @5.0V Stall current (at locked): 2.1 [email protected] Stall current (at locked): [email protected] Item:DS3235 35KG Coreless Stainless Steel Gear Waterproof Digital Servo Operating Voltage: 5 ~ 7.4 DC Volts Dead brand: 3μs / 2 μs Motor Type: Coreless Motor Gear Type: Copper & Aluminum / Stainless Steel & Aluminum Working frequence: 50-333Hz Size: 40 x 20 x 38.5 mm ( 1.58 x 0.79 x 1.50 in) Weight: 60 g (2.12 oz) Package included: 1 x Digital Servo 1 x 25T Metal Servo Arm Note: Only the above package content, other products are not included. 1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures. 2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation. Thanks! Before purchase: 1.All the goods are ready stock, we will arrange the shipment at once if we receive the order. 4.Use the vouchers for more saving. We are helpful and will solve the problems.
