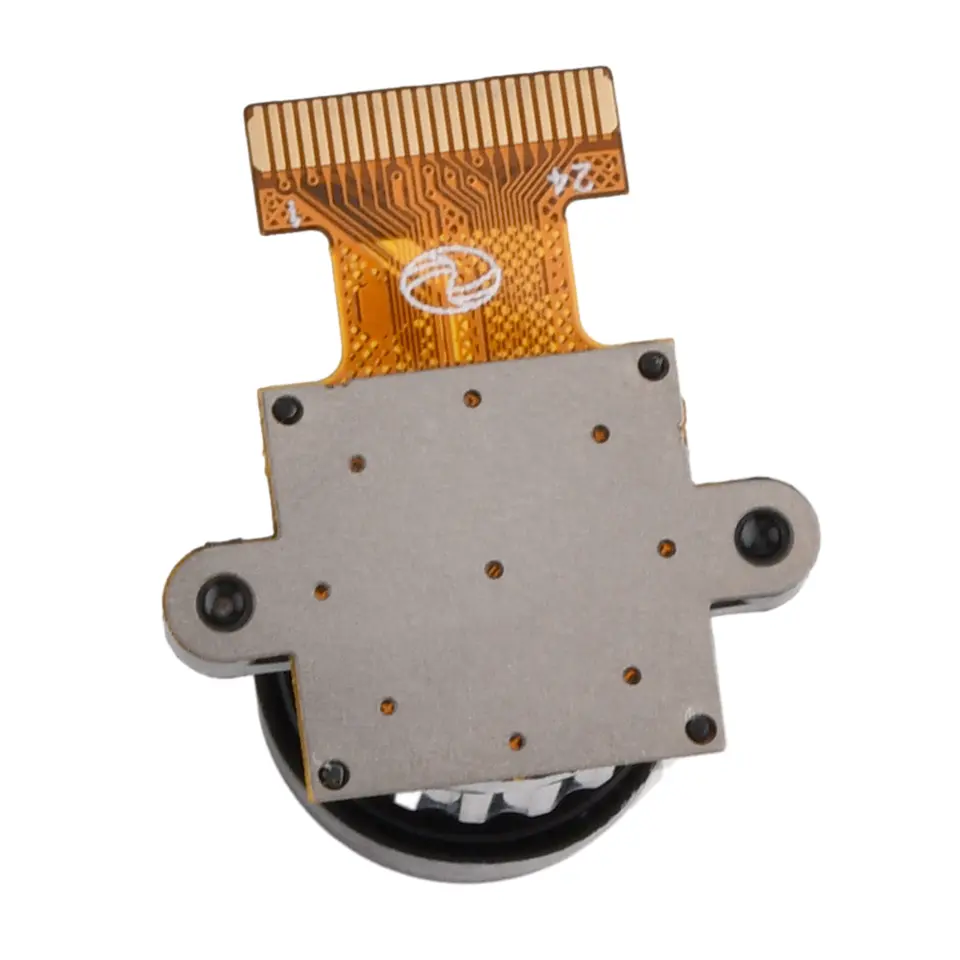

ESP32-CAM OV5640 Camera Module 5-Megapixel Wide-angle Lens DVP Interface 8-bit/10-bit RGB RAW Output Suitable for ESP32 CAM image 1

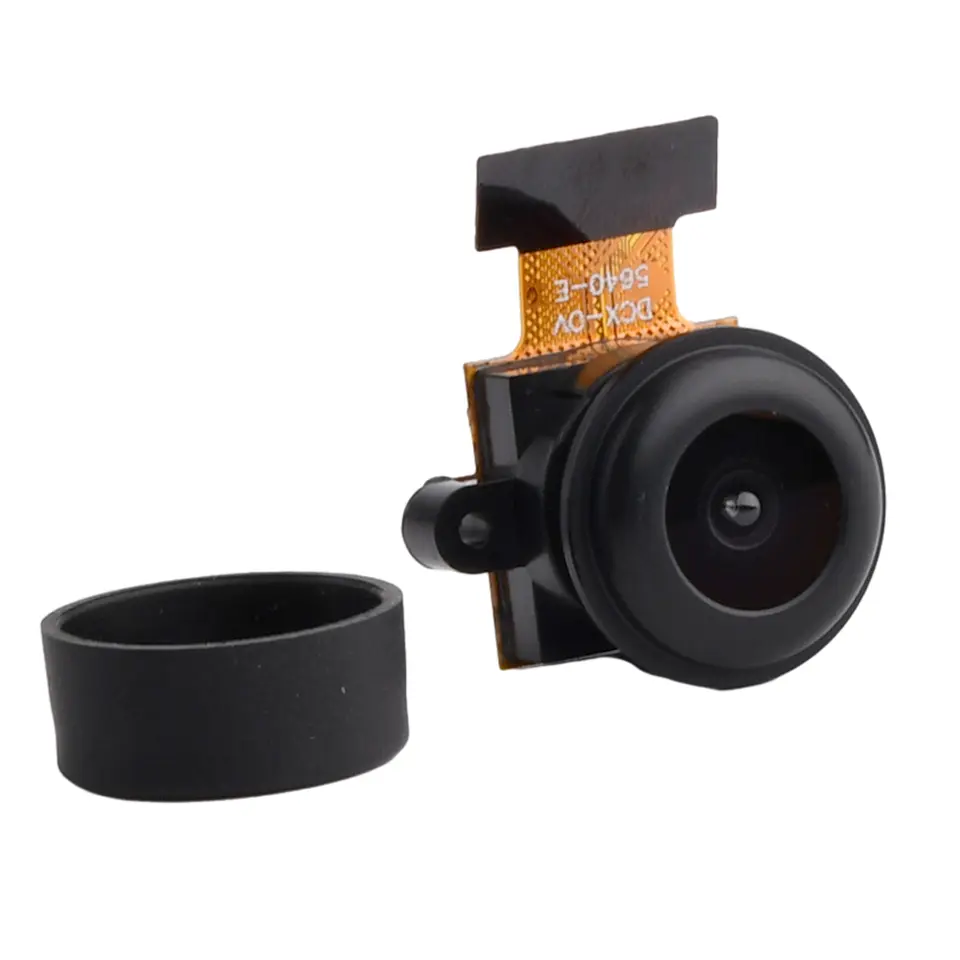

ESP32-CAM OV5640 Camera Module 5-Megapixel Wide-angle Lens DVP Interface 8-bit/10-bit RGB RAW Output Suitable for ESP32 CAM image 2

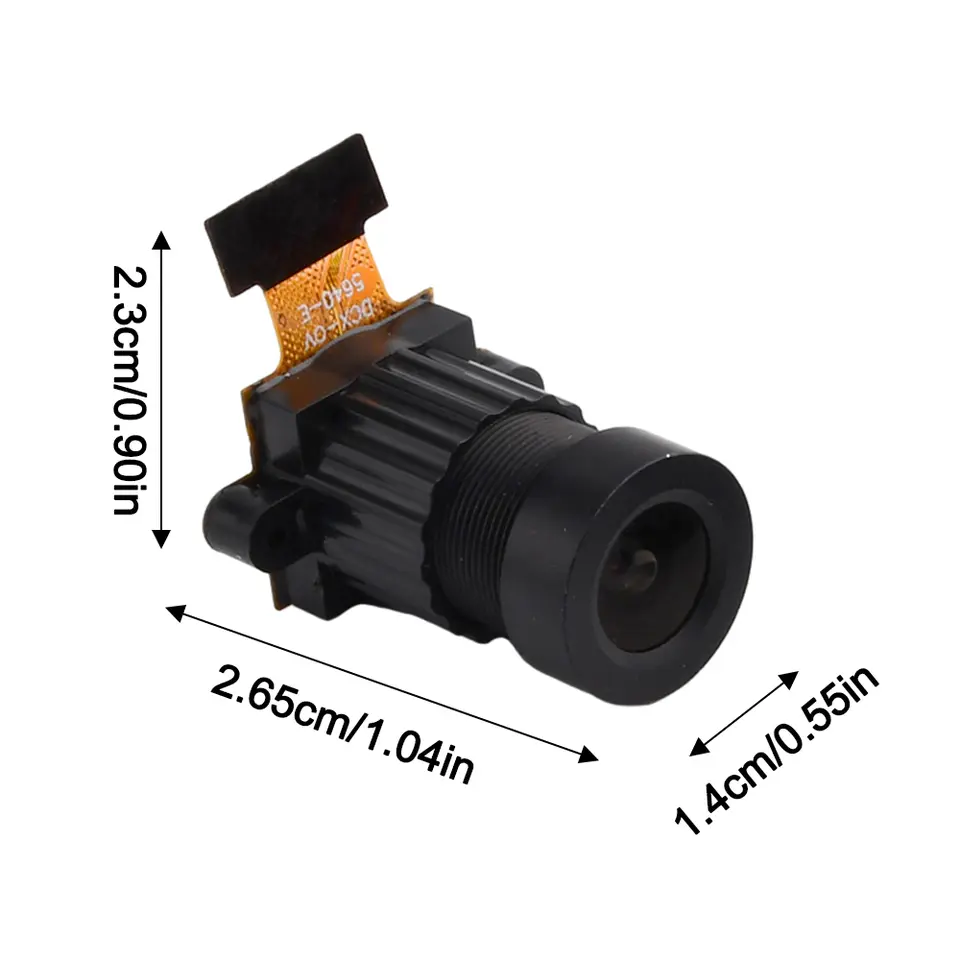

ESP32-CAM OV5640 Camera Module 5-Megapixel Wide-angle Lens DVP Interface 8-bit/10-bit RGB RAW Output Suitable for ESP32 CAM image 3

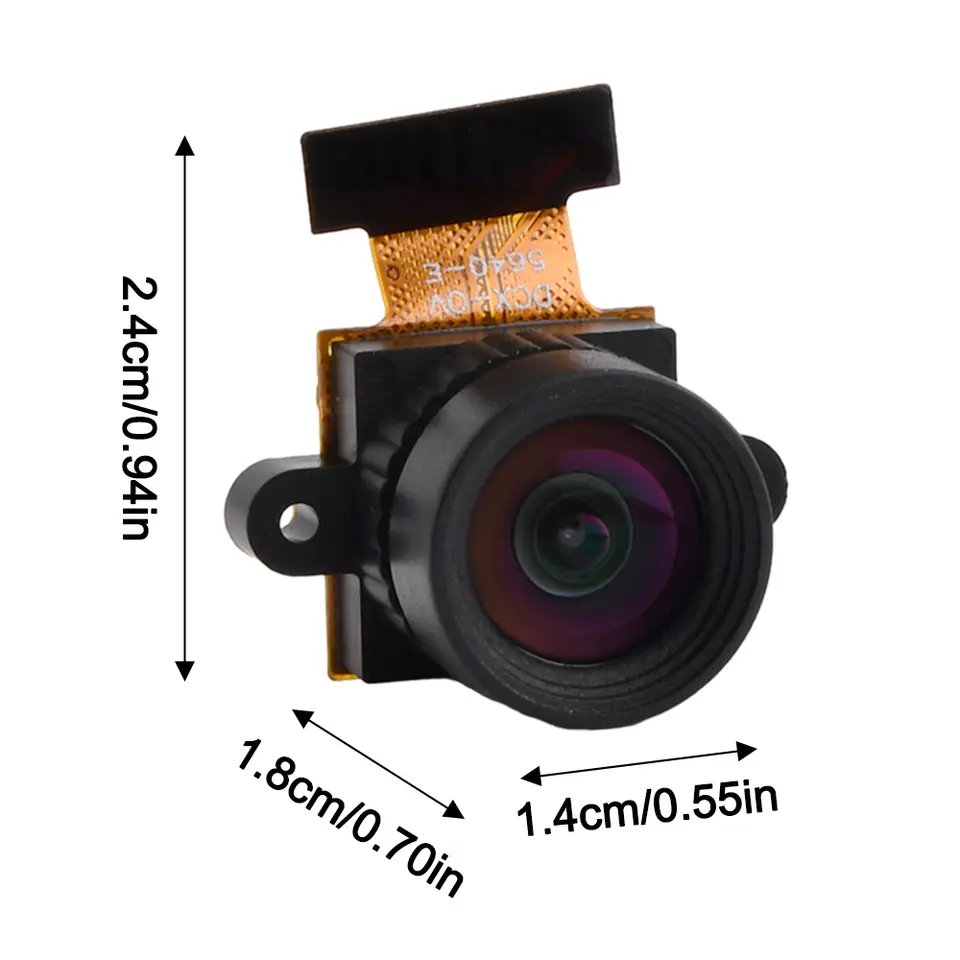

ESP32-CAM OV5640 Camera Module 5-Megapixel Wide-angle Lens DVP Interface 8-bit/10-bit RGB RAW Output Suitable for ESP32 CAM image 4

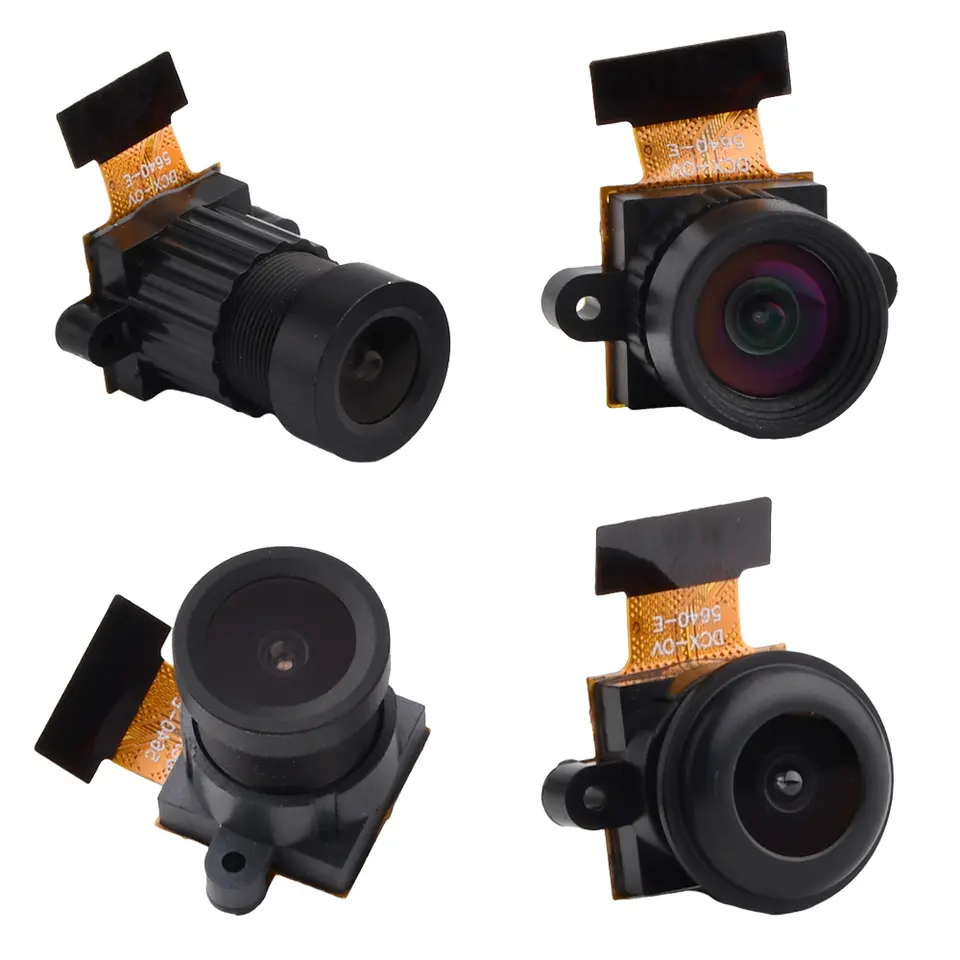

ESP32-CAM OV5640 Camera Module 5-Megapixel Wide-angle Lens DVP Interface 8-bit/10-bit RGB RAW Output Suitable for ESP32 CAM image 5

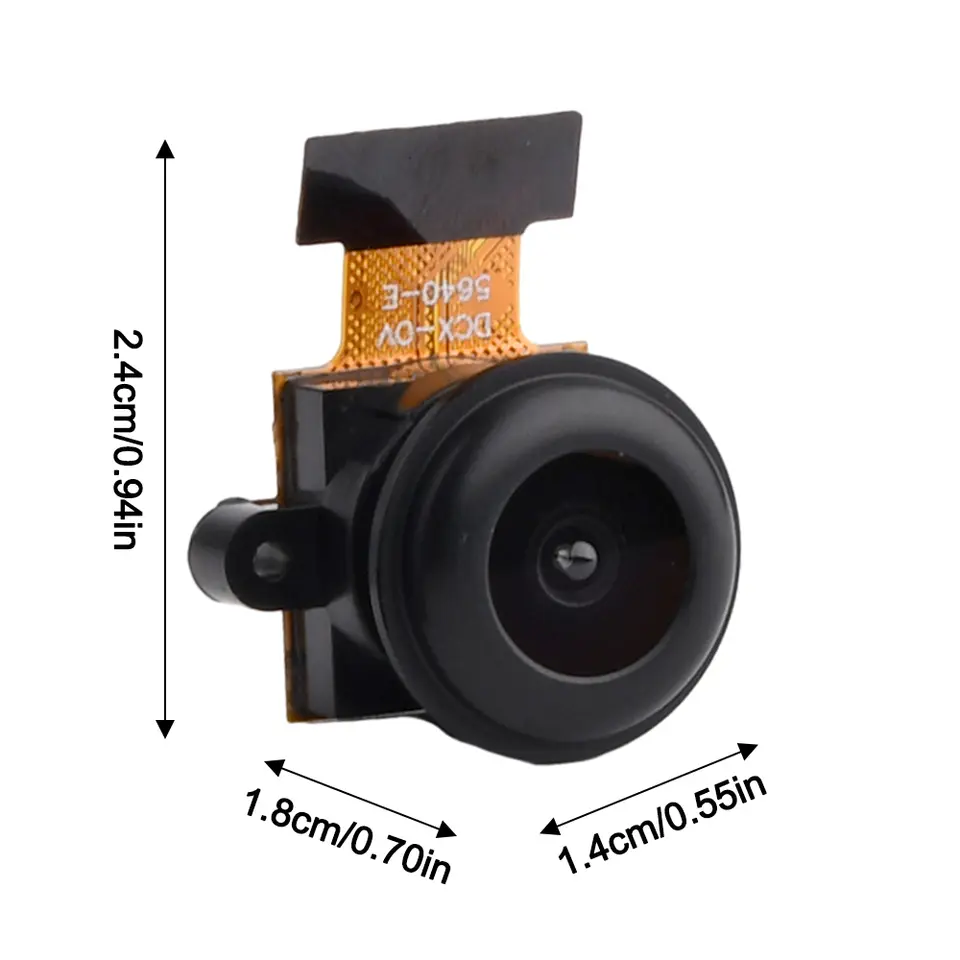

ESP32-CAM OV5640 Camera Module 5-Megapixel Wide-angle Lens DVP Interface 8-bit/10-bit RGB RAW Output Suitable for ESP32 CAM image 6

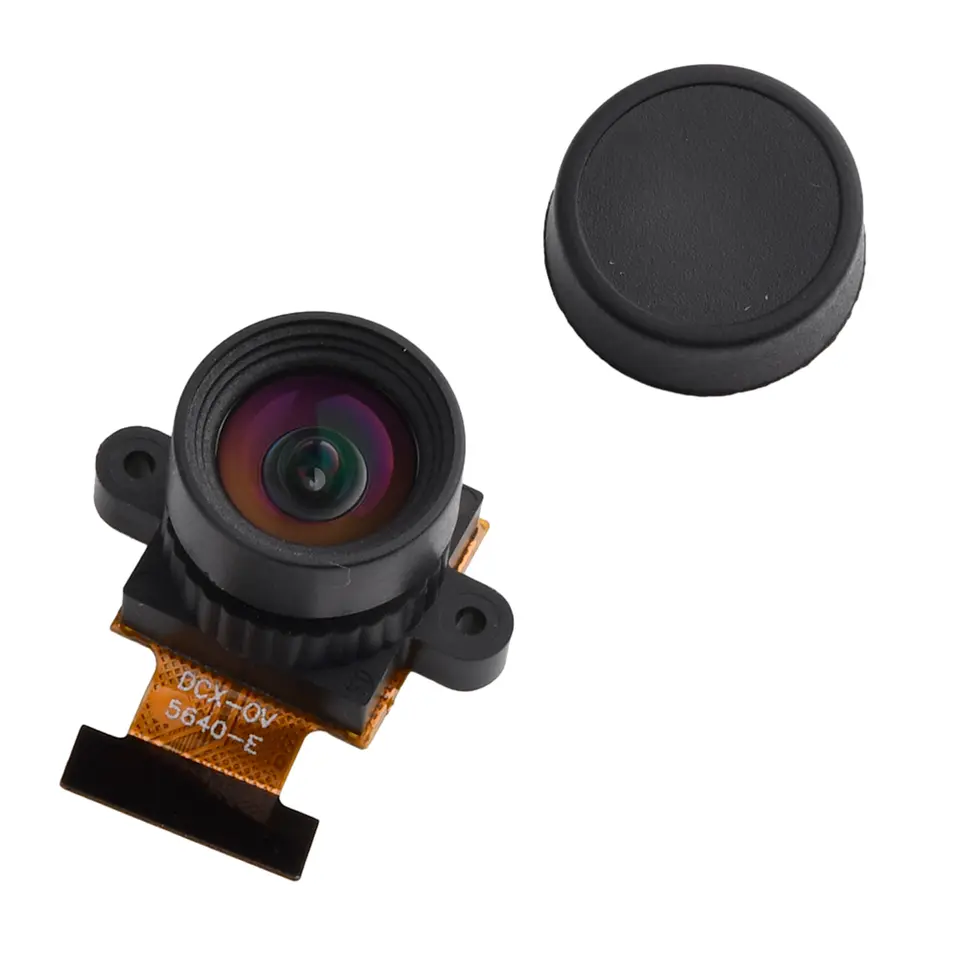

ESP32-CAM OV5640 Camera Module 5-Megapixel Wide-angle Lens DVP Interface 8-bit/10-bit RGB RAW Output Suitable for ESP32 CAM image 7

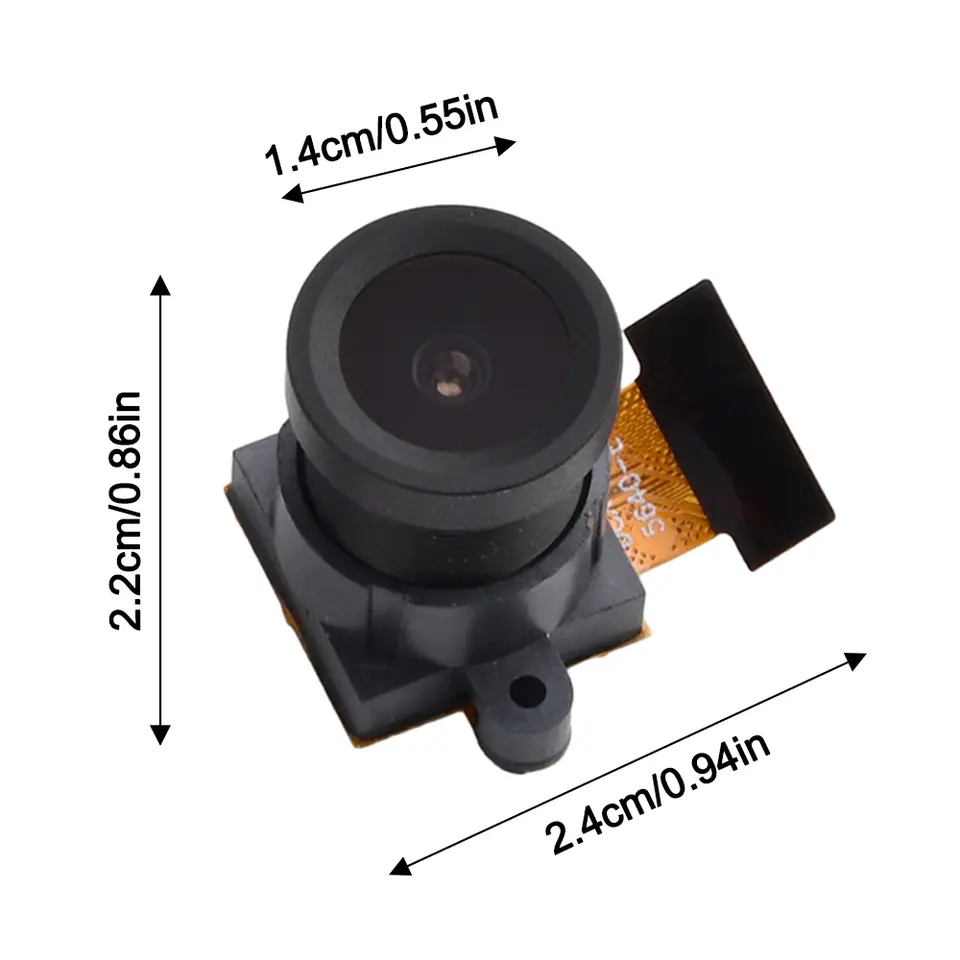

ESP32-CAM OV5640 Camera Module 5-Megapixel Wide-angle Lens DVP Interface 8-bit/10-bit RGB RAW Output Suitable for ESP32 CAM image 8
ESP32-CAM OV5640 Camera Module 5-Megapixel Wide-angle Lens DVP Interface 8-bit/10-bit RGB RAW Output Suitable for ESP32 CAM image 9
ESP32-CAM OV5640 Camera Module 5-Megapixel Wide-angle Lens DVP Interface 8-bit/10-bit RGB RAW Output Suitable for ESP32 CAM image 10
Image 1 of 10

OV5640 5MP Camera Module for ESP32-CAM, DVP Interface, 65° to 130° Lens Options

$12.87

Est. delivery 7–18 days

Est. $2.88 shipping to Canada. Exact cost at checkout

In stock

Supplier stock is confirmed when your order is processed.

Option: 130 Degrees
Quantity
Sold by
Polar Parts
Ships from
Our supplier partnersSupport from Milton, Ontario
Shipping
Canada only
Returns
14 days, unopened items
Payment
Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

Brand Namediymore
TypeModule
PackageTQFP
Supply VoltageDC 1.8V /2.8V
Operating Temperature-30°C to 70°C
Quantity1
ApplicationComputer
ConditionNew

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

A 5MP OV5640 camera module for ESP32-CAM boards, with a DVP interface and a choice of 65, 100, 120 or 130 degree lenses.

Product Features 1.Module is small and delicate, easy to install and use 2. Automatic image control function: automatic 3. Image quality control: colour saturation, hue, gamma, sharpness (edge enhancement), lens correction, defective pixel removal and noise removal 4. Support video or snapshot operation 5. Support LED and flash strobe mode 6. Strong compatibility, support for OTG, standard UVC protocol, USB to drive-free, plug and play. Product parameters: CCD size: 1/4 inch Focal length: 1.15mm Viewing angle (diagonal): 65 ° / 100 ° / 120 ° / 130 ° (optional) Pixel: 5 million Chip Model: OV5640 Input/Output: DC1.8V /2.8V Lens: 2G + 4P Operation: -30°C to 70°C Stabilised image: 0°C to 50°C Output format: 8-bit/10-bit RGB RAW output Package Includes Camera x1
