Brand: Waveshare

Waveshare IMX296 1.6MP Mono Global Shutter Camera, M12 Lens, 130° FOV, for Raspberry Pi

$121.51

Est. delivery 11–20 days

Est. $10.84 shipping to Canada. Exact cost at checkout

In stock

Supplier stock is confirmed when your order is processed.

Quantity
Sold by
Polar Parts
Ships from
Our supplier partnersSupport from Milton, Ontario
Shipping
Canada only
Returns
14 days, unopened items
Payment
Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

Typeothers
Resolution1.58 MP (mono), 1456 * 1088
OriginMainland China
ModelIMX296-130 BW Camera
ModelIMX296
Field of View (FOV)130° (D) 99° (H) 72° (V)
SKUAE-1005010408000610-12000052307441713

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

A monochrome global shutter camera for Raspberry Pi boards that captures fast motion without rolling-shutter distortion, for machine vision.

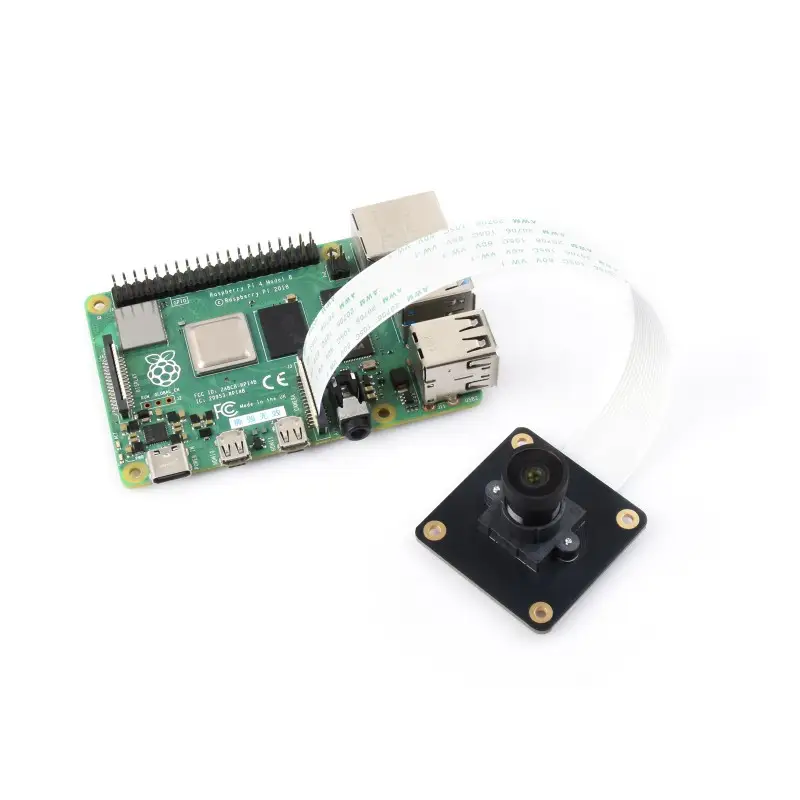

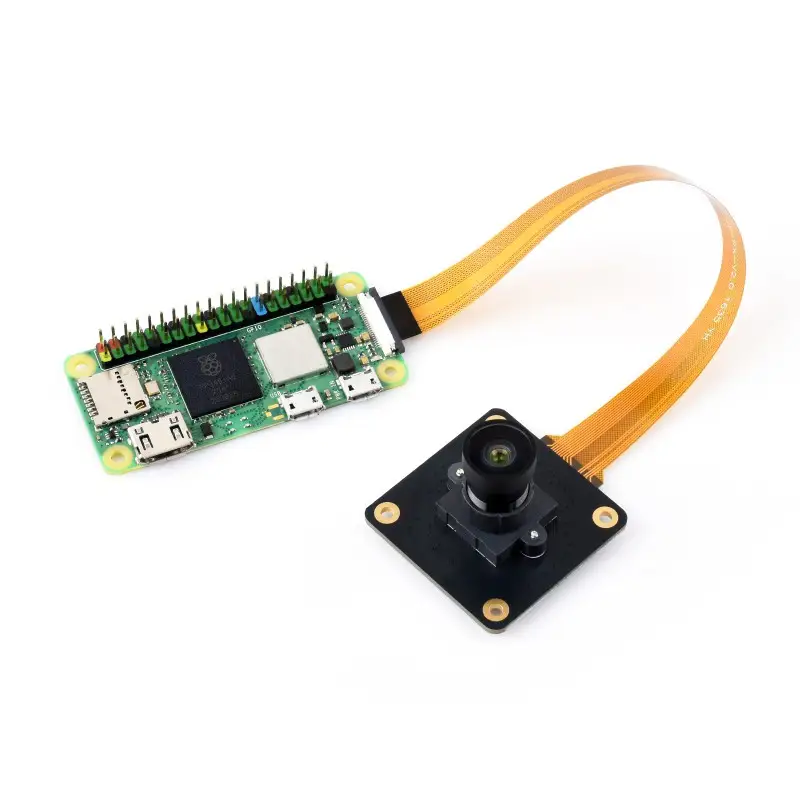

IMX296 1.6MP M12 Mono Camera, Global Shutter, Supports Raspberry Pi Series Boards IMX296 global shutter camera module IMX296 Sensor | 1.6MP | Mono camera | Supports raspberry pi series boards Features at a glance This IMX296 mono global shutter camera module is based on the IMX296 sensor with 1.6MP resolution. It is capable of capturing fast moving objects without Jelly-Effect of rolling shutter, ideal for fast motion photography and machine vision applications. Adopts M12 lens offering 130° FOV, comes with dual FFC cables, compatible with all Raspberry Pi series boards. Specifications Sensor Model IMX296 Resolution 1.58 MP (mono), 1456 × 1088 CMOS diagonal size 6.3mm Pixel size 3.45µm × 3.45µm Lens Aperture (F) 1.6 Back Focal Length (BFL) 3.0mm Field of View (FOV) 130° (D) 99° (H) 72° (V) Distortion Global shutter, more clear imaging the global shutter eliminates jelly-effect while shooting fast moving objects, more suitable for high-speed motion capturing Working with Raspberry Pi Connecting with Raspberry Pi 4B Connecting with Raspberry Pi 5 Connecting with Raspberry Pi Zero 2 W • for reference only, the Raspberry Pi 4B, Raspberry Pi 5, Zero 2 W are NOT included. Outline Dimensions Resources & Services Wiki: www.waveshare.com/wiki/IMX296-130_BW_Camera Selection Guide Part Number Pixels Sensor CMOS Size IR-CUT Filter Lens Support FoV (°) Aper-ture (F) Focal Length (mm) Dimen-sions (mm) For use with Raspberry Pi HQ Camera 12.3MP IMX477 7.9mm integrated C/CS - - - 38*38 Raspberry Pi, CM3/3+/4/5 IMX477 12.3MP Camera - - - 38*38 Raspberry Pi, CM3/3+/4, Jetson series boards Raspberry Pi HQ Camera M12 M12 - - - 38*38 Raspberry Pi, CM3/3+/4/5 IMX477 IR-CUT Camera (A) 90 2.0 3.95 38*38 Raspberry Pi, CM3/3+/4/5, Jetson series boards IMX477-160 12.3MP Camera 160 2.2 2.75 25*24 Raspberry Pi, CM3/3+/4/5, Jetson series boards Raspberry Pi Global Shutter Camera 1.6MP IMX296 6.3mm C/CS - - - 38*38 Raspberry Pi, CM3/3+/4/5 IMX296-130 BW Camera 1.6MP IMX296 6.3mm M12 130 1.6 3.0 38*38 Raspberry Pi, CM3/3+/4/5 PACKAGE CONTENT Weight: 0.02 kg IMX296-130 BW Camera x1 22PIN to 15PIN cable x1 15PIN cable x1 1 2 3
