Brand: Flipsky

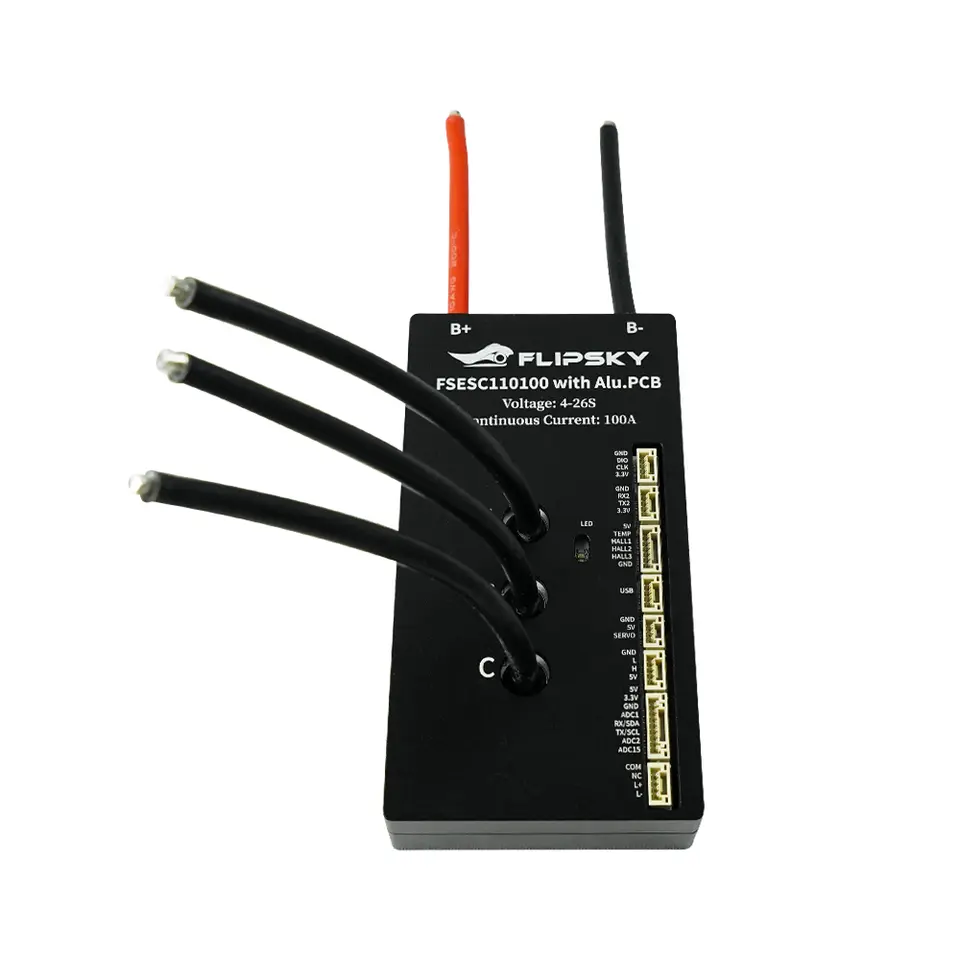

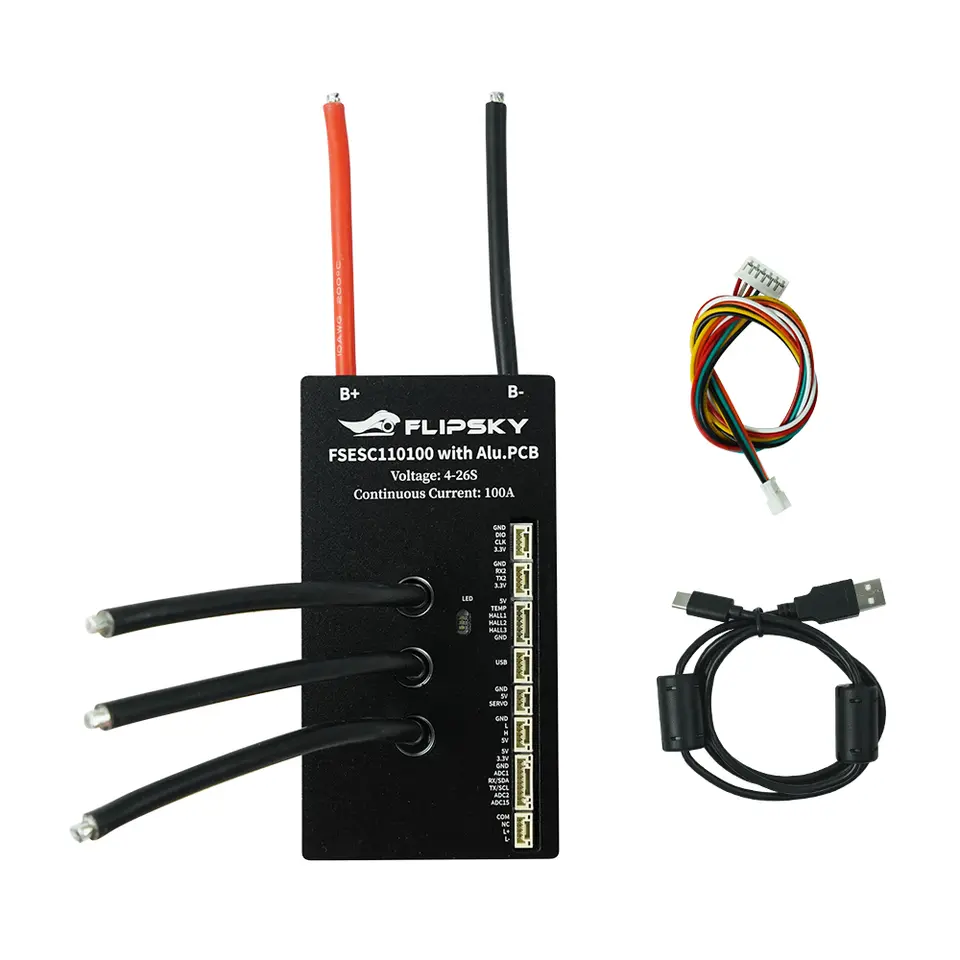

Flipsky FSESC 110100 High-Voltage VESC-Based ESC, 14-110V, Aluminum PCB

$183.99

Est. delivery 7–29 days

Est. $19.16 shipping to Canada. Exact cost at checkout

In stock

Supplier stock is confirmed when your order is processed.

Quantity
Sold by
Polar Parts
Ships from
Our supplier partnersSupport from Milton, Ontario
Shipping
Canada only
Returns
14 days, unopened items
Payment
Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

TypeESC
Voltage48V
OriginMainland China
BrandFlipsky
SKUAE-1005009819070194-12000050269580401

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

High-voltage VESC-based motor controller with BLDC and FOC modes for fighting robots, surfboards and AGVs, 14-110V.

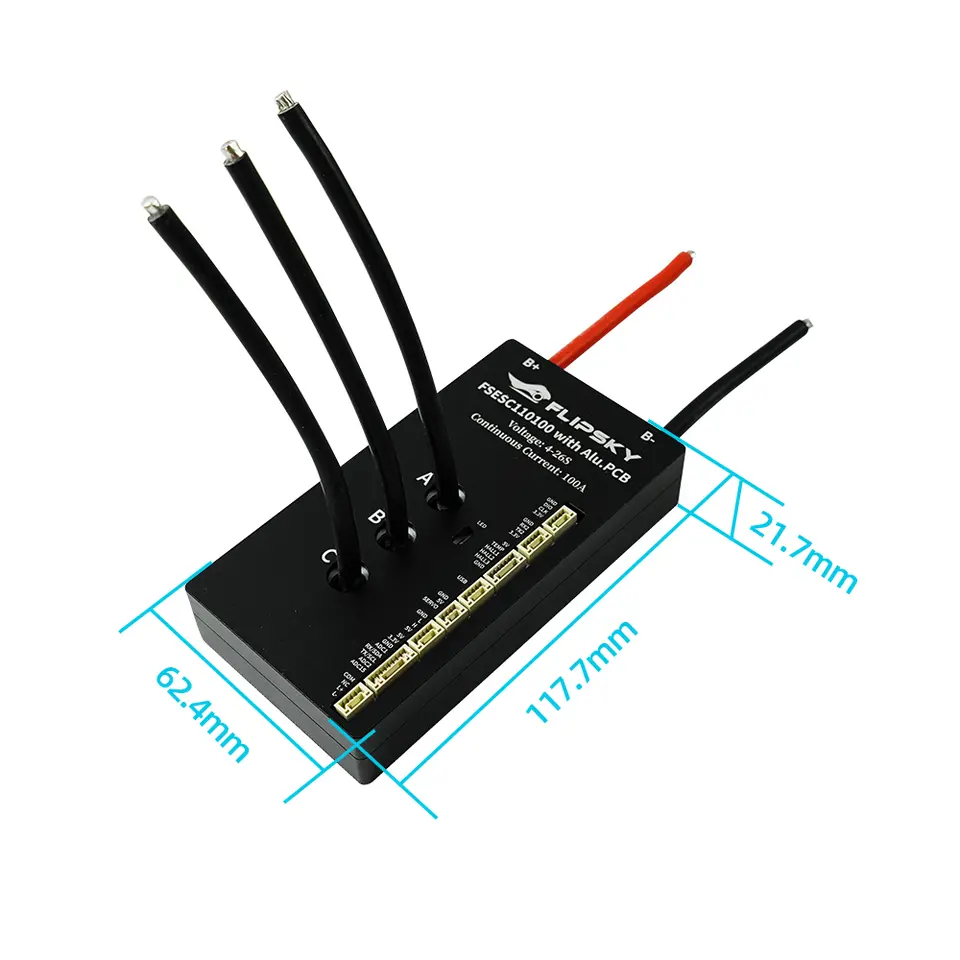

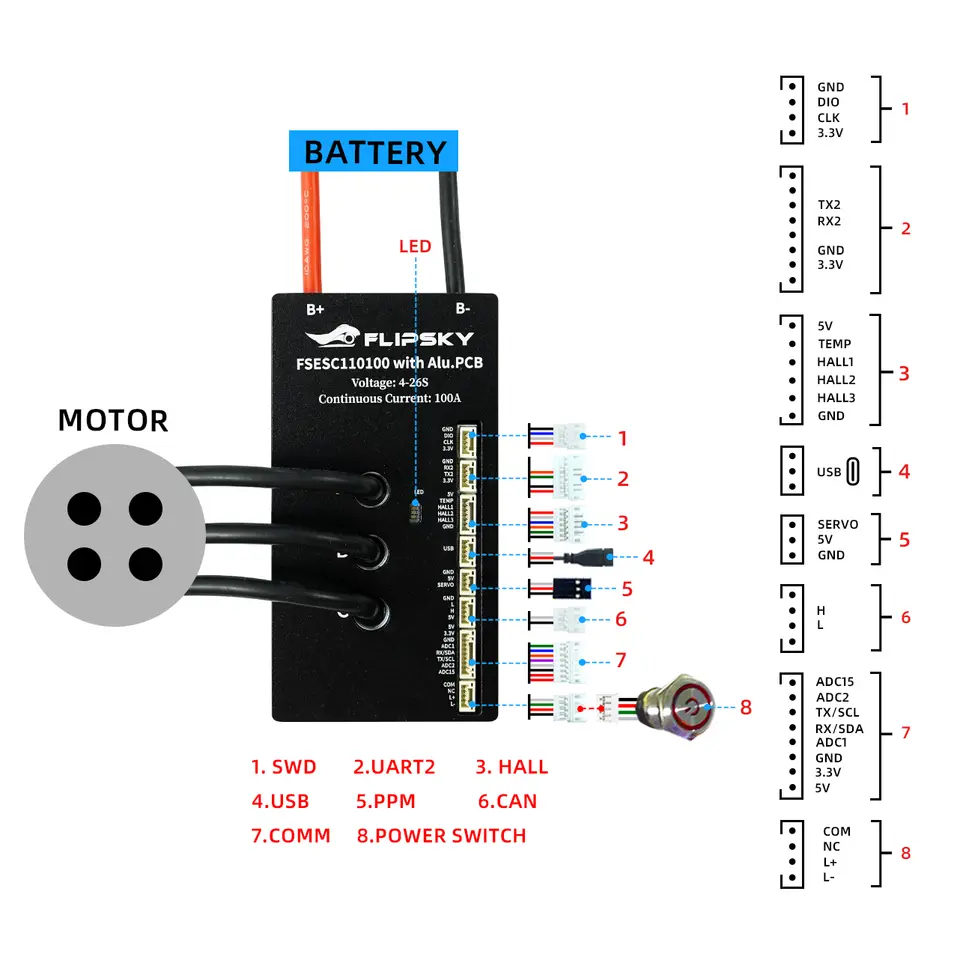

Specs: Firmware: 6.05 (or above in the future) Voltage: 14-110V (safe for 4-26S) Continuous current: 50V/120A; 110V/100A (Values depend on the mounting,ambient temperature and air/watercirculation around the device!); Burst: 250A BEC: 5V@3ASupport Modes:BLDC,FOC (sinusoidal) ERPM: 150000 Communication Ports: USB, CAN, UART, SPI, IIC Supported Sensors: ABI, HALL,AS5047, AS5048A Input Source Support: PPM, ADC, NRF, UART Supported Sensorless: Yes Regenerative capacity: Yes Programmable via VESC_TOOL: Yes Size: 117.70x62.40x21.70mm Motor/power wire size: 10AWG Phase Filter: Yes Power Switch Button: Red Feature: Adjustable protection against: low voltage protection, high voltage protection, over current protection, temperature abnormal protection, mosfets / motor over temperature protection. Support various control modes: Current / Duty cycle / Speed / PID control modes. CPU: SMT32F405 with frequency 168MHz Design with Aluminum PCB with good heat dissipation to expand life span. Wiring diagram:
