GROW GM65-S Barcode and QR Code Scanner Module, 1D/2D, USB and UART

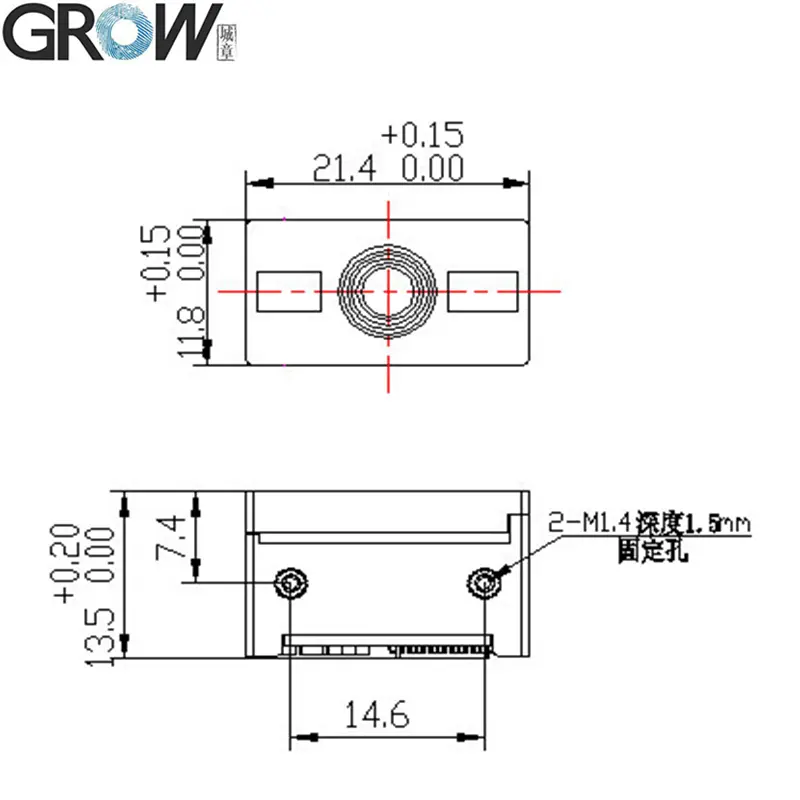

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer. 2. High-efficiency recognization and high upload speed for improving your working efficiency. 3. With buzzer for reminding you that the scanning successfully or not. 4. Compatible with USB and UART interface. 5. Over 180 configurable options 6. Macro support replace a string in the bar code with another 7. Programmable preamble postamble and termination strings 8. Superior reading performance utilizing advanced decoding algorithms Model GM65S Type Barcode Scanner Decoding Ability 1D: EAN-13, EAN-8, UPC-A, UPC-E ISSN, ISBN, CodaBar,Code 128, Code93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 39,Code 11, MSI-Plessey, GS1 Composite,GS1-Databar (RSS). 2D: QR Code, Data Matrix, PDF417, Micro QR, Micro PDF417, Aztec Interface USB2.0 \ UART Resolution 0.10mm (4mil) Operating Voltage 3V Operating Current 120mA Weight 7g Size 21.4*13.5*11.8mm Type of Illuminant 617nm LED(Aimer), 6500K LEDs(Illumination) LED Indicator:Buzzer and bi-color light: Red-power, Blue-decoding Successfully Scan Angle 0-360°, Pitch:±65°or greater, Yaw:±60°or greater Scanning angle Inclination angle 34°, Elevation angle 26° Print Contrast 30% minimum reflective difference Reading Distance 25 - 250mm Operating Temperature -20 degrees to 55 degrees Storage Temperature -40 degrees to 65 degrees Temperature Humidity 5% to 95% Relative humidity, Non-condensing Light Levels 0-85000LUX ·Provide User Manual You can download the GM65-S user manual from this website link:
