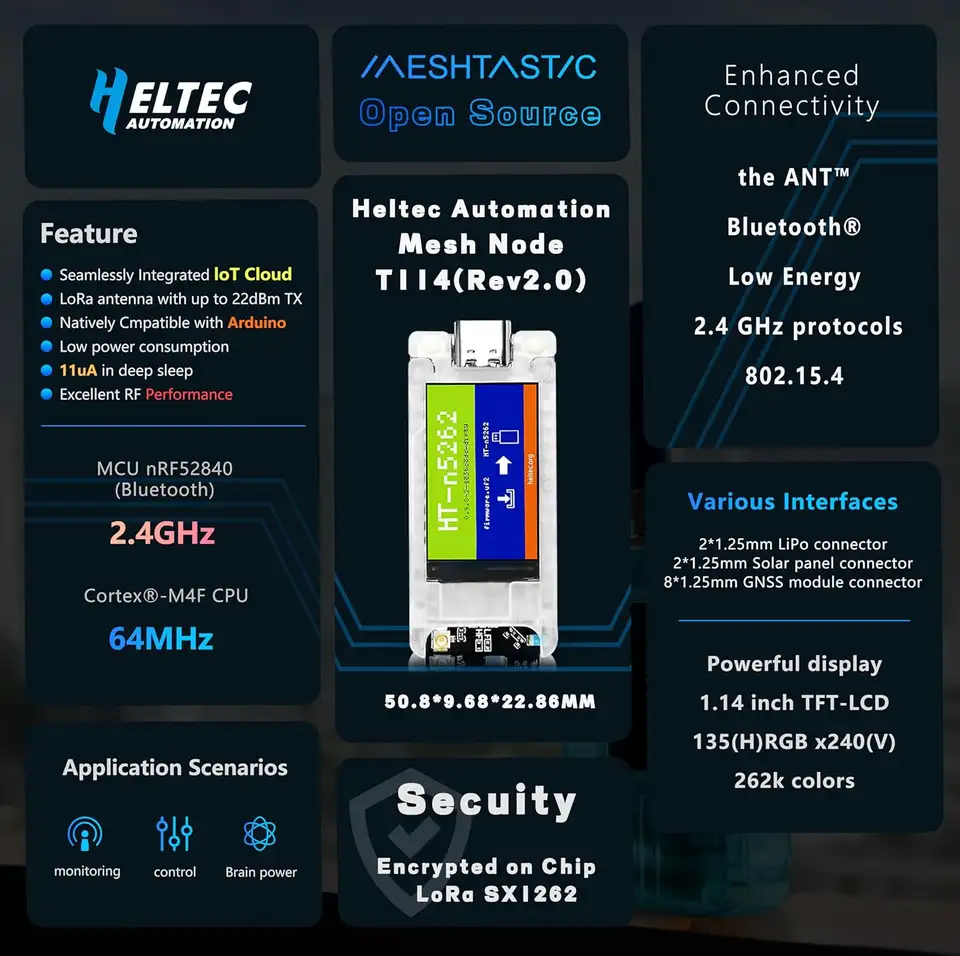

Heltec Mesh Node T114 V2 Development Board Meshtastic Nordic nRF52480 SX1262 LoRa LoRaWAN Compatible with Arduino/Meshcore image 1
Heltec Mesh Node T114 V2 Development Board Meshtastic Nordic nRF52480 SX1262 LoRa LoRaWAN Compatible with Arduino/Meshcore image 2
Heltec Mesh Node T114 V2 Development Board Meshtastic Nordic nRF52480 SX1262 LoRa LoRaWAN Compatible with Arduino/Meshcore image 3
Heltec Mesh Node T114 V2 Development Board Meshtastic Nordic nRF52480 SX1262 LoRa LoRaWAN Compatible with Arduino/Meshcore image 4
Heltec Mesh Node T114 V2 Development Board Meshtastic Nordic nRF52480 SX1262 LoRa LoRaWAN Compatible with Arduino/Meshcore image 5
Heltec Mesh Node T114 V2 Development Board Meshtastic Nordic nRF52480 SX1262 LoRa LoRaWAN Compatible with Arduino/Meshcore image 6
Heltec Mesh Node T114 V2 Development Board Meshtastic Nordic nRF52480 SX1262 LoRa LoRaWAN Compatible with Arduino/Meshcore image 7
Heltec Mesh Node T114 V2 Development Board Meshtastic Nordic nRF52480 SX1262 LoRa LoRaWAN Compatible with Arduino/Meshcore image 8
Heltec Mesh Node T114 V2 Development Board Meshtastic Nordic nRF52480 SX1262 LoRa LoRaWAN Compatible with Arduino/Meshcore image 9
Heltec Mesh Node T114 V2 Development Board Meshtastic Nordic nRF52480 SX1262 LoRa LoRaWAN Compatible with Arduino/Meshcore image 10
Image 1 of 10

Brand: Heltec Automation

Heltec Mesh Node T114 V2, nRF52840 and SX1262 LoRa, Optional TFT Screen and GNSS, for Meshtastic

$59.51

Est. delivery 7–19 days

Shipping calculated at checkout

In stock

Supplier stock is confirmed when your order is processed.

Option: With Screen / 433-510MHz
Quantity
Sold by
Polar Parts
Ships from
Our supplier partnersSupport from Milton, Ontario
Shipping
Canada only
Returns
14 days, unopened items
Payment
Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

Operating Temperature-20 ~ 70 ℃
OriginMainland China
Accessory TypeUSB To DC Cable
Battery Includedno
Typical Application FieldsInternet of Things (IoT)
Compatible WithT114 V2
MCUnRF52840
LoRa Node ChipSX1262

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

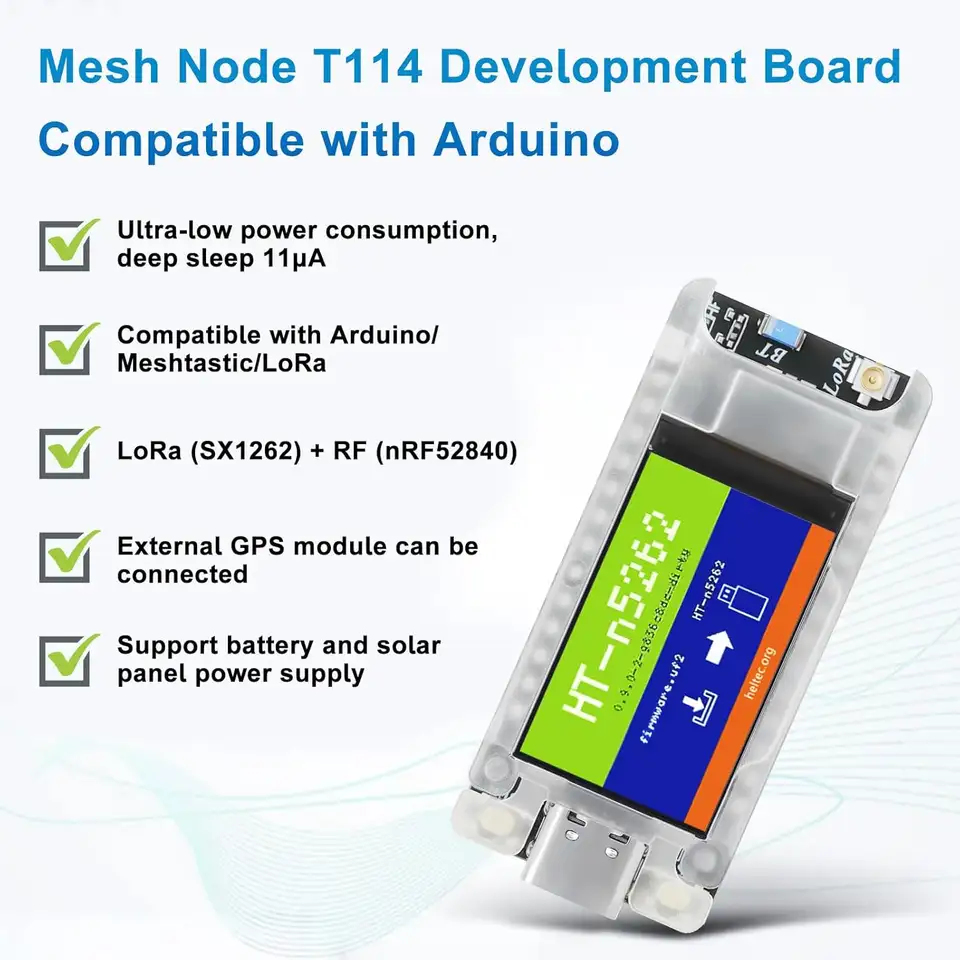

A low-power nRF52840 LoRa node with Bluetooth 5 for Meshtastic and MeshCore, with an optional screen and L76K GNSS.

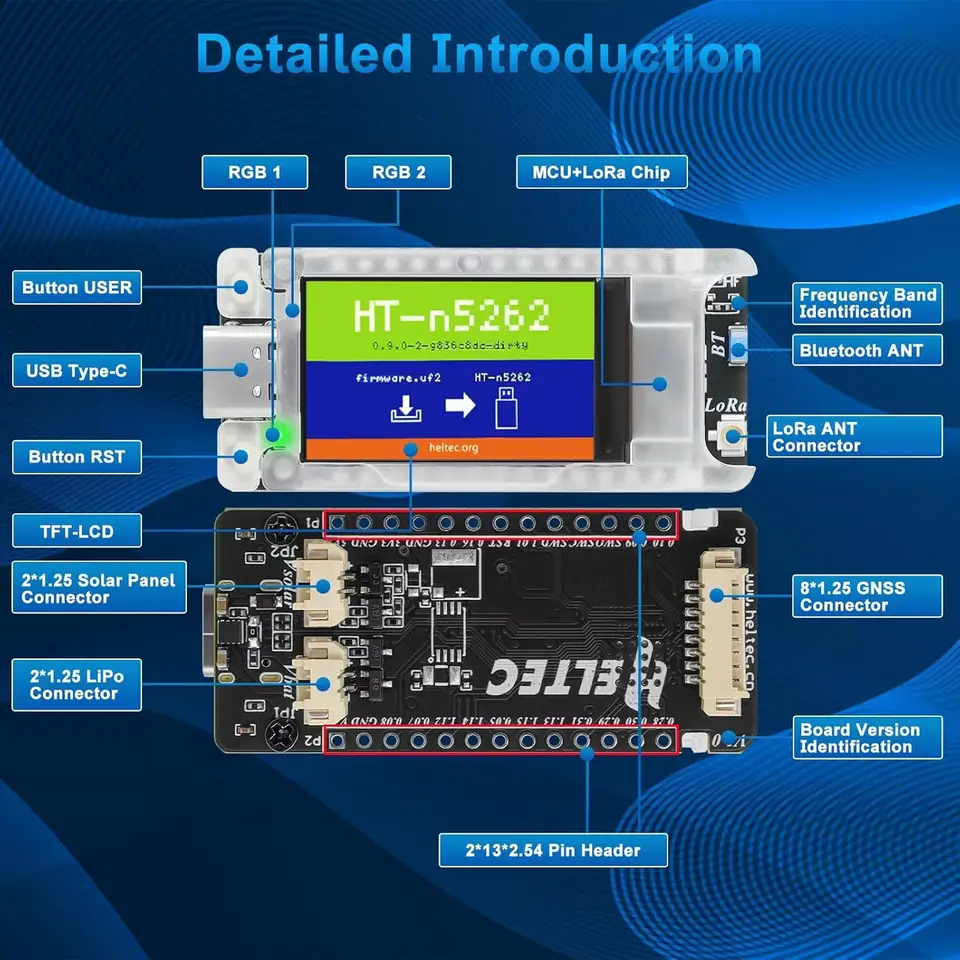

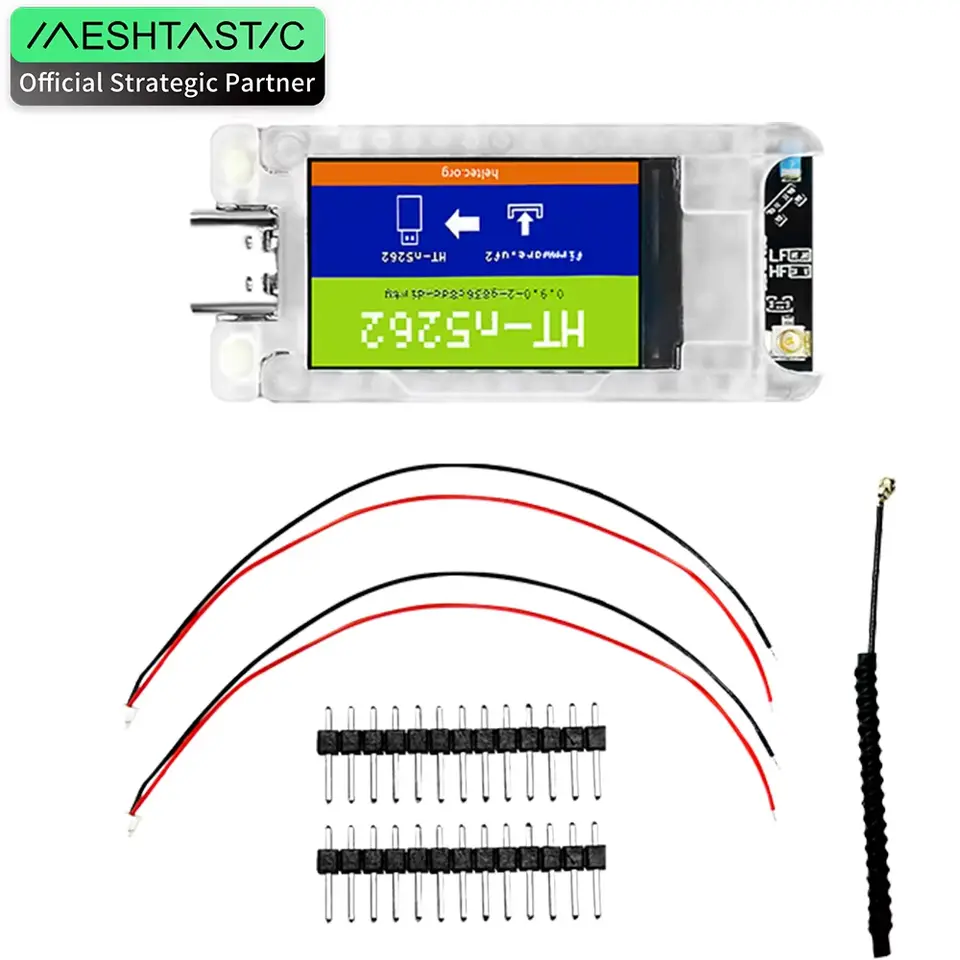

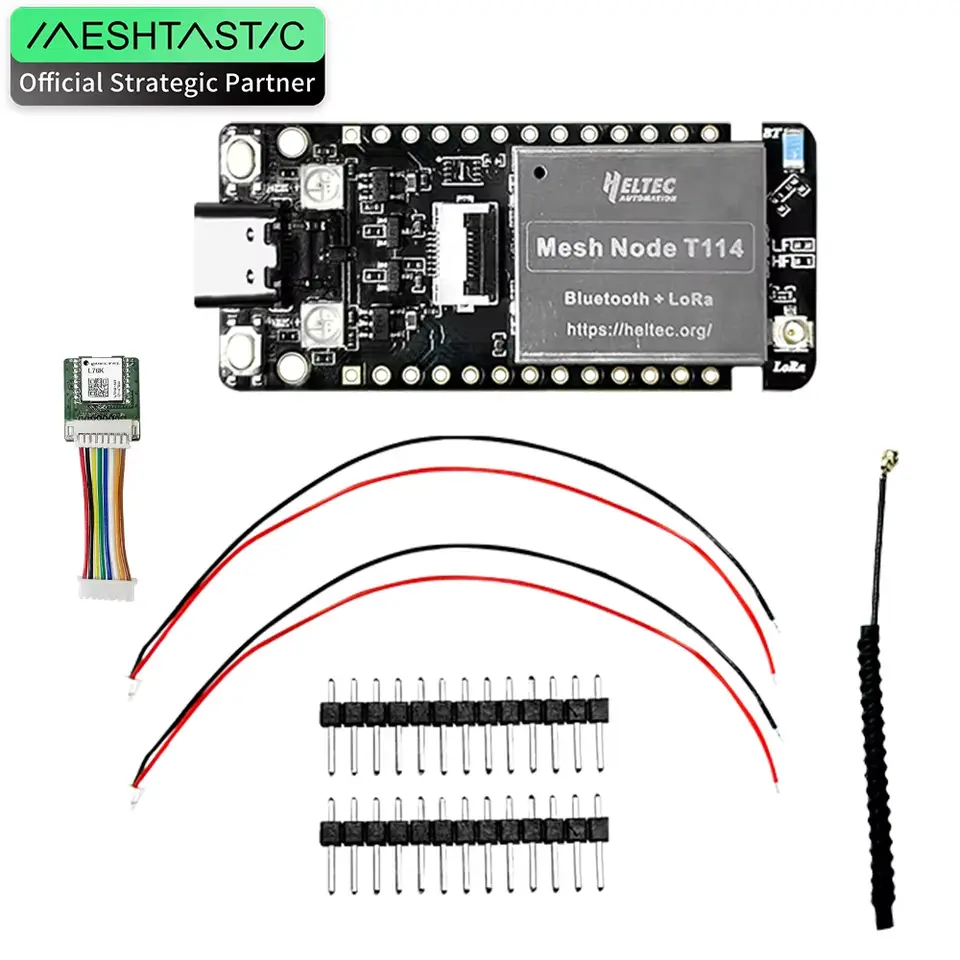

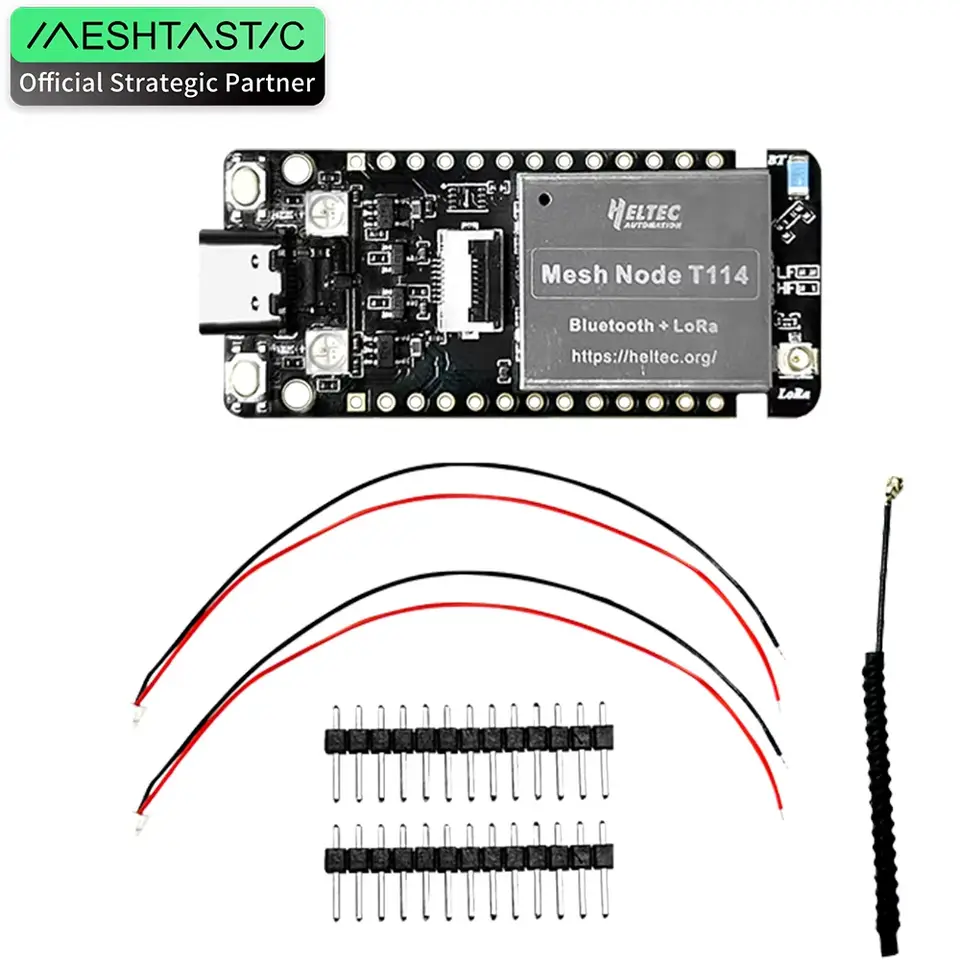

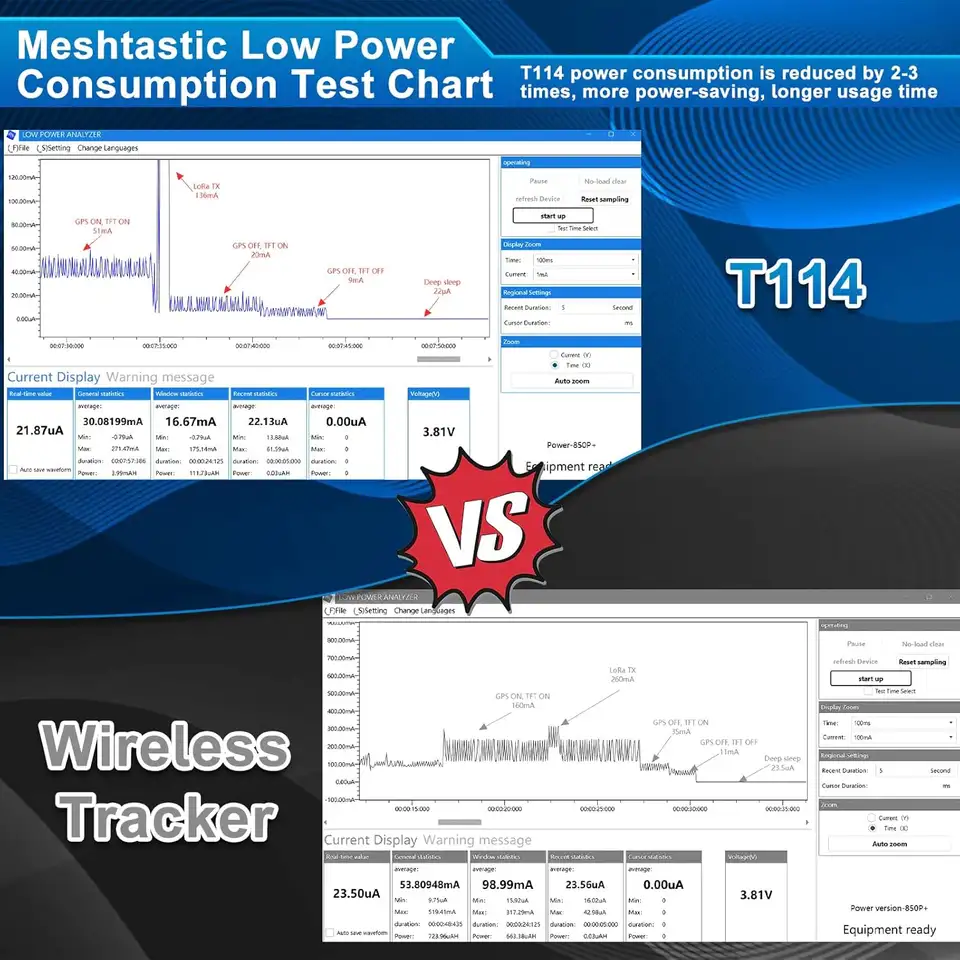

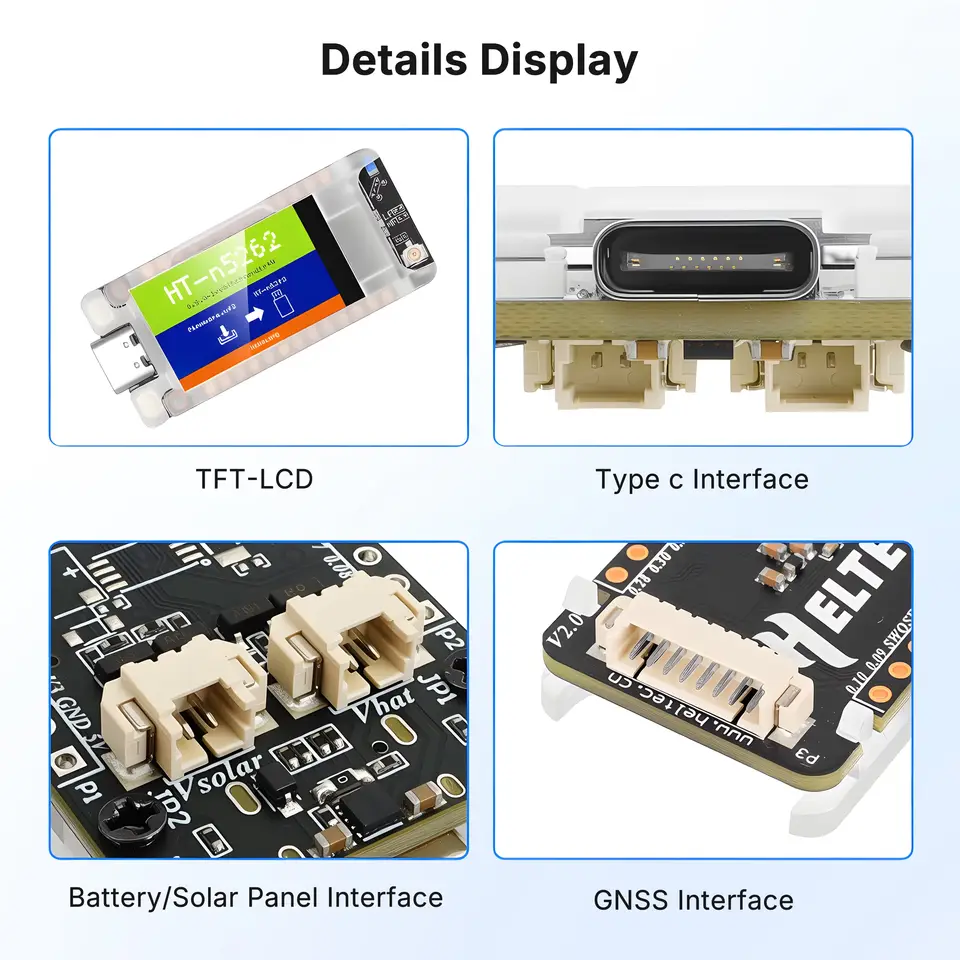

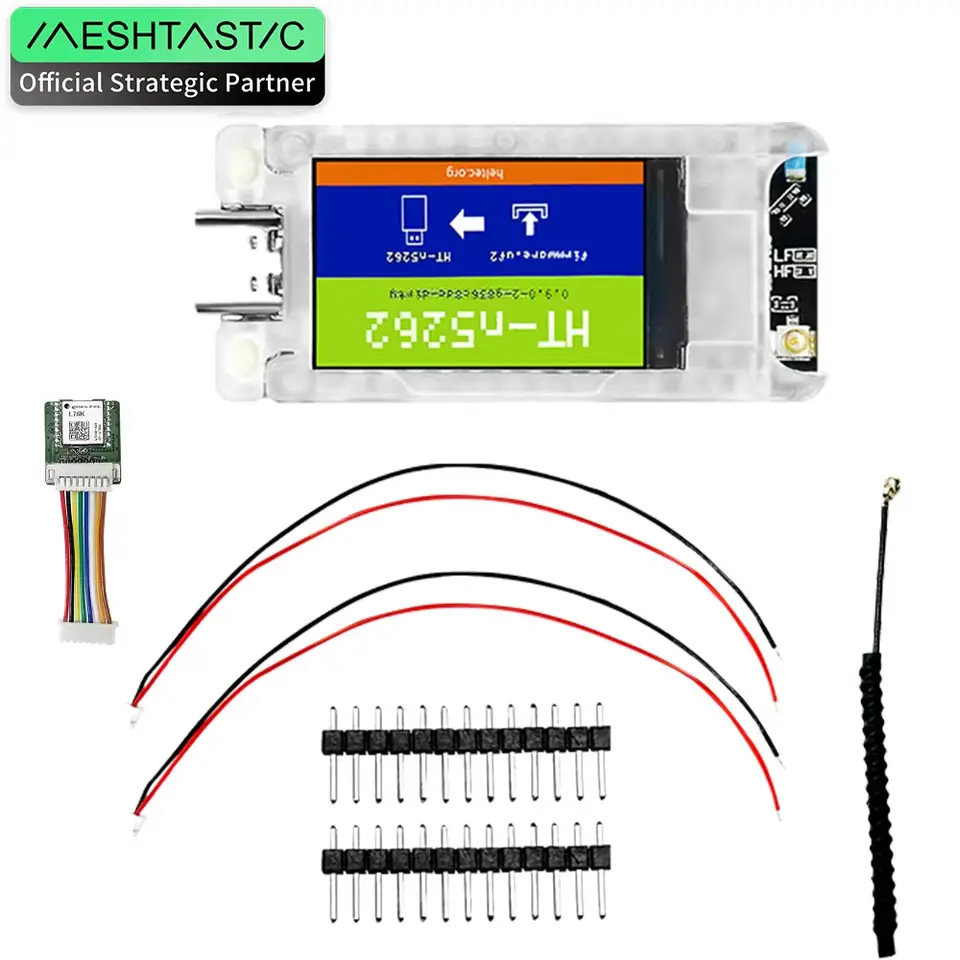

Specification Parameters Description MCU nRF52840 LoRa Node Chip SX1262 Frequency 470~510MHz; 863~870MHz; 902~928MHZ. Max. TX Power 21±1dBm Max. Receiving sensitivity -135dBm@SF12 BW=125KHz Bluetooth Bluetooth LE: Bluetooth 5, Bluetooth mesh Hardware Resource USB 2.0, 4 • SPI, 2 • TWI, 2 • UART, 4 • PWM, QPSI, 12S, PDM, QDEC Etc. Memory 1M ROM 256KB SRAM Interface Type-C USB 2*1.25 lithium battery connector 2*1.25 solar panel connector LoRa ANT (IPEX1.0) 8*1.25 GPS module connector 2*13*2.54 Header Pin Battery 3~4.2V battery power supply and charge. Operating Temperature -20 ~ 70 ℃ Dimensions 50.80*22.86mm Electrical characteristics Deep Sleep: ~11uA Tracker mode sleep: ~22uA GPS OFF, TFT OFF: ~9mA GPS OFF, TFT ON: ~20mA GPS ON, TFT ON: ~51mA Display onboard 1.14 inch TFT-LCD display Pin Map Low Power Chracteristics Dimension Packing List Item Quantity Mesh Node T114 x1 LoRa Antenna x1 SH1.25×2 Battery Connector x2 2.54 *13 Header Pin x2 L76K GNSS (Available when GPS selected) x1 Protect Shell and Transfer LoRa antenna (Available when Shell selected) x1
