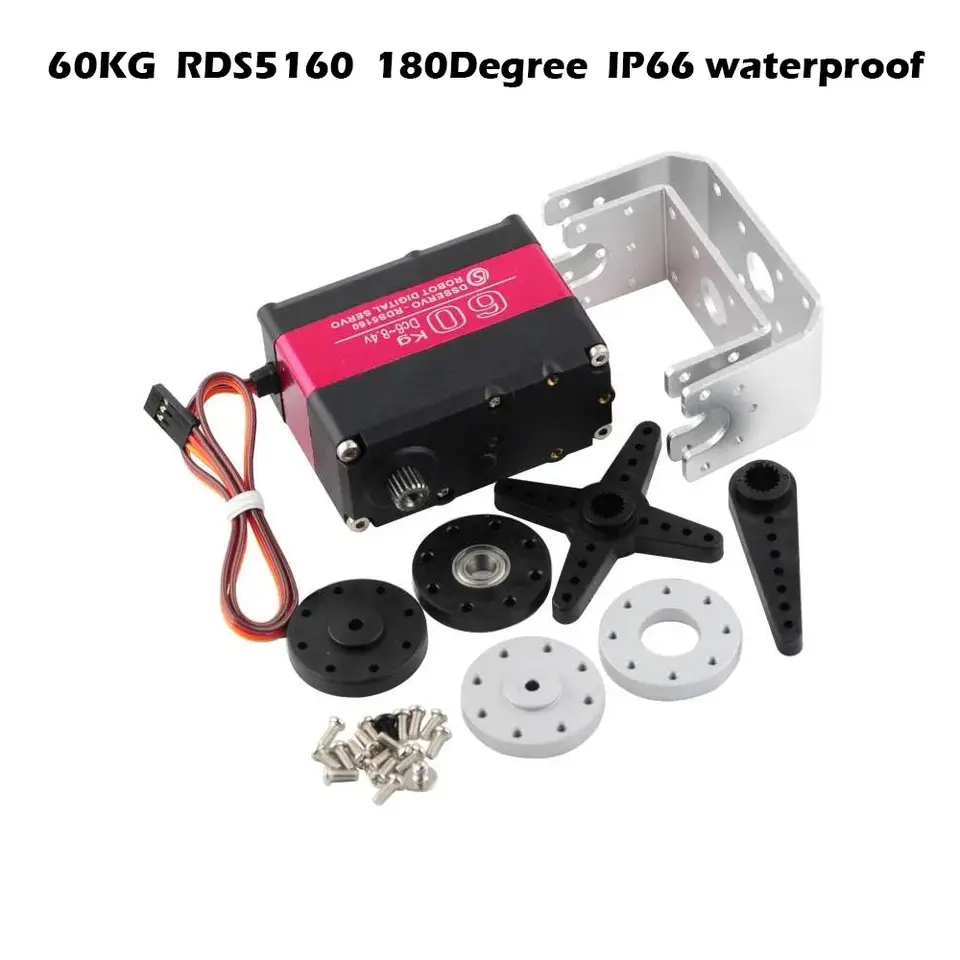

HV Robotic Digital Servo 160kg 150kg 80kg 60kg 35kg 25kg 20kg 17kg Metal Gear Servo Double-Shaft High Torque 180/270 Degree IP66 image 1

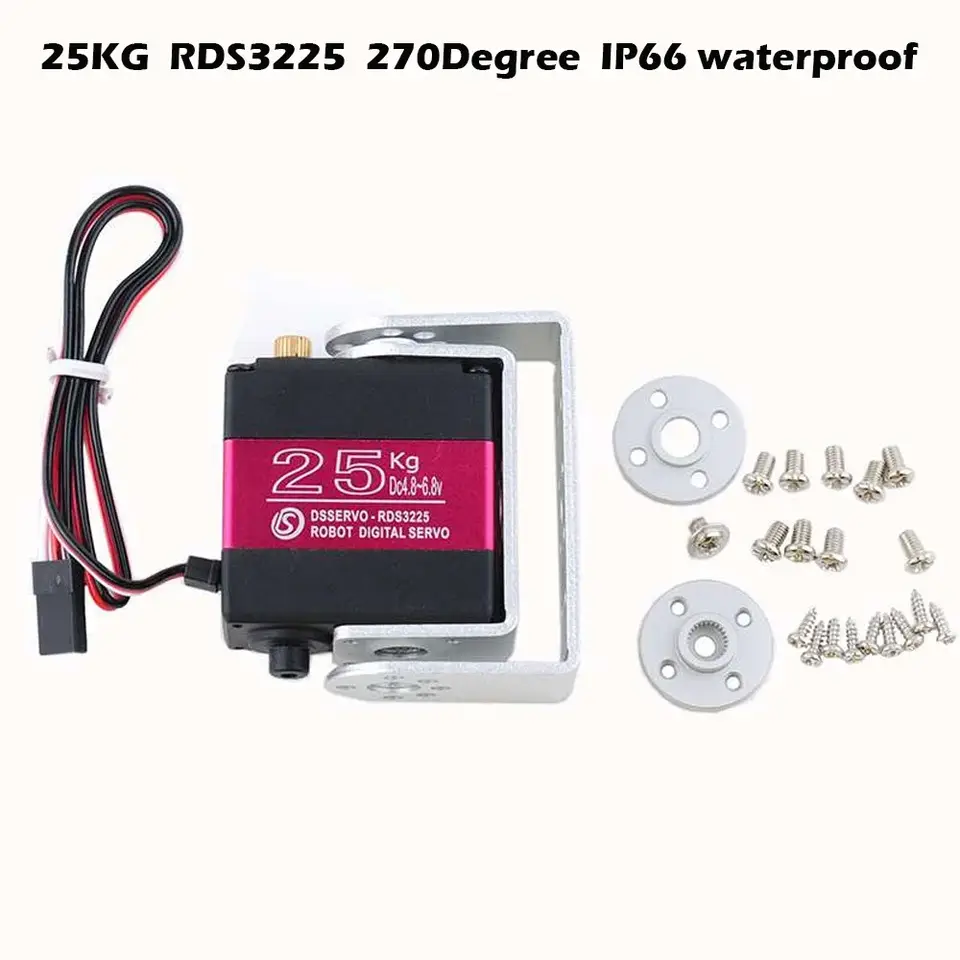

HV Robotic Digital Servo 160kg 150kg 80kg 60kg 35kg 25kg 20kg 17kg Metal Gear Servo Double-Shaft High Torque 180/270 Degree IP66 image 2

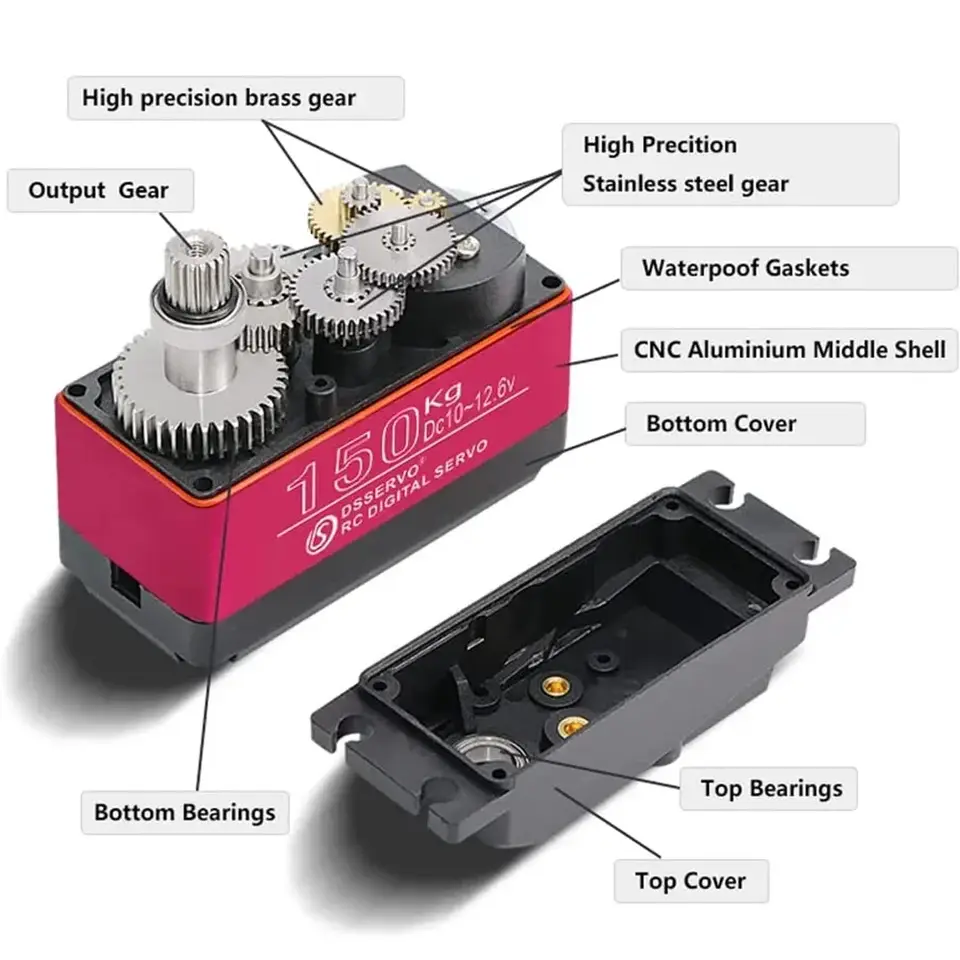

HV Robotic Digital Servo 160kg 150kg 80kg 60kg 35kg 25kg 20kg 17kg Metal Gear Servo Double-Shaft High Torque 180/270 Degree IP66 image 3

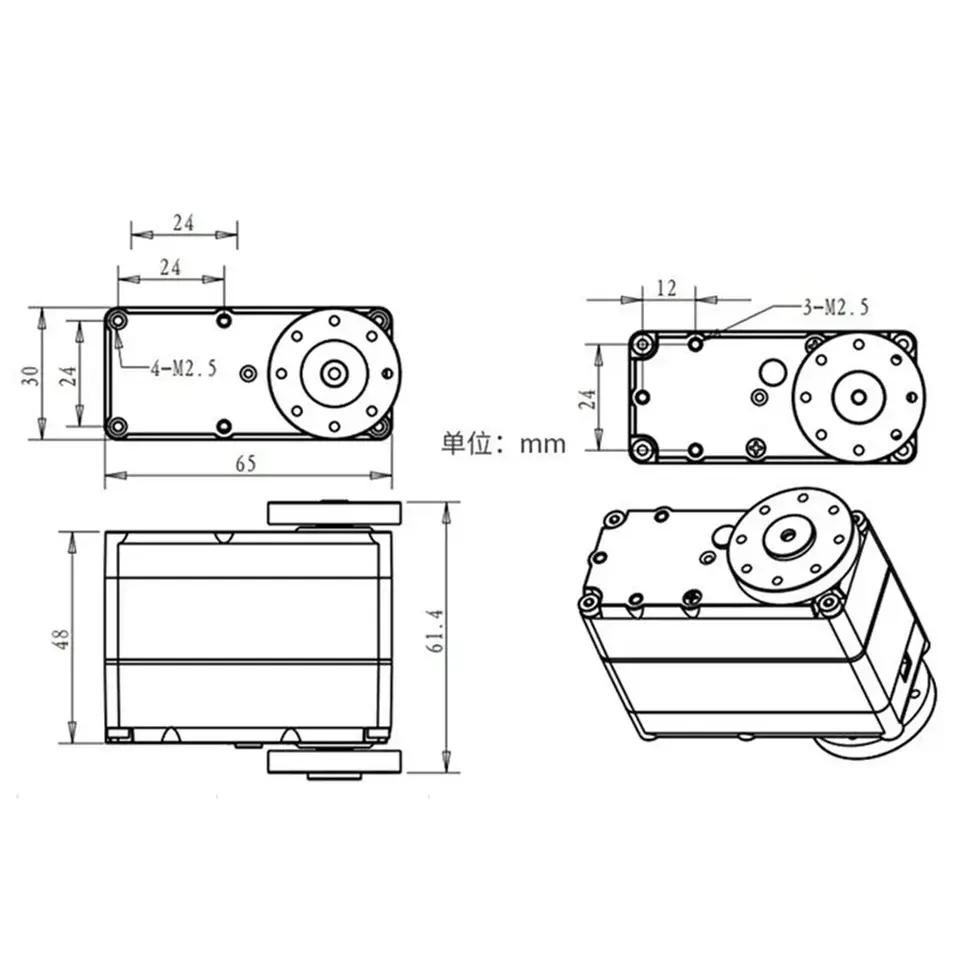

HV Robotic Digital Servo 160kg 150kg 80kg 60kg 35kg 25kg 20kg 17kg Metal Gear Servo Double-Shaft High Torque 180/270 Degree IP66 image 4
HV Robotic Digital Servo 160kg 150kg 80kg 60kg 35kg 25kg 20kg 17kg Metal Gear Servo Double-Shaft High Torque 180/270 Degree IP66 image 5
HV Robotic Digital Servo 160kg 150kg 80kg 60kg 35kg 25kg 20kg 17kg Metal Gear Servo Double-Shaft High Torque 180/270 Degree IP66 image 6
HV Robotic Digital Servo 160kg 150kg 80kg 60kg 35kg 25kg 20kg 17kg Metal Gear Servo Double-Shaft High Torque 180/270 Degree IP66 image 7
HV Robotic Digital Servo 160kg 150kg 80kg 60kg 35kg 25kg 20kg 17kg Metal Gear Servo Double-Shaft High Torque 180/270 Degree IP66 image 8
HV Robotic Digital Servo 160kg 150kg 80kg 60kg 35kg 25kg 20kg 17kg Metal Gear Servo Double-Shaft High Torque 180/270 Degree IP66 image 9
HV Robotic Digital Servo 160kg 150kg 80kg 60kg 35kg 25kg 20kg 17kg Metal Gear Servo Double-Shaft High Torque 180/270 Degree IP66 image 10
HV Robotic Digital Servo 160kg 150kg 80kg 60kg 35kg 25kg 20kg 17kg Metal Gear Servo Double-Shaft High Torque 180/270 Degree IP66 image 11
HV Robotic Digital Servo 160kg 150kg 80kg 60kg 35kg 25kg 20kg 17kg Metal Gear Servo Double-Shaft High Torque 180/270 Degree IP66 image 12
HV Robotic Digital Servo 160kg 150kg 80kg 60kg 35kg 25kg 20kg 17kg Metal Gear Servo Double-Shaft High Torque 180/270 Degree IP66 image 13
HV Robotic Digital Servo 160kg 150kg 80kg 60kg 35kg 25kg 20kg 17kg Metal Gear Servo Double-Shaft High Torque 180/270 Degree IP66 image 14
HV Robotic Digital Servo 160kg 150kg 80kg 60kg 35kg 25kg 20kg 17kg Metal Gear Servo Double-Shaft High Torque 180/270 Degree IP66 image 15
HV Robotic Digital Servo 160kg 150kg 80kg 60kg 35kg 25kg 20kg 17kg Metal Gear Servo Double-Shaft High Torque 180/270 Degree IP66 image 16
HV Robotic Digital Servo 160kg 150kg 80kg 60kg 35kg 25kg 20kg 17kg Metal Gear Servo Double-Shaft High Torque 180/270 Degree IP66 image 17
HV Robotic Digital Servo 160kg 150kg 80kg 60kg 35kg 25kg 20kg 17kg Metal Gear Servo Double-Shaft High Torque 180/270 Degree IP66 image 18
HV Robotic Digital Servo 160kg 150kg 80kg 60kg 35kg 25kg 20kg 17kg Metal Gear Servo Double-Shaft High Torque 180/270 Degree IP66 image 19
HV Robotic Digital Servo 160kg 150kg 80kg 60kg 35kg 25kg 20kg 17kg Metal Gear Servo Double-Shaft High Torque 180/270 Degree IP66 image 20
HV Robotic Digital Servo 160kg 150kg 80kg 60kg 35kg 25kg 20kg 17kg Metal Gear Servo Double-Shaft High Torque 180/270 Degree IP66 image 21
HV Robotic Digital Servo 160kg 150kg 80kg 60kg 35kg 25kg 20kg 17kg Metal Gear Servo Double-Shaft High Torque 180/270 Degree IP66 image 22
Image 1 of 22

Brand: Stemedu

RDS Series High-Torque Digital Servo, Metal Gear, Dual Shaft, 17-160kg, 180/270 Degree

$28.26

Est. delivery 8–16 days

Shipping calculated at checkout

In stock

Supplier stock is confirmed when your order is processed.

Quantity
Sold by
Polar Parts
Ships from
Our supplier partnersSupport from Milton, Ontario
Shipping
Canada only
Returns
14 days, unopened items
Payment
Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

Model NumberFZ6238-270 FZ6238-180
OriginMainland China
Work forfor DIY Large Robot Project
ProductHigh Torque Digital Servo
Model Type 1RDS3115 RDS3218 RDS3225 RDS3235
Model Type 2RDS5160 RDS5180 RDS51150 RDS51160
Four-wheel Drive AttributesMotors
Remote Control Peripherals/DevicesServos

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

A PWM digital servo with metal gears and a dual-shaft output for large robot builds, in 17kg to 160kg models and 180 or 270 degree travel.

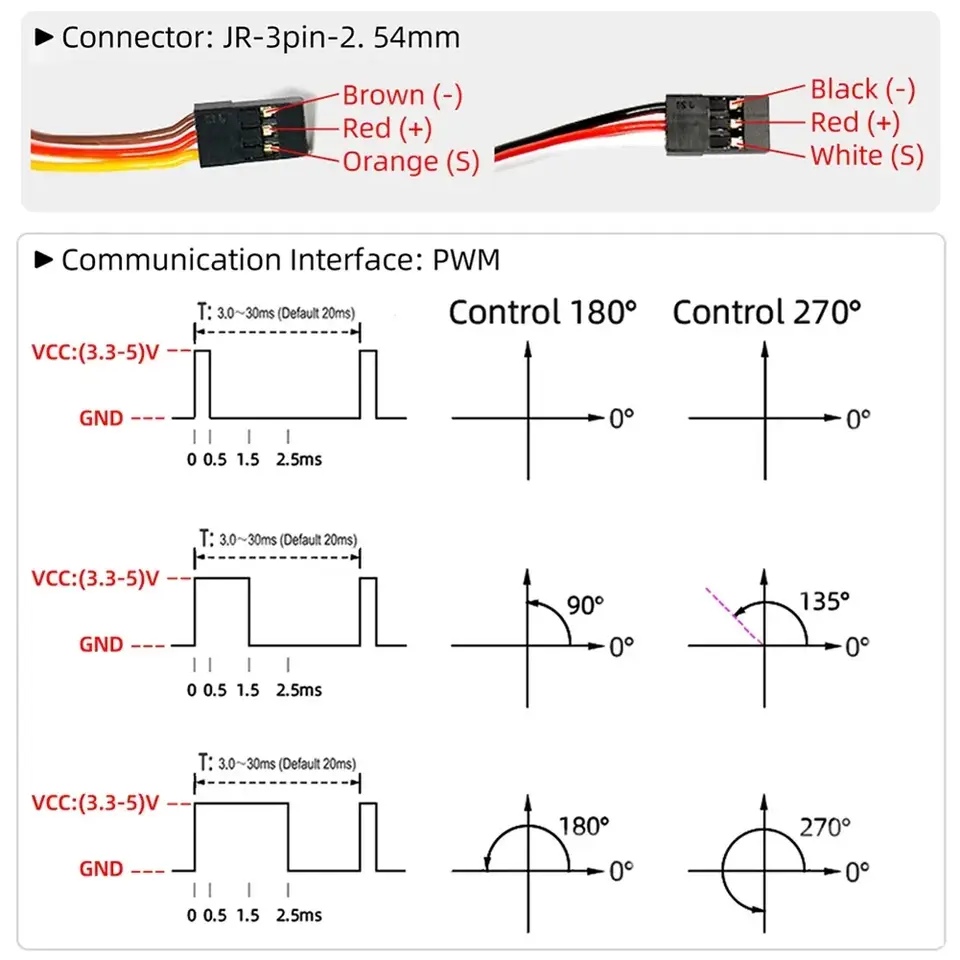

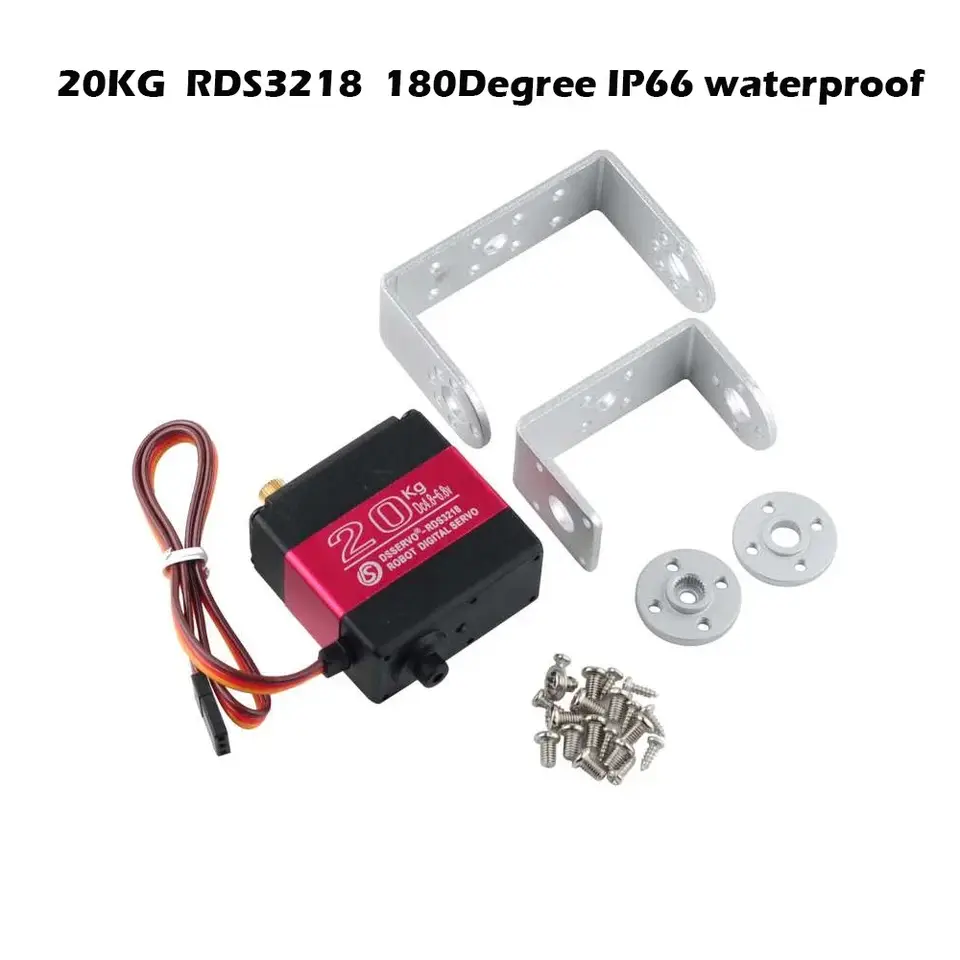

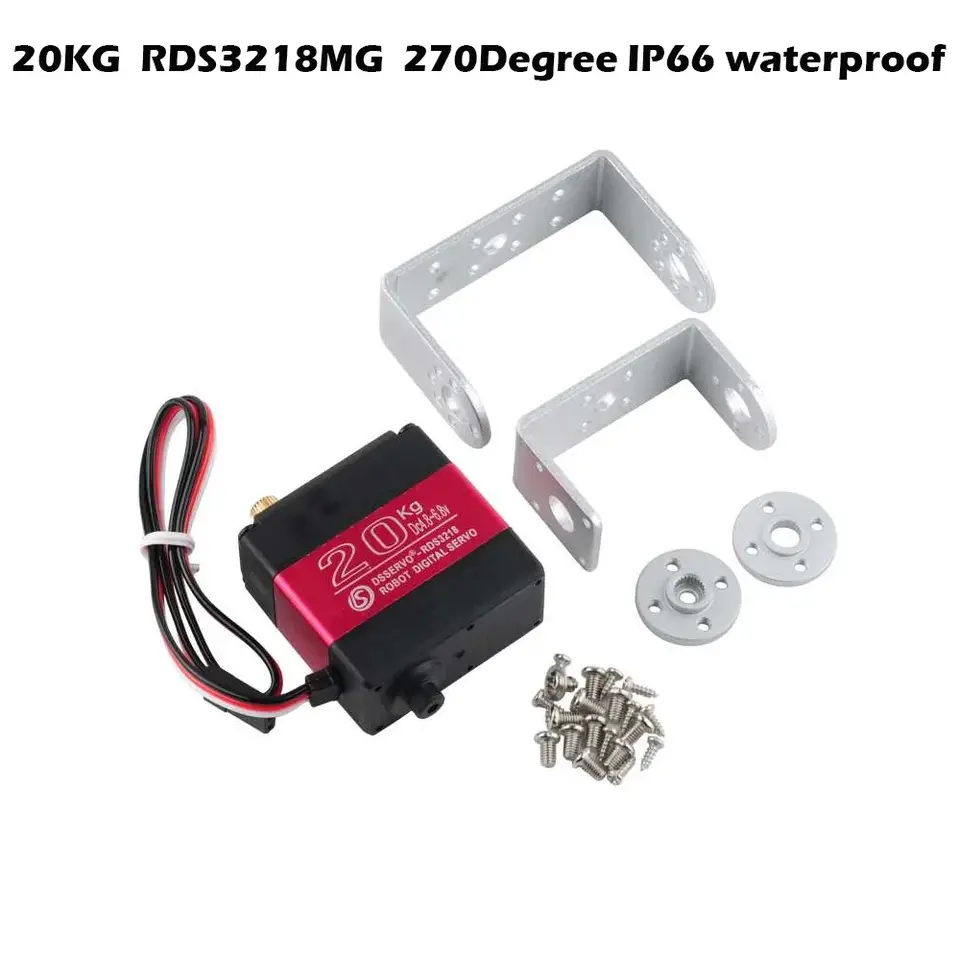

HV Robotic Digital Servo 160kg 150kg 80kg 60kg 35kg 25kg 20kg 17kg Metal Gear Servo Double-Shaft High Torque 180/270 Degree IP66 Please note: When your pulse width is 500-2500 then the servo can be 180/270 degree 20KG RDS3218 Dual Shaft Digital Servo with With Long/Short U Mouting 180 Degree / 270 Degree Electrical Specification Idle current (at stopped): ( 4mA@5V ) / ( [email protected] ) Operating speed (at no load): ( 0.2sec/60°@5V ) / ( 0.17sec/60°@6.8V ) Stall torque (at locked): ( 21.5kg·cm@5V ) / ( 25kg·[email protected] ) Stall current (at locked): ( 1.6A@5V) / ( [email protected] ) Control Specification Control system:PWM (Pulse width modification) Pulse width range: 500~2500μsec Neutral position: 1500μsec Running degree: 180° or 270° (when 500~2500μsec) Dead band width: 3μsec Operating frequency: 50-330Hz Rotating direction: Counterlockwise (when 500~2500μsec) 25KG 6V RDS3225 Digital Metal Robotic Servo 180 degree / 270 Degree double-shaft Waterproof IP66 Electrical Specification Idle current (at stopped): ( 4mA@5V ) / ( [email protected] ) Operating speed (at no load): ( 0.2sec/60°@5V ) / ( 0.17sec/60°@6.8V ) Stall torque (at locked): ( 29.5kg·cm@5V ) / ( 34.5kg·[email protected] ) Stall current (at locked): ( 2.1A@5V) / ( [email protected] ) Control Specification Control system:PWM (Pulse width modification) Pulse width range: 500~2500μsec Neutral position: 1500μsec Running degree: 180° or 270° (when 500~2500μsec) Dead band width: 3μsec Operating frequency: 50-330Hz Rotating direction: Counterlockwise (when 500~2500μsec) 35kg RDS3235 Torque Digital Metal Gear RC Robot Servo Coreless Motor Servo 270°/ 180° DC 5-7.4V Electrical Specification Idle current (at stopped): ( 5mA@5V ) / ( [email protected] ) / ( [email protected] ) Operating speed (at no load): ( 0.18sec/60°@5V ) / ( 0.13sec/60°@7.4V ) / ( 0.11sec/60°@8.4V ) Stall torque (at locked): ( 23kg·cm@5V ) / ( 30kg·[email protected] ) / ( 35kg·[email protected] ) Stall current (at locked): ( 2.2A@5V ) / ( [email protected] ) / ( [email protected] ) Control Specification Control system:PWM (Pulse width modification) Pulse width range: 500~2500μsec Neutral position: 1500μsec Running degree: 180° or 270° (when 500~2500μsec) Dead band width: 2μsec Operating frequency: 50-330Hz Rotating direction: Counterlockwise (when 500~2500μsec) RDS5160 60kg 7.4V Robot Digital Servo High Torque Metal Gear 180degree / 270 Degreewith U-shape bracket Disc Electrical Specification Idle current (at stopped): ( 4mA@6V ) / ( [email protected] ) / ( [email protected] ) Operating speed (at no load): ( 0.17sec/60°@6V ) / ( 0.15sec/60°@7.4V ) / ( 0.13sec/60°@8.4V ) Stall torque (at locked): ( 58kg·cm@6V ) / ( 65kg·[email protected] ) / ( 70kg·[email protected] ) Stall current (at locked): ( 4.1A@6V ) / ( [email protected] ) / ( [email protected] ) Control Specification Control system:PWM (Pulse width modification) Pulse width range: 500~2500μsec Neutral position: 1500μsec Running degree: 180° or 270° (when 500~2500μsec) Dead band width: 3μsec Operating frequency: 50-330Hz Rotating direction: Counterlockwise (when 500~2500μsec) 80KG 7.4V RDS5180 Digital Metal Robotic Serv 180 Degree / 270 degree double-shaft Waterproof IP66 Electrical Specification Idle current (at stopped): ( 4mA@6V ) / ( [email protected] ) / ( [email protected] ) Operating speed (at no load): ( 0.24sec/60°@6V ) / ( 0.21sec/60°@7.4V ) / ( 0.19sec/60°@8.4V ) Stall torque (at locked): ( 85kg·cm@6V ) / ( 98kg·[email protected] ) / ( 105kg·[email protected] ) Stall current (at locked): ( 4.1A@6V ) / ( [email protected] ) / ( [email protected] ) Control Specification Control system:PWM (Pulse width modification) Pulse width range: 500~2500μsec Neutral position: 1500μsec Running degree: 180° or 270° (when 500~2500μsec) Dead band width: 3μsec Operating frequency: 50-330Hz Rotating direction: Counterlockwise (when 500~2500μsec) 150KG 12V RDS51150 Digital Metal Robotic Servo 180 degree / 270 Degree double-shaft Waterproof IP66 Electrical Specification Idle current (at stopped): ( 4mA@10V ) / ( 5mA@12V ) / ( [email protected] ) Operating speed (at no load): ( 0.24sec/60°@10V ) / ( 0.21sec/60°@12V ) / ( 0.19sec/60°@12.6V ) Stall torque (at locked): ( 150kg·cm@10V ) / ( 165kg·cm@12V ) / ( 173kg·[email protected] ) Stall current (at locked): ( 7.4A@10V ) / ( 8.0A@12V ) / ( [email protected] ) Control Specification Control system:PWM (Pulse width modification) Pulse width range: 500~2500μsec Neutral position: 1500μsec Running degree: 180° or 270° (when 500~2500μsec) Dead band width: 3μsec Operating frequency: 50-330Hz Rotating direction: Counterlockwise (when 500~2500μsec)
