JGY-370 Self-Locking Worm Gear Motor with M8 Screw Shaft, 6V/12V/24V, 1-375 RPM

Name: JGY-370 Self-Locking Worm Gear Motor with M8 Screw Shaft, 6V/12V/24V, 1-375 RPM
SKU: AE-1005006305789508-12000041728894132
Price: 21.43 CAD
Availability: InStock

$21.43

Est. delivery 7–18 days

Shipping calculated at checkout

In stock

Supplier stock is confirmed when your order is processed.

Option (78 available)

Quantity

Sold by: Polar Parts
Ships from: Our supplier partnersSupport from Milton, Ontario
Shipping: Canada only
Returns: 14 days, unopened items
Payment: Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

Brand Name	ZENG WHCD
Model Number	JGY-370
Type	Micro Motor
Use	Household Appliances
Certification	CCC
Certification	ce
Origin	Mainland China
Does it include wireless functionality?	No
Does it include a Battery?	No
Output Power	＜18.65
Continuous Current(A)	0.02A~0.18A
Output Power	1.6W~4.8W
Commutation	Brush
Protect Feature	Drip-proof
Construction	Permanent Magnet
Usage	Fan
Usage	Home Appliance
Efficiency	IE 1
Torque	25KG.CM

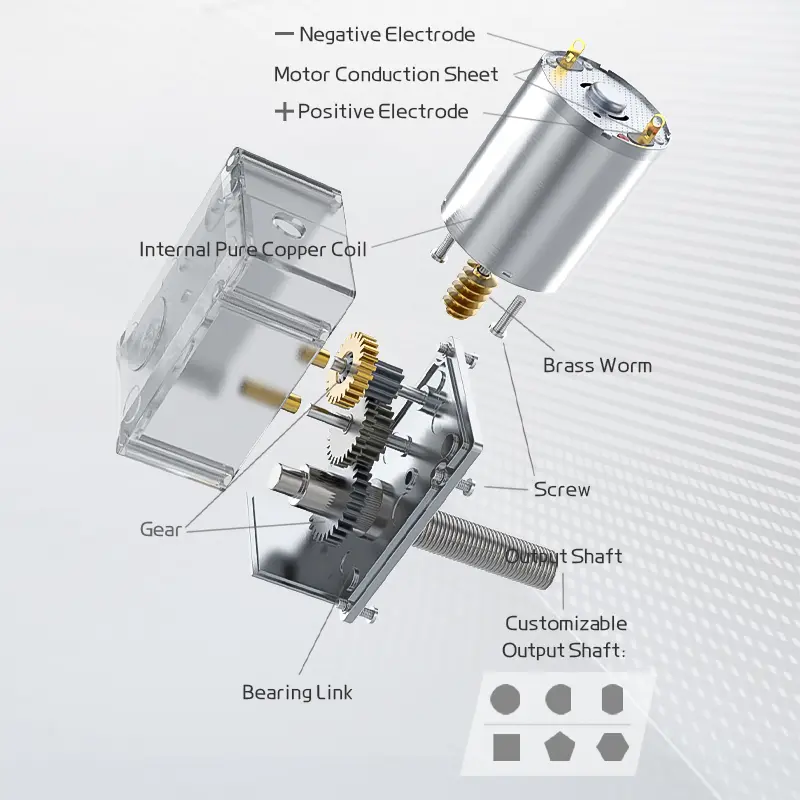

All Metal Gears	Increase Motor Torque, Corrosion Resistance, Not Easy To Rust, Durable, Fast Heat Dissipation
D Shape - Output Shaft	Increase The Force Friction, Make The Transmission More Stable And The Connection Is Fixed
High Quality Pure Copper Coil	Good Electrical Conductivity, Wear Resistance And Durability, High Temperature Resistance, Stable Speed
Powerful Motor	Forward And Reverse Rotation, Adjustable Speed
Customizable Shaft	Customizable Shaft
SKU	AE-1005006305789508-12000041728894132

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

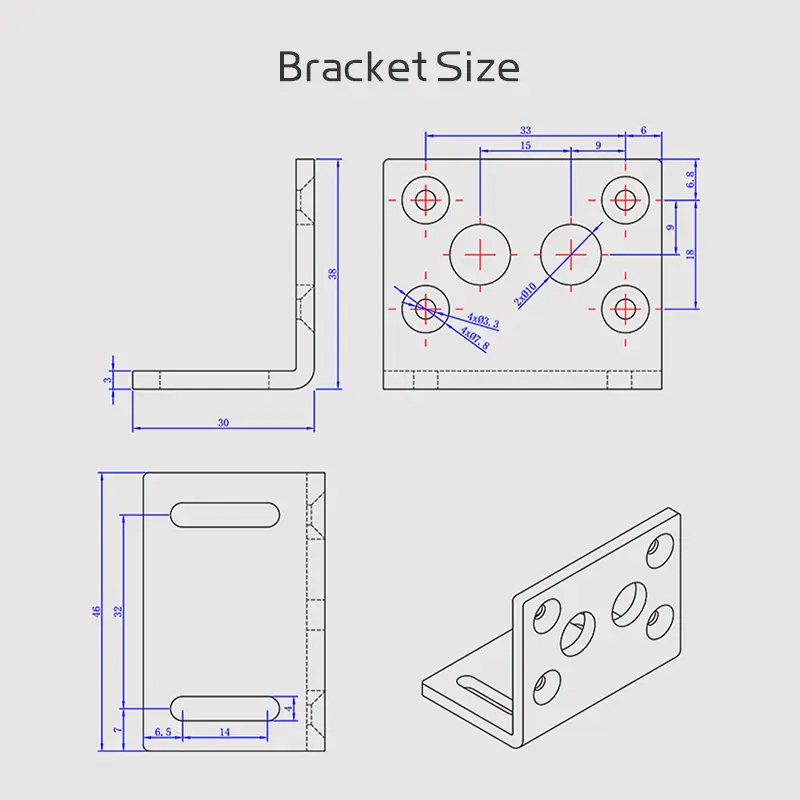

Small self-locking worm gear DC motor with an M8 threaded output shaft, reversible, sold with or without a mounting bracket.

【Factory Direct Sales/Source Factory】 We have a professional production team and professional advanced equipment to develop our own motors, which can be customized or mass produced. 【Quality】 Our professional equipment can make the quality and life of the motor very good, and we will never cut corners to save costs. The life of our motor can be longer than the life of ordinary motors. They will patiently answer any of your questions and reply to customers online 24 hours a day.
