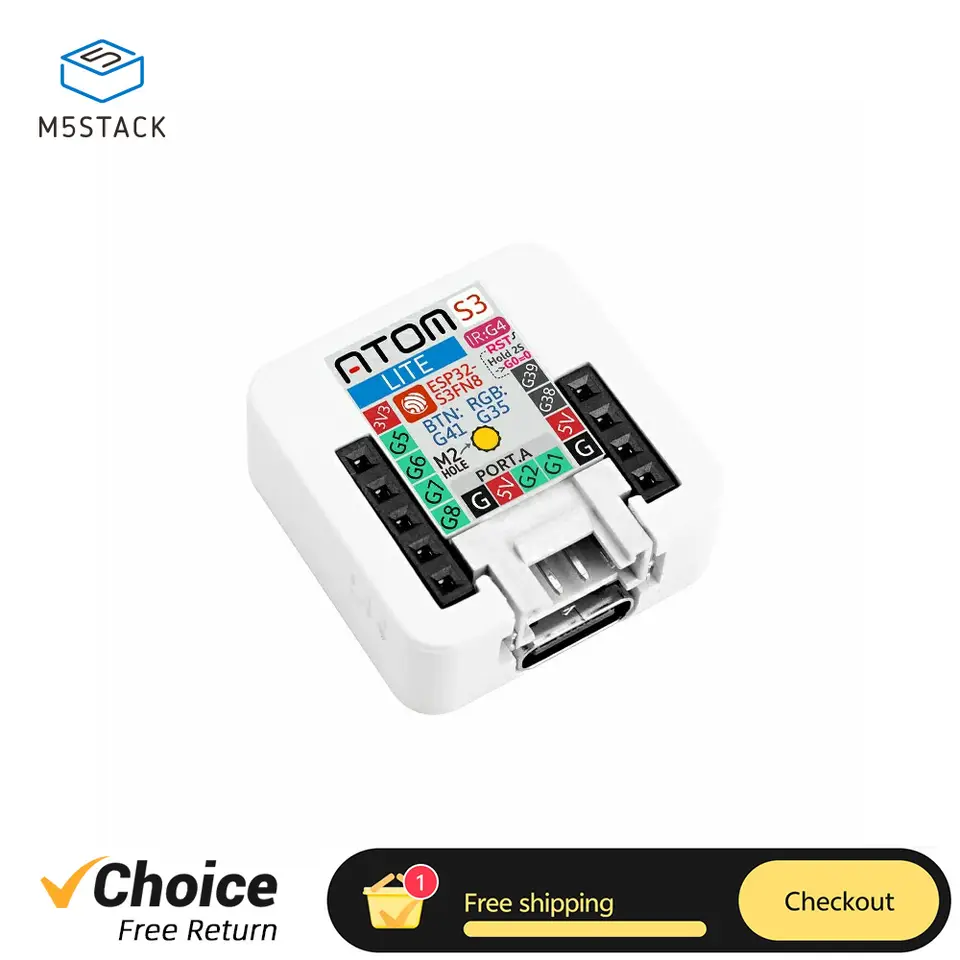

M5Stack AtomS3 Lite Atom Series ESP32-S3FN8 Programmable Controller 8M Memory Wi-Fi Development Kit For IoT Node image 1

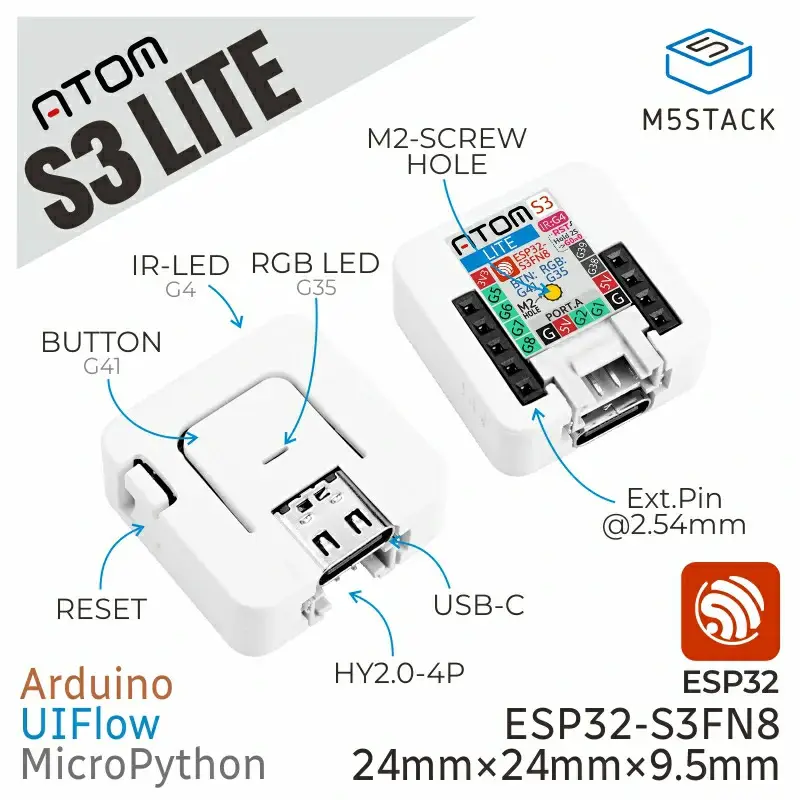

M5Stack AtomS3 Lite Atom Series ESP32-S3FN8 Programmable Controller 8M Memory Wi-Fi Development Kit For IoT Node image 2
M5Stack AtomS3 Lite Atom Series ESP32-S3FN8 Programmable Controller 8M Memory Wi-Fi Development Kit For IoT Node image 3
M5Stack AtomS3 Lite Atom Series ESP32-S3FN8 Programmable Controller 8M Memory Wi-Fi Development Kit For IoT Node image 4

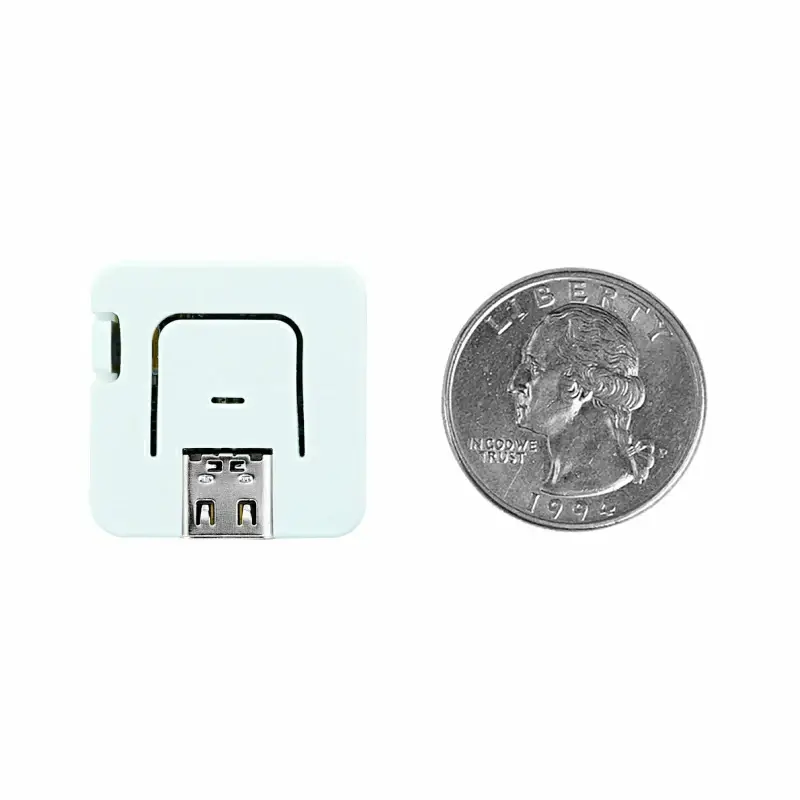

M5Stack AtomS3 Lite Atom Series ESP32-S3FN8 Programmable Controller 8M Memory Wi-Fi Development Kit For IoT Node image 5

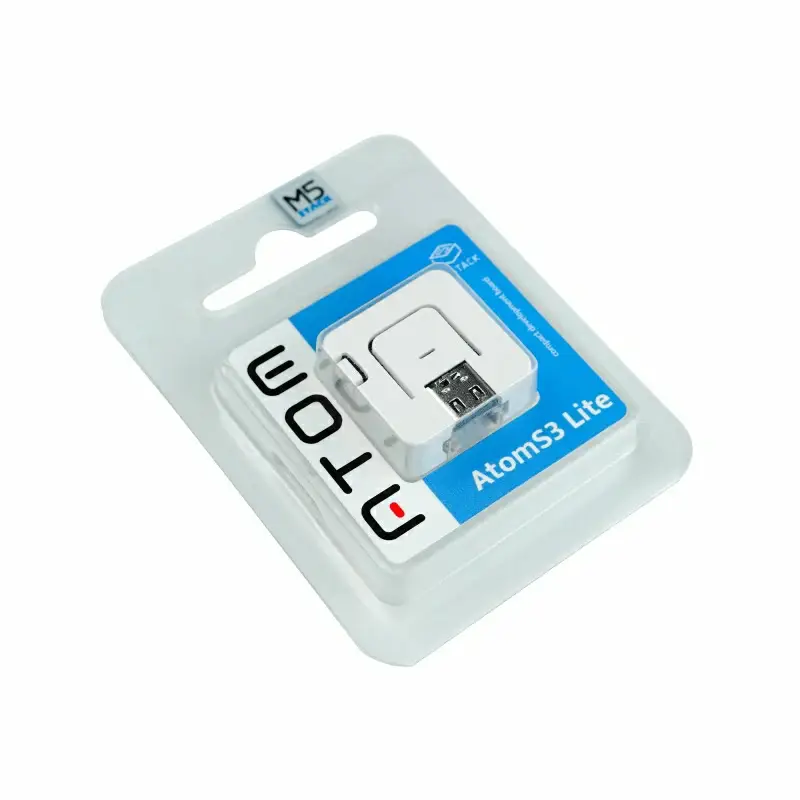

M5Stack AtomS3 Lite Atom Series ESP32-S3FN8 Programmable Controller 8M Memory Wi-Fi Development Kit For IoT Node image 6

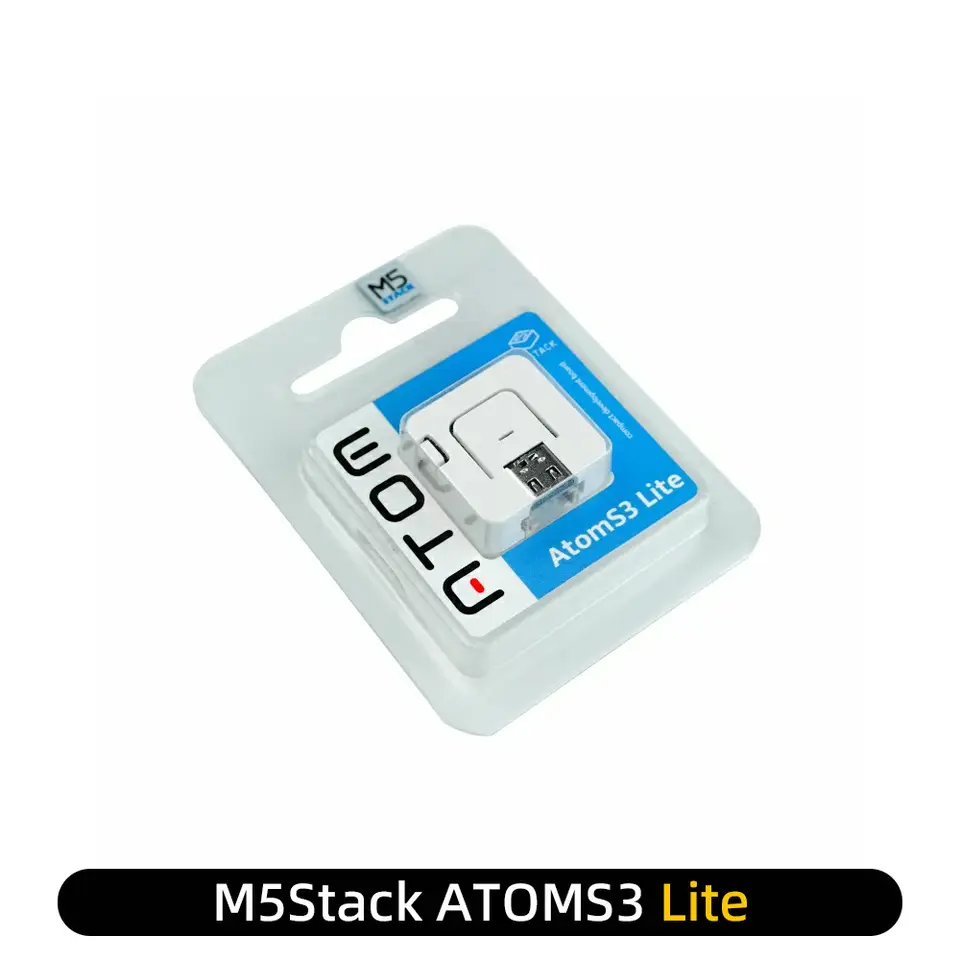

M5Stack AtomS3 Lite Atom Series ESP32-S3FN8 Programmable Controller 8M Memory Wi-Fi Development Kit For IoT Node image 7
Image 1 of 7

Brand: M5Stack

M5Stack AtomS3 Lite ESP32-S3FN8 Controller, 8MB Flash, Wi-Fi, IR Emitter, Grove Port

$24.40

Est. delivery 6–12 days

Shipping calculated at checkout

In stock

Supplier stock is confirmed when your order is processed.

Quantity
Sold by
Polar Parts
Ships from
Our supplier partnersSupport from Milton, Ontario
Shipping
Canada only
Returns
14 days, unopened items
Payment
Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

Typeothers
OriginMainland China
ModelAtomS3 Lite
BrandM5Stack
SeriesAtom Series
SKUAE-1005009960258652-12000050697563490

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

A 24mm-square ESP32-S3 controller with Wi-Fi, an RGB LED, IR emitter, button and Grove port for IoT nodes and wearables.

M5Stack AtomS3 Lite Programmable Controller Product Features Developed based on ESP32-S3FN8 Comes with USB download function Programmable button Infrared emission function Expandable pins and interfaces Development platform: Arduino, UIFlow Applications IoT node Microcontroller Wearables Package Includes 1x AtomS3 Lite Specification Resources Parameters MCU: ESP32-S3FN8 RGB: WS2812C-2020 DCDC: SY8089 Operating temperature: 0°C ~ 40°C Supply voltage: 5V Power supply mode: TYPE C Output voltage: 3.3V IO interface × 6: G5/G6/G7/G8/G38/G39 Product Size: 24mm × 24mm ×9.5mm Package Size: 65mm × 44.5mm × 14mm Product Weight: 5.3g Package Weight: 9.5g Product details Schematic Module Size AtomS3 Arduino Example Product Description ATOMS3 Lite is an Atom Series Programmable Controllerin the M5Stack Development Kit series using ESP32-S3 as the main control, its size is only 24*24*9.5mm, the main control adopts theESP32-S3FN8 scheme, with 8MB SPI flash memory, integrated Wi-Fifunction, built-in 3D antenna, 5V to 3.3V power circuit, providing infrared emitting light, RGBStatus Indicators, Button and GROVE/HY2.0-4P interfaces. The bottom of the product is equipped with apower supply and 6 GPIO headers to facilitate expansion applications. The on-board Type-C interface can realize program download and serial port communication functions; An M2 screw hole is provided on the back for fixing. Suitable for all kinds of embedded smart device applications. Download Mode Press and hold the reset button (about 2 seconds) until the internal green LED lights up, then release the firmware. At this time, the device has entered download mode, waiting for burning.
