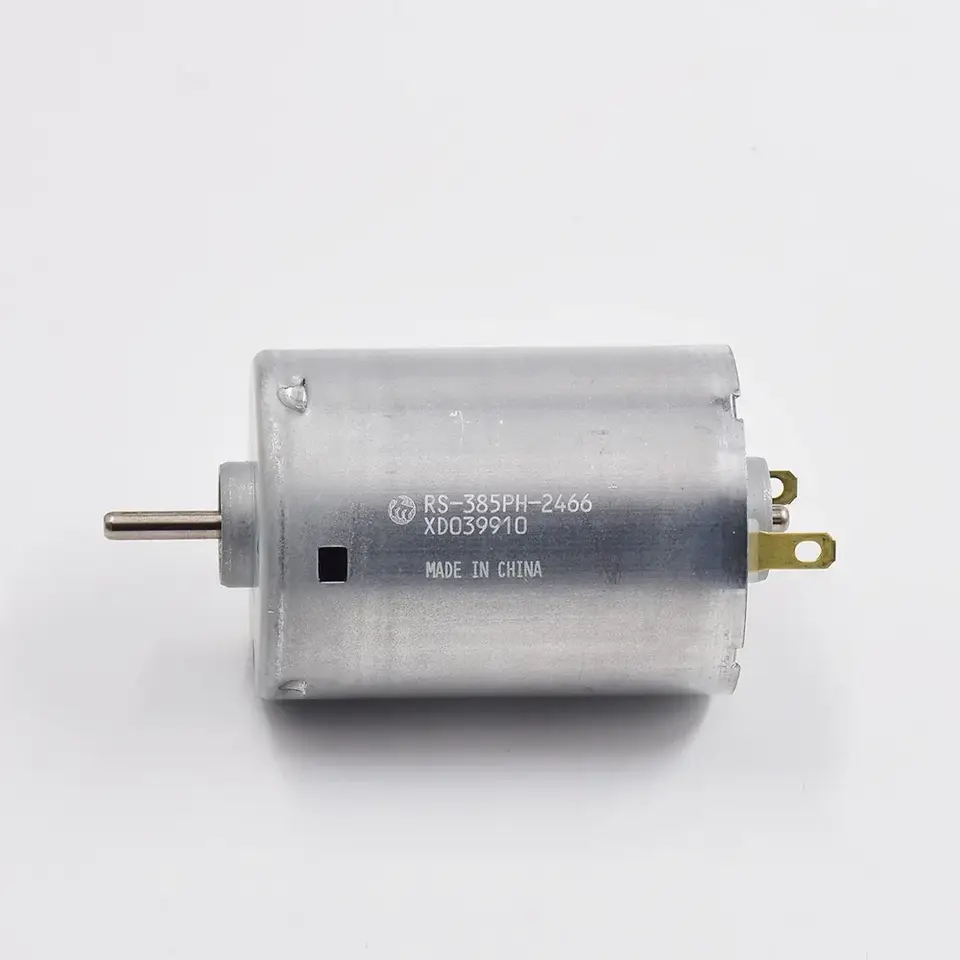

MABUCHI RS-385PH-2466 DC 12V-24V 18100RPM High Speed Mini 385 Motor Carbon Brush Micro 27.5mm Electric Motor DIY Home Appliances image 1

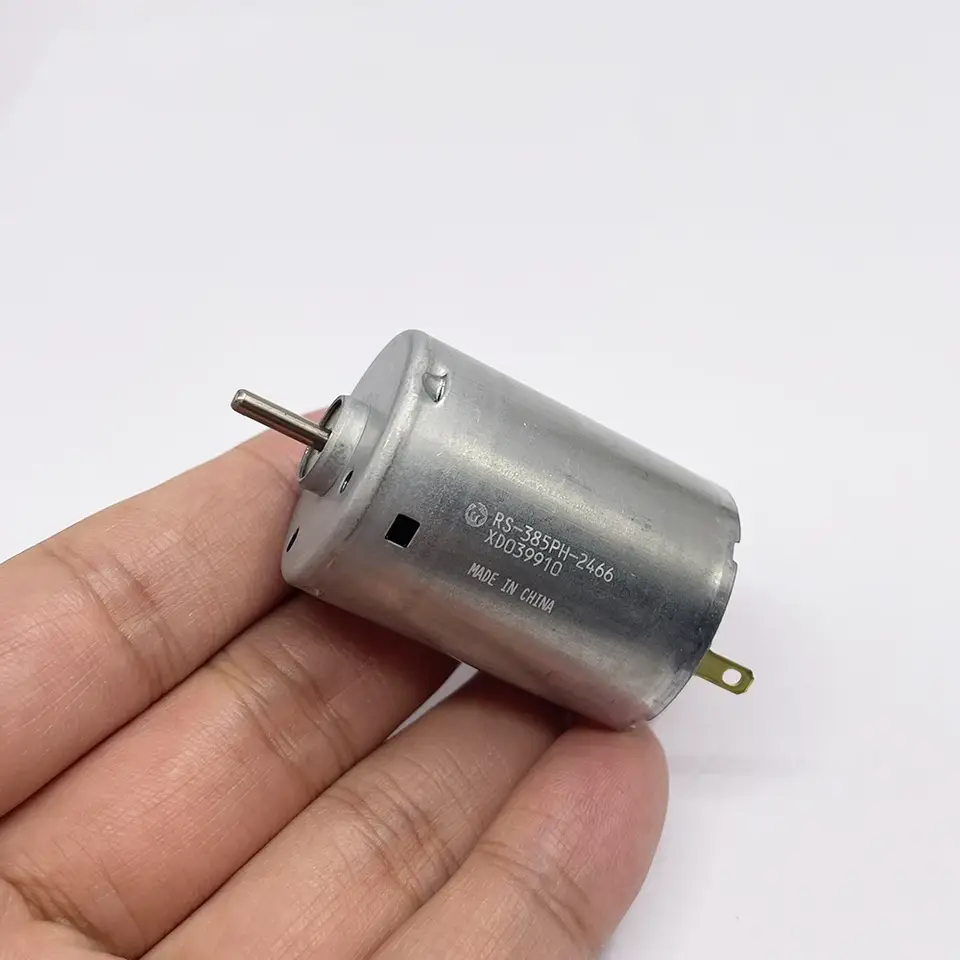

MABUCHI RS-385PH-2466 DC 12V-24V 18100RPM High Speed Mini 385 Motor Carbon Brush Micro 27.5mm Electric Motor DIY Home Appliances image 2

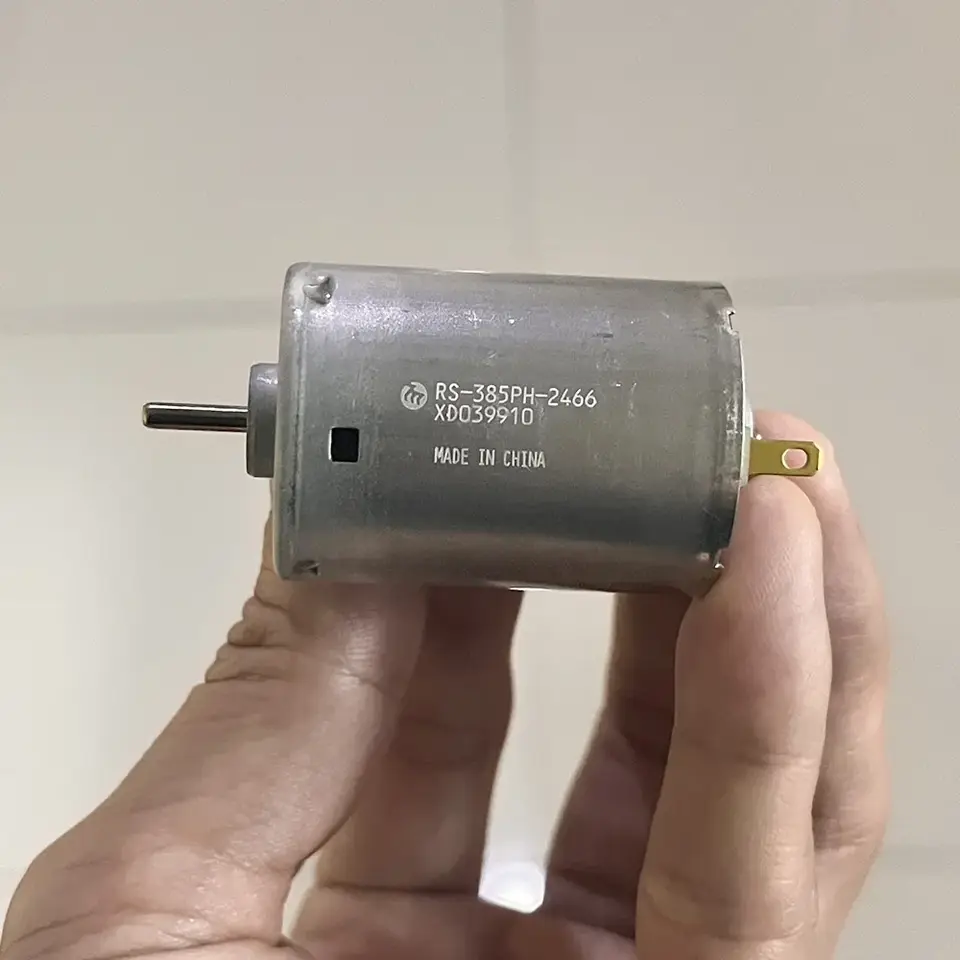

MABUCHI RS-385PH-2466 DC 12V-24V 18100RPM High Speed Mini 385 Motor Carbon Brush Micro 27.5mm Electric Motor DIY Home Appliances image 3

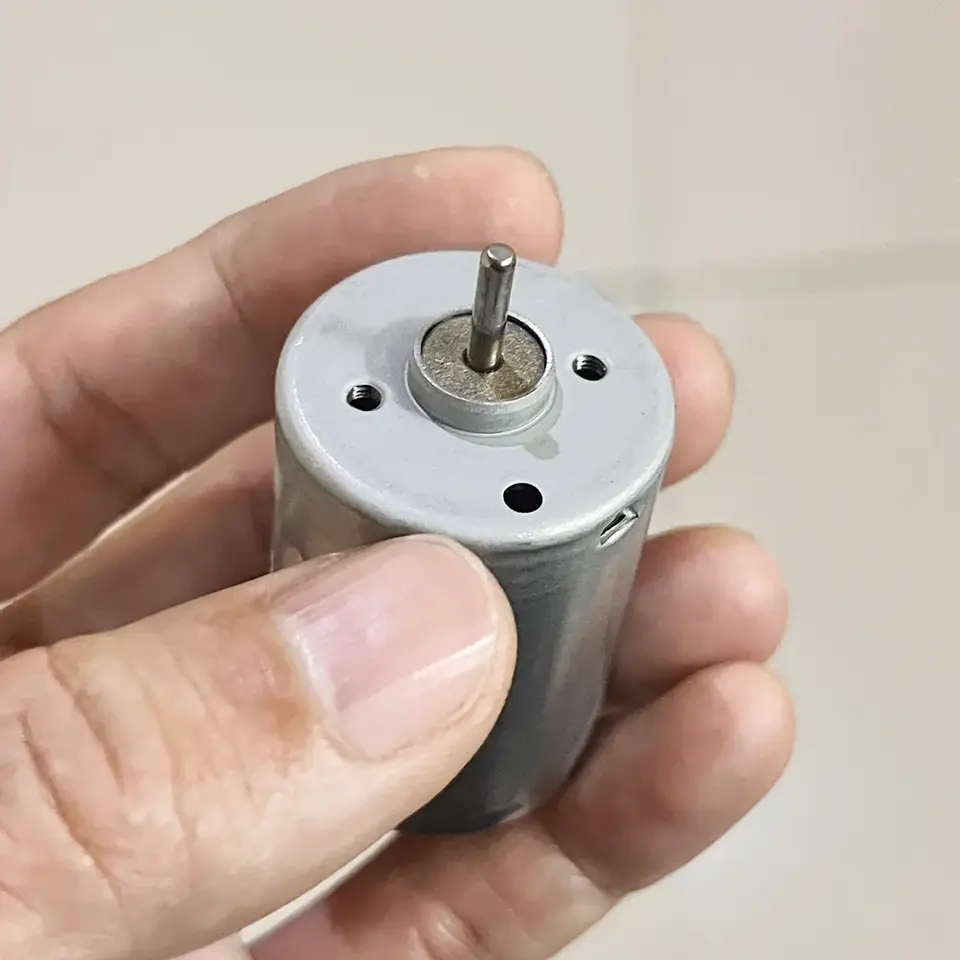

MABUCHI RS-385PH-2466 DC 12V-24V 18100RPM High Speed Mini 385 Motor Carbon Brush Micro 27.5mm Electric Motor DIY Home Appliances image 4

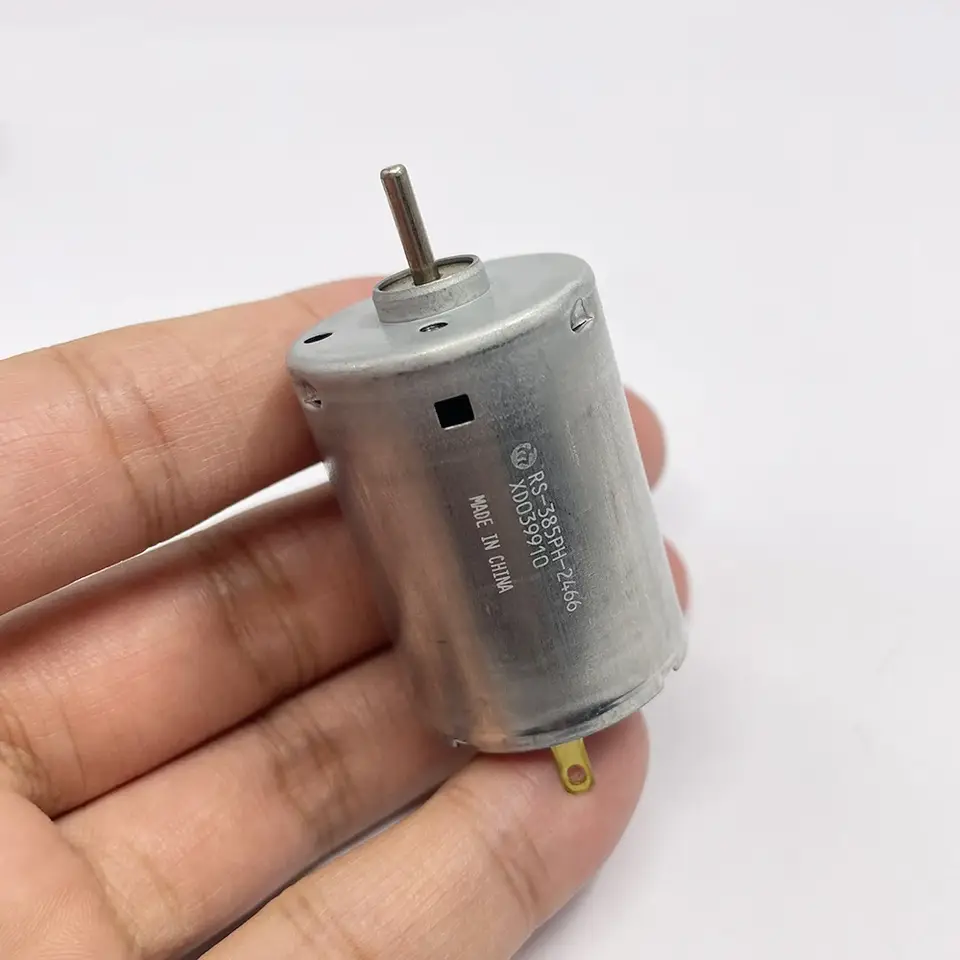

MABUCHI RS-385PH-2466 DC 12V-24V 18100RPM High Speed Mini 385 Motor Carbon Brush Micro 27.5mm Electric Motor DIY Home Appliances image 5

MABUCHI RS-385PH-2466 DC 12V-24V 18100RPM High Speed Mini 385 Motor Carbon Brush Micro 27.5mm Electric Motor DIY Home Appliances image 6

Brand: Mabuchi

Mabuchi RS-385PH-2466 385 Brushed DC Motor, 18100 RPM at 24V, 2.3mm Shaft

Name: Mabuchi RS-385PH-2466 385 Brushed DC Motor, 18100 RPM at 24V, 2.3mm Shaft
Brand: Mabuchi
SKU: AE-1005009348325557-12000048828756812
Price: 9.41 CAD
Availability: InStock

$9.41

Est. delivery 7–18 days

Est. $2.87 shipping to Canada. Exact cost at checkout

In stock

Supplier stock is confirmed when your order is processed.

Quantity

Sold by: Polar Parts
Ships from: Our supplier partnersSupport from Milton, Ontario
Shipping: Canada only
Returns: 14 days, unopened items
Payment: Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

Model Number	RS-385PH-2466
Type	Micro Motor
Use	Home Appliance
Origin	Mainland China
Output Power	＜18.65
Commutation	Brush
Construction	Permanent Magnet
Efficiency	IE 1
Model	RS-385PH-2466
Shaft Diameter	2.3mm
Brand	Mabuchi
Actual Rated Input Voltage	12V-24V
Shaft Type	Straight
Country/Region of Manufacture	China
Current Type	DC
Special Motor Construction	Spindle Motor
Nominal Rated Input Voltage	6 V, 9 V, 12 V, 24 V
Does it include wireless functionality?	No
SKU	AE-1005009348325557-12000048828756812

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

Mabuchi 385-size carbon-brush DC motor for DIY builds and small home appliances.

Specification: 1.Brand: MABUCHI MOTOR 2.Model: RS-385PH-2466 3.Motor size: 37.3mm*27.6mm 4.Output shaft diameter: 2.3mm 5.Output shaft length: 11.5mm 6.Weight: about 80g 7.Voltage range: DC 6V-24V 8.Test data: Voltage:12V Current:140mA No-load speed:9000RPM Voltage:18V Current:160mA No-load speed:13600RPM Voltage:24V Current:190mA No-load speed:18100RPM Package Include: Motor x 1pc
