Brand: Usongshine

Usongshine Microstep Stepper Motor Driver, TB6600, DM542, DM556, DM860 or DM860H, for 42/57/86 Motors

$14.98

Est. delivery 7–16 days

Est. $2.88 shipping to Canada. Exact cost at checkout

In stock

Supplier stock is confirmed when your order is processed.

Option: TB6600
Quantity
Sold by
Polar Parts
Ships from
Our supplier partnersSupport from Milton, Ontario
Shipping
Canada only
Returns
14 days, unopened items
Payment
Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

Model NumberDriver
CertificationCE
OriginMainland China
MotorStepper Motor
Does it include wireless functionality?No
Does it include a Battery?No
Power SupplyDC
Colorblack

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

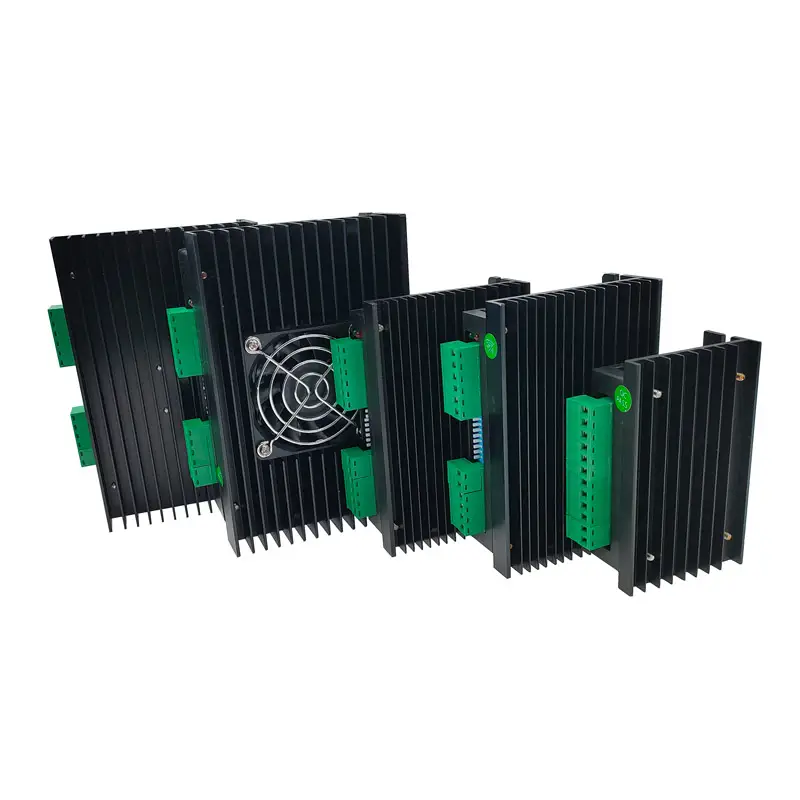

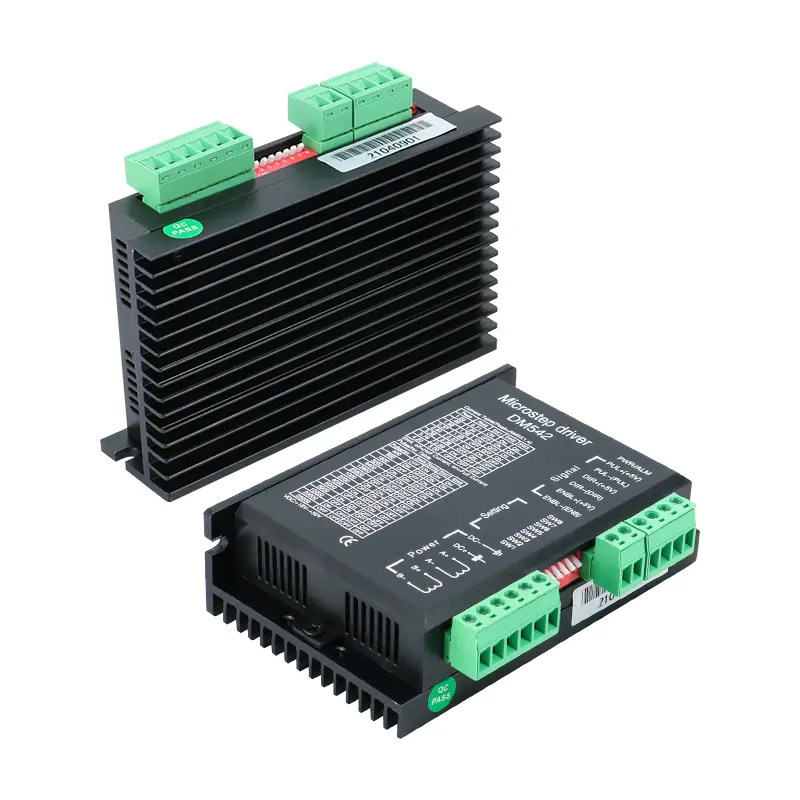

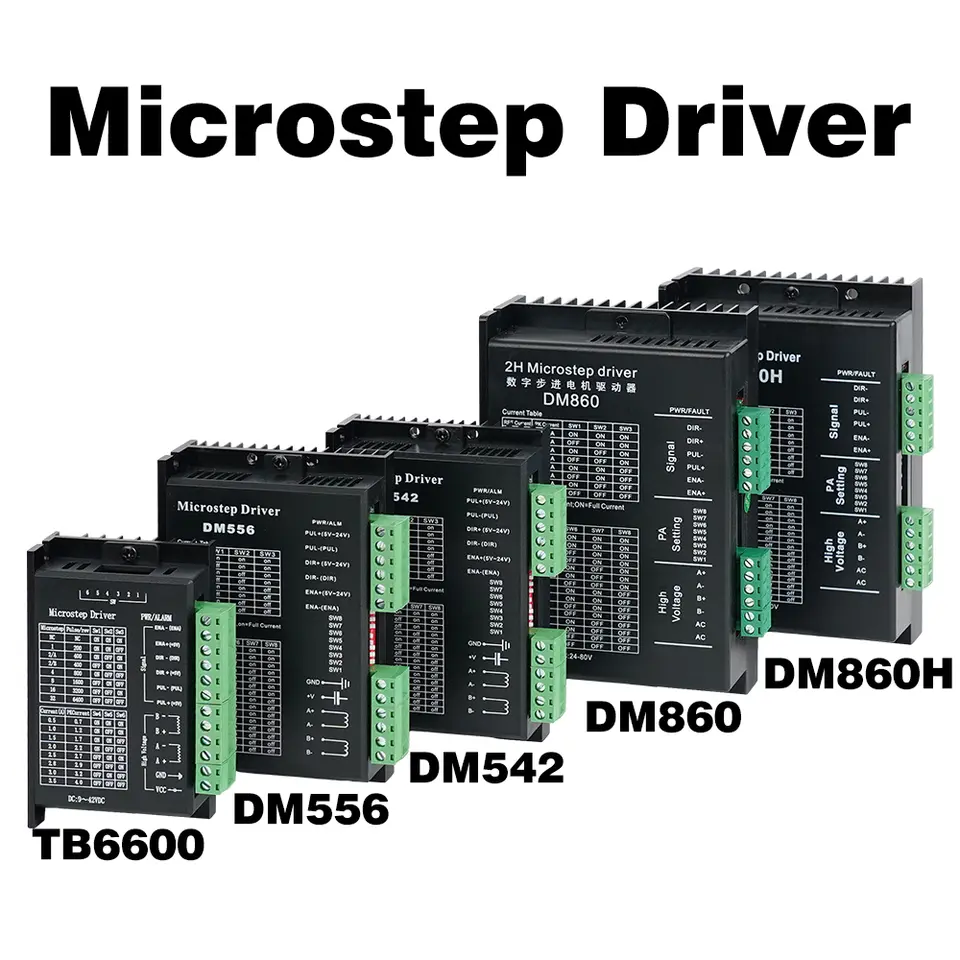

Microstep driver for stepper motors, offered as TB6600, DM542, DM556, DM860 or DM860H for 42, 57 and 86 size motors.

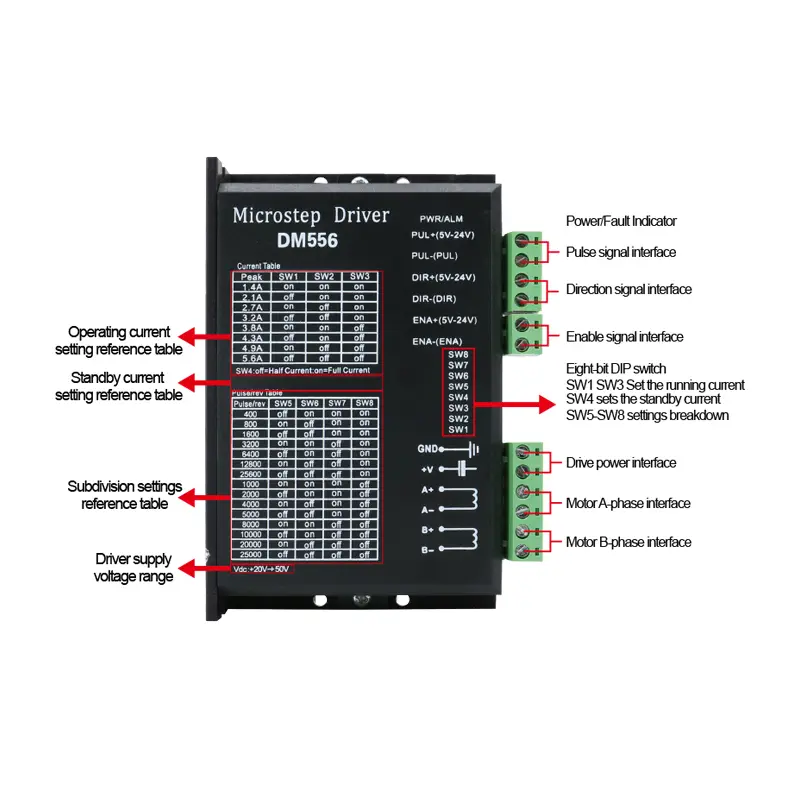

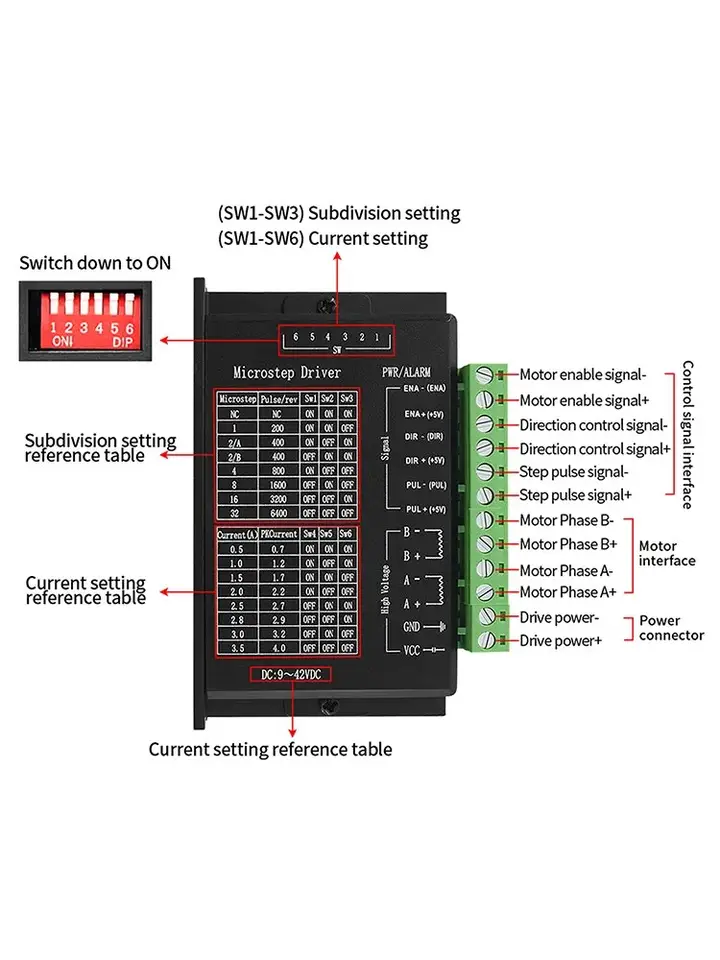

Microstep Driver TB6600 DM542 DM556 DM860 DM860H Driver Cintroller Microstep Motor Brushless Shell For 42/57/86 Nema17 Nema23 TB6600 Current：0.5-3.5A Microstep：1-32 Cooling method：Free cooling or forced air cooling Occasion：Can not be placed next to other heatingequipment, to avoid dust, oil, corrosive gas high humidity and strong eathquake placesprohibit Humidity：40-90%RH Shock：10-55Hz/0.15mm Storagtemperature：-20-65℃ DM542 Input current：24-50V DC power supply, capacity not less than200VA. Typical value : DC36V Output current：1.0A-4.2A. 8 gears adjustable,Resolving power 0.5A Drive mode：Double constant current PWM drive output Insulation resistance：Normal pressure and temperature > 500MΩ Insulation strength：Normal pressure and temperature 500V / min Cooling method：Natural cooling Use occasio： Avoid dust, oil mist and corrosive gases Use temperature：0°C ~ +50°C Ambient humidity： Shake: Maximum not more than 5.7m/s DM556 Input current：18-48V DC power supply, capacity not less than200VA. Typical value : DC36V Output current：1.0A-5.6A. 8 gears adjustable,Resolving power 0.5A Drive mode：Double constant current PWM drive output Insulation resistance：Normal pressure and temperature > 500MΩ Insulation strength：Normal pressure and temperature 500V / min Cooling method：Natural cooling Use occasio： Avoid dust, oil mist and corrosive gases Use temperature：0°C ~ +50°C Ambient humidity： Shake: Maximum not more than 5.7m/s DM860 Input current：24-80V DC power supply, capacity not less than200VA. Typical value : DC36V Output current：2.4A-7.2A. 8 gears adjustable,Resolving power 0.5A Drive mode：Double constant current PWM drive output Insulation resistance：Normal pressure and temperature > 500MΩ Insulation strength：Normal pressure and temperature 500V / min Cooling method：Natural cooling Use occasio： Avoid dust, oil mist and corrosive gases Use temperature：0°C ~ +50°C Ambient humidity： Shake: Maximum not more than 5.7m/s DM860H With Fan
