Mini Lead Screw Linear Stepper Actuator, 2-Phase 4-Wire, 15/20mm Motor, 35-80mm Stroke

Name: Mini Lead Screw Linear Stepper Actuator, 2-Phase 4-Wire, 15/20mm Motor, 35-80mm Stroke
SKU: AE-1005006040414647-12000035444545659
Price: 26.76 CAD
Availability: InStock

$26.76

Est. delivery 8–22 days

Est. $8.97 shipping to Canada. Exact cost at checkout

In stock

Supplier stock is confirmed when your order is processed.

Option: C 80mm Stroke

C 80mm Stroke$26.76B 55mm Stroke$40.40A 35mm Stroke$32.23

Quantity

Sold by: Polar Parts
Ships from: Our supplier partnersSupport from Milton, Ontario
Shipping: Canada only
Returns: 14 days, unopened items
Payment: Secure checkout

Add to cart as a guest. You'll sign in at checkout, before payment.

Specifications

Model Number	2-phase stepper motor
Type	Permanent Magnet
Condition	New
Certification	ROHS
Origin	Mainland China
Phase	2
SKU	AE-1005006040414647-12000035444545659

About this item

Description provided by the supplier. Our shipping, returns and support terms apply.

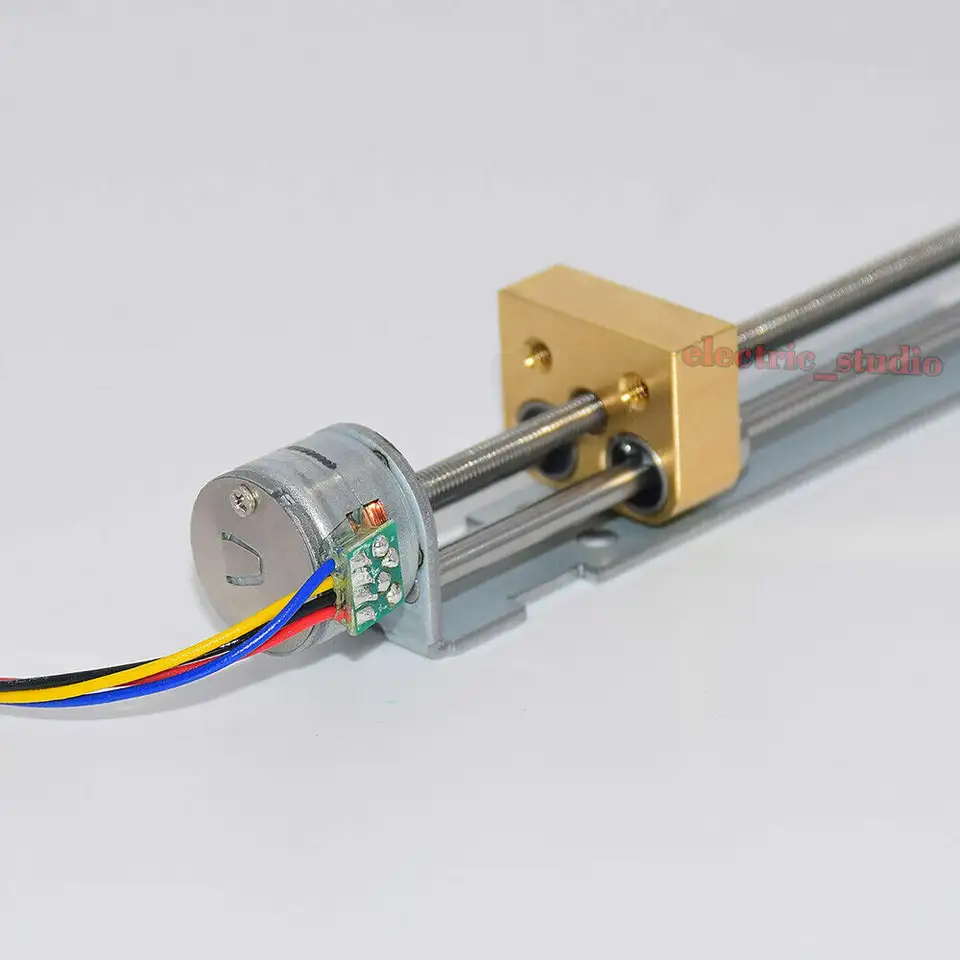

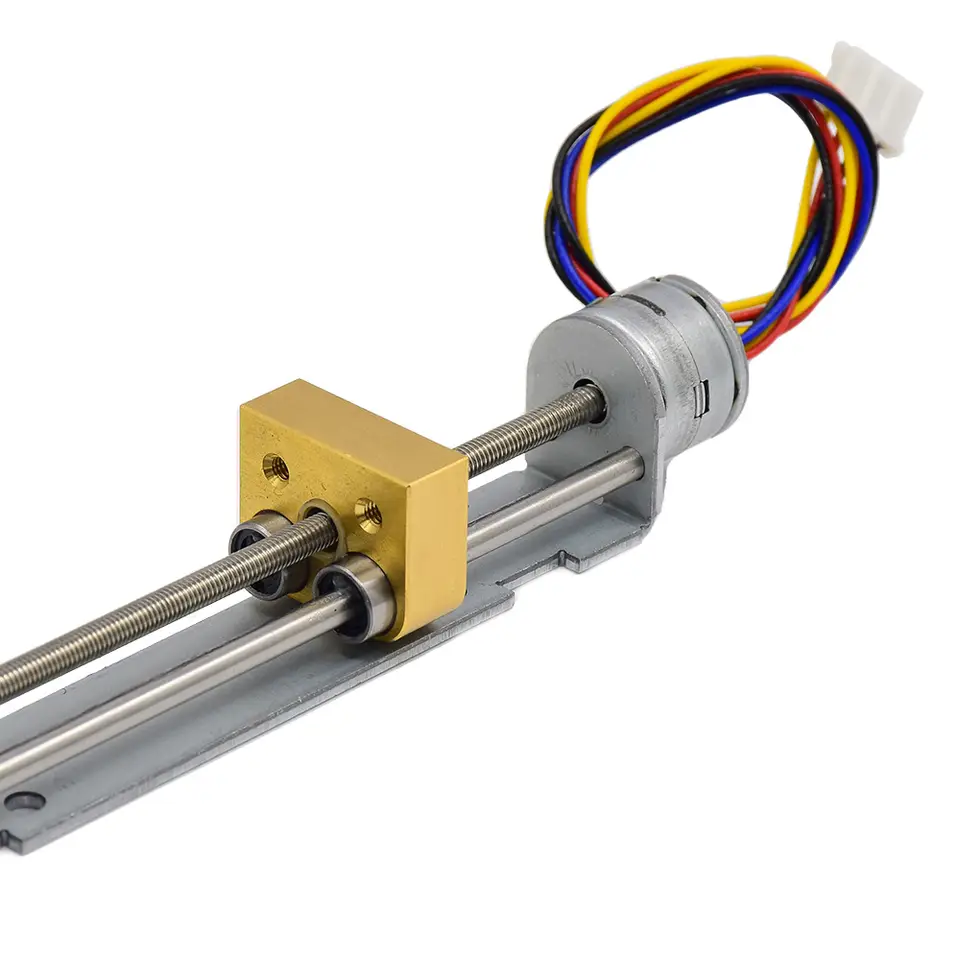

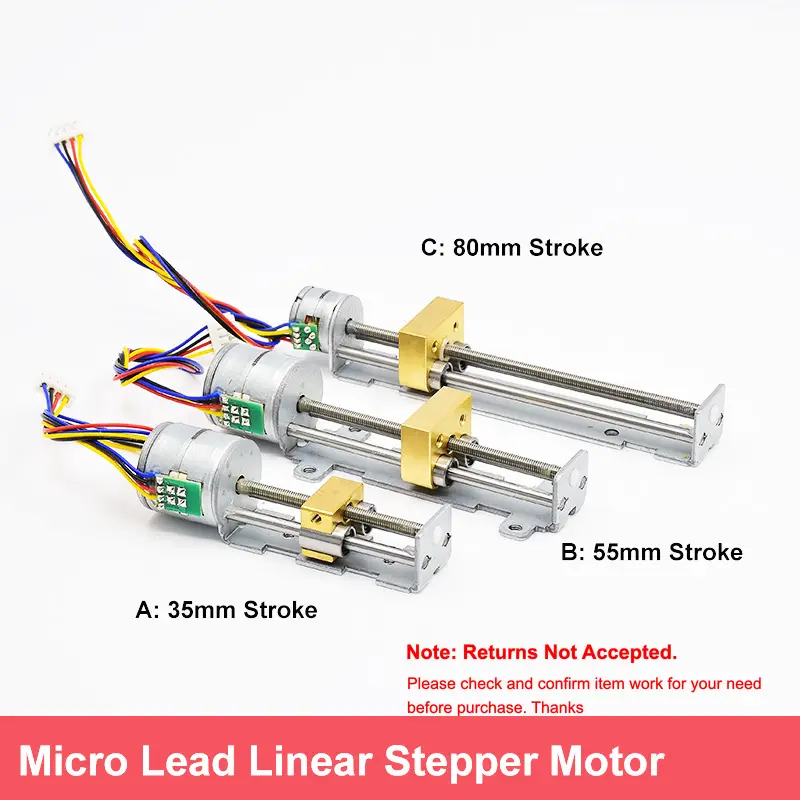

Small 2-phase stepper motor with a lead screw and slider for short linear moves, in 35, 55 or 80mm stroke.

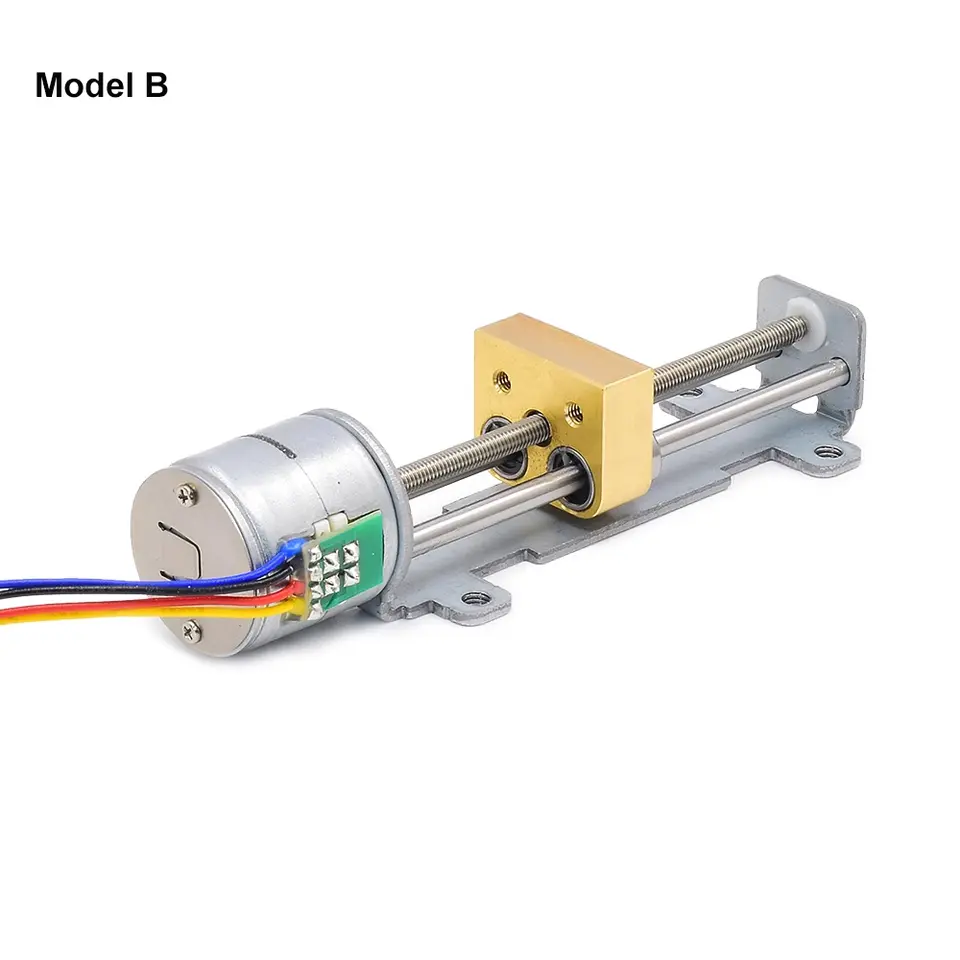

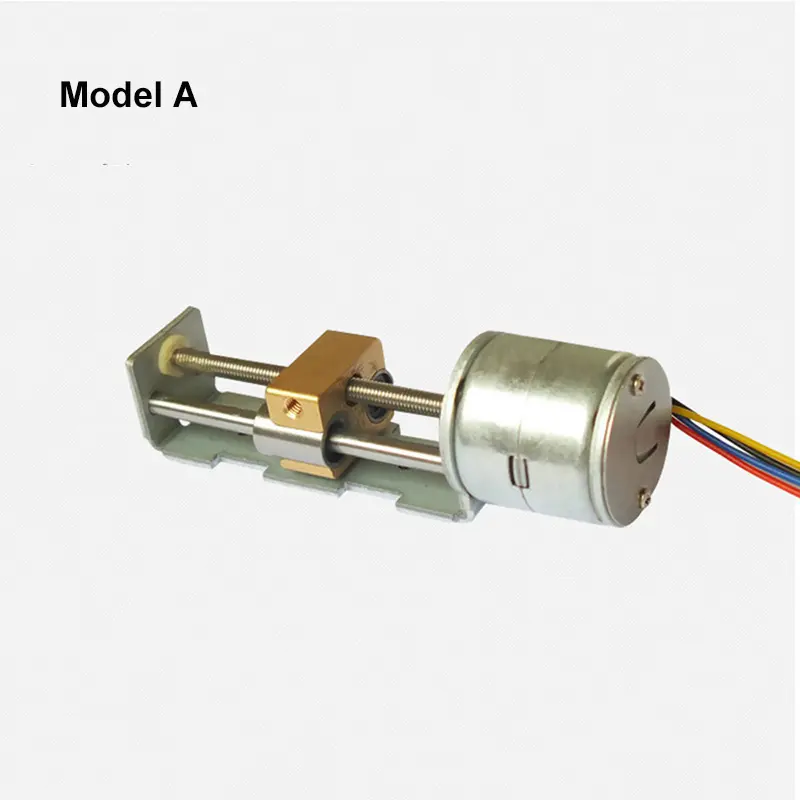

Specification: Model A Rated Voltage: DC12V Resistance:20Ω Current:0.6A Motor diameter: 20mm Length of screw rod: 45mm Slide stroke: 35mm Screw thread pitch: Screw diameter: Motor diameter: 20mm Phase Resistance: 20 Ohms Yellow A+,Blue A-, black B+,red B- Model B Driving voltage: DC12V/ 0.6A Motor diameter: 20mm Length of screw rod: 65mm Slide stroke: 55mm Screw thread pitch: 0.5mm Screw diameter: 3mm Motor diameter: 20mm Phase Resistance: 20 Ohms Blue A-,black B,red B-, yellow A Thrust: 1.2kg Model C Driving voltage: DC 4V-9V/100-500mA 2-phase 4-wire Motor diameter: 15mm Length of screw rod: 90mm Slide stroke: 80mm Screw thread pitch: 0.5mm Screw diameter: 3mm Motor diameter: 15mm Phase Resistance: 15.5 Ohms Blue A+ black A- red B+ yellow B- Package Include: Mini Long Screw Stepper Motor x 1pc
